Yamaha BANSHEE Manuel utilisateur

OWNER’S MANUAL

READ THIS MANUAL CAREFULLY!

It contains important safety information.

LIT-11626-18-04 5FK-28199-17

This ATV should not be ridden by anyone under 16 years of age.

YFZ350T

PRINTED IN JAPAN

2004.3-1.1x1 !

(E)

Improper ATV use can result in SEVERE INJURY or DEATH.

qWARNING

ALWAYS USE

AN APPROVED

HELMET AND

PROTECTIVE GEAR

NEVER USE

ON PUBLIC

ROADS

NEVER CARRY

PASSENGERS

NEVER USE

WITH DRUGS

OR ALCOHOL

NEVER operate:

9without proper training or instruction.

9at speeds too fast for your skills or the

conditions.

on public roads - a collision can occur with

another vehicle.

9with a passenger - passengers affect

balance and steering and increase risk

of losing control.

ALWAYS:

9use proper riding techniques to avoid

vehicle overturns on hills and rough

terrain and in turns.

9avoid paved surfaces - pavement may

seriously affect handling and control.

EBU00438

LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

(For replacement manual, call 1-800-532-1558)

YAMAHA MOTOR CO., LTD.

PRINTED ON RECYCLED PAPER

5FK-9-17 hyoshi 10/3/04 11:27 PM Page 1

5FK-9-17 hyoshi 10/3/04 11:27 PM Page 2

EBU13320

INTRODUCTION

Congratulations on your purchase of the Yamaha YFZ350. It represents the result of many years

of Yamaha experience in the production of fine sporting, touring, and pacesetting racing

machines. With the purchase of this Yamaha, you can now appreciate the high degree of crafts-

manship and reliability that have made Yamaha a leader in these fields.

This manual will provide you with a good basic understanding of the features and operation of this

ATV. This manual includes important safety information. It provides information about spe-

cial techniques and skills necessary to ride your ATV. It also includes basic maintenance and

inspection procedures.If you have any questions regarding the operation or maintenance of your

ATV, please consult a Yamaha dealer.

AN IMPORTANT SAFETY MESSAGE:

8READ THIS MANUAL TOGETHER WITH TIPS FOR THE ATV RIDER CAREFULLY AND

COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDERSTAND ALL

INSTRUCTIONS.

8PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.

8NEVER OPERATE AN ATV WITHOUT PROPER TRAINING OR INSTRUCTION. FREE

TRAINING IS AVAILABLE TO ANYONE WHO BUYS A NEW ATV. CALL 1-800-887-2887 FOR

MORE INFORMATION.

8THIS ATV, AND ANY OTHER ATV OVER 90cc, SHOULD NOT BE RIDDEN BY ANYONE

UNDER 16 YEARS OF AGE.

8THIS ATV IS A HIGH PERFORMANCE ATV FOR OFF-ROAD USE ONLY, FOR SPORT TYPE

RECREATIONAL AND COMPETITIVE USE BY EXPERIENCED OPERATORS.

5FK-9-17-01 3/3/04 10:13 PM Page 1

EBU00801

IMPORTANT MANUAL INFORMATION

FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN

SERIOUS INJURY OR DEATH.

Particularly important information is distinguished in this manual by the following notations:

QThe Safety Alert Symbol means ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

wFailure to follow WARNING instructions could result in severe injury or death

to the machine operator, a bystander or a person inspecting or repairing the

machine.

cCA CAUTION indicates special precautions that must be taken to avoid

damage to the machine.

NOTE: A NOTE provides key information to make procedures easier or clearer.

5FK-9-17-01 3/3/04 10:13 PM Page 2

EBU15000

IMPORTANT NOTICE

This ATV is designed and manufactured for OFF-ROAD use only. It is illegal and unsafe to oper-

ate this ATV on any public street, road or highway.

This ATV complies with all applicable OFF-ROAD noise level and spark arrester laws and regula-

tions in effect at the time of manufacture.

Please check your local riding laws and regulations before operating this ATV.

AFFIX DEALER

LABEL HERE

EBU13330

YFZ350T

OWNER’S MANUAL

U.S.A.

1st edition, March 2004

Any reprinting or unauthorized use

without the written permission

of Yamaha Motor Corporation, U.S.A.

is expressly prohibited.

Printed in Japan.

P/N LIT-11626-18-04

5FK-9-17-01 3/3/04 10:13 PM Page 3

LOCATION OF THE WARNING AND

SPECIFICATION LABELS....................1-1

SAFETY INFORMATION......................2-1

DESCRIPTION AND MACHINE

IDENTIFICATION .................................3-1

Identification number records............3-2

Key identification number..................3-2

Vehicle identification number ............3-3

Model label........................................3-3

CONTROL FUNCTIONS ......................4-1

Main switch........................................4-1

Handlebar switches...........................4-2

Throttle lever .....................................4-3

Throttle OverRide System.................4-4

Speed limiter .....................................4-4

Clutch lever .......................................4-6

Front brake lever ...............................4-6

Brake pedal .......................................4-7

Parking brake ....................................4-7

Shift pedal .........................................4-9

Kick starter ........................................4-9

Fuel tank cap...................................4-10

Fuel cock.........................................4-10

Starter (choke).................................4-11

EBU00014

Indicates a potential hazard that could

result in serious injury or death.

CONTENTS

5FK-9-17-01 3/3/04 10:13 PM Page 4

Seat.................................................4-12

Front shock absorber

adjustment.....................................4-13

Rear shock absorber

adjustment.....................................4-14

PRE-OPERATION CHECKS ................5-1

Front and rear brakes........................5-3

Fuel ...................................................5-5

Engine mixing oil ...............................5-6

Transmission oil ................................5-7

Chain.................................................5-7

Throttle lever .....................................5-7

Fittings and fasteners........................5-8

Lights.................................................5-8

Switches............................................5-8

Tires ..................................................5-9

How to measure tire pressure .........5-10

Tire wear limit ..................................5-11

OPERATION .........................................6-1

Starting a cold engine........................6-1

Starting a warm engine .....................6-3

Warming up .......................................6-3

Shifting ..............................................6-4

To start out and accelerate................6-5

To decelerate.....................................6-6

Engine break-in .................................6-7

Parking ..............................................6-8

Parking on a slope ............................6-9

Accessories and loading .................6-10

Riding Your ATV....................................7-1

Getting to know your ATV ..................7-3

Ride with care and good

judgement .......................................7-4

Be careful where you ride ...............7-16

Turning your ATV ............................7-23

Climbing uphill.................................7-25

Riding downhill ................................7-30

5FK-9-17-01 3/3/04 10:13 PM Page 5

Crossing a slope .............................7-32

Crossing through shallow water ......7-34

Riding over rough terrain.................7-36

Sliding and skidding ........................7-38

What to do if... ................................7-40

What to do... ...................................7-40

PERIODIC MAINTENANCE AND

ADJUSTMENT......................................8-1

Owner’s manual and tool kit..............8-1

Periodic maintenance/Lubrication .....8-3

Transmission oil ................................8-6

Cooling system..................................8-8

Spark plug inspection......................8-13

Air filter element cleaning................8-14

Spark arrester cleaning ...................8-17

Carburetor settings..........................8-19

Idle speed adjustment .....................8-26

Throttle lever adjustment.................8-28

Front and rear brake pad

inspection ......................................8-29

Brake fluid level check ....................8-30

Brake fluid replacement ..................8-31

Front brake lever free play ..............8-32

Brake pedal height adjustment........8-33

Parking brake adjustment ...............8-34

Adjusting the rear brake light

switch ............................................8-36

Clutch adjustment ...........................8-36

Drive chain slack check...................8-37

Drive chain slack adjustment ..........8-37

Lubricating the drive chain ..............8-38

Cable inspection and lubrication .....8-39

Brake and shift pedal/brake and

clutch lever lubrication...................8-40

Lubricating the front upper and

lower arm pivots ............................8-40

Rear arm pivot lubrication ...............8-41

Wheel removal ................................8-42

Wheel installation ............................8-42

Replacing the headlight bulb...........8-43

Headlight beam adjustment ............8-45

5FK-9-17-01 3/3/04 10:13 PM Page 6

Tail/brake light bulb replacement.....8-46

Troubleshooting...............................8-47

Troubleshooting chart......................8-48

No spark..........................................8-51

CLEANING AND STORAGE ................9-1

A. Cleaning........................................9-1

B. Storage .........................................9-3

SPECIFICATIONS ..............................10-1

NOISE REGULATION.........................11-1

MAINTENANCE RECORD.................12-1

ATV LIMITED WARRANTY ................13-1

5FK-9-17-01 3/3/04 10:13 PM Page 7

Read and understand all of the labels on your

machine. They contain important information

for safe and proper operation of your ATV.

Never remove any labels from your ATV. If a

label becomes difficult to read or comes off, a

replacement label is available from your

Yamaha dealer.

1-1

EBU00464

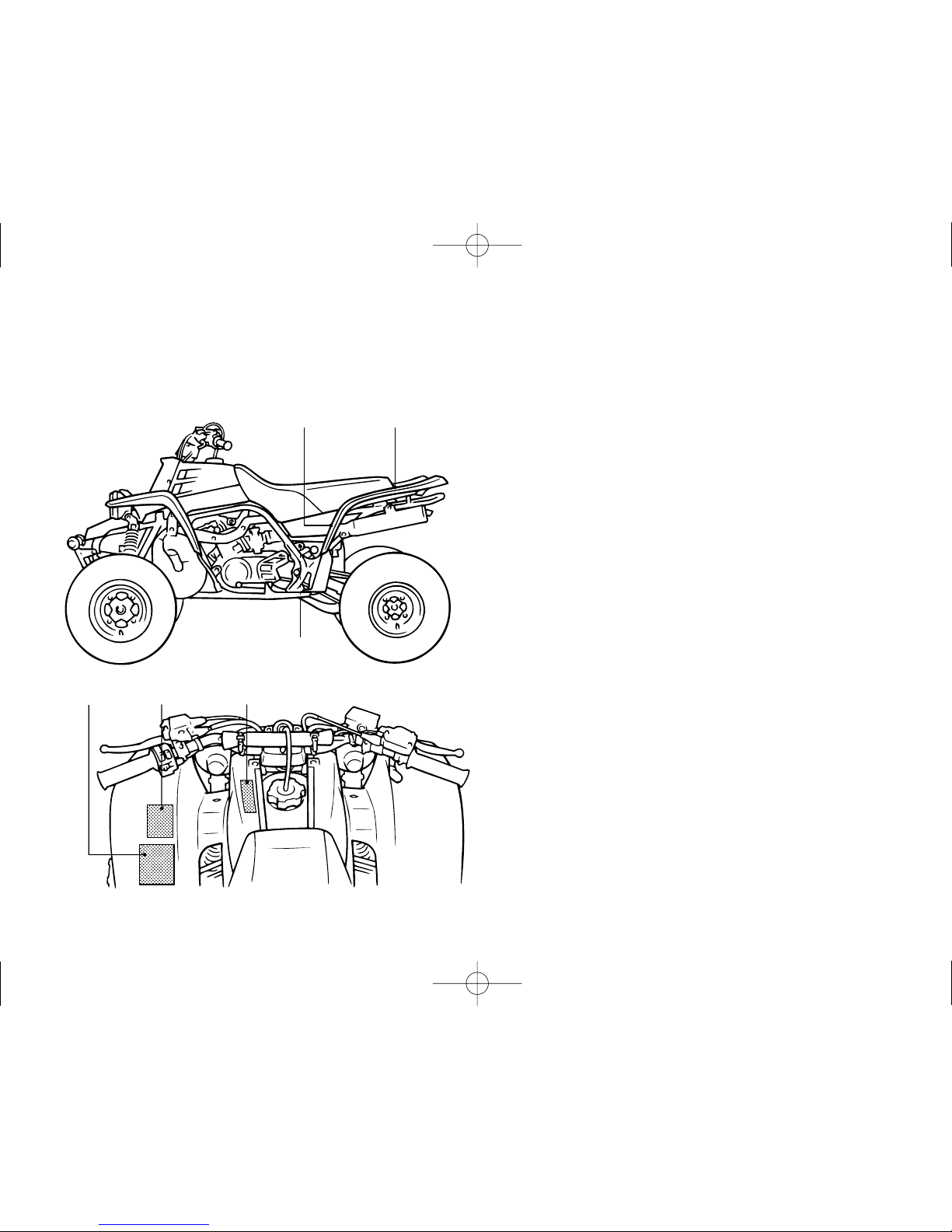

LOCATION OF THE WARNING AND

SPECIFICATION LABELS

wr y

5FK-9-17-01 3/3/04 10:13 PM Page 8

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yamaha Véhicule tout-terrain

Yamaha

Yamaha RS90RK Manuel utilisateur

Yamaha

Yamaha XZ10YMXH Manuel utilisateur

Yamaha

Yamaha KODIAK 700 YFM70KDXG Manuel utilisateur

Yamaha

Yamaha SRX600C Manuel utilisateur

Yamaha

Yamaha YFM90RA Manuel utilisateur

Yamaha

Yamaha 2016 Grizzly yfm700gplg Manuel utilisateur

Yamaha

Yamaha GRIZZLY 450 Manuel utilisateur

Yamaha

Yamaha YFM350 Warrior Manuel du propriétaire

Yamaha

Yamaha YFM25BX Manuel utilisateur

Yamaha

Yamaha KODIAK 450 Ultramatic Manuel utilisateur

Yamaha

Yamaha GRIZZLY 350 YFM35GTXG Manuel utilisateur

Yamaha

Yamaha YFM225S 1985 Manuel utilisateur

Yamaha

Yamaha BIG BEAR 4X4 YFM400FWNM Manuel utilisateur

Yamaha

Yamaha YXZ 1000R SS 2022 Manuel utilisateur

Yamaha

Yamaha KODIAK 400 YFM400FAS Manuel utilisateur

Yamaha

Yamaha RX10GTL Manuel utilisateur

Yamaha

Yamaha GRIZZLY 700 FI YFM7FGPX Instructions d'utilisation et d'installation

Yamaha

Yamaha YXZ 1000R SS 2020 Manuel utilisateur

Yamaha

Yamaha YFM450FAR Manuel utilisateur

Yamaha

Yamaha BANSHEE YFZ350T Manuel utilisateur

Yamaha

Yamaha T-CHIME Manuel utilisateur

Yamaha

Yamaha PZ50W Manuel utilisateur

Yamaha

Yamaha Grizzly 700 FI Manuel utilisateur

Yamaha

Yamaha BANSHEE YFZ350P Manuel utilisateur

Manuels Véhicule tout-terrain populaires d'autres marques

Polaris

Polaris RANGER XP 1000 EPS 2018 Manuel utilisateur

APRILIA

APRILIA QUASAR 100 Manuel utilisateur

Polaris

Polaris RZR 900 Manuel utilisateur

Suzuki

Suzuki LT-A700X Manuel utilisateur

Ski-Doo

Ski-Doo SCANDIC WT Manuel

Suzuki

Suzuki LT-Z400 Manuel utilisateur

Arctic Cat

Arctic Cat 120 sno pro Manuel utilisateur

Dinli

Dinli DL702 Manuel utilisateur

Baja motorsports

Baja motorsports ATV 90 Manuel

Polaris

Polaris Sportsman 550 XP EPS Manuel utilisateur

Arctic Cat

Arctic Cat ALTERRA 450 Manuel utilisateur

Polaris

Polaris Sportsman 9922233 Manuel utilisateur

Polaris

Polaris RZR XP 1000 Manuel utilisateur

Polaris

Polaris Outlaw 500 Manuel utilisateur

Can-Am

Can-Am DS 70 Manuel

Ski-Doo

Ski-Doo SKANDIC Manuel

Polaris

Polaris 2016 RZR XP Turbo Manuel utilisateur

GAS GAS

GAS GAS K2 QUAD 250 - SERVICE Manuel utilisateur
