Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

Important Information

Special Notices

•The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.

•Use of the software and this manual is governed by the Software LicensingAgreement which

the purchaser fully agrees to upon breaking the seal of the software packaging. (Careful-

lyread the agreement at the end of this manual before installing the software.)

•Copying of the software or reproduction of this manual in whole or in part by any means is

expressly forbidden without the written consent of the manufacturer.

•Yamaha makes no representations or warranties with regard to the use of the software and

documentation and cannot be held responsible for the results of the use of this manual and

the software.

•This disc is a CD-ROM. Do not attempt to play the disc on an audio CD player. Doing so

may result in irreparable damage to your audio CD player.

•Copying of the commercially available music sequence data and/or digital audio ﬁles is

strictly prohibited except for your personal use.

•The screen displays as illustrated in this owner’s manual are for instructional purposes, and

may appear somewhat different from the screens which appear on your computer.

•Future upgrades of application and system software and any changes in speciﬁcations and

functions will be announced separately.

Trademarks

Adobe, Acrobat, and Reader are registered trademarks of Adobe Systems Incorporated.

Apple, AppleTalk, and Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation. OMS is a reg-

istered trademark of Opcode Systems, Inc. Pentium and Celeron are registered trademarks

of Intel Corporation. PowerPC is a registered trademark of International Business

Machines Corporation. SmartMedia is a trademark of Toshiba America, Inc. All other

trademarks are the property of their respective holders and are hereby acknowledged.

No part of the Studio Manager software or its documentation may be reproduced or dis-

tributed in any form or by any means without the prior written authorization of Yamaha

Corporation.

Yamaha Web Site

Information about Studio Manager, related products, and other Yamaha professional audio

equipment is available on the Yamaha Professional Audio Web site at:

http://www.yamahaproaudio.com/

* Speciﬁcations and descriptions in this owner’s manual are for information purposes only.

Yamaha Corp. reserves the right to change or modify products or speciﬁcations at any

time without prior notice. Since speciﬁcations, equipment or options may not be the

same in every locale, please check with your Yamaha dealer.

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

CD-ROM Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Macintosh System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System Hookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Configuring Your Yamaha Mixing Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Windows Installation . . . . . . . . . . . . . . . . . . . . . . . . 8

Acrobat Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

USB MIDI Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Yamaha CBX Driver (DM2000/02R96 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Card Filer (DM2000 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 Macintosh Installation . . . . . . . . . . . . . . . . . . . . . . 16

Acrobat Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OMS (Open Music System) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

USB MIDI Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Card Filer (DM2000 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting Up OMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Starting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Quitting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specifying the MIDI Port (DM1000/01V96 & Windows only) . . . . . . . . . . . . . . 20

Configuring Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Synchronizing Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Working with Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 1—Getting Started

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

1 Getting Started

Introduction

With Yamaha Studio Manager you can control your Yamaha digital mixing console from

your Windows or Macintosh computer. There are four versions of Studio Manager:

•Studio Manager for DM2000

•Studio Manager for 02R96

•Studio Manager for DM1000

•Studio Manager for 01V96

The CD-ROM supplied with the DM2000 or 02R96 contains

Studio Manager for DM2000

and

Studio Manager for 02R96

. The CD-ROM supplied with the DM1000 or 01V96 con-

tains

Studio Manager for DM1000

and

Studio Manager for 01V96

This

Installation Guide

explains how to install Studio Manager and the necessary driver soft-

ware for Windows and Macintosh computers. The owner’s manual for Studio Manager can

be found on the included CD-ROM (Acrobat PDF format).

CD-ROM Contents

DM2000/02R96 CD-ROM

Folder Software Description

Windows

Acroread\English Acrobat Reader

1. For information on using this software, refer to the PDF manual after installation.

2. This software is not supported by Yamaha.

Adobe Acrobat Reader software for view-

ing the PDF manuals.

SM_\DM2000 Studio Manager for DM2000

Yamaha Studio Manager for DM2000

SM_\02R96 Studio Manager for 02R96

Yamaha Studio Manager for 02R96

Mididrv_ Yamaha CBX Driver Yamaha serial driver. Necessary if you are

connecting to a serial port on your PC.

USBdrv_ Yamaha USB MIDI Driver

(Windows 98, Me) Yamaha USB driver. Necessary if you are

connecting to a USB port on your PC.

USBdrv2k_ Yamaha USB MIDI Driver

(Windows 2000, XP)

Card_ Card Filer

Yamaha utility for transferring and man-

aging data stored on the DM2000’s

SmartMedia card.

Macintosh

Acroread\English Acrobat Reader

,1, 2

Adobe Acrobat Reader software for view-

ing the PDF manuals.

SM_\DM2000 Studio Manager for DM2000

Yamaha Studio Manager for DM2000

SM_\02R96 Studio Manager for 02R96

Yamaha Studio Manager for 02R96

OMS_

Open Music System (OMS)

2.3.8

1, 2

Opcode driver software for use with MIDI

applications on Macintosh computers.

OMS Setup for YAMAHA OMS studio setup ﬁles for use with the

DM2000 and 02R96.

USBdrv_ YAMAHA USB MIDI Driver

Yamaha USB driver. Necessary if you are

connecting to a USB port on your Macin-

tosh computer.

Card_ Card Filer

Yamaha utility for transferring and man-

aging data stored on the DM2000’s

SmartMedia card.

Windows System Requirements

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

DM1000/01V96 CD-ROM

Windows System Requirements

The system requirements of your operating system may be different to those listed here.

Studio Manager

Card Filer (DM2000 only)

Yamaha USB MIDI Driver

Folder Software Description

Windows

Acroread\English Acrobat Reader

1. For information on using this software, refer to the PDF manual after installation.

2. This software is not supported by Yamaha.

Adobe Acrobat Reader software for view-

ing the PDF manuals.

SM_\DM1000 Studio Manager for DM1000

Yamaha Studio Manager for DM1000

SM_\01V96 Studio Manager for 01V96

Yamaha Studio Manager for 01V96

USBdrv_ Yamaha USB MIDI Driver

(Windows 98, Me) Yamaha USB driver. Necessary if you are

connecting to a USB port on your PC.

USBdrv2k_ Yamaha USB MIDI Driver

(Windows 2000, XP)

Macintosh

Acroread\English Acrobat Reader

,1, 2

Adobe Acrobat Reader software for view-

ing the PDF manuals.

SM_\DM1000 Studio Manager for DM1000

Yamaha Studio Manager for DM1000

SM_\01V96 Studio Manager for 01V96

Yamaha Studio Manager for 01V96

OMS_

Open Music System (OMS)

2.3.8

1, 2

Opcode driver software for use with MIDI

applications on Macintosh computers.

OMS Setup for YAMAHA OMS studio setup ﬁles for use with the

DM1000 and 01V96.

USBdrv_ YAMAHA USB MIDI Driver

Yamaha USB driver. Necessary if you are

connecting to a USB port on your Macin-

tosh computer.

Computer

A PC with a 433 MHz or faster Intel Pentium or Celeron family processor

Windows 98SE, Me, 2000, XP Home Edition, XP Professional

Memory

128 MB or more

Hard Disk

20 MB or more of free space

Display

1024 x 768 pixels, 256 colors or higher

1280 x 1024, High Color 16-bit recommended

(If you use display settings of 1024 x 768, turn on the Task Bar’s Auto-hide option.)

Computer

A PC with a 100 MHz or faster Intel Pentium or Celeron family processor

Windows 95, 98, 98SE, Me, NT4.0, 2000, XP Home Edition, XP Professional

Memory

8 MB or more

Hard Disk

2 MB or more of free space

Display

800 x 600 pixels, 256 colors or higher

Computer

A PC with a 166 MHz or faster Intel Pentium or Celeron family processor and a USB

port

Windows 98, 98SE, Me, 2000, XP Home Edition, XP Professional

Memory

32 MB or more

Hard Disk

2 MB or more of free space

Chapter 1—Getting Started

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

Yamaha CBX Driver (DM2000/02R96 only)

System requirements for software not listed here can be found on the CD-ROM.

Macintosh System Requirements

The system requirements of your operating system may be different to those listed here.

Studio Manager

Card Filer (DM2000 only)

Yamaha USB MIDI Driver

System requirements for software not listed here can be found on the CD-ROM.

Windows 95, 98, 98SE, Me, NT4.0, 2000, XP Home Edition, XP Professional

Computer

A Macintosh G3/233 MHz or better and a USB port

Mac OS 8.6 to 9.2.2 (Mac OS X not supported)

Memory

120 MB or more of free memory (Virtual memory must be turned off)

Hard Disk

7 MB or more

Display

1024 x 768 pixels, 256 colors or higher

1280 x 1024, 32,000 colors recommended

Other

OMS 2.3.3 or later

Note: If you are using a PowerBook on battery power, open the Energy Save control panel,

and in Advanced Settings, Additional Power Savings, turn off Allow processor cycling.

Computer

A Macintosh computer with a PowerPC processor or better

Mac OS 7.5 to 9.2.2 (Mac OS X not supported)

Memory

8 MB or more of free memory

Hard Disk

6 MB or more

Display

800 x 600 pixels, 256 colors or higher

Computer

A Macintosh computer with a PowerPC processor or better and a USB port

Mac OS 8.6 to 9.2.2 (Mac OS X not supported)

Memory

64 MB or more (recommended: 128 MB or more)

Hard Disk

2 MB or more

System Hookup

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

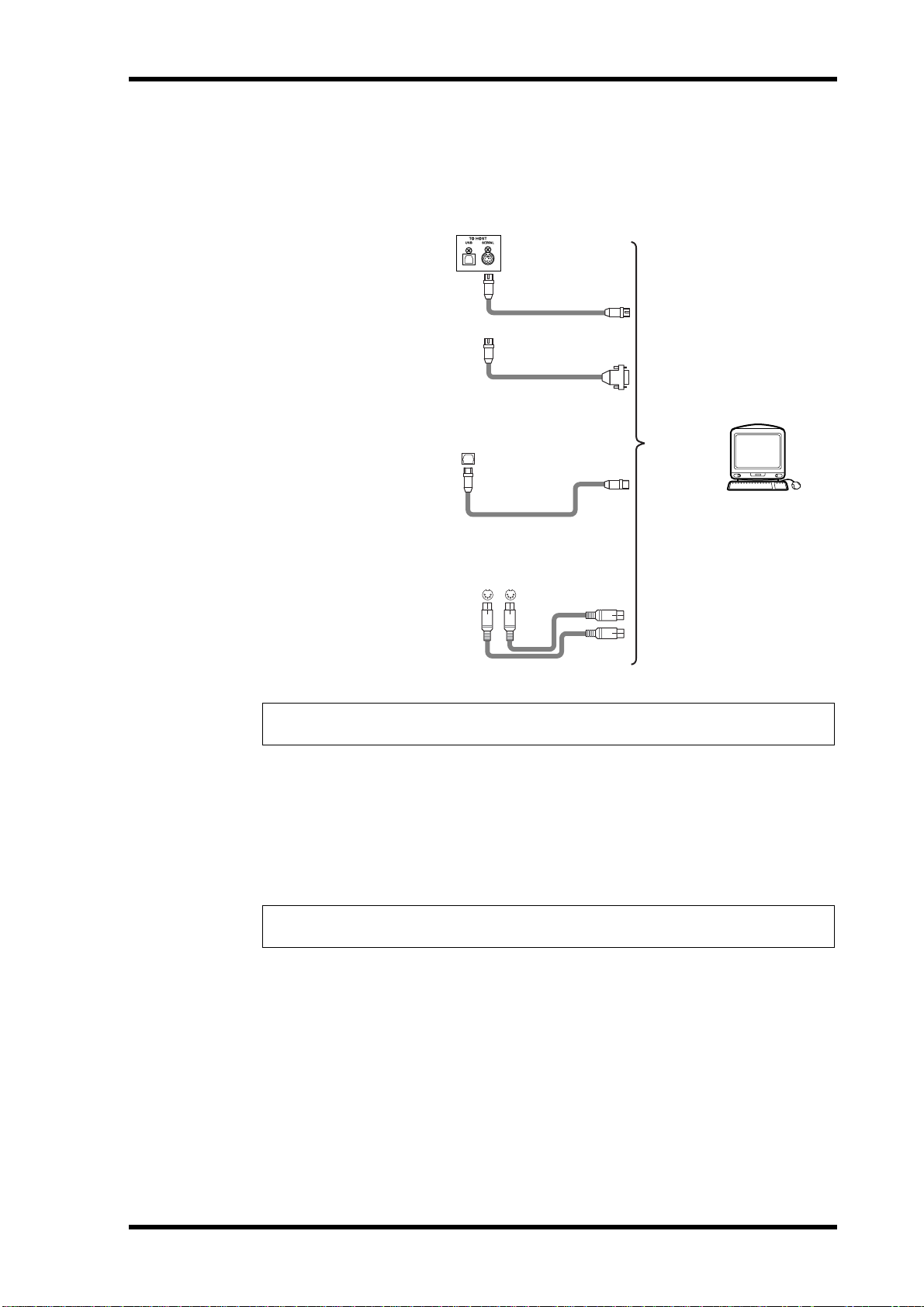

System Hookup

The following illustration shows the available hookup methods you can use to connect your

Yamaha mixing console to your computer: serial, USB, MIDI.

Conﬁguring Your Yamaha Mixing Console

On your Yamaha mixing console, use the DISPLAY ACCESS [SETUP] button

([DIO/SETUP button on the 01V96) to locate the MIDI/TO HOST Setup page. Under

“Studio Manager,” select a port and assign an ID to your Yamaha mixing console. If you are

using a serial connection, set the TO HOST SERIAL options as appropriate (i.e.,“PC-2”for

a Windows PC, or “Mac” for a Macintosh computer).

Note: Before you connect to serial or MIDI ports, turn off your Yamaha mixing console and

computer.

Warning: Do not set the TO HOST SERIAL option to “Mac” while your Yamaha mixing con-

sole is connected to your PC’s serial port. Doing so may damage your PC.

USB cable

(Yamaha CCJ-Mac

or equivalent)

(Yamaha CCJ-PC2

or equivalent)

USB port

Serial cable

Mac serial port

PC serial port

Yamaha mixing console rear panel Mac or PC

MIDI interface

MIDI cables

3. MIDI

2. USB

1. Serial

(DM2000/02R96 only)

TO HOST

USB

INOUT

Chapter 2—Windows Installation

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

2 Windows Installation

Acrobat Reader

To view the PDF manuals included on the CD-ROM, you need to install the Adobe Acrobat

Reader software. If you already have this software installed, skip this section.

Start your computer and Windows, and then insert the included CD-ROM

into your computer’s CD-ROM drive.

Double-click the “Acroread_” folder on the CD-ROM.

This folder contains Acrobat software in several languages.

Double-click the folder of the language you want to install.

Double-click “ar***enu.exe.”

(“***” indicates the software version.)

Follow the on-screen instructions to install the software.

For instructions on using Acrobat Reader, choose Reader Help from Acrobat Reader’s Help

menu.

USB MIDI Driver

If you are connecting your Yamaha mixing console to a USB port on your computer, you’ll

need to install the Yamaha USB driver. If you already have this driver installed, skip this sec-

tion.

The procedure you use for installing the Yamaha USB driver depends on which version of

Windows you’re using:

•Windows 98 & 98SE—page 9

•Windows Me—page 12

•Windows 2000—page 13

•Windows XP—page 14

Studio

Manager

DM2000/02R96

DM1000/01V96

Computer

USB cable

Driver

USB MIDI Driver

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

Windows 98 & 98SE

Start your computer and Windows, and then insert the included CD-ROM

into your computer’s CD-ROM drive.

Turn off your Yamaha mixing console, and then use a USB cable to connect

its USB TO HOST port to a USB port on your computer.

Turn on your Yamaha mixing console.

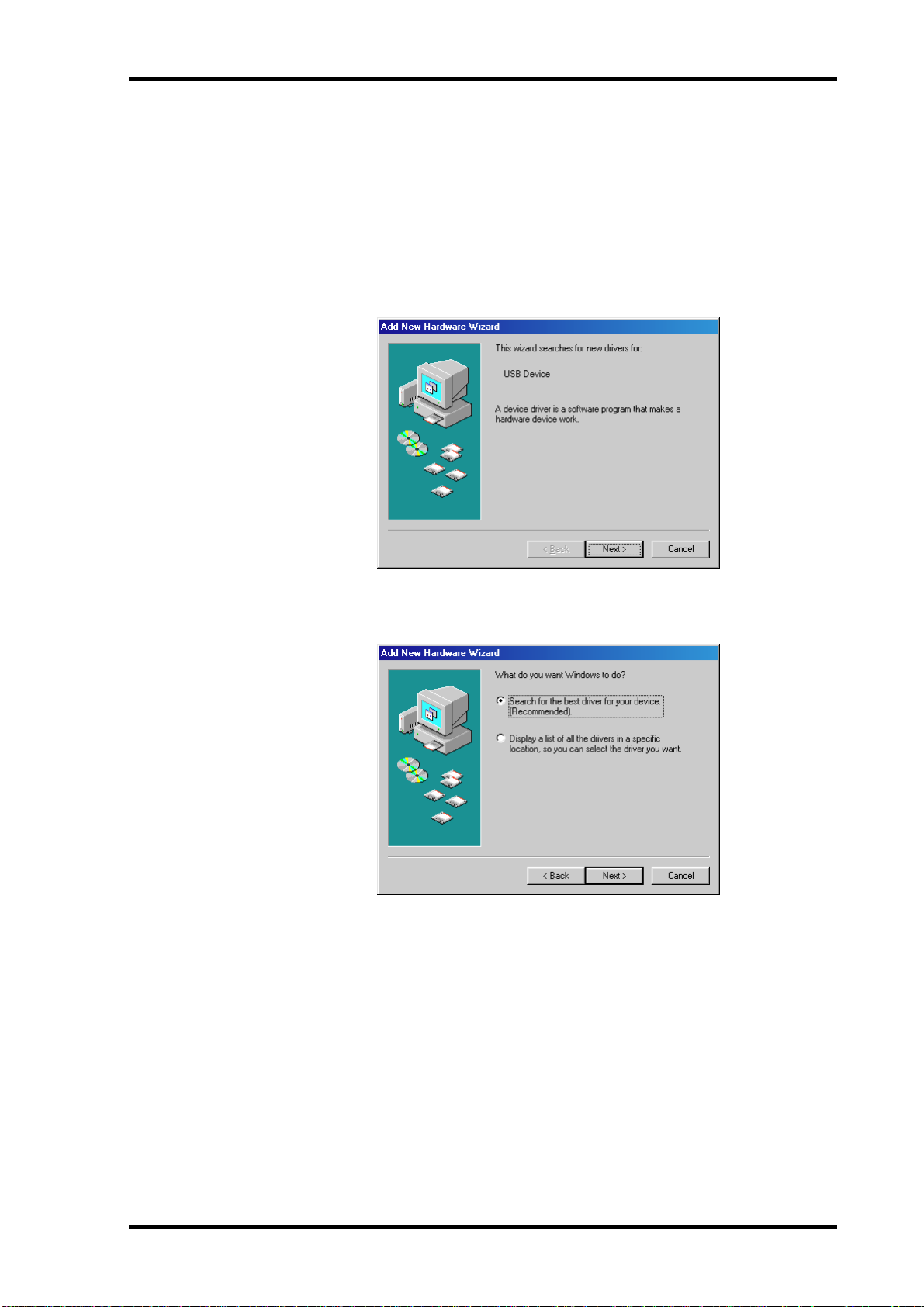

The Add New Hardware Wizard appears. If it doesn’t appear, try disconnecting and recon-

necting the USB cable. Alternatively, open the Add New Hardware control panel.

Click Next.

The following window appears.

5Select “Search for the best driver for your device (Recommended),” and then

click Next.

10 Chapter 2—Windows Installation

Studio Manager for DM2000/DM1000/02R96/01V96—Installation Guide

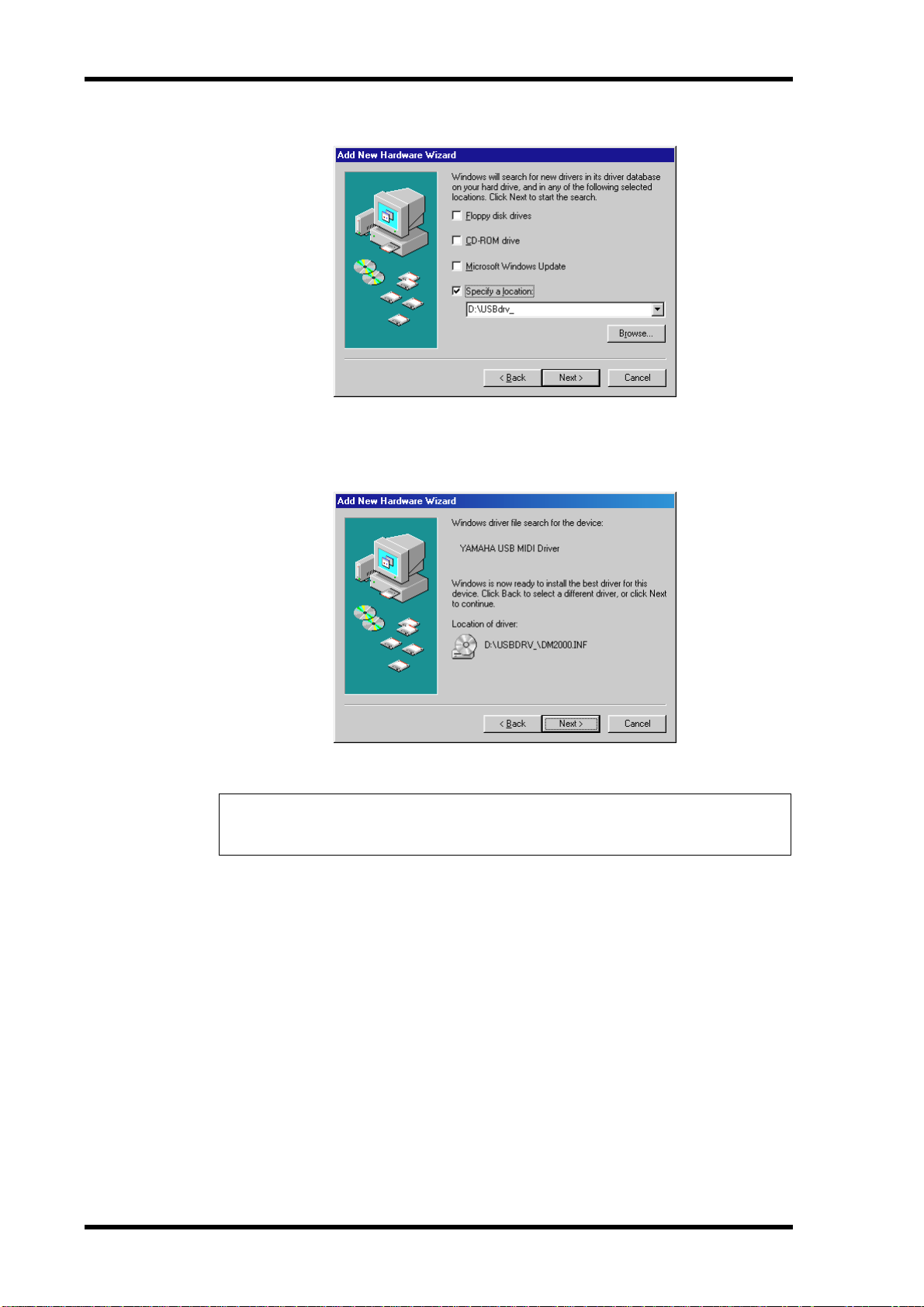

The following window appears.

6Select “Specify a location,” and specify “D:\USBdrv_” (replacing “D” with

the drive letter of your CD-ROM drive), and then click Next.

When the driver is located,“YAMAHA USB MIDI Driver” is displayed, as shown below.

7Click Next.

Note: You may be prompted to insert your Windows CD-ROM. Do not insert it! Click OK,

and in the “Copy ﬁles from” section of the subsequent dialog box, enter“D:\USBdrv_” (replac-

ing “D” with the drive letter of your CD-ROM drive), and then click OK.

Autres manuels pour DM 2000 Version 2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Yamaha Mixeur musical

Yamaha

Yamaha EMX5 Manuel utilisateur

Yamaha

Yamaha AI8-ML8AB Manuel utilisateur

Yamaha

Yamaha RIVAGE PM10 Manuel utilisateur

Yamaha

Yamaha 01x Mise à jour du firmware

Yamaha

Yamaha MG124C Manuel utilisateur

Yamaha

Yamaha PM-1000 Mode d'emploi

Yamaha

Yamaha AW2816 Manuel utilisateur

Yamaha

Yamaha IM8-40 Manuel utilisateur

Yamaha

Yamaha CL5 Manuel utilisateur

Yamaha

Yamaha 007POTO-G0 Manuel utilisateur

Yamaha

Yamaha DSP5D Editor Manuel utilisateur

Yamaha

Yamaha mix EMX 2000 Manuel utilisateur

Yamaha

Yamaha TF5 Manuel utilisateur

Yamaha

Yamaha EMX3000 Manuel utilisateur

Yamaha

Yamaha DME24N Manuel utilisateur

Yamaha

Yamaha DJX-IIB Manuel utilisateur

Yamaha

Yamaha MG16/6FX Manuel utilisateur

Yamaha

Yamaha DME64N - Pro Audio Manuel utilisateur

Yamaha

Yamaha MG06X Manuel utilisateur

Yamaha

Yamaha MV1000 Manuel utilisateur

Yamaha

Yamaha EMX2 Manuel utilisateur

Yamaha

Yamaha MW12 Manuel utilisateur

Yamaha

Yamaha WK83840 Manuel utilisateur

Yamaha

Yamaha PM-1000 Manuel utilisateur

Manuels Mixeur musical populaires d'autres marques

Neve

Neve 8816 Manuel utilisateur

Mackie

Mackie Onyx Analogue Mixer Manuel utilisateur

Behringer

Behringer EUROPOWER PMP518M Manuel utilisateur

Peavey

Peavey S-32 Sanctuary Series Manuel utilisateur

Rane

Rane MP 4 Manuel utilisateur

True

True T9 Touchscreen Console Manuel utilisateur

Studiomaster

Studiomaster Air Pro 24 Manuel utilisateur

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuel utilisateur

Roland

Roland M-160 Manuel utilisateur

Ecler

Ecler MAC40v Manuel utilisateur

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuel utilisateur

Veeder-Root

Veeder-Root TLS-350 Series Manuel utilisateur

Alto

Alto APM80.QUAD Manuel utilisateur

Omnitronic

Omnitronic PM-211 Manuel utilisateur

SoundCraft

SoundCraft B400 Manuel utilisateur

Roland

Roland SoundCanvas SC-8820 Manuel utilisateur

CARVIN

CARVIN RX 1200 Manuel utilisateur

Roland

Roland M-16E Manuel utilisateur
