Yamaha DM2000 Update V1.1

This document explains the new and revised func-

tions for DM2000 Update 1.1.

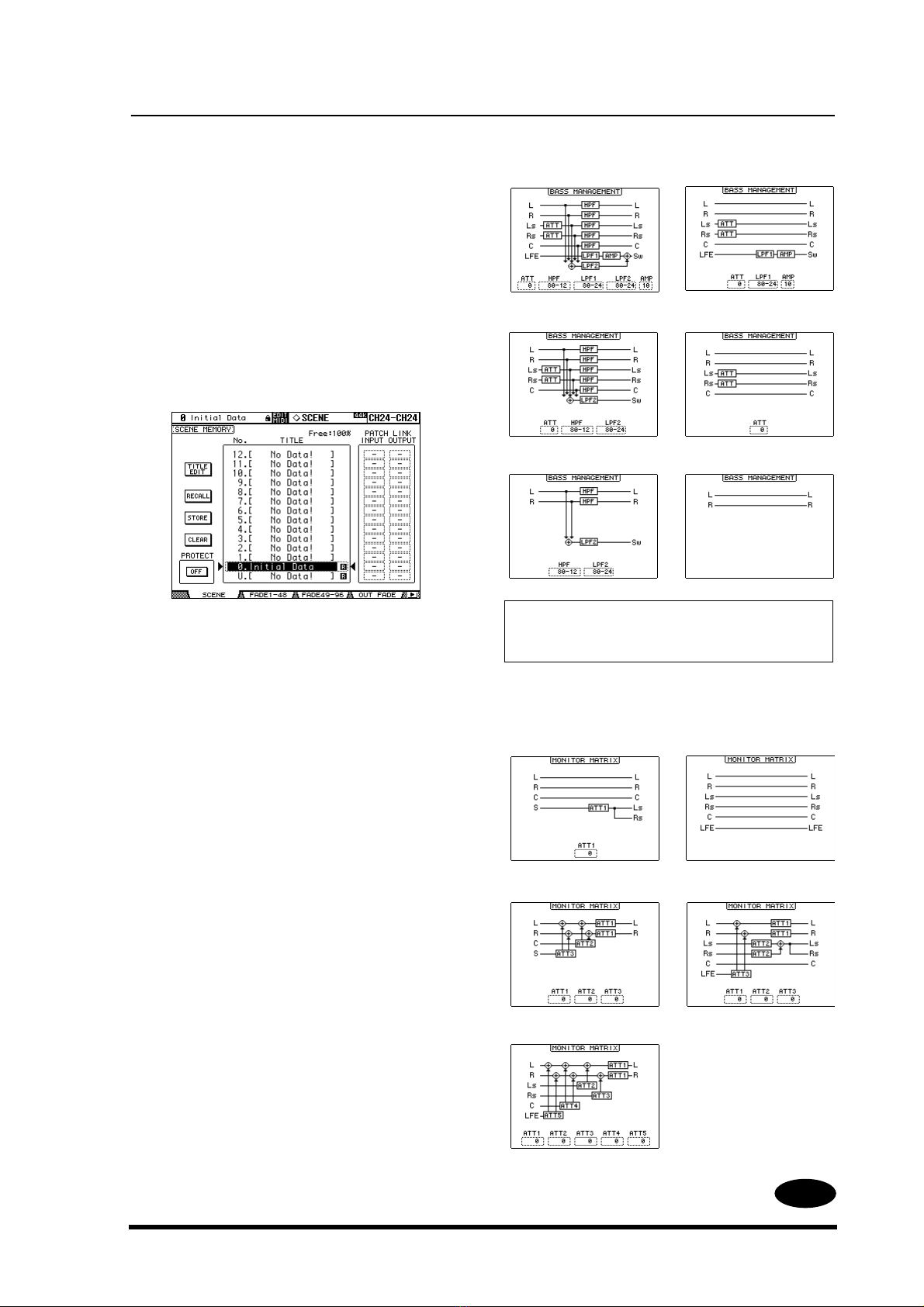

Scene Memory & Input/Output Patch

Linking

Input Patch and Output Patch library memories can

be linked to Scene memories so that when a Scene is

recalled, the input and output patches are recalled as

well.

The PATCH LINK INPUT and OUTPUT parame-

ters can be found on the Scene Memory page shown

below, which is located by pressing the SCENE

MEMORY [DISPLAY] button.

Use the cursor buttons to select the PATCH LINK

INPUT and OUTPUT parameters, use the Parame-

ter wheel to select Input Patch and Output Patch

library memories, and press the [ENTER] button to

set. A dash (–) means that no patch memory is

selected.

When you store a Scene, the last recalled or stored

Input Patch and Output Patch library memories are

automatically linked to that Scene.

If the speciﬁed Input or Output Patch library mem-

ory contains no data, only the Scene is recalled, the

input and output patching will remain the same.

Bass Management for 3-1 & ST

Monitor Matrixes

Bass Management can now be used with the 3-1 and

Stereo Out monitor matrixes. Previously, Bass Man-

agement could be used only with the 5.1 monitor

matrix. The Bass Management function can be

found on the Surround Monitor Setup page, which

can be located by using the MONITOR [DISPLAY]

button when either the 3-1 or 5.1 Surround mode is

selected.

The following screen shots show the Bass Manage-

ment conﬁgurations for the 5.1, 3-1, and Stereo

monitor matrixes,with Bass Management turned on

and off.

In addition, the Monitor Matrix conﬁgurations have

changed as follows. (The 5.1 to 5.1 matrix is

unchanged.)

Note: When using the 3-1 monitor matrix, even with

ﬁlm sources, use Bass Management presets 1 and 2

(presets 3 and 4 may not provide correct monitoring).

5.1 ON

3-1 ON

ST ON

5.1 OFF

3-1 OFF

ST OFF

3-1 to 3-1

3-1 to ST

5.1 to 5.1

5.1 to 3-1

5.1 to ST

DAW Control Regardless of Layer

Selection

Previously, the transport controls, locator, track

arming functions, and shuttle and scrub could be

used to control an external DAW only when a

Remote Layer was selected. With the new DAW

CONTROL option, a DAW can be controlled

regardless of which Layer is currently selected.

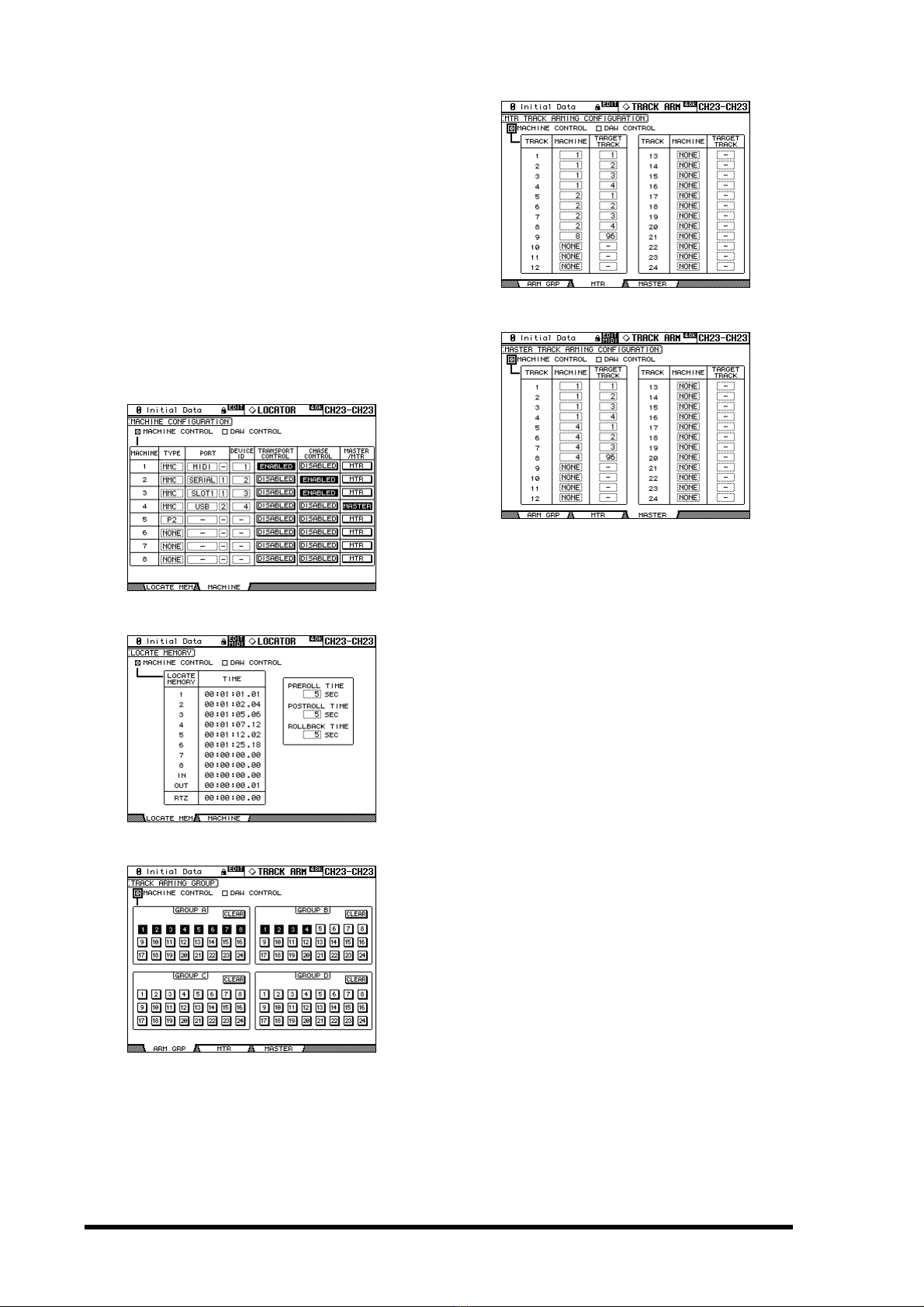

The new MACHINE CONTROL and DAW CON-

TROL options have been added to the following ﬁve

pages: Machine Conﬁguration and Locate Memory,

which are selected by using the LOCATOR [DIS-

PLAY] button, and Track Arming Group, MTR

Track Arming Conﬁguration, and Master Track

Arming Conﬁguration, which are selected by using

the TRACK ARMING [DISPLAY] button.

When the MACHINE CONTROL option is on,

external MMC/P2 machines can be controlled,

except when a DAW Remote layer is selected, in

which case the DAW is controlled. When the DAW

CONTROL option is on, the DAW can be controlled

regardless of which Layer is currently selected.

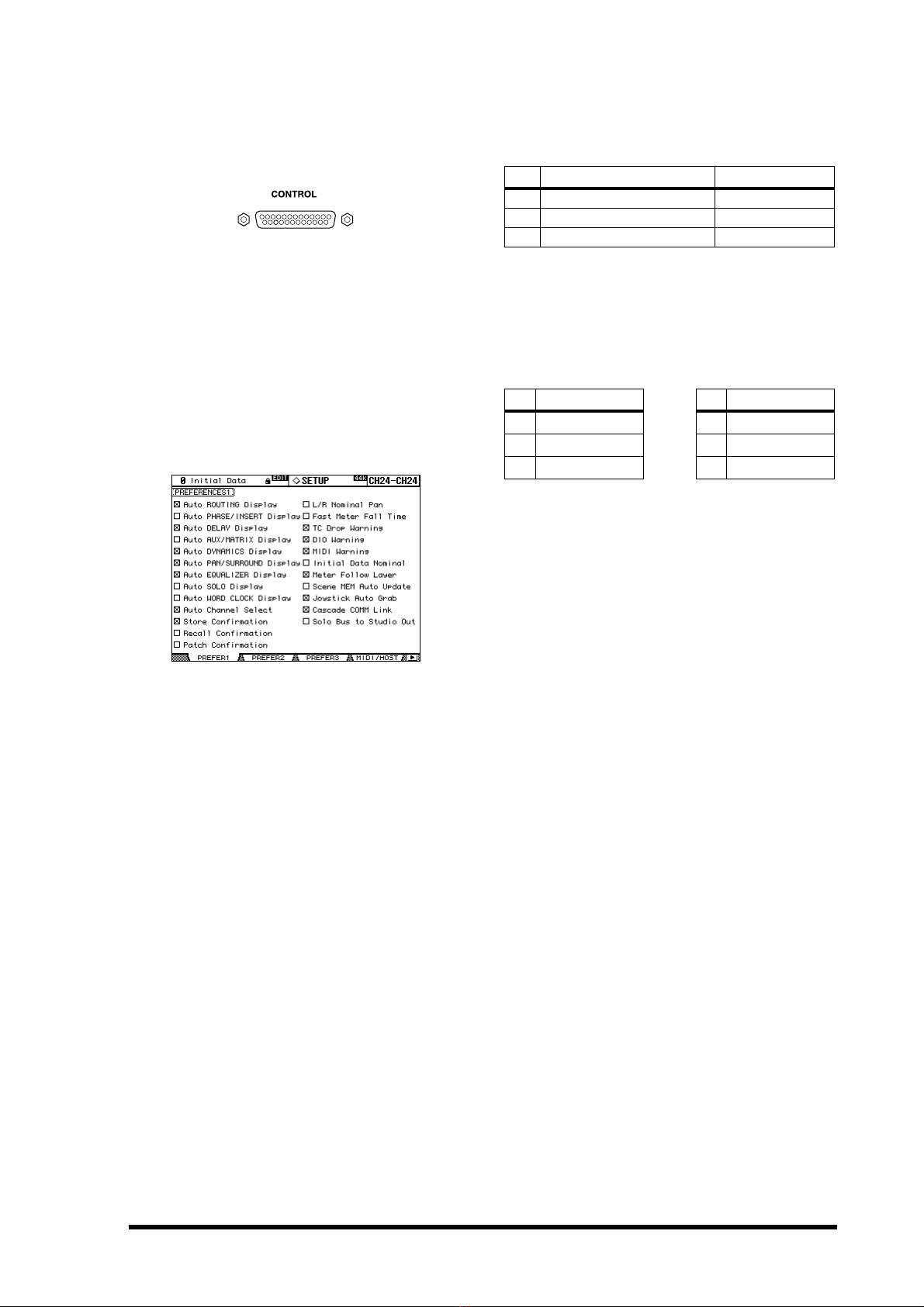

Dimmer & Talkback Control via the

CONTROL Port

The Control Room and Surround Monitor Dim-

mers, and the Talkback function can now be con-

trolled remotely via the CONTROL port.

Each time the GPI0 input (pin 22) goes Low

(ground), Talkback is turned on or off. Each time the

GPI1 input (pin 10) goes Low (ground), the Dim-

mer is turned on or off.

Solo to Studio Out

With the new Solo Bus to Studio Out preference on

the Preferences 1 page, which can be selected by

using the DISPLAY ACCESS [SETUP] button,

soloed channels can now be monitored through the

STUDIO MONITOR OUT.

When the Solo Bus to Studio Out preference is on,

and all the STUDIO signal source buttons in the

MONITOR section are off (i.e., [CONTROL

ROOM], [STEREO], [AUX 11], and [AUX 12]), the

Solo signal is output by the STUDIO MONITOR

OUT when channels are soloed.

User Deﬁned Keys

The following items have been added to the list of

functions that can be assigned to the USER

DEFINED KEYS.

Functions are assigned to the USER DEFINED KEYS

on the USER DEFINED KEY ASSIGN page, which is

selected by using the USER DEFINED KEYS [DIS-

PLAY] button.

In addition, the following initial assignments of

USER DEFINED KEYS Bank A have changed.

# Function Display

161 Surr Lib. Recall +1 Surr Lib+1 RCL

162 Surr Lib. Recall –1 Surr Lib–1 RCL

163 Surr Lib. Recall No. XX Surr LibXX RCL

# Bank A # Bank A

SOLO ON —>

Surr Lib 0 RCL

No Assign —>

Surr Lib –1 RCL

No Assign —>

Surr Lib +1 RCL
