HomeLogic LLC 100 Hoods Lane Marblehead, MA 09145 Phone (781) 639-5155 Fax (781) 639-9677

OneHome



DVD Integration Note

Manufacturer: Yamaha

Model Number(s): DVD-S2500

Comments:

Document Revision Date: 5/2/2006

VERVIEW AND

UPPORTED

EATURES

The DVD players include an RS-232 connection which is used to connect to the OneHome system and

provide communications, enabling reliable control of the DVD player.

THESE DVD PLAYERS SUPPORT THE FOLLOWING FEATURES:

Basic Transport Control: Play, stop, etc.

NSTALLATION

VERVIEW

1. During the rough-in phase install the necessary power and A/V cabling for the DVD player.

2. Also during the rough-in phase, run a Cat5 wire from the location of the DVD player back to the

Network Assembly of the OneHome system to provide the serial connection needed to control the

DVD player. Refer to the RS-232 Connection Options Integration Note for other serial connection

options.

3. Install the DVD player and other theater components.

4. Test the DVD player with the other theater components to ensure that the audio and video play

correctly.

5. Connect the OneHome system to the DVD player electrically. See the connection diagram for more

information.

6. Configure the OneHome system for the DVD player and confirm communication between the DVD

player and the HomeBrick.

7. Test the system by playing a DVD with the various transport controls.

2 of 4

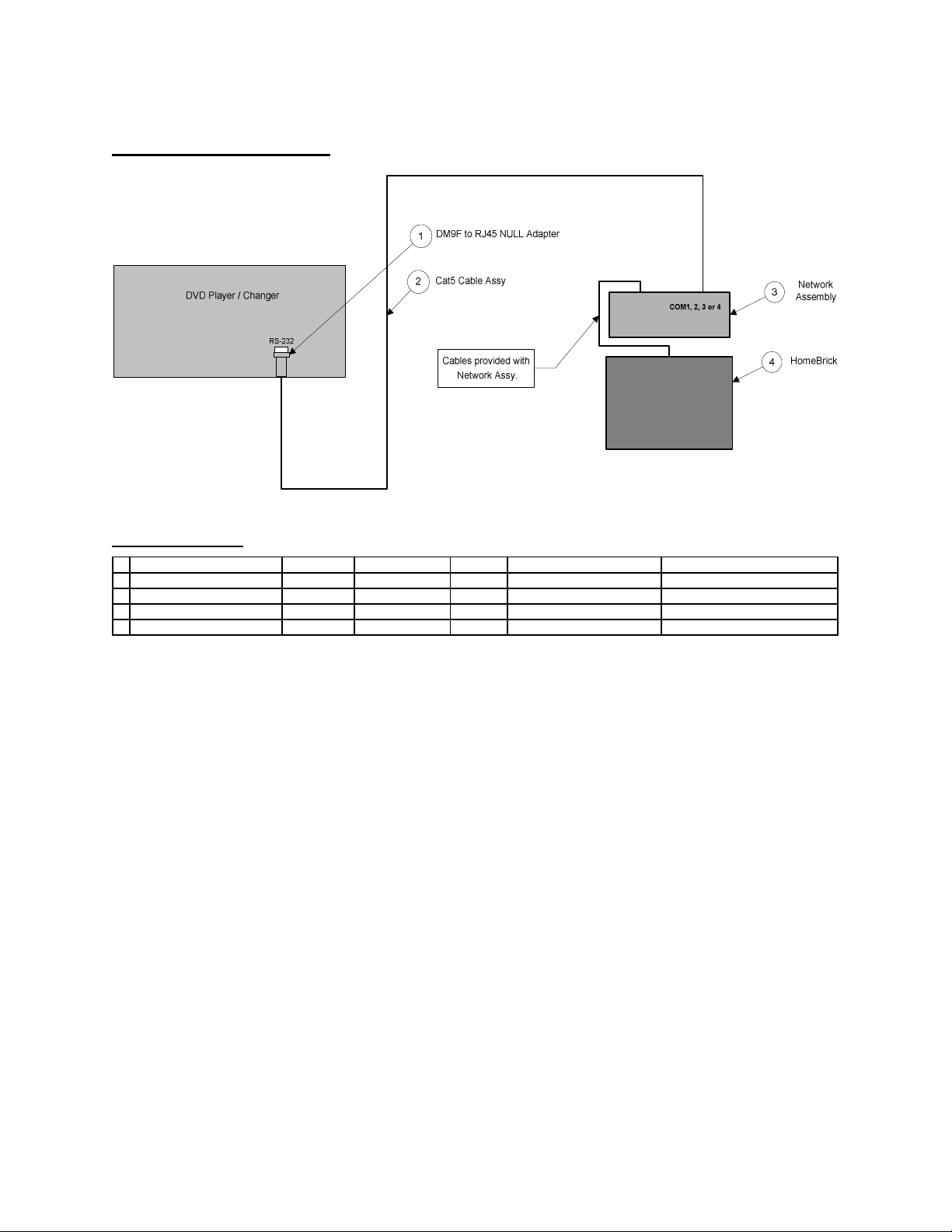

ONNECTION

IAGRAMS

BILL OF MATERIALS

# Device Manufacturer Part Number Protocol Connector Type Notes

1 DB9M to RJ45 NULL Adapter HomeLogic HA-CB-328 RS-232 DB-9 Female X RJ-45 Female

2 Cat5 Cable Assy. Installer N/A RS-232 RJ-45 Male X RJ-45 Male Must terminate all 8 conductors

3 Network Assembly HomeLogic HW-NA-18X4 RS-232 RJ-45 Female X DB-9 Female / USB

4 HomeBrick HomeLogic HW-HB-1080 RS-232 DB9 Male / USB

3 of 4

OME

OGIC

ONFIGURATION

ETAILS

The following table provides settings used in the HomeLogic Configurator. Please refer to the Configurator Reference Guide for more details.

o“<Select>” Select the appropriate item from the list (or drop-down) in the Configurator.

o“<User Defined>”, etc. Type in the desired name for the item.

Devices Variable Name Setting Comments

Communication Devices Name

<User Defined> (Default:

DVD

)

Type Serial Port

Communication Type Standard Connection

Location <User Defined> (Not Required)

COM Port <Select>

DVD Players Name <User Defined> Defaults to the make and model of your DVD, after selecting Device Type

Device Type <Select> Select your model of DVD player or changer

Location <User Defined> (Not Required)

COM Device

<Select> (Default:

DVD

)

4 of 4

OMMON

ISTAKES
