Yamaha A-S2100 Manuel utilisateur

Printed in Malaysia ZK31490-1

Integrated Amplifier

OWNER’S MANUAL

00_Cov_A-S2100_AB.fm Page 2 Tuesday, April 15, 2014 9:22 AM

2En

A Living Tradition in Sound

A piano comes into this world through the perfect synergy of advanced technical

skill and artistry. Such a piano can create sound that truly reflects the player’s

feelings.

The final stage in piano production is called “voicing”. It is here that the

instrument is given its soul.

A highly skilled expert concentrates his mind and sensitivity on the sound of each

key, finely adjusting the dynamic feel of the hammers, bringing the tone and

vibrancy of all 88 keys together perfectly; a truly stunning achievement.

It is a quality of sound that can only be determined by an astute, sensitive ear. We

apply this very same concept to the manufacture of our audio products. The

technician performs exhaustive listening tests and every component is considered,

in order to finally achieve the ideal sound.

Yamaha’s tradition of audio quality stretches back over 125 years, and continues to

live on in all Yamaha products today.

3En

NP-S2000

Soavo-1

NS-10M

A-S3000

CD-S3000

NS-20

CA-1000

NS-690

B-1

PX-2

C-2

NS-1000M

A-1

B-6

B-2x

MX-10000

CX-10000

Excellence in Audio Achievement

First HiFi System introduced in 1920

We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated

amplifiers, preamplifiers, power amplifiers

and speakers) in 1955 - 1965.

Natural Sound Speaker Series introduced

in 1967

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Natural Sound Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi

enthusiasts.

B-1 Power Amplifier

An innovative power amp that used vertical FETs in all

stages.

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show.

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors

in the world.

A-1 Integrated Amplifier

PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turntab le

First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Redefined the capabilities of separate components.

AX-1 Integrated Amplifier

GT-CD1 CD Player

MX-1 Power Amplifier and

CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Integrated Amplifier and

CD-S2000 CD Player

NP-S2000 Network Player

A-S3000 Integrated Amplifier and

CD-S3000 CD Player

4En

◆Full floating and balanced circuit design achieves the full potential of

analogue amplification

An entirely new floating and balanced power amplifier achieves complete symmetry and permits full balanced

transmission (amplification) from the input jack to just before the speaker jack.

◆Full-stage balanced signal transmission

The integrated amplifier offers full stage balanced transmission, combining high power output with good sound texture

and outstanding S/N performance.

◆Parallel volume and tone control

◆Large power supply with four separate circuits

◆Left-right symmetrical design with rigid, stable construction

◆Discrete phono amplifier

◆High-quality headphone amplifier with low-impedance drive

■Supplied accessories

Please check that you have received all of the following parts.

• Remote control

• Batteries (AAA, R03, UM-4) (×2)

• Power cable

• SAFETY BROCHURE

■About this manual

•yindicates a tip for your operation.

• Photographs and illustrations are for explanatory purposes, and may differ from the actual unit.

• Read the “SAFETY BROCHURE” before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 16

Specifications. ...................................................................................................................................................... 24

Troubleshooting................................................................................................................................................... 28

5En

Controls and

functions

In this chapter, you will learn the controls and functions of A-S2100.

CONTROLS AND FUNCTIONS

6En

Controls and functions

■Front panel (pages 6 to 9)

1STANDBY/ON, OFF switch

Turns on or off this unit.

STANDBY/ON (upper position): In this position,

you can select STANDBY or ON,

using the pAMP key on the remote control.

OFF (lower position): The power of this unit is

turned off.

• When you turn on this unit, it will take a few seconds

before this unit can reproduce sound.

• If you disconnect the power cable from the AC outlet and

connect it again when this unit is in STANDBY mode, the

power of the unit is turned on. If the unit is not to be

operated for a long time, set the STANDBY/ON, OFF

switch to OFF.

2STANDBY/ON indicator

Lit brightly: Shows that the power of the unit is ON.

In this condition, you can switch the unit to

STANDBY mode by pressing the pAMP key on

the remote control.

Lit dimly: Shows that the unit is in STANDBY mode.

In this condition, you can switch the unit on by

pressing the pAMP key on the remote control.

Off: Shows that the power of the unit is OFF. In this

condition, you can turn the power on only by

pressing the STANDBY/ON, OFF switch on the

front panel.

3PHONES jack

Outputs audio for private listening with headphones.

• When headphones are plugged in:

– Both speaker sets connected to the SPEAKERS L/R CH

terminals are turned off.

– No signals are output at the PRE OUT jacks.

– You cannot select MAIN DIRECT as the input source.

• If headphones are plugged into the PHONES jack while

MAIN DIRECT is selected as the input source, no audio is

output at the PHONES jack.

METER

PEAK

OFF VU

INPUT

BAL CD

TUNER

LINE 1

PHONO

LINE 2

MAIN DIRECT

BASS

–+

TREBLE

–+

BALANCE

STANDBY/ON PHONES TRIM

-6 +6

+12

SPEAKERS

OFF B

A+B

BI-WIRING

OFF

1 2 3 4 5 6 7 8 9 :

Notes Notes

7En

4TRIM selector

Adjusts the volume level when headphones are

plugged in to avoid sudden changes in volume.

Choices: –6 dB, 0 dB, +6 dB, +12 dB

5SPEAKERS selector

Turns on or off the sets of speakers connected to the

SPEAKERS L/R CH A and/or B terminals on the rear

panel, as follows.

OFF: Both sets of speakers are off.

A/B: The set of speakers connected to the A or B

terminals is on.

A+B BI-WIRING: Both sets of speakers are on.

If you use two sets (A and B), the impedance of each speaker

must be 8 Ωor higher.

6METER selector

Switches the display of the meter to OFF, PEAK or

VU.

OFF: Turns off the meter and the illumination.

PEAK: Switches the meter to a peak level meter. The

peak level meter shows a momentarily highest

audio output level.

VU: Switches the meter to a VU (Volume Unit) level

meter. The VU level meter shows an effective

audio output value that is similar to human senses.

7Meter displays (LEFT/RIGHT)

Show the audio output level of the left (LEFT) and

right (RIGHT) channels in VU or PEAK meter mode.

The VU or PEAK meter can be selected by the

METER selector.

8BASS control

Increases or decreases the low frequency response.

The 0 position produces a flat response.

Control range: –10 dB to +10 dB

9TREBLE control

Increases or decreases the high frequency response.

The 0 position produces a flat response.

Control range: –10 dB to +10 dB

0BALANCE control

Adjusts the audio output balance of the left and right

speakers to compensate for sound imbalances caused

by speaker locations or listening room conditions.

• When both the BASS and TREBLE controls are set to the 0

position, audio signal bypasses the tone control circuitry.

• The BASS, TREBLE and BALANCE controls do not affect the

signals input at the MAIN IN jacks and signals output at the

LINE 2 REC jacks.

Caution

AUDIO MUTE

VOLUME

PHONO

Notes

8En

Controls and functions

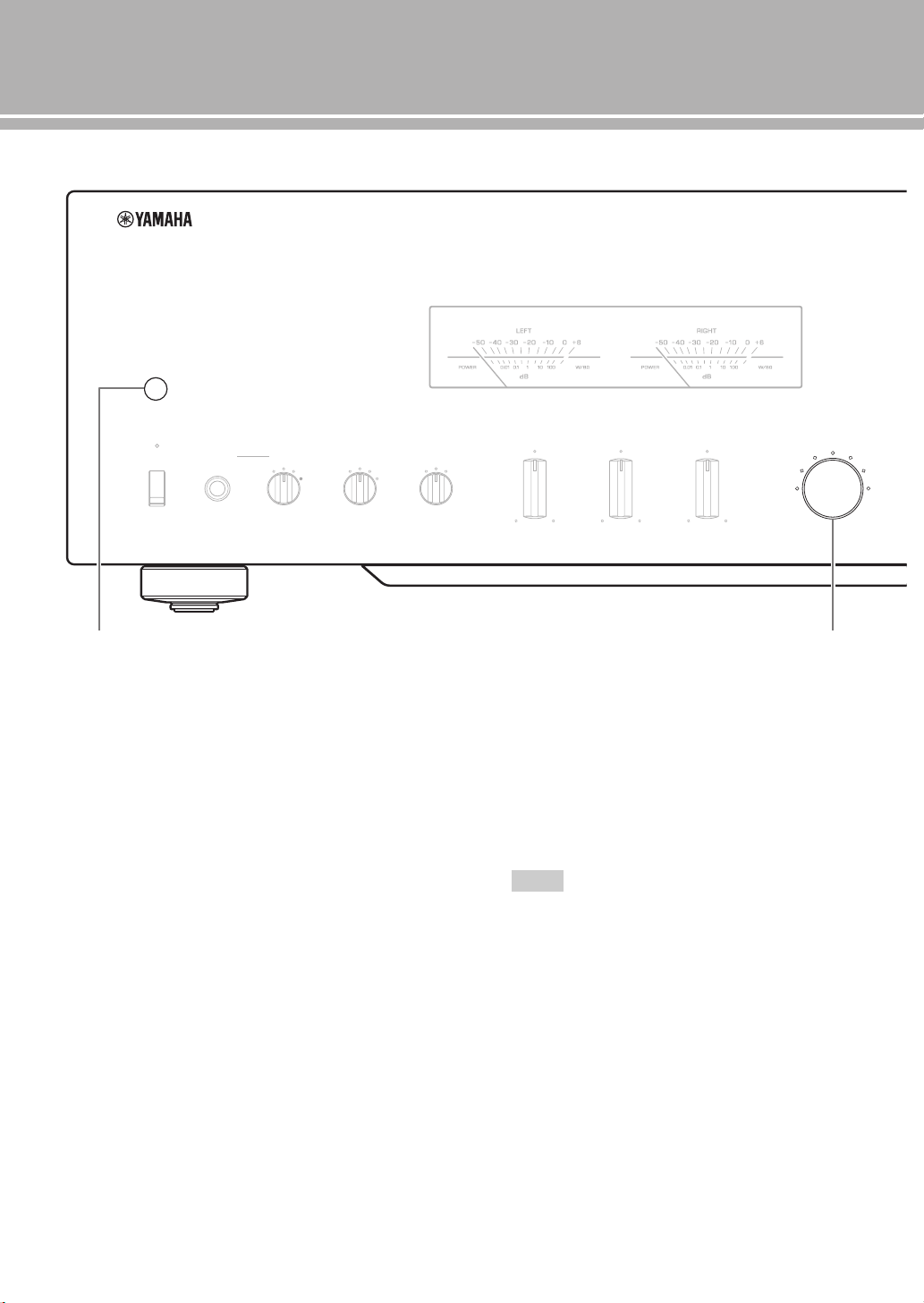

■Front panel (pages 6 to 9)

ARemote control sensor

Receives signals from the remote control.

BINPUT selector/indicator

Selects the input source to be played back. The

indicator of the input source selected with the INPUT

selector lights.

The audio signals of the selected input source are also

output at the LINE 2 REC jacks.

MAIN DIRECT: Selects the component connected to

the MAIN IN jacks.

When MAIN DIRECT is selected as the input

source, the audio signals are not output at the PRE

OUT, LINE 2 REC and PHONES jacks.

LINE 1/LINE 2: Selects the component connected to

the LINE 1 or LINE 2 jacks.

BAL: Selects the component connected to the BAL

jacks (balanced XLR jacks).

CD: Selects the CD player connected to the CD jacks

(unbalanced RCA jacks).

TUNER: Selects the tuner connected to the TUNER

jacks.

PHONO: Selects the turntable connected to the

PHONO jacks.

When LINE 2 is selected, the audio signals are not output at

the LINE 2 REC jacks.

METER

PEAK

OFF VU

INPUT

BAL CD

TUNER

LINE 1

PHONO

LINE 2

MAIN DIRECT

BASS

–+

TREBLE

–+

BALANCE

STANDBY/ON PHONES TRIM

-6 +6

+12

SPEAKERS

OFF B

A+B

BI-WIRING

OFF

A B

Note

9En

CPHONO switch

Selects the type of cartridge of the turntable connected

to the PHONO jacks on the rear panel.

MM: Choose this setting if the connected turntable

uses an moving magnet (MM) cartridge.

MC: Choose this setting if the connected turntable

uses an moving coil (MC) cartridge.

When you replace the cartridge, be sure to turn off this unit.

DAUDIO MUTE switch

Press downward to reduce the current volume level by

approximately 20 dB. Press again to restore the audio

output to the previous volume level.

You can also rotate the VOLUME control on the front panel

or press the VOLUME + or – key on the remote control to

resume the audio output.

EAUDIO MUTE indicator

Lights when the mute function is turned on with the

AUDIO MUTE switch.

FVOLUME control

Controls the volume level. This does not affect the

output level at the LINE 2 REC jacks.

The VOLUME control does not affect when you select

MAIN DIRECT as the input source. Adjust the volume level

using the volume control on the external amplifier connected

to the MAIN IN jacks.

AUDIO MUTE

VOLUME

PHONO

CD E F

Note

10 En

Controls and functions

■Rear panel

1BAL (balanced) input jacks

One set of balanced input jacks is provided.

Set the ATTENUATOR selector and PHASE selector

appropriately for the playback component that is

connected. For details on these switches, refer to page 20.

2PRE OUT jacks

• The PRE OUT jacks output the same channel signal as the

SPEAKERS L/R CH terminals.

• When you connect a stereo cable to the PRE OUT jacks to

drive the speakers using an external amplifier, it is not

necessary to use the SPEAKERS L/R CH terminals.

• The signal output at the PRE OUT jacks are affected by the

BASS and TREBLE control settings.

3SPEAKERS L/R CH terminals

4TUNER input jacks

5PHONO input jacks

6CD input jacks

7GND (Ground) terminal

8LINE 1 input jacks

9LINE 2 jacks

PB (playback) input jacks and REC (recording) output

jacks are provided.

0MAIN IN jacks

Use these jacks to connect an external component

equipped with a volume control.

When you select MAIN DIRECT as the input source, the

volume level is fixed.

Adjust the volume level using the volume control on the

external amplifier connected to the MAIN IN jacks when you

select MAIN DIRECT as the input source.

For the connection to the

MAIN IN

jacks, see pages 16 and 17.

GND

PHONO

LINE 1

BAL

(-6dB)

ATT. INV.

BYPASS NORMAL

PHASE

ATTENUATOR

INPUT

SPEAKERS R CH

A OR B:4 MIN. /SPEAKER A+B:8 MIN. /SPEAKER

R L

R R

TUNER

LINE2

REC

PB MAIN IN

LLL

R R

PRE OUT

NORMAL (EIA)

+ HOT

- COLD

GND

1 2

3 4 5 6 7 8 9 0

See page 16 for connection information.

Autres manuels pour A-S2100

Table des matières

Autres manuels Yamaha Amplificateur

Yamaha

Yamaha AP-U70 Manuel utilisateur

Yamaha

Yamaha P2160 Manuel utilisateur

Yamaha

Yamaha P-2200/2201 Manuel utilisateur

Yamaha

Yamaha CX-50 Manuel utilisateur

Yamaha

Yamaha DSP-A5 Manuel utilisateur

Yamaha

Yamaha P5000S - Amplifier Manuel utilisateur

Yamaha

Yamaha P2100 Manuel utilisateur

Yamaha

Yamaha MCX-C15 - MusicCAST Network Audio Player Manuel utilisateur

Yamaha

Yamaha XMV8140 Manuel utilisateur

Yamaha

Yamaha AX-596 Manuel utilisateur

Yamaha

Yamaha AX-1050 RS Manuel utilisateur

Yamaha

Yamaha AX-400 Manuel utilisateur

Yamaha

Yamaha M-45 Manuel utilisateur

Yamaha

Yamaha B-6 Manuel utilisateur

Yamaha

Yamaha DSP-A5 Manuel utilisateur

Yamaha

Yamaha AVX-100U Manuel utilisateur

Yamaha

Yamaha A-S801 Manuel utilisateur

Yamaha

Yamaha A-1020 Manuel utilisateur

Yamaha

Yamaha A-S701 Manuel utilisateur

Yamaha

Yamaha P5000S - Amplifier Manuel utilisateur

Yamaha

Yamaha DSP-AX1/RX-V1 Manuel utilisateur

Yamaha

Yamaha AX-492, AX-592, AX-892 Manuel utilisateur

Yamaha

Yamaha C-6 Manuel utilisateur

Yamaha

Yamaha C 450 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
