Yakima LOCKN'LOAD Manuel utilisateur

80-13-037-Rev2 1/4

• Please read instructions carefully before installation.

• Check the contents of kit. Contact your YAKIMA dealer if any parts appear missing or damaged.

• Clean your Platform prior to ﬁtting the LOCKN’LOAD Platform Inboard Light Bracket Kit.

• Place these instructions in the vehicle’s glove box after installation is complete.

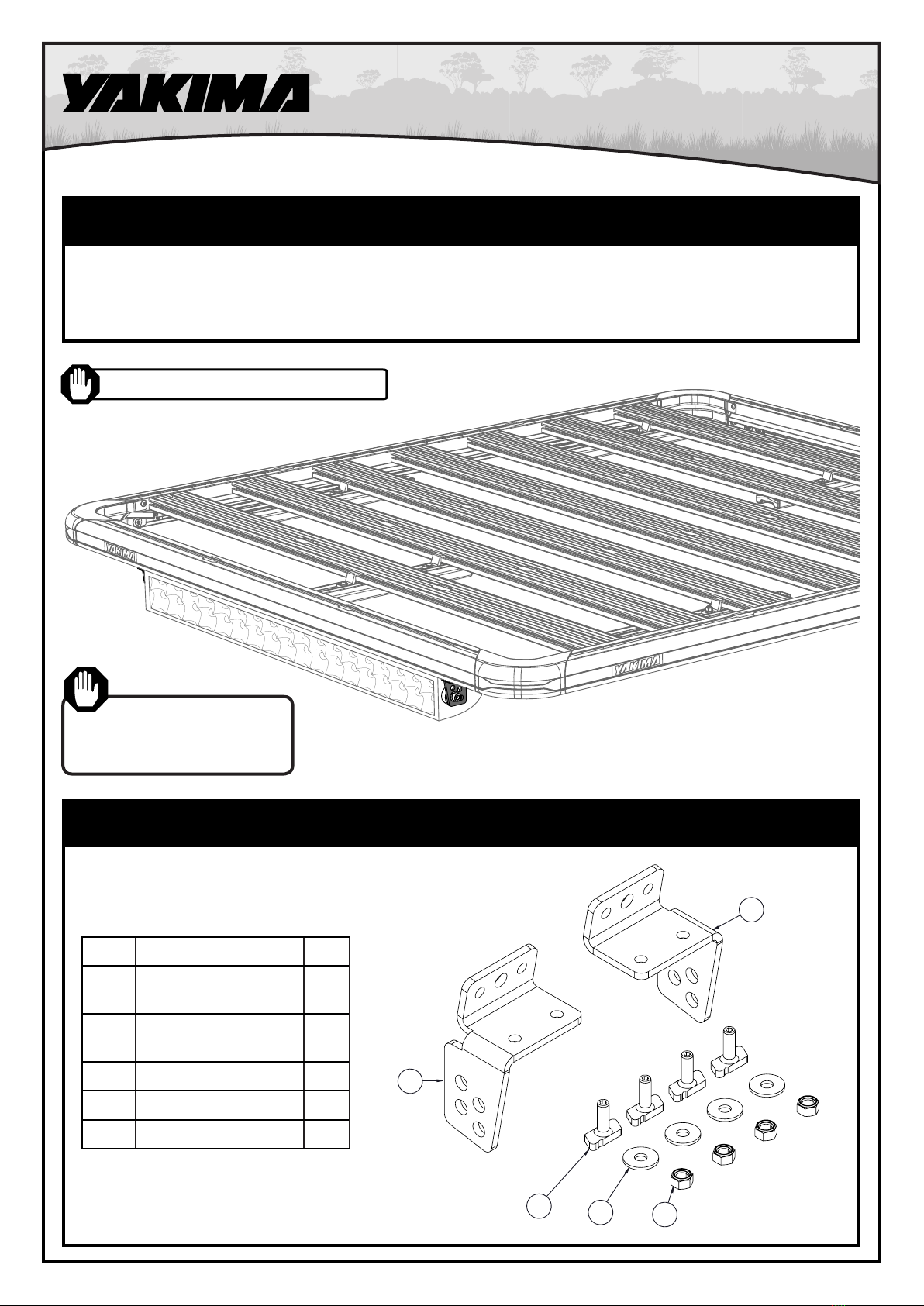

FIRST TIME INSTALLATION

KIT CONTENTS

ITEM COMPONENT QTY

1. Inboard Light Bar

Bracket Right Bend

2. Inboard Light Bar

Bracket Left Bend

3. Nyloc Nut x4

4. Washer x4

5. T Bolt x4

PLATFORM AND LIGHT BAR SOLD SEPARATELY

MAX LOAD RATING: 8KG

LOCKN’LOAD

PLATFORM INBOARD LIGHT BRACKET KIT

• Allen Key

• 10mm Socket Wrench/Spanner

TOOLS REQUIRED:

80-13-037-Rev2 2/4

LIGHT BAR INSTALLATION

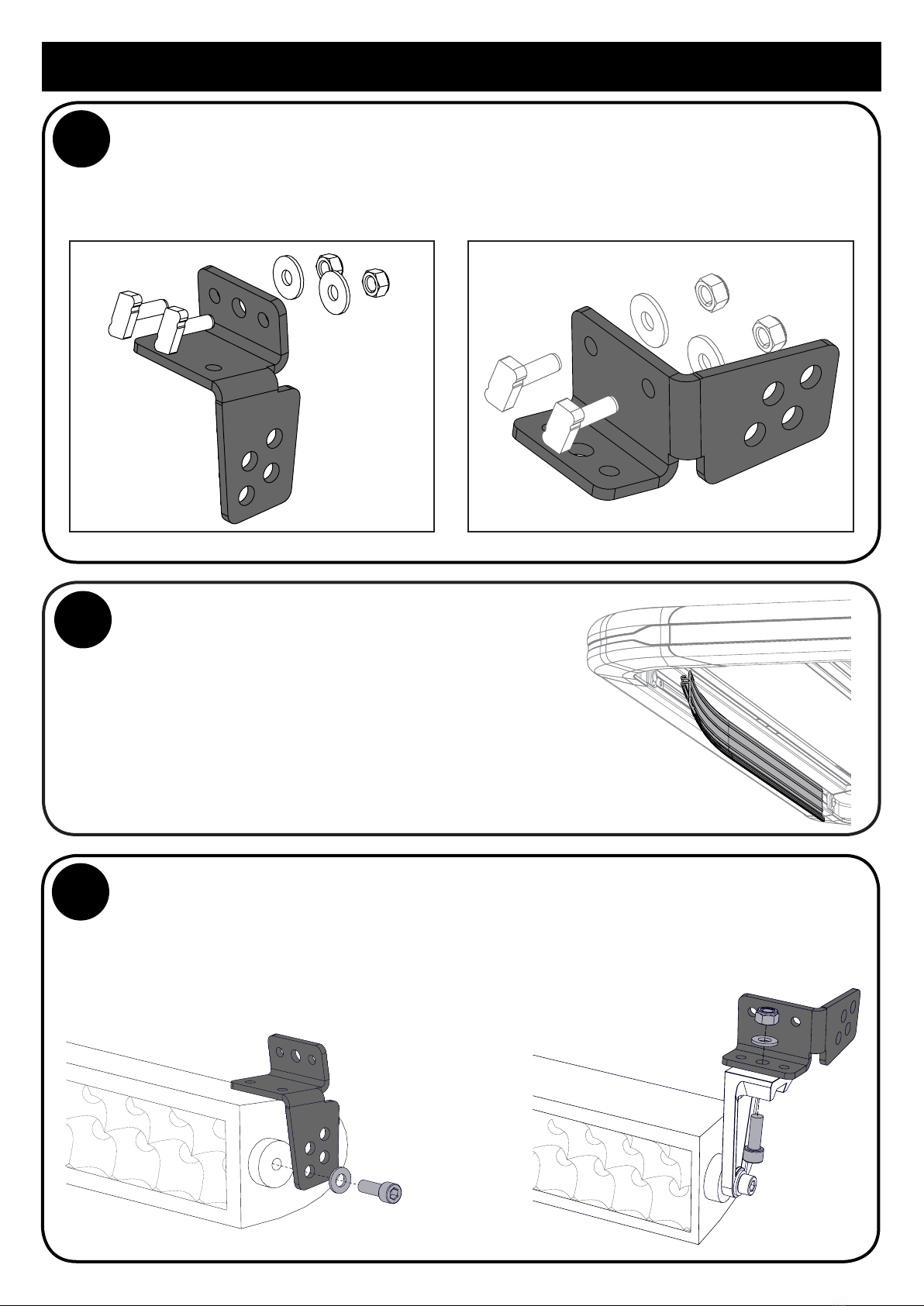

1CONFIGURATIONS

The Light Bar Brackets can be mounted to the Platform in two different orientations to suit

side or top mounted light bars as shown.

REMOVE DEFLECTOR OR RUBBER INFILL

If mounting to the front of the Platform, remove the deﬂector.

If mounting to the rear of the Platform remove the rubber inﬁll.

This is done by simply peeling the part out of the slot, starting at one

end and working across the length of the strip.

Installation is the reverse and should be conﬁrmed by hearing an

audible ‘CLICK’ when it is fully installed.

LOOSELY ATTACH BRACKETS TO LIGHT BAR

Using the hardware supplied with your light bar, loosely attach brackets to each end of the

light bar in the applicable orientation. If mounting light bar via the side, four mounting holes

are available to suit your size and style of light bar.

Finger tighten screws to allow the light bar to be rotated once mounted.

NOTE - Screws, washers, nuts

supplied within your light bar kit.

80-13-037-Rev2 3/4

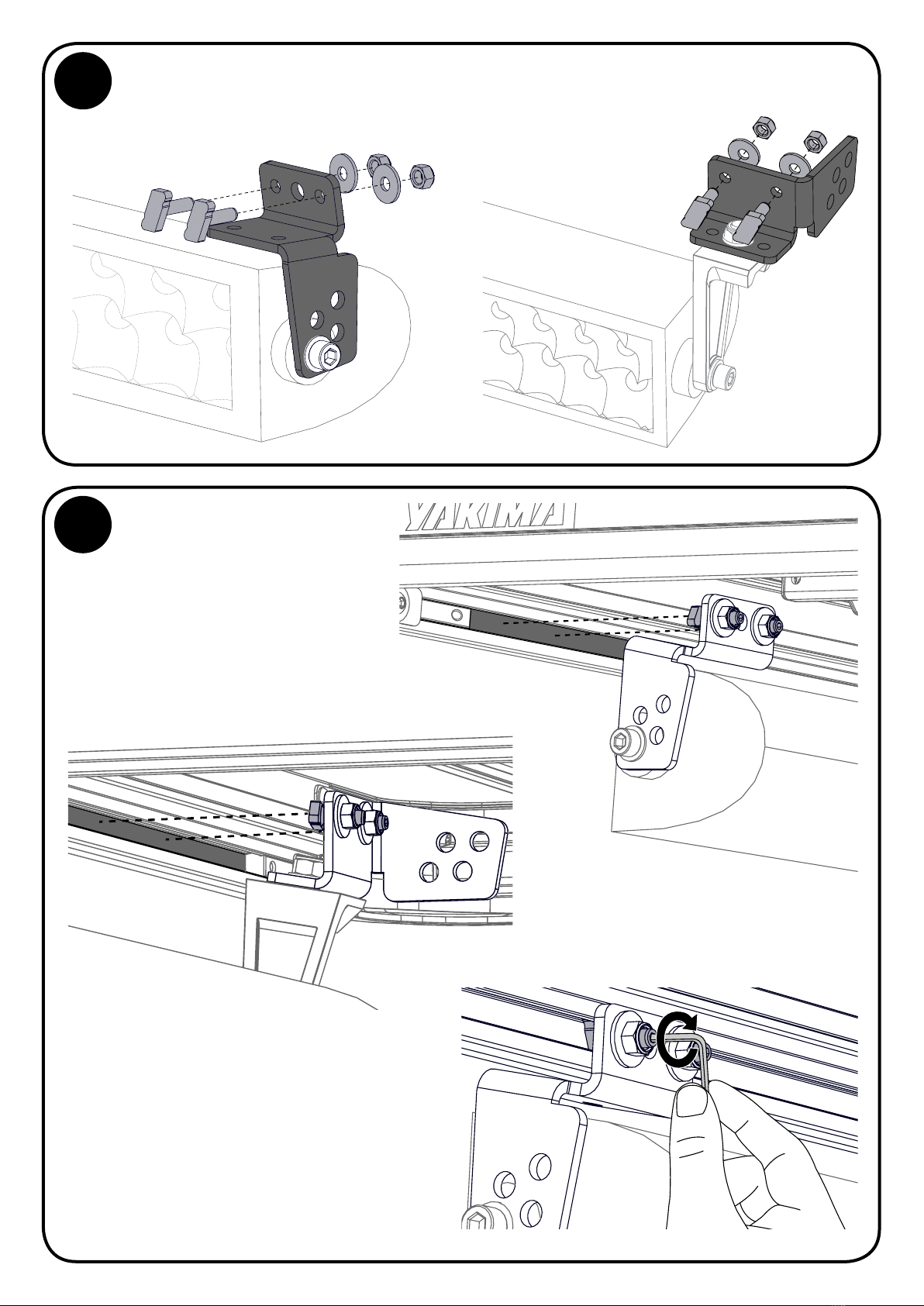

LOOSELY ASSEMBLE BRACKETS

Loosely assemble the T Bolts, Washers and Nuts to the brackets as shown.

POSITION LIGHT BAR

INTO PLATFORM

Position light bar and

bracket assembly into

the underside channel

of Platform as shown.

Once in position, use an

Allen Key to ensure the

T Bolts are turned all the

way to the locked position.

80-13-037-Rev2 4/4

CENTRE LIGHT BAR

Centre light bar and bracket assembly on Platform by ensuring there is an equal distance from the

Platform corners as shown.

SECURE LIGHT BAR TO PLATFORM

Secure light bar and bracket assembly to

the Platform by tightenting each Nyloc Nut

to 4Nm using a 10mm Socket Wrench or

Spanner.

NOTE - Ensure that position of light bar, or multiple light bars, complies with relevant state legislation.

ADJUST LIGHT BAR AND TIGHTEN SCREWS

Adjust light bar to preferred angle then

tighten light bar hardware installed in Step 3

according to the manufacturer’s instructions.

Installation is now complete.

Ensure all screws are regularly checked

and tightened to ensure minimal bounce

and maximum safety.

Ensure all wiring is retained according

to Light Bar manufacturer instructions.

www.yakima.com.au

YAKIMA PRODUCTS, INC.

4101 Kruse Way

Lake Oswego, OR

97035-2541

USA

888 925 4621

YAKIMA EUROPE

Twentehaven 7

3433 PT Nieuwegein

The Netherlands

+31 2080 81425

YAKIMA AUSTRALIA PTY. LTD

17 Hinkler Court

Brendale, QLD 4500

Australia

1800 143 548
