LoadWarrior

RECOMMENDED TOOLS:

Phillips screwdriver

Tapemeasure or ruler

With a crossbar spread of 24–29” (61cm-

74cm), you may carry bikes, skis, or kayaks,

provided you do not exceed the recommended

weight limit for your vehicle.

 



 



Carry gear in the basket, and attach

accessories directly to the LoadWarrior

(using accessory instructions).

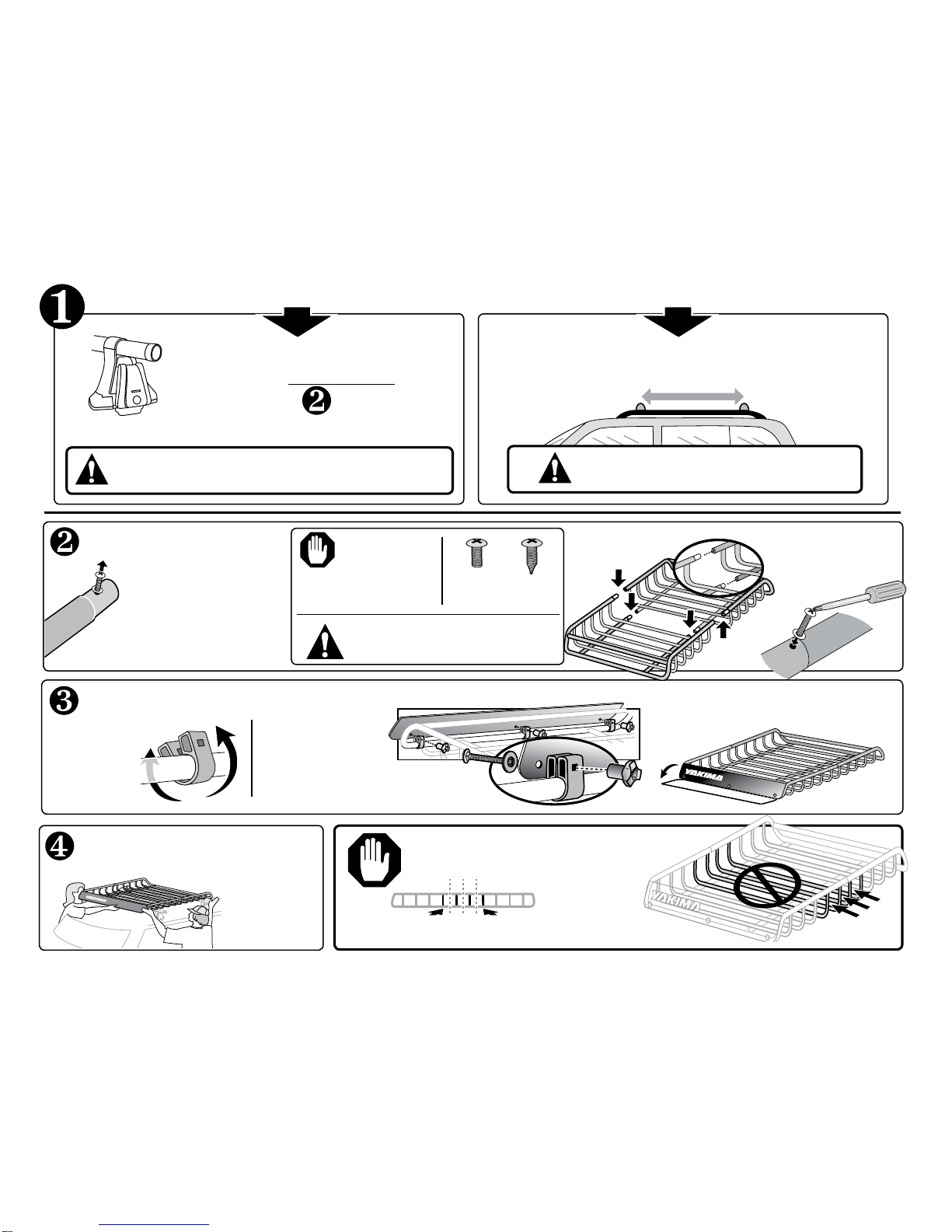

IF YOU HAVE BARS THAT CAN BE MOVED…







DO NOT ATTACH BRACKETS





•IfyouhavefIxedbars: •IfyourbarsMove:

(SIDE VIEW)

A friend

would make

this easier .

QTowerowners:

neverreposITIonTheQTowers! TIghTenyourcrossbars

IfyouloosenedTheM.



OR BARS THAT CANNOT MOVE…

Continue to STEP 



Pry open the

SnapArounds,

attach them

to the LOWER

FRONT BAR.

 

washers, fairing



 

NOTE: The fairing can fold down when

carrying long slender loads.

Remove the machine screws from



NOTE

machine screws

with washers (from

LoadWarrior) into same



You may ﬁnd tapered

screws with your

Extension.

MACHINE

SCREWS

TAPERED

SCREWS

DO NOT insert the tapered





EXTENSION

USERS:

Insert screws with

washers into each

of the joints and



ASSEMBLE



ATTACH THE KNOBS:

Engage the threads of

the bolts.

CHECK INSTALLATION:

Make sure installation is secure

by tugging at basket.

On some

vehicles, hatch

interference is

unavoidable.

TO REMOVE THE BASKET, DO NOT

DISASSEMBLE THE HARDWARE.

 



 



 

USE CAUTION WHEN



T-BOLT IS LOCKED



bolt is turned inside

the hole:

TIghTen

TheKnobs.

SECURE THE

BASKET TO





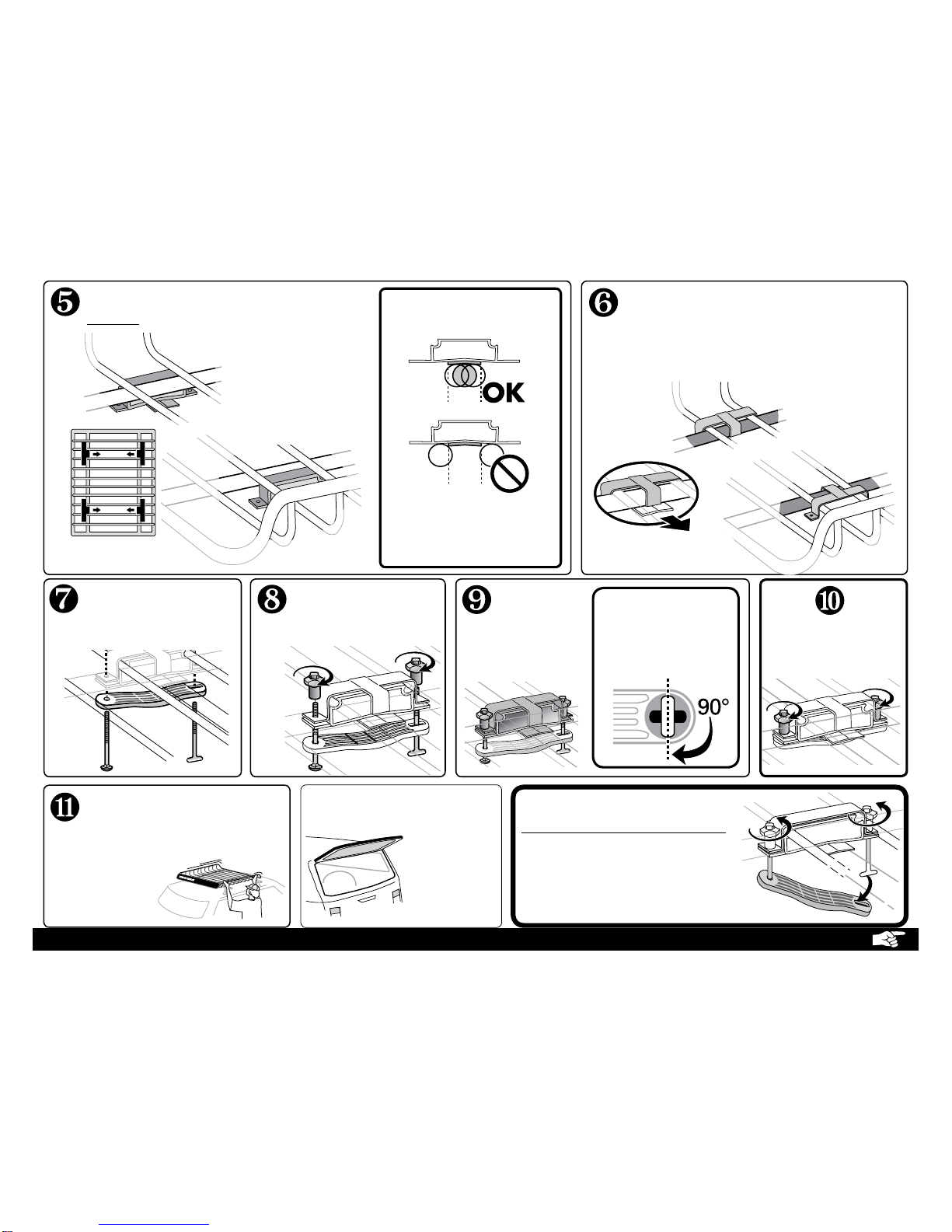

POSITION THE SUPPORT BRACKETS

ABOVE 

 

OUTSIDE of the basket



 

face 

It may be necessary to

move the bracket to a new

position, or to adjust the

basket position.

Keepbar

belowTab!



Position cover bracket onto installed



Hooked tab should cover the larger

support bar.

Arrow points inboard

to center of vehicle.



Insert bolt into round hole,

and T-bolt into slotted hole.

The basket should NOT

SLIDE on the bars.

Tighten knobs if

necessary.

•conTInueTo bacKpageforIMporTanTloadlIMITaTIons...
