XTRONIC 8020-XTS Manuel utilisateur
- 1 -
TABLE OF CONTENTS
Introduction
Package Contents..................................................2
Product Features ...................................................3
Product Specifications ...........................................3
Getting Started
Product Set-Up ......................................................4
User Interface ........................................................5
Operating Instrutions..............................................6
Function Set-Up .....................................................9
Safety Precautions...............................................17
Maintenance
Soldering Tip Care ...............................................17
Install/Remove Soldering Tip ...............................18
Replacing Heating Elements.................................18
Warranty..................................................................20
Contact Information...............................................22
- 2 -
Package Contents
1 – X-Tronic #8020-XTS Main Unit
1 – X-Tronic Soldering Iron
1 – X-Tronic Hot Tweezer
1 - Soldering Iron and Hot Tweezer Holder
1 - Brass Tip Cleaner w/ Flux
5 – Soldering Iron Tips (Assorted Sizes and styles)
1 - Solder Roll Holder
- 3 -
Product Specifications
Model #8020-XTS
Dimensions 5.9 x 5.4 x 3.7 in / 15.0 x 13.6 x 9.3 cm
Weight 6.0 lbs / 2.72 kg
Working Environment 32°F ~ 104°F / 0°C ~ 40°C
Storing Environment -4°F ~ 176°F / -20°C ~ 80°C
Temperature Range 212°F ~ 896°F / 100°C ~ 480°C
Temperature Stability ± 2°C
Grounded Tip Voltage < 2 mV
Tip Impedance < 2Ω
Display Type LED
Cable Length (Material) ≥ 39.4 in / 100 cm (Silicone)
Product Features
• ESD Safe
• Genuine Samsung Microcontroller
• PID Technology
• Digitally Controlled
• Independent Temperature Adjustment and Compensation
for Soldering Iron and Hot Tweezers
• 3 Preset Memory Options
• Safety Features - Sleep Function and Automatic
Shutdown
• No Memory Silicone Cords
• Highest Quality and Reliability
• High Temperature Stability
• °C / °F Conversion
• Magic Temperature Compensation
• Small Footprint
- 4 -
Product Set-up
1. Unpack all of the contents of the X-Tronic #8020-XTS unit.
2. Inspect the unit and accessories for any damage. If damage is
detected, please contact X-Tronic immediately.
3. Attach the soldering iron to the unit using the soldering iron
connection.
4. Place the soldering iron into the holder.
5. Attach the hot tweezers to the unit using the hot tweezer
connection.
6. Ensure all of the connections are secure and correct before
applying power to the unit.
7. Plug the power cord into a GROUNDED AC wall outlet.
8. Turn on the main power switch located io the back of the unit.
9. Power on the unit.
a. Soldering Iron
i. Attach the desired tip to the soldering iron.
ii. Power on the soldering iron with the Iron power switch.
iii. Adjust the soldering iron temperature by pressing the
soldering iron ꜛ and ꜜ buttons.
b. Hot Tweezers
i. Turn on the hot tweezers by means of the Hot
Tweezers power switch.
ii. Adjust the hot air temperature by using the hot air gun ꜛ
and ꜜ buttons.
- 5 -

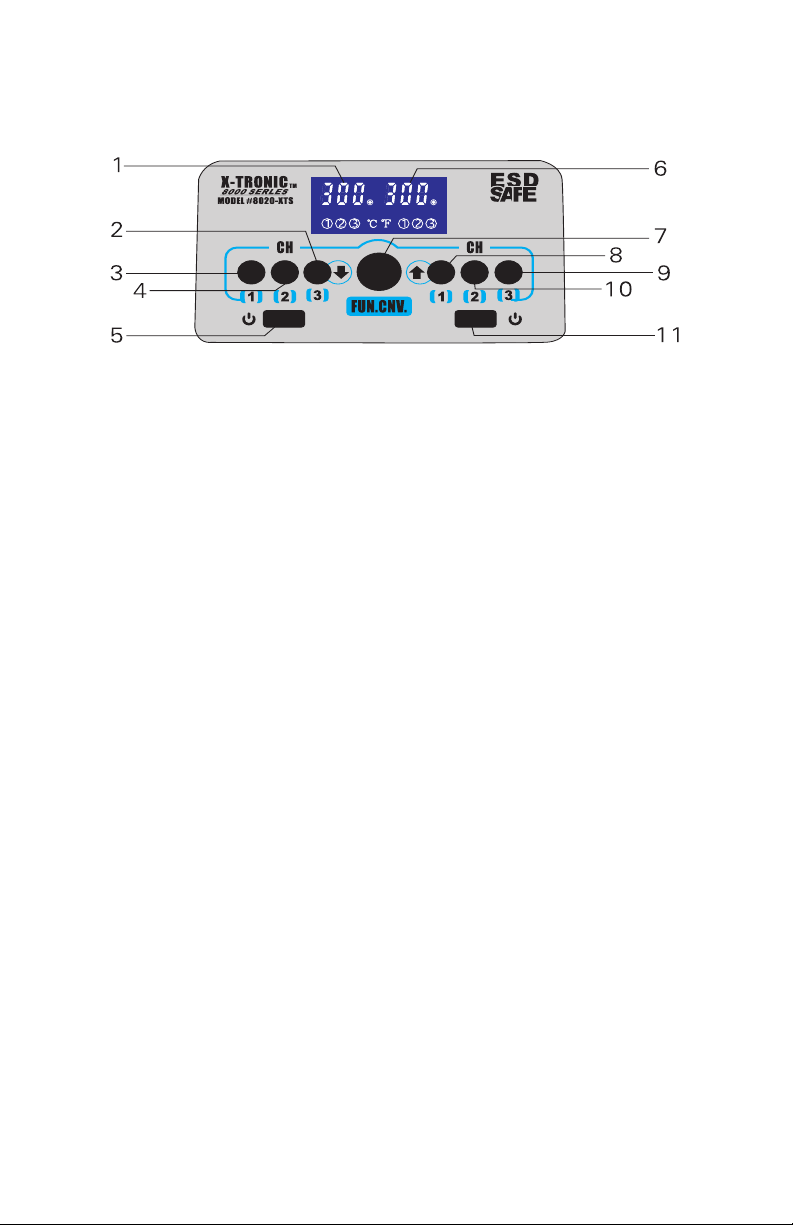

1. Hot Tweezer Temperature Display
2. Hot Tweezer CH #3 Memory Preset
3. Hot Tweezer CH #1 Memory Preset
4. Hot Tweezer CH #2 Memory Preset
5. Hot Tweezer Power Button
6. Soldering Iron Temperature Display
7. Function Key
8. Soldering Iron CH #1 Memory Preset
9. Soldering Iron CH #3 Memory Preset
10. Soldering Iron CH #2 Memory Preset
11. Soldering Iron Power Button
User Interface
- 6 -

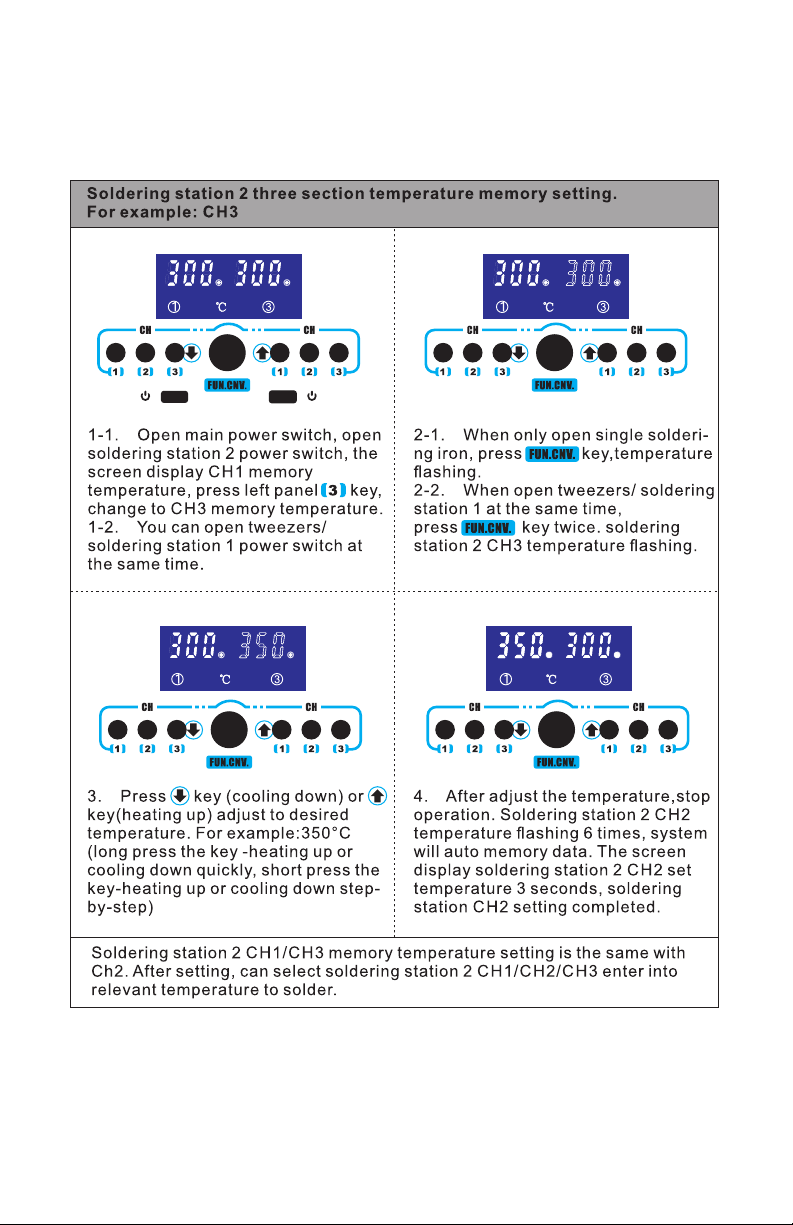

Operating Instructions
- 7 -
Operating Instructions Cont.
- 8 -
Operating Instructions Cont.
