XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
1
XtraVac CM430
Safe Operation Practices
General Operation
．Read, understand, and follow all instructions in the manual and on the machine before
starting. Keep this manual in a safe place for further and regular reference and for ordering
replacement parts.
．Only allow people who familiar with the instructions to operate the machine. Be sure to
know controls and how to stop the machine quickly.
．Do not put your hands near moving parts.
．Remove all obstacles, which may interfere with the machine functions.
．Clear the work area such as electrical wires, gloves, knives etc.
．Be sure that everyone else is clear of your work area before operating the machine.
．Do not sit nor stand on the machine.
．Be sure turn off the machine after your work is finished. Never leave a running machine
unattended.
．Always disconnect and wait until the machine has cooled before doing any maintenance.
．Do not wear loose fitting clothes or jewelry as they may get caught in moving parts of the
machine.
．Please wear security shoes, to avoid injury caused by moving the machine or objects falling
from the machine.
．Never exceed the time limit to seal, which is suggested by the manufacturer. This is to avoid
any damage that may be caused to the sealing bars and to reduce the risk of fire in the
machine.
．Never touch the sealing bars after they have been used, this will avoid corporal burns. Wait a
few minutes to let the machine cool down before touching.
．Make sure the sealing bars are well installed in their “Guide Blocks” before starting package.
．Never incline the machine more than 30 degrees, it may tip over and hurt someone seriously.
Your responsibility
This machine should only be operated by personal who can read, understand and respect
warnings and instruction regarding this machine in the owner’s manual.
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
2
Content
Chapter 1：Safety precautions
1.1 Precautions of transportation, installation and packing
1.2 Precautions before and after machine starting
Chapter 2：Overall description of the machine
2.1 Features of the machine
2.2 Function of the machine
2.3 Product proper for this machine
2.5 Marking location and content description
2.6 Specification of the machine
Chapter 3：Function description of the pushbuttons on
the panel
Chapter 4：Instructions of operation, maintenance and
troubleshooting
4.1 Operation sequence
4.2 Maintenance
4.3 Troubleshooting
Chapter 5：Related environment and accessories of the
machine
5.1 Accessory
5.2 Airborne noise level
5.3 Storage condition
5.4 Operation environment
V1.02
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
3
Chapter 1：Safety precautions
1.1 Precautions of transportation, installation and packing
1.1.1 Preparations before installation
1.1.1.1 Power requirement:
Voltage: Look at the nameplate
Current: Look at the nameplate
Frequency: 50/60Hz
Phase: 1Ø
1.1.1.2 Installation requirement
1.1.1.2.1 Prevent to install the machine in the environment full of dust and corrosive
atmosphere with acid and alkali.
1.1.1.2.2 Prevent to install the machine in the environment with abnormal vibration.
1.1.1.2.3 Prevent to install the machine under direct sunlight or near vapor. Such will
affect its vacuum degree.
1.1.1.2.4 Don’t install the machine in the potentially explosive atmosphere.
1.1.1.2.5 Installation space includes the requirement of the operator and machine
Length × Width × Height = 1m×1.5m×2.5m
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
4
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
5
1.1.2 Preparations during transportation
1.1.2.1 The weight of this machine is 80kg, so that the loading capacity of any handling
device is recommended to be more than 150kg. If you are not sure of the safe
loading capacity, please contact the manufacturer of such handling device. If the
situation is clearly understood, don’t try to handle the machine by yourselves.
1.1.2.2 Either by lifting or by handling, it’s necessary to check the balance carefully in
advance.
1.1.2.3 The work of lifting or by handling should be carried out by means of qualified
operator.
1.1.2.4 During machine handling, any people or car is not allowed to approach the
surrounding of the machine.
1.1.2.5 During handling, notice that whether there is any person or barrier on the handling
path and the surrounding of the machine. If it is, clear it before machine handling.
1.1.3 Precautions during packing
1.1.3.1 Packing material: cardboard box.
1.1.3.2 Packing sequence: Open the cardboard box and put the machine covered with
plastic film into the box. Next, put vibration-absorbing board around the machine.
Then, close the box and seal with tape. At last, bind it with pp stripes.
1.2 Precautions before and after machine starting
1.2.1 Precautions before machine starting
1.2.1.1 Before using this machine, read and realize the contents of this manual in detail.
1.2.1.2 Check that whether the voltage is correct.
1.2.1.3 Confirm that whether the electric power and its rating is sufficient.
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
6
1.2.1.4 Check that whether all the safety related devices are normal, and notice that whether
anyone within the danger zone.
1.2.1.5 Visual check that whether all mechanical and electric parts are normal, and also
notice that whether the surrounding environment is clean.
1.2.1.6 Sequences of power on:
1.2.1.6.1 Turn on the factory power.
1.2.1.6.2 Turn on the main switch of the machine.
1.2.2 Precautions after machine starting
1.2.2.1 Confirm that whether the display is correct.
1.2.2.2 Confirm that whether the sound coming from pump running is normal.
1.2.2.3 Make sure that whether the pressing bar of the upper lid is released.
1.2.2.4 Make sure that the opening angle of the upper lid is about 60º.
1.2.2.5 Wear safety shoes, protection clothes and mask to ensure safety and hygiene of the
operator.
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
7
Chapter 2：Overall description of the machine
2.1 Features of the machine
2.1.1 The machine main body is made of stainless steel with features of pretty appearance,
well endurance and easy cleaning.
2.1.2 The machine adopts high vacuum pump specific for food packaging and micro-
computerized auto control system with 10 sets of friendly memory function and
independent display.
2.1.3 It is adequate for any processing factory.
2.2 Function of the machine
2.2.1 Keep food fresh, original taste, anti-septic
2.2.2 Extend the preservation limit.
2.2.3 Prevent humidity and stain on electronic and ironmongery components.
2.2.4 It is proper for contents of solid, powder or liquid.
2.3 Product proper for this machine
2.3.1 Meat, seafood, agriculture products, dehydrated food, herbs, vegetarian food, pickles
and spices.
2.3.2 Electronic components, ironmongery components, medical equipment, powder and
flavoring.
2.5 Marking location and content description.
2.5.1 Nameplate: stuck on the right/upper side of the machine
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
8
2.5.2 Warning sign: stuck on the rear side of the machine

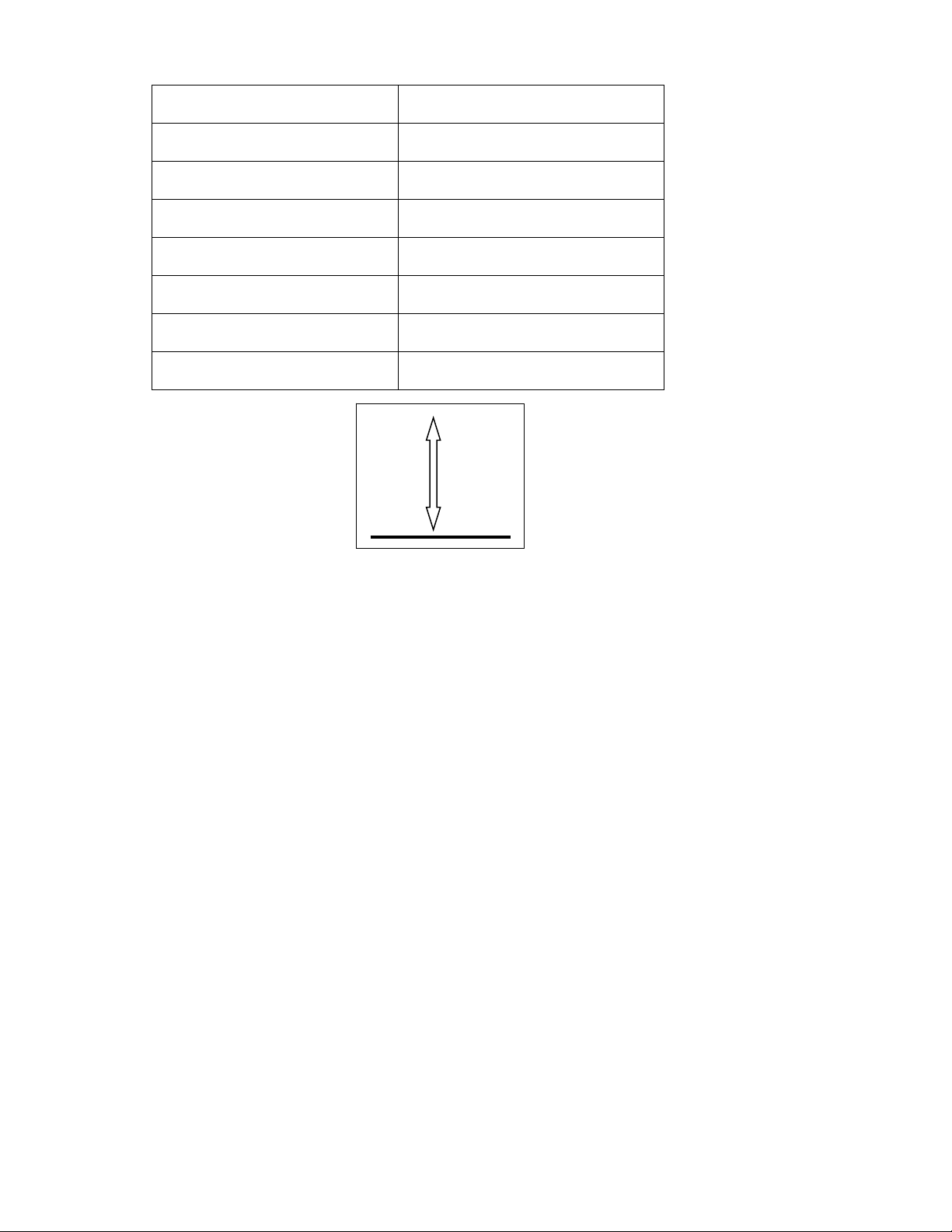

2.6 Specification of the machine
XtraVac CM430 Chamber Machine Operation and Parts Manual
XtraVac Packaging Machines 419 E. 11th Ave. North Kansas City, MO 64116 USA
9
Type XtraVac 430
Machine dimension 490 x 540 x 510 mm
Vacuum chamber dimension 435 x 425 x 170 mm
Sealing line dimension 420 mm X1
Optional accessory Nitrogen filling function
Machine weight 80 kg
Motor 0.9 kW
Heater 1.4 kW
Available bag length 360mm
