XTONEBOX 60SP Manuel utilisateur

60SP

STEREO TUBE PHONO PREAMPLIFIER

V1.0 2023

Intended to alert the user of the presence of uninsulated ―dangerous voltage‖

within the product’s enclosure that may be of sufficient magnitude to constitute a risk

of electric shock to persons.

Intended to alert the user of the presence of important operating and

maintenance (servicing) instructions in the literature a companying the product.

CAUTION: Risk of electrical shock —DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user

serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this unit should not be exposed

to rain or moisture‚ and objects filled with liquids‚ such as vases‚ should not be placed

on this unit. Before using this unit‚ read the operating guide for further warnings.

WARNING: When using this product or any other electrical products, basic cautions

should always be followed, including the following:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not cover with cloths or blankets for satisfactory ventilation.

8. Do not install near any heat sources.

9. Always use the IEC main power cable from your area, ground lug is needed.

10. To insert or remove the audio valves, the device must always be switched off

and disconnected.

11. Although the installed preamplifier-type tubes do not get excessively hot, we

recommend not touching or handling them while the equipment is powered on.

12. Unplug this unit during lightning storms or when unused for long periods of

time.

13. Always replace the fuse in this unit with the same fuse as indicated on the rear

panel.

It will be to your advantage to save all the packing materials, carton, fillers,

cushioning, etc. They will prove valuable in preventing damage should it become

necessary to transport or ship the 60SP. Be careful that you do not inadvertently throw

away or lose the parts packed with the unit.

Please inspect this unit carefully for any signs of damage incurred in

transit. It has undergone very strict quality control inspections and tests prior to

packing, and it left our workshop in Spain unmarred and in perfect operating condition.

If the unit was shipped directly to you and you discover damage, notify the

transportation company without delay. Only you, the consignee, may institute a claim

against the carrier for damage during shipment. However, we will cooperate fully with

you in such an event. Save the carton as evidence of damage for their inspection. If

you received the unit directly from a XTONEBOX dealer, return it to him for

adjustment.

The 60SP is a phono preamp 100% done with audio valves in the audio signal

path and is based on the original circuits from the electronic masters of the 60s.

Significantly improve vinyl records response. Sound with great detail and dynamics.

When you play your vinyl records through this phono preamplifier, the first thing

you notice is an openness in the sound, then a pleasing presence of detail with great

dynamics, which finally boils down to an appreciation of your music from a new point

of re-discovery.

Easy to use. Just worry about what vinyl record you're going to listen to. The

INPUT input of the preamp is designed with standard impedance and capacitance for

MM cartridges. Connect your turntable to the Xtonebox 60SP and its OUTPUT output to

your usual device, such as your integrated amplifier (AUX), powered speakers or your

sound card for ripping. (For MC cartridges, please contact us).

Selected and matched electronic components. Our job when offering a stand-

alone phono preamplifier is to provide electronics with the right components matched

in the key parts of the circuit. In addition, each unit is tested with selected tubes

during quality control, so that you get the best signal and stereo image right out of the

box.

Minimalistic design. Theoretically, the ideal is to connect the signal coming from

the cartridge as close as possible to its amplification, as it is a very weak signal prone

to losses. What could be better than being able to have the electronics that gives it life

on one side of the turntable?

The aluminium chassis offers a clean and pleasing look for both vintage

turntables and modern minimalist lines.

Stereo tube phono preamplifier.

Class-A preamplification.

Mainly designed for MM cartridges, MC cartridges available on request.

Preamp tubes: 2x ECC83 + 1x ECC82.

1 RCA stereo input / 1 RCA stereo output.

Input impedance: 47KΩ (MM).

Output impedance: 420Ω.

Gain: 52dB (MM).

Frequency response: 20 Hz / 20 KHz.

Passive RIAA equalization curve.

All-aluminium chassis, excellent dissipation and shielding.

Internal power supply. Zero background noise.

Dimensions (H,W,D): 11 x 12 x 32 (cm)

Weight: 1.2 kg / 2.6 lbs.

The package includes the following items:

60SP Tube Phono Preamplifier

IEC Cable

User Manual

INPUT. These RCA connectors are the stereo input (R & L) to connect the turntable

PHONO signal (MM cartridge) to the 60SP preamp electronic circuit.

GROUND. Connect here the independent ground cable from your turntable. This

ground post, separate the signal ground from the chassis ground to a better noise

performance.

OUTPUT. These RCA connectors are the stereo output (R & L) to connect the output

signal from the 60SP to another device. Please see Output Options, next.

MAIN POWER. Please, use the IEC cable with ground lug to power on safety

(included). Ready to be plugged into any country's electricity supply, from 100 to

240VAC.

POWER SWITCH. Switch to power ON or to power OFF the 60SP. You can read more

information below.

Each time you POWER ON this unit please check the following points:

Audio valves are properly installed.

Input cable and output cable are properly connected.

The IEC Cable is properly plugged. IEC with ground terminal is required for safe

operation and reduction of background noise.

To turn on this unit, press the POWER button at the back to ON position. The LED at

the front, should light up some times, and then it will be permanently illuminated. If

the LED don´t light, please verify that the IEC Cable are properly plugged.

If the LED power on correctly, wait 30 seconds for the valves to warm up, and the

internal voltage is stabilized. At this point your 60SP will be ready to play your favorite

music. Enjoy!

If you turn the 60SP ON and then turn it OFF again in an instantaneous time cut, it

may generate a small "pop" in the signal. If you turn the 60SP OFF after many minutes

this ―pop‖will be barely noticeable. The longer the 60SP is on, the smoother the 60SP

shuts OFF.

This means, that for the usual use of playing several vinyl records, you will never

notice any "pop" when switching off the 60SP.

Anyway, if you have a high-powered system, we recommend a shutdown order

such as the following examples:

Power stage off -> preamplifier off -> 60SP power off.

Integrated amplifier off -> 60SP power off.

Phono circuit was intended for use with turntables that have a standard MM

(Moving Magnet) phono cartridge that need a rated input impedance of 47,000

ohm. This circuit amplifies the signal giving it extra gain and RIAA EQ, so you shouldn't

plug in any other device in PHONO INPUT. The signal processing made by the phono

circuit is only needed in case of using a turntable.

If you have a modern turntable with internal phono preamp with selectable

switch PHONO –LINE, put your switch in PHONO mode.

Remember to connect correctly the RCA cable from your turntable doing a

perfect connection.

Remember to connect the independent ground cable from your turntable to the

GND binding post.

There are several good ways to enjoy the sound from the 60SP, here some

examples:

AUX type input of an integrated amplifier.

AUX type input of powered loudspeakers.

AUX type input of a preamplifier.

LINE type input of a recording device.

LINE type input of an audio interface.

NOTE: Never connect the 60SP output to another phono preamp circuit or phono

input from a preamplifier or integrated amplifier.

When you are using the Xtonebox 60SP, various situations may occur that

manifest themselves in noises. Being a very high gain circuit with the use of audio

valves, it may amplify certain sounds unintentionally. Mostly these noises are not

noticeable, but here are some different situations, in case one of them happens to you,

understand it and solve it.

"When I put the stylus down I hear random clicks": this is caused by the stylus

going into the groove of the vinyl and having micro-scratches and/or dirt on it. This is

normal, as it is a physical amplification of the stylus touching the groove.

"When the stylus rests on the vinyl record, I hear a low-freq background noise":

this effect is called "rumble" and is mostly produced by idler or belt turntables that

transmit the vibration of the engine, different mechanical parts or the pick-up of AC

voltage. It is normal, produced by the turntable.

"I hear a constant noise": This can be produced in modern belt type turntables

with DC motors powered by external power supplies that usually induce this noise in

the turntable, it is not related to the 60SP, but it amplifies it.

"I hear a constant static noise": You must connect or disconnect the independent

ground wire to the GND of the 60SP, there are turntables that need to be connected

correctly to their ground to eliminate this noise, others can produce it when connected

to the GND, it is not related to the 60SP, but try connecting or disconnecting this wire

to know how best to reduce the noise of your turntable.

"I hear a very loud HUM sound": try connecting your RCA cable correctly to the

RCA input of the 60SP.

"I hear an intermittent background noise": the 60SP's audio tubes can pick up

digitally generated noise from your mobile phone, cordless phone or even a WIFI

router if it is very close, in this case, maintain your mobile phone away and try to

position the 60SP away from these digital noise emitting sources.

"I hear a background noise of random beeps": the 60SP's audio tubes can pick

up noise generated by antennas and mobile signal repeaters. If you have such an

antenna near your home, it is possible that the 60SP can pick up this background

noise. If you notice this, we recommend placing the 60SP away from windows or areas

near the orientation of these antennas.

"When I play my music too loud, I hear an uncontrolled bass sound": This is

mostly caused by low frequency feedback between the sound from the speaker and the

pickup from the turntable cartridge acting as a microphone. You should reposition your

elements to reduce this feedback, better isolate the speakers or the turntable, lower

the bass tone or use a low-pass filter of your amplifier can help to control this problem.

It is unrelated to the 60SP, but unintentionally helps to amplify this acoustic problem.

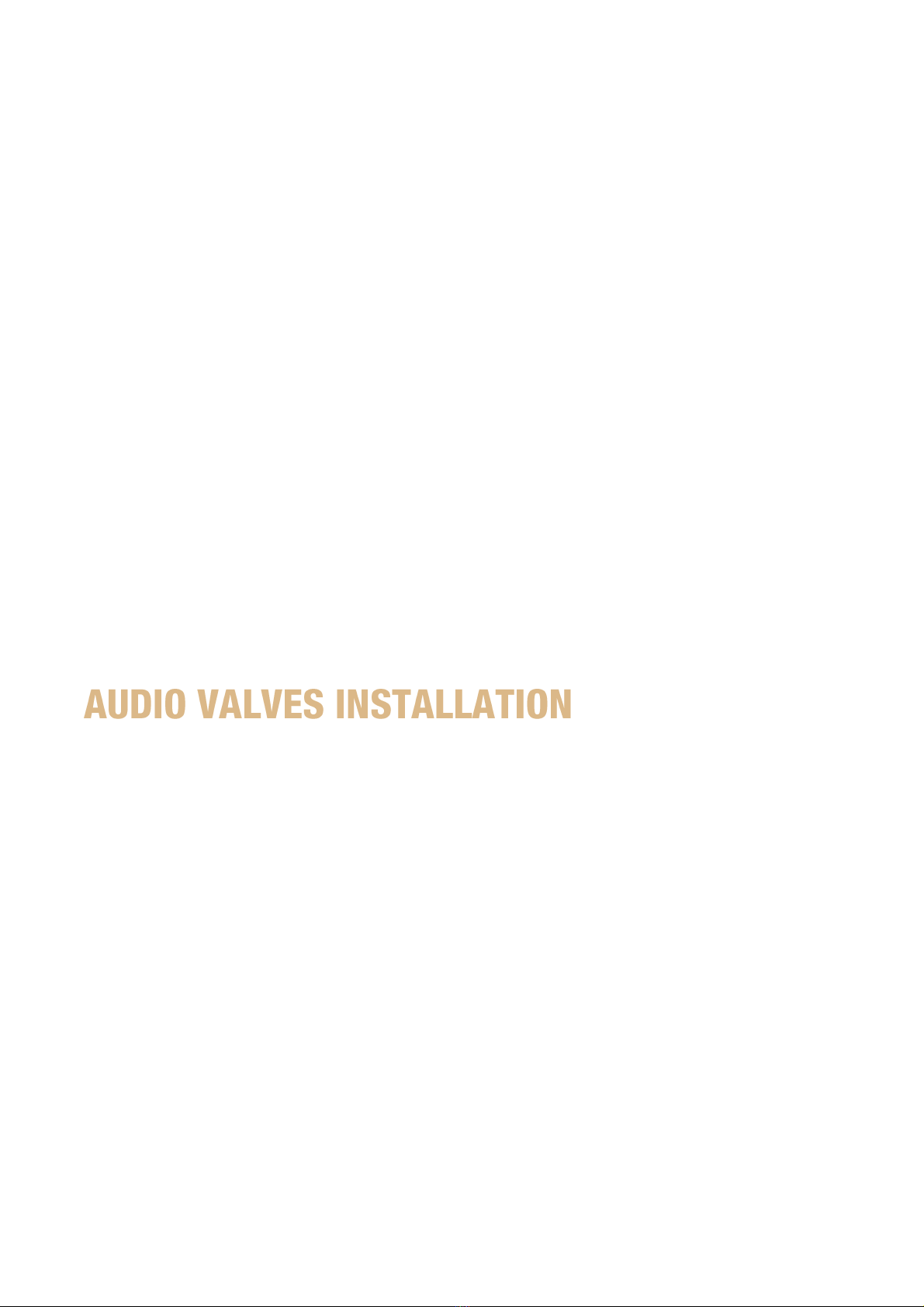

The 60SP tube phono preamplifier is delivered with the audio valves already

installed. These audio valves were selected during the electronic test to provide an

excellent stereo image.

The electronic design from this preamplifier uses 1X ECC82/12AU7 and 2X

ECC83/12AX7. There is a label on the bottom as a reminder. The standard version uses

the brands Tung-sol and JJ-Electronics for being high grade manufacture quality and

electronic stability.

The position of each valve is shown below, looking at the 60SP from the top:

Autres manuels XTONEBOX Amplificateur

XTONEBOX

XTONEBOX Silver 6011 Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
