UB120 UPRIGHT BIKE

OWNER’S MANUAL



PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW BIKE

customerservice@dyaco.caDyacoCanadaInc2020



2



TABLE OF

CONTENTS

Before You Begin ...................................................................................3

Important Safety Instructions......................................................................4

UB120 Per-assembly Check List .............................................................6

UB120 Assembly Pack Check List ............................................................7

UB120 Assembly Instructions......................................................................8

Operation of Your New Fitness Bike .........................................................12

User Direction...........................................................................................13

General Maintenance ...............................................................................13

Exploded View Diagram..........................................................................16

Parts List .................................................................................................17

Troubleshooting ......................................................................................18

Manufacturer’s Limited Warranty ............................................................25

ATTENTION

THIS FITNESS BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE

APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.

customerservice@dyaco.caDyacoCanadaInc2020



3



BEFORE YOU BEGIN

Thank you for choosing the Xterra UB120 Fitness Bike. We take great pride in producing this

quality product and hope it will provide many hours of quality exercise to make you feel better,

look better, and enjoy life to its fullest. It's a proven fact that a regular exercise program can

improve your physical and mental health. Too often, our busy lifestyles limit our time and

opportunity to exercise. The Xterra UB120 Fitness Bike provides a convenient and simple

method to begin your assault on getting your body in shape and achieving a happier and

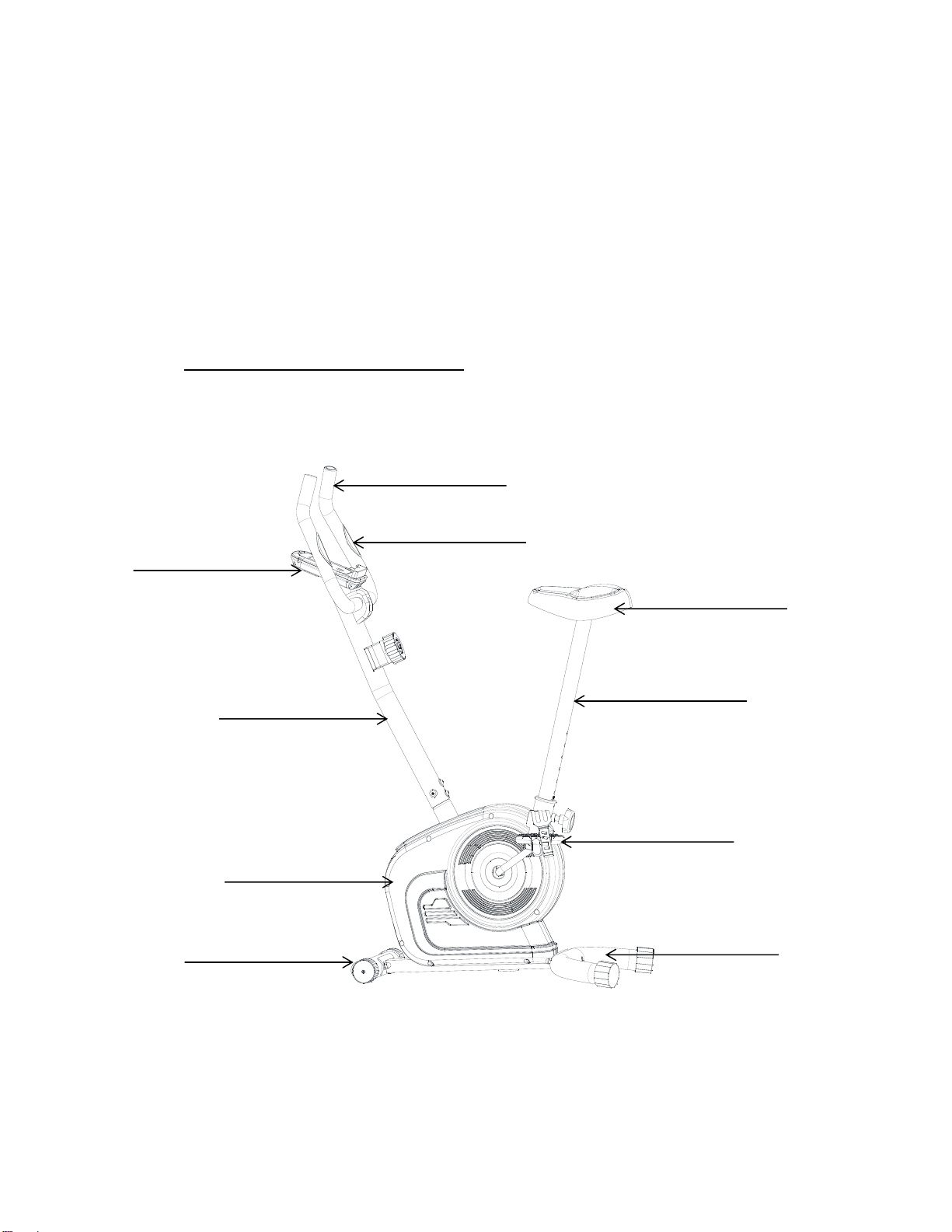

healthier lifestyle. Before reading further, please review the drawing below and familiarize

yourself with the parts that are labeled.

Read this manual carefully before using the Xterra UB120 Fitness Bike. Although Dyaco

Canada Inc. constructs its products with the finest materials and uses the highest standards of

manufacturing and quality control, there can sometimes be missing parts or incorrectly sized

parts. If you have any questions or problems with the parts included with your Xterra UB120

Fitness Bike, please do not return the product. Contact us FIRST! If a part is missing or

defective call us toll free at 1-888-707-1880. Our Customer Service Staff are available to assist

you from 8:30 A.M. to 5:00 P.M. (Eastern Time) Monday through Friday. Be sure to have the

name and model number of the product available when you contact us.

Handlebar

Hand pulse sensor

Seat

Seat post

Pedal

Rear stabilizer

Computer

Front post

Chain cover

Front stabilizer

customerservice@dyaco.caDyacoCanadaInc2020



4



IMPORTANT SAFETY

INSTRUCTIONS

WARNING - Read all instructions before using this equipment.

Do not operate fitness bike on deeply padded, plush or shag carpet. Damage to both carpet

and fitness bike may result.

Before beginning this or any exercise program, consult a physician. This is especially

important for persons over the age of 35 or persons with pre-existing health conditions.

Keep children under the age of 13 away from this machine. There are obvious pinch points

and other caution areas that can cause harm.

Keep hands away from all moving parts.

Never operate the fitness bike if it has a damaged cord or plug. If the fitness bike is not

working properly, call our customer service.

Never drop or insert any object into any openings.

Do not use outdoors.

The hand pulse sensors are not medical devices. Various factors, including the user’s

movement, may affect the accuracy of heart rate readings. The pulse sensors are intended

only as exercise aids in determining heart rate trends in general.

Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use

on your fitness bike. Quality athletic shoes are recommended to avoid leg fatigue or injury.

This equipment is not intended for use by persons with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the equipment by a person responsible for

their safety.

User weight should not exceed: 250 lbs (110 kgs)

SAVE THESE INSTRUCTIONS - THINK SAFETY!

CAUTION!! Please be careful when unpacking the carton.

customerservice@dyaco.caDyacoCanadaInc2020



5



WARNING DECAL REPLACEMENT

The decal shown below has been placed on the bike. If the decal is missing or illegible, please

call our Customer Service Department toll‐free at 1‐888‐707‐1880 to order a replacement

decal. Apply the decal in the location shown.

customerservice@dyaco.caDyacoCanadaInc2020



6



UB120

PRE-ASSEMBLY CHECK LIST

Part No. Description Q'ty

1 Main frame 1

2 Front post 1

3 Seat post 1

4 Handleba

5 Front stabilize

6 Rear stabilize

14 Seat 1

18 Compute

23/24 Left/Ri

ht pedal 1/1

Hardware Ba

Manual 1

customerservice@dyaco.caDyacoCanadaInc2020



7



UB120

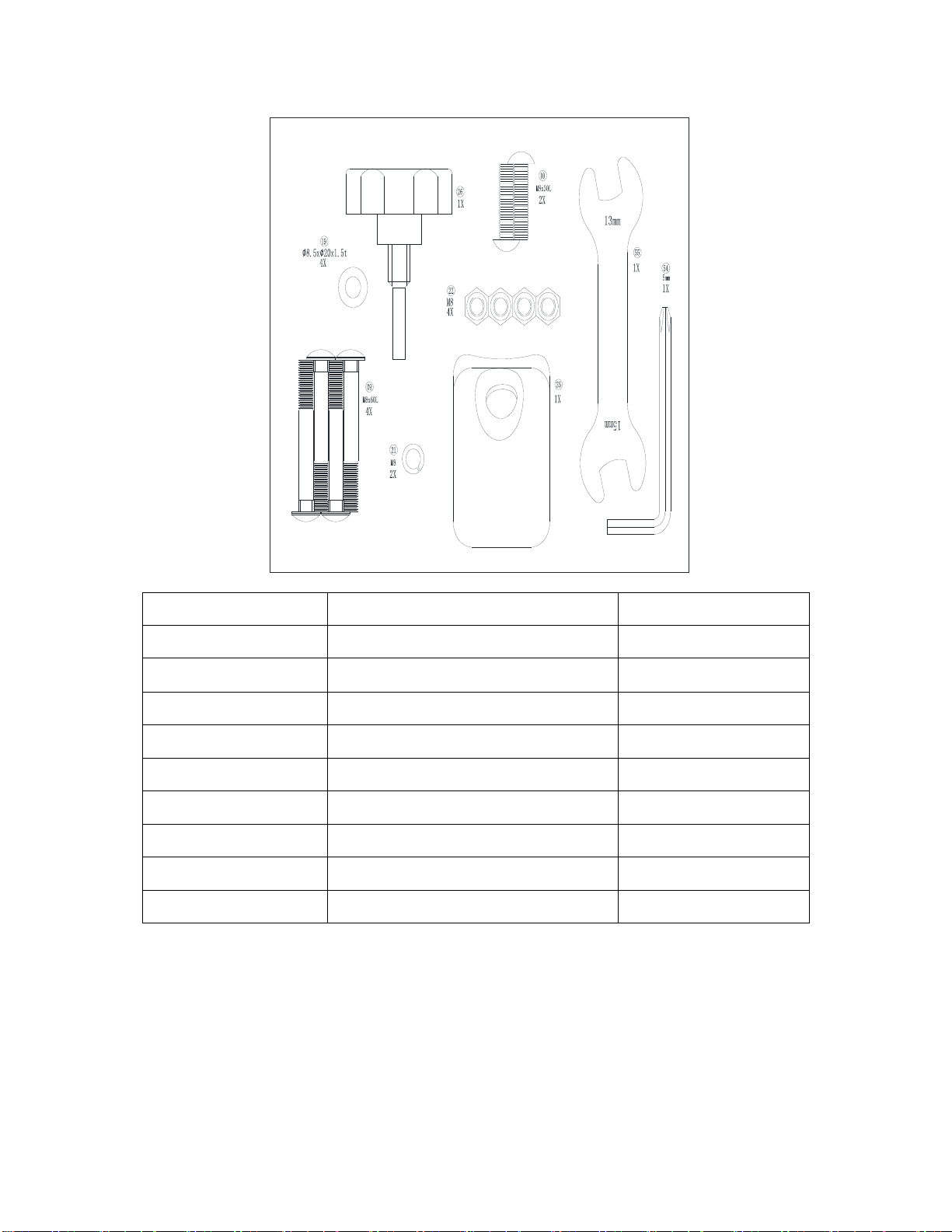

ASSEMBLY PACK CHECKLIST

Part No. Description Q'ty

9 Carriage bolt M8x60L 4

10 Allen screw M8x30L 2

19 Curved washer φ8.5xφ20 4

21 Spring washer M8 2

22 domed nut M8 4

25 cover for handlebar 1

26 club knob M12 1

54 Allen Key 1

55 Box Wrench 1

Note: Above parts are all the parts needed to assemble this machine. Before you start to

assemble, please check the hardware packing to make sure they are included.

customerservice@dyaco.caDyacoCanadaInc2020



8



UB120

ASSEMBLY INSTRUCTIONS

1 FRONT AND REAR STABILIZER

1. Attach front stabilizer (5) to main frame (1), tighten with 2sets of Carriage bolt (9), Curved

washer (19) and Domed nut (22).

2. Attach rear stabilizer (6) to main frame (1), tighten with 2sets of Carriage bolt (9), Curved

washer (19) and Domed nut (22).

2 FRONT POST

1. Turn tension knob (20) to level 8, and then

connect it with the lower tension cable (13).

Please see page 9 for a detailed description of

the assembly.

2. Connect extension sensor wire (7) with sensor

wire (12).

3. Insert front post (2) into main frame (1) and

tighten with 4 sets of allen screw (11) and curved

washer (19) which are pre-assembled on the

main frame (1).

4 Carriage Bolt (#9)

4 Curved washer (#19)

4 Domed nut (#22)

Hardware Step 1

Hardware Step 2

Allen key（#54）

customerservice@dyaco.caDyacoCanadaInc2020



9



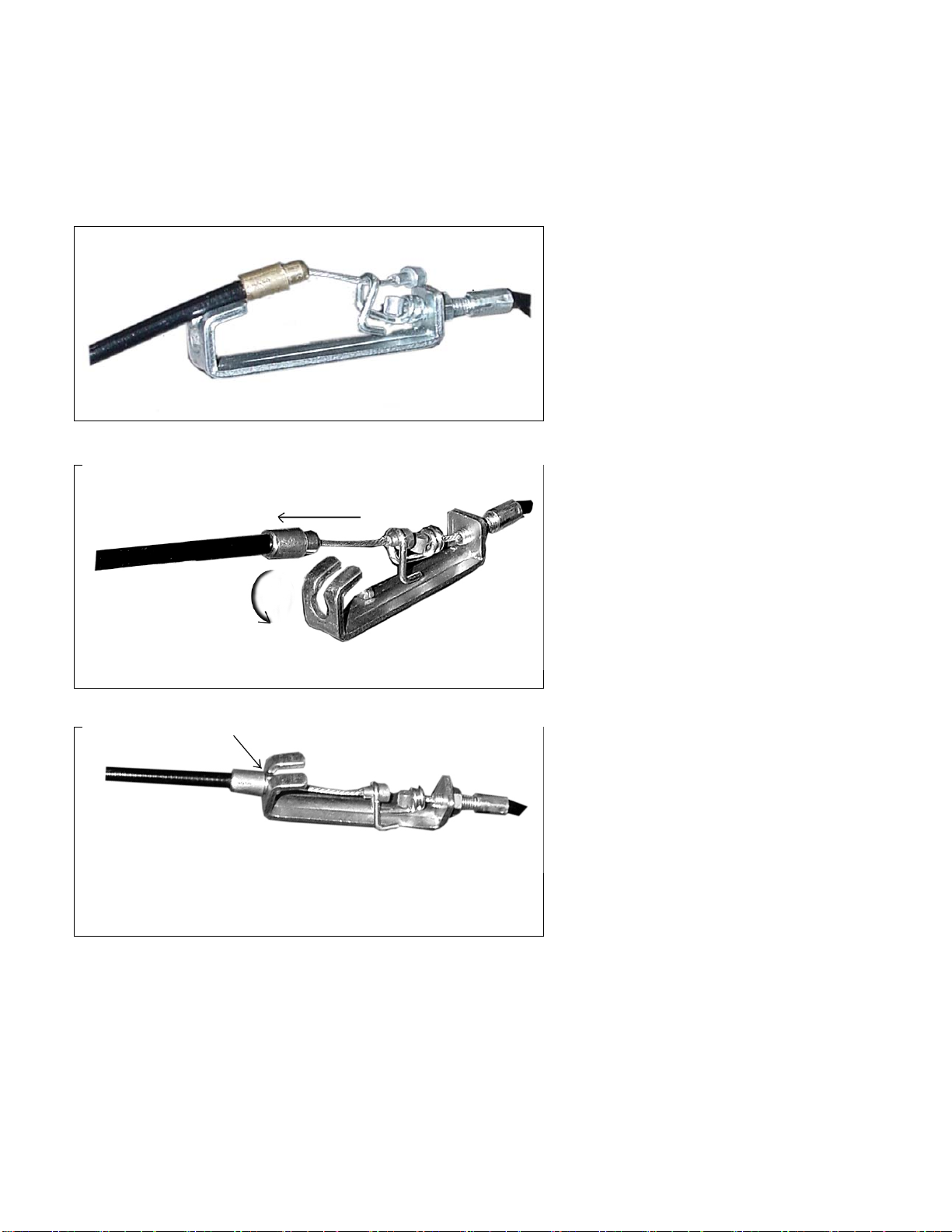

HOW TO CONNECT THE TENSION CONNECTOR

NOTE: If you are not able to hold the Front Post while connecting the cables and wires，

extra help may be needed.

Pull the Upper Tension

Connector backward and

slide the wire through the slot

on the bracket.

Drop down the Connector so

the fitting sits firmly on top of

the bracket.

Slide the Cable wire from the

Upper Tension Connector in

between the opening on the

wire holder on the Lower

Tension Connector.

customerservice@dyaco.caDyacoCanadaInc2020



10



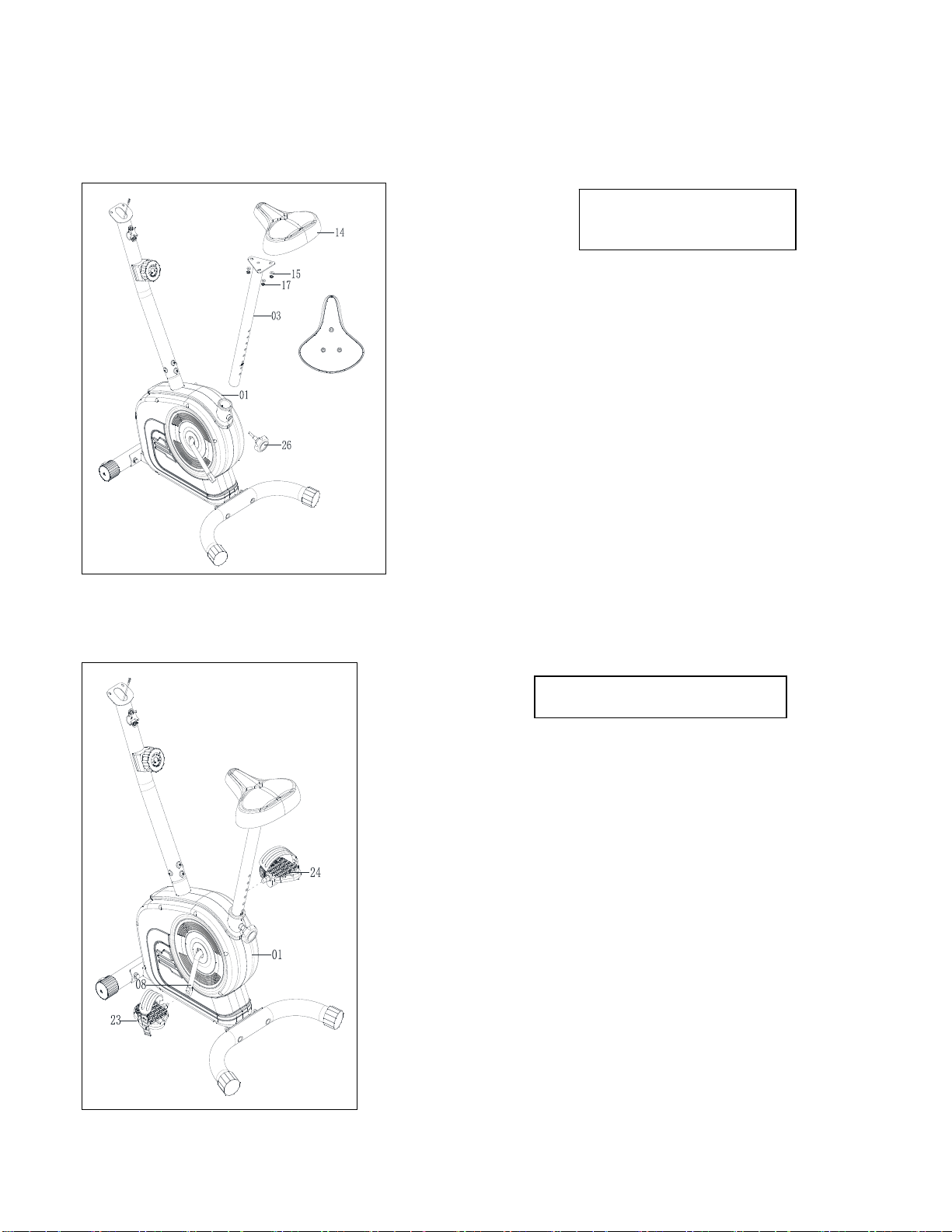

3 SEAT ASSEMBLY

1. Attach seat (14) to the seat post (3). Securing with

three sets of flat washers (15), and nylon nut (17) which

are pre-assembled on the seat (14).

2. Insert the seat post (3) into main frame (1) and tighten

with the club knob (26).

4 PEDAL ASSEMBLY

1. The left and right pedals (23 & 24) are marked “L” & “R”.

Attach the straps to the pedals. Connect left pedal (23) to the

crank (8) on the left-hand side of the cycle as you sit on it.

Repeat for the right pedal (24).

Note that the right pedal should be threaded on

clockwise and the left pedal on counterclockwise.

Hardware Step 3

Hardware Step 4

Box wrench（#55）

Club knob（#26）

Box wrench（#55）
