XtendLan IPM-401H Manuel utilisateur

- 1

IPM-401H

User Manual

- 2

Warning: Anychanges madeto this equipment without permissionmaycause damages to the device!

IMPORTANTNOTICE

IP Power IPM-401H was designed for indoor use, we carry no responsibility for

possible

damages caused byoutdoor use, especially in the rain.

Please use the power adapter provided by the dealer, we carry no responsibility for the

possible damage from using power adapters not.

Do not shake the IP Power IPM-401H in any fashion.

Please contact the dealer If IP Power IPM-401H is not working properly.

Place the product in a well-ventilated place

retrieval system, or transmitted in anyform or byany means, electronic, mechanical,

photocopying, recording or otherwise, without the prior written consent of us.

All trademarks and products mentioned in this document are the properties of us.

- 3

Table of Content

1.) WELCOME......................................................................................................5

Introduction .................................................................................................................................................. 5

Minimum System Requirements................................................................................................................. 5

2.) PRODUCT OVERVIEW...................................................................................6

Features......................................................................................................................................................... 6

Specification.................................................................................................................................................. 6

Package Contents.......................................................................................................................................... 7

3.) INTERFACE DESCRIPTION...........................................................................8

Front View..................................................................................................................................................... 8

Rear View...................................................................................................................................................... 9

Rear View.................................................................................................................................................. 9

4.) HARDWARE SETUP ................................................................................... 10

5.) SOFTWARE SETUP ................................................................................... 11

Installing IP Power Software

..................................................................................................................... 11

Using IP Edit

.............................................................................................................................................. 12

IP Service

.................................................................................................................................................... 15

6.) HARDWARE INTERFACE .......................................................................... 16

Reset

.............................................................................................................................................................16

Restart

........................................................................................................................................................ 16

How to Replace Fuse

.................................................................................................................................. 16

7.) WEB INTERFACE ....................................................................................... 17

Connecting to the IPM-401H

.....................................................................................................................17

The Control Console

.................................................................................................................................. 18

Power Control Settings

........................................................................................................................... 18

SystemConfiguration

...............................................................................................................................18

Advance Settings

..................................................................................................................................... 18

- 4

Information

............................................................................................................................................. 18

Log Out

................................................................................................................................................... 18

Power Control Settings

.............................................................................................................................. 19

Power Controls

........................................................................................................................................ 19

Scheduler Settings

................................................................................................................................... 21

Ping Settings

........................................................................................................................................... 25

PC Control Settings

................................................................................................................................. 28

Ethernet to RS232

................................................................................................................................... 30

SystemConfiguration

................................................................................................................................ 31

User Management

................................................................................................................................... 31

ChangePassword

.................................................................................................................................... 33

Network Settings

..................................................................................................................................... 34

PPPOE Settings

....................................................................................................................................... 35

Date & Time

........................................................................................................................................... 36

AdvanceConfiguration

............................................................................................................................. 37

Maintenance

............................................................................................................................................ 37

DDNS

......................................................................................................................................................38

IP Server & CNT

..................................................................................................................................... 38

Telnet & Snmp Settings

.......................................................................................................................... 39

Email Settings

......................................................................................................................................... 39

Blacklist

.................................................................................................................................................. 40

Information

................................................................................................................................................ 41

System

.....................................................................................................................................................42

Log

.......................................................................................................................................................... 42

Http Command

........................................................................................................................................ 44

XMLInformation

.................................................................................................................................... 47

8.) CONTROLLING THE DEVICE .................................................................... 48

CGIHTTP Commands

.............................................................................................................................. 48

Serial Com(RS-232) Control

.................................................................................................................... 48

Serial Port (RS-232)

................................................................................................................................ 48

Telnet

.......................................................................................................................................................... 50

9.) FREQUENTLY ASKED QUESTIONS (F.A.Q) ............................................ 52

- 5

1.) Welcome

Introduction

The IP Power IPM-401H is a state of the art Power Distribution Unit (PDU) & Remote Power

Control (RPC) system. It allows you to control up to 4 separate devices remotely via the internet.

Using a web browser, you can control the power to your devices from virtually anywhere.

The various applications of the IPM-401H includes: Power Management, Server

Management,

Internet Controllable Timer, System Integration, Remote Power Control in

Remote

locations, & etc.

Minimum System Requirements

Operating Systems: WINDOWS Operating Systems (IE5.0+SPI

RJ45 LAN & Internet HUB & Switch

Internet (For remote access) or Ethernet Network (Internal Network use) with some type of Internet

connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)

- 6

2.) Product Overview

Features

Control each output On, Off, or Reboot of up to 4 different power sources.

Built in Web Server Design, directly access Power Control from webpage.

Power scheduler and built in internal clock to enable daily, weekly, and monthly Power

cycles

Auto Ping (Watch dog) capability to monitor each output

Self Auto Ping - Monitors IPM-401H to make sure device is working properly.

IP Service - Search utility, to easy to find your IP Power on internet hassle free.

Http Command generator for integration

E-mail functionality for notifying user.

Log capabilities to store device information and usage.

10.

HardwareWatchdog design to make sure devices are working properly

11.

IP Blacklist capability to block unwanted IP Address.

12.

CNT Technology –For quick and Easy setup, just plug and play

13.

Each outlet name can be assigned byuser and memorized on webpage.

14.

Support HTTP CGI commands / Telnet Commands / RS232 inter control for easy for

system integration

15.

IP Service: Easily Find your device on the internet without having to remember

complicated IP’s

16.

Password Base64 encryption for internet protection.

17.

Supports UPNP (Universal Plug & Play)

Specification

1.) Total Input power up to 15A/110V or 10A/240V

2.) Each Output: 6A/110V or 6A/240V

3.) Dimensions: 260 x 115 x 43 (L x W x H)

4.) Weight: 0.96kg

- 7

Package Contents

1.) IPM-401H Unit x 1

2.) IPM-401H Installation CD

4.) RJ45 Cable x 1 (Optional)

5.) Input Power Cable

(Optional)

- 8

3.) Interface Description

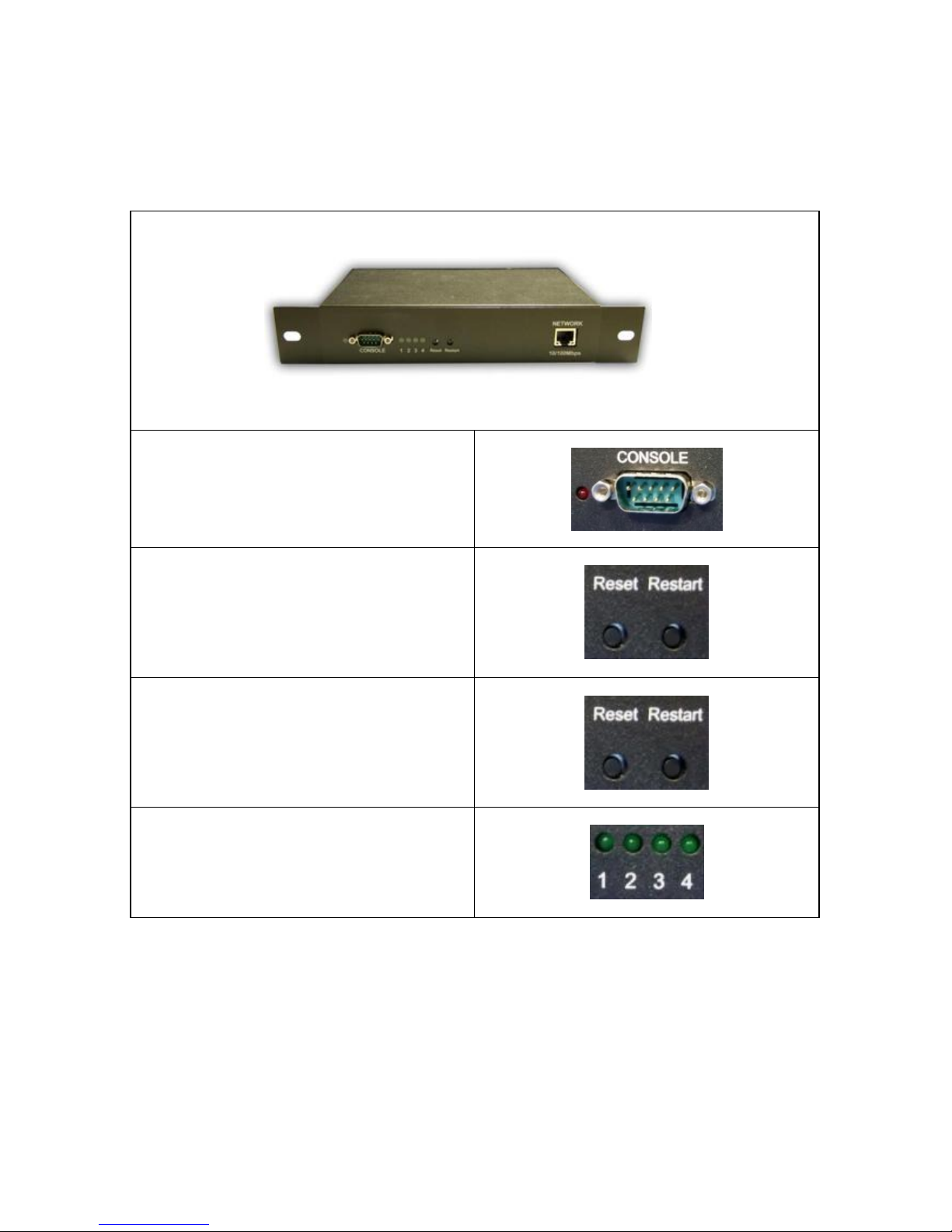

Front View

RS232 Serial Port

Reset Button:

To reset to original manufacture settings,

hold down the reset button with a pen or

a pin for 10 second s until hear a long beep

sound

Restart Button:

The restart button just resets the device by

turning off and then turning on the power.

Power Status Indicator:

The Power Status Indicator

- 9

Rear View

4 Output Power Ports:

Connect up to 4 separate devices

that will be controlled by the IPM-

401H. Ports 1-4

1 Input Power Ports:

The input power sends power to

the IPM-401H.

1 Power Switch:

The Power switch turns on the

device power

Fuse System: To prevent electrical

surges from damaging the unit. The

IPM-401H comes with 1 spare fuse

in the unit.

TYPE：U/C GFE 10A 250V (PF)

- 10

4.) Hardware Setup

1.) Connect the IP Power IPM-401H to a HUB or Router using a RJ45 network

cable.

2.) Connect the power adapter to the IP Power IPM-401H.

3.) Connect the HUB or Router to the internet (May through ADSL/XDSL modem).

4.) Connect the power adapters of under control electric equipment to corresponding out port of

IP Power 9258-HP.

5.)Turn on the computer and the power adapter of IP Power 9258-HP

For 220-250V, please use power cable that can support 10A current.

Max. output current: (total of each four outlets) 10A, (each outlet) 6A.

For 100-120V, please use power cable that can support 15A current.

Max. Output current: (total of each four outlets) 15A, (each outlet) 6A.
