XPOtool 63393 Manuel utilisateur
User’s manual
Fence Tensioner
63393
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
https://www.XPOtool.com Item 63393 Page 2
The Tool Experts
04 2023-1
The information contained in this document may alter at any time without prior notice. No part of this
document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man-
ual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating
manual is complete, accurate, and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to:
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler – Germany
To return your goods for exchange, repair, or other purposes, please use the following address. Atten-
tion! To allow for a trouble-free complaint or return, it is important to contact our customer service team
before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler – Germany
E-mail: service@wiltec.info
Tel: +49 2403 55592–0
Fax: +49 2403 55592–15
https://www.XPOtool.com Item 63393 Page 3
The Tool Experts
04 2023-1
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manual
carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
Description of the product
The fence tensioner allows a simple tensioning of a fence wire. By tensioning the wire to the desired
length while leaving the end of the wire free, the user can create the tension required when installing a
new fence or linking two fence wires. The clamping jaws of the two ends of the wire strainer hold the
wire in position while the ratchet lever tensions the wire.
Attention! Wire under tension is dangerous. When using the device, protect your eyes and wear
leather gloves. Should the wire break when being tensioned, it can rebound and cause serious injuries.
Use
Tensioning the fence makes it necessary to clamp the wire fence in the clamping jaws. The clamping
jaws guide the wire in a certain direction when clamping it, but clamp it with the pressure being raised
when the wire is stretched in the opposite direction. Familiarise with the tensioning method before using
the wire tensioner.
Clamping the fence wire in the clamping jaws
1. Open the jaws with the help of the lever of the clamping jaws and thread the wire as shown
(Fig. 2).
Figure 2
https://www.XPOtool.com Item 63393 Page 4
The Tool Experts
04 2023-1
№
Clamping the wire
1
Clamping jaws
2
Wire
3
Lever of the clamping jaws
2. Close the clamping jaw to clamp the fence wire (Fig. 2). Make sure that the wire is clamped in
a safe way by trying to pull it out of the fence wire body. Should the wire not be clamped safely
and slip through the clamping jaw, produce more clamping force by applying the lever of the
clamping jaws.
Tensioning the fence wire when attaching to a fence post
1. Tighten the fence wire by hand until it sags no longer.
2. Clamp the wire in the locking hook of the clamping jaws, then attach the fixed hook to the post
(Fig. 3).
Note! If the fixed hook cannot be attached directly to the fence post by reason of the size or shape
of the latter, lay a chain around the post and attach the fixed hook to that chain.
Figure 3
№
Attaching to post
1
Wire
2
Fixed hook
3
Locking hook of clamping jaw
4
Fence post
3. Tighten the wire excess by hand until it is tightened so that the tensioner sticks to the post itself.
4. Clamp the fence wire in the mobile hook of the clamping jaw (Fig. 4).
https://www.XPOtool.com Item 63393 Page 5
The Tool Experts
04 2023-1
Figure 4
№
Tensioning
1
Untensioned wire
2
Ratchet lever
3
Mobile hook of clamping jaw
5. Tension the wire with the help of the ratchet lever. The wire excess is kept untensioned and can
be simply fixed to the post. If the mobile hook has reached the end of its travel and the wire
requires additional tensioning, read and obey the section “Repositioning the mobile hook.”
Linking existing fence wires
1. Clamp one of the wire in the fixed hook of the clamping jaw. Clamp the other wire in the mobile
hook of the clamping jaw (Fig. 5).
Figure 5
https://www.XPOtool.com Item 63393 Page 6
The Tool Experts
04 2023-1
№
Linking
1
Wire
2
Fixed hook
3
Locking hook of clamping jaw
2. Compensate excess slackness of the wire, then clamp the wire in the mobile hook of the clamp-
ing jaw (Fig. 6).
Figure 6
№
Tensioning
1
Untensioned wire
2
Ratchet lever
3
Mobile hook of clamping jaw
3. Tension the wire with the help of the ratchet lever. The wire excess is kept untensioned and can
be simply connected. If the mobile hook has reached the end of its travel and the wire requires
additional tensioning, read and obey the section “Repositioning the mobile hook.”
If the mobile hook has reached the end of its travel and the wire requires additional tensioning, the
mobile hook must be repositioned besides the locking hook. The locking hook of the clamping jaw keeps
the wire tensioned; that is why the mobile hook can be opened and repositioned.
Repositioning the mobile hook
1. Make sure that the wire is clamped safely in the locking hook.
2. Unclamp the wire from the mobile hook of the clamping jaw. Then slide the mobile hook back
towards the locking hook (Fig. 7).
https://www.XPOtool.com Item 63393 Page 7
The Tool Experts
04 2023-1
Figure 7
№
Repositioning the mobile hook
1
Mobile hook of clamping jaw
2
Mobile hook
3
Locking hook of clamping jaw
3. Re-clamp the wire in the mobile hook of the clamping jaw, then continue tensioning. Repeat if
necessary.
Parts list
Part
Name
Function/description
A
Fixed hook
Used to attach the tensioner to an existing fence post — also used to
clamp an existing wire when two wires shall be connected.
B
Ratchet lever
Guides the mobile hook along the serrated shaft of the wire tensioner.
C
Lever of the clamping
jaws
Easy and safe opening of the clamping jaws
D
Clamping jaws
Locking and holding fence wires
E
Mobile hook
Tensioning a fence wire
https://www.XPOtool.com Item 63393 Page 8
The Tool Experts
04 2023-1
F
Locking hook
Temporarily holds the wire during tensioning so that the mobile hook
can be repositioned when it has reached the end of its travel.
№
Name
1
Tensioner unit
2
Tension spring of clamping jaw
3
Tension spring of lock
Important note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission
of WilTec Wildanger Technik GmbH.
Table des matières
Autres manuels XPOtool Outils
XPOtool
XPOtool 62856 Manuel utilisateur
XPOtool
XPOtool 61910 Manuel utilisateur
XPOtool
XPOtool 61074 Manuel utilisateur
XPOtool
XPOtool 62534 Manuel utilisateur
XPOtool
XPOtool 61850 Manuel utilisateur
XPOtool
XPOtool 63323 Manuel utilisateur
XPOtool
XPOtool 62948 Manuel utilisateur
XPOtool
XPOtool 60326 Manuel utilisateur
XPOtool
XPOtool 63855 Manuel utilisateur
XPOtool
XPOtool 61325 Manuel utilisateur
XPOtool
XPOtool 62797 Manuel utilisateur
XPOtool
XPOtool 62389 Manuel utilisateur
XPOtool
XPOtool 30156 Manuel utilisateur
XPOtool
XPOtool 62565 Manuel utilisateur
XPOtool
XPOtool 61491 Manuel utilisateur
XPOtool
XPOtool 62982 Manuel utilisateur
XPOtool
XPOtool 61313 Manuel utilisateur
XPOtool

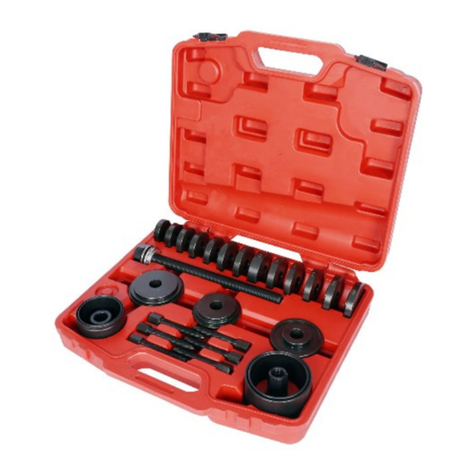

XPOtool 61479 Manuel utilisateur
