Xomax XM-RD263 Manuel utilisateur

Thank you for purchasing one of our XOMAX products! We appreciate your

Please read the following manual carefully before you install and use the unit.

Please save this manual in case you will need to clarify further possible ques-

tions regarding installation and usage of our product.

We are constantly trying to keep our online-library of user's manuals for our

products up-to-date. In case you miss some information or if something should

be unclear, please visit our homepage www.xomax.de for a current version of

user's manual or contact our customer service.

XM-RD263

We appreciate our environment, so to keep it safe and clean, we

do not print our manuals on paper but provide our products with

manuals in digital version created in *.pdf format.

www.xomax.de, view them on your mobile devices and print them

for yourself if needed.

Please note: Any alternations and changes of technical data or/and design

due to technical update of some models need no advertisement.

User manual

XOMAX

Manual'sversion 1.0

Last update 02.01.2018

Topic:

Safety instructions and precautions

Safety instructions and

precautions

Handling by stop only

To avoid any accidents please don't

handle the unit while you driving.

Please stop and park the vehicle

at safety place and handle the unit

casually.

Installation

Please read the following manual

carefully before you install the

unit. We recommend you to let the

technician install the unit in your

vehicle.

Regular loudness

Please set the loudness of the unit

to the appropriate level so you were

still able to hear exterior noises

especially trac warning signals.

Furthermore the higher loudness

level can damage your hearing

organs.

Repair of the unit

Do not open the unit. Do not try to

repair the unit by yourself due to

any emerging technical problems.

While opening the unit by yourself

exists the danger to be electrocuted.

Do not use the unit any further since

you detect any kind of technical

problems. Leave all the repair opera-

tions to professional technicians.

Due to awed warranty seal the

warranty becomes invalid.

Power supply

Use the unit connected only to 12 Volt

on-board power supply. The minus (-)

should be connected with the ground

(GND) (negative).

Due to the wrong grounding exists the

danger of re. In case of doubt please

consult with professional technicians.

Replacement of fuses

While replacing the fuse please make

sure that the new fuse has the same

properties as the old one, especially the

amperage.

Overheating

Do not occlude the vent holes to avoid

the heat generation and accumulation

in the unit. Otherwise exists the danger

of re.

Regular temperature

Please make sure that the temperature

inside the vehicle amounts to not more

than +60 C. If it's too hot inside the

vehicle, do not turn the unit on until

the inside temperature of the cabin

descends.

Topic: Safety instructions and precautions

Cleaning of the unit

Please keep the unit clean and remove

the dust from it regularly. Please use for

that a soft and dry cleaning rag.

Major soilings can be removed carefully

with the wet cleaning rag. Do not use

any chemical or alcohol-containing

detergents to avoid the damage of the

unit's varnish.

Moisture

electric shock do not put the unit in to

the moist environment (e.g. adverse

weather conditions, inappropriate wet

cleaning etc.)

Topic: Installation

Installation

Installation notes

notes and common information.

Before the installation

WARNING!

Please read the following manual care-

fully before you install the unit.

Damages caused due to an inapprop-

riate installation will not be covered by

warranty.

If you do not want to risk your warranty

entitlement, please let the technician

install the unit in your vehicle.

»To avoid a short circuit please

disconnect the vehicle battery before

the installation. To do it properly please

read the manual of your vehicle.

The detailed installation manual

xomax.de.

The printed version of a common

the package.

»Make sure that your vehicle is

equipped with a car radio slot of

required size (1DIN)

»As may be the case you will need a

suitable faceplate, adapter or other

accessories. These could be provided

from your local specialist supplier.

»The connection cables may not be

cutted or short-circuited. Otherwise the

warranty becomes invalid.

»Before the installation please make

sure that your vehicle has the 12 Volt

on-board power supply.

»The minus (-) should be connected

with the ground (GND) (negative).

»Please tag the polarity of the avai-

lable speakers before you disconnect

the vehicle battery.

»A proper grounding of the unit's

housing requires a clean ground

connection. Thus the grounding area

should be rust-, stain- and dust-free.

»Please ground the cable separately

from other heavy current devices such

»Please ensure that the colored cables

are connected according to the wiring

diagram. The wrong wiring may lead to

malfunctions or even damages of the

electric elements of the vehicle.

»Please note that the connection

cables of this unit and of the other

devices may have the same purpose but

connecting this unit with the

We recommend you to let the

technician install the unit in your

vehicle.

Topic:

Installation

»other devices please ensure that both

of the cables in each case have the

same purpose. To connect everything

correctly please refer to the manuals of

the both devices.

»Please ensure that the negative

speaker cable is in each case connected

with the negative speaker terminal of

the ISO port. Do not ever connect the

negative speaker cables with the vehicle

body.

»This unit is designed and construed

for connection with 4 speakers. Do not

combine this unit with devices that are

designed and construed for connection

with 2 speakers.

»The speakers should feature the

impedance of 4-8 Ohm and a sucient

wattage.

»Please ensure that the speakers you

are connecting with the unit are intact.

Damaged speakers can impair the unit.

»To avoid a short circuit please isolate

all cable junctions and endings of the

unused cables with the electrical tape.

»All the cables should be layed and

xated tidy and properly. The cables

should not contact any movable or hot

objects.

»If your vehicle doesn't have an "ACC"

ignition position, please connect the red

cable with the ignition switch. Other-

wise the unit will not turn o automati-

cally, causing the discharging of the

vehicle battery.

»To avoid a rogue and hazardous

short circuit do not lay the yellow cable

through the engine bay in order to

connect it with the vehicle battery.

»Do not ever connect speaker cables

among one another. In case you do not

want to connect all the 4 speakers with

the unit please isolate the endings of

unused cables with the electrical tape

to prevent a short circuit.

»Do not ever connect the negative

speaker cables with the vehicle body.

»To ensure a awless performance of

the unit the intergration angle should

amount to +/- 30.

Topic: Introduction

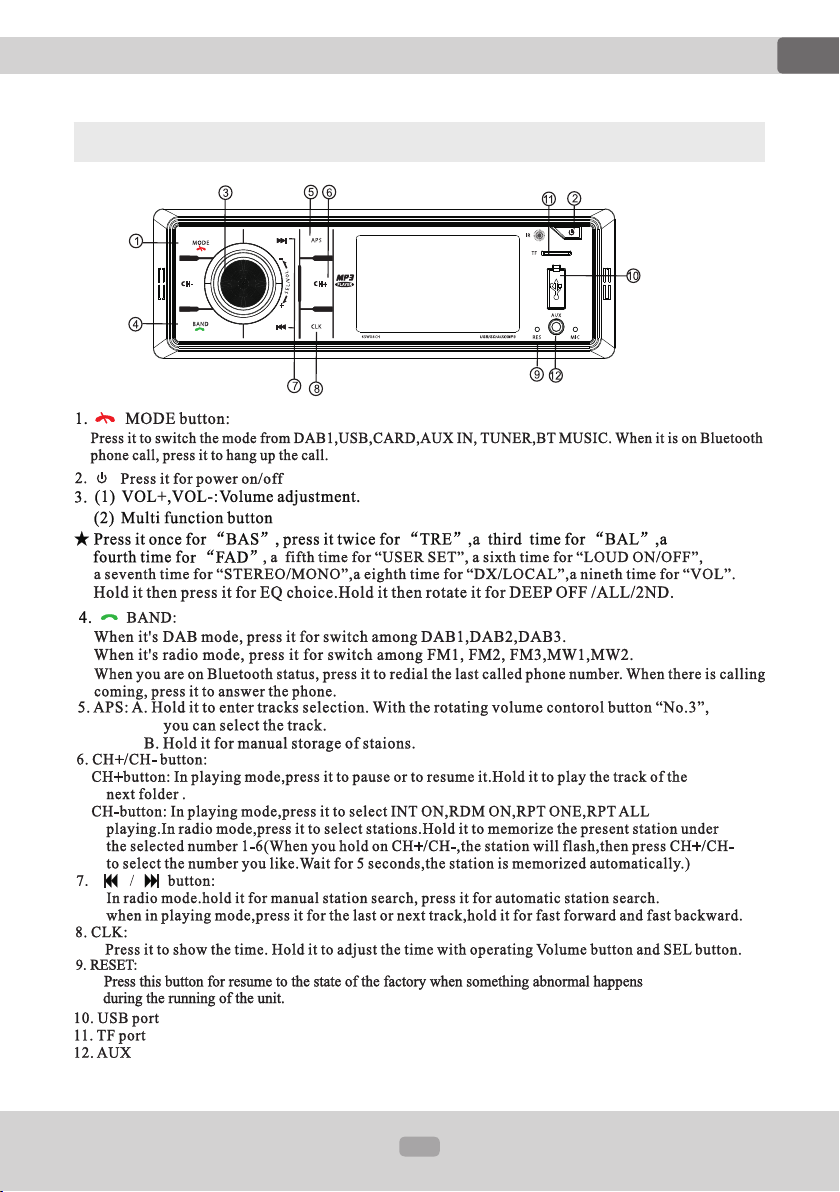

Operating elements

Topic: Introduction

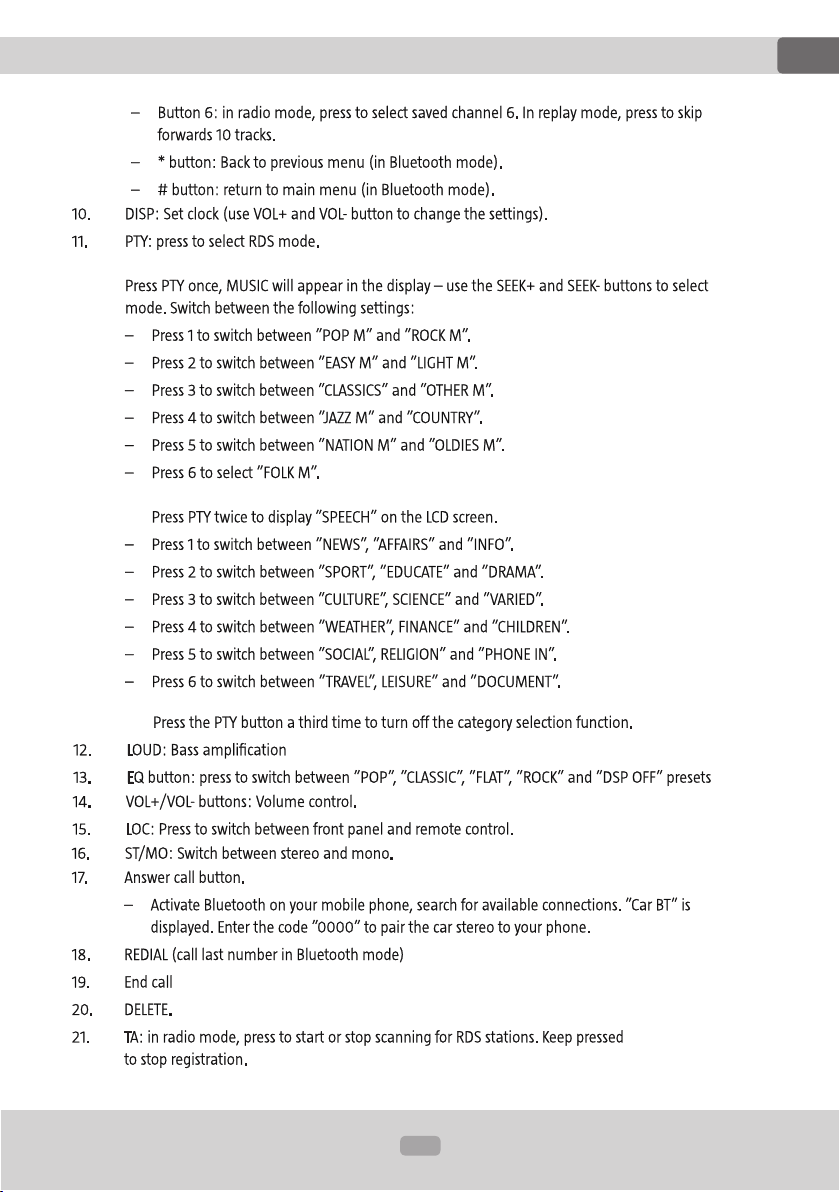

Remote control

Topic: Introduction

Topic:

Startup operations

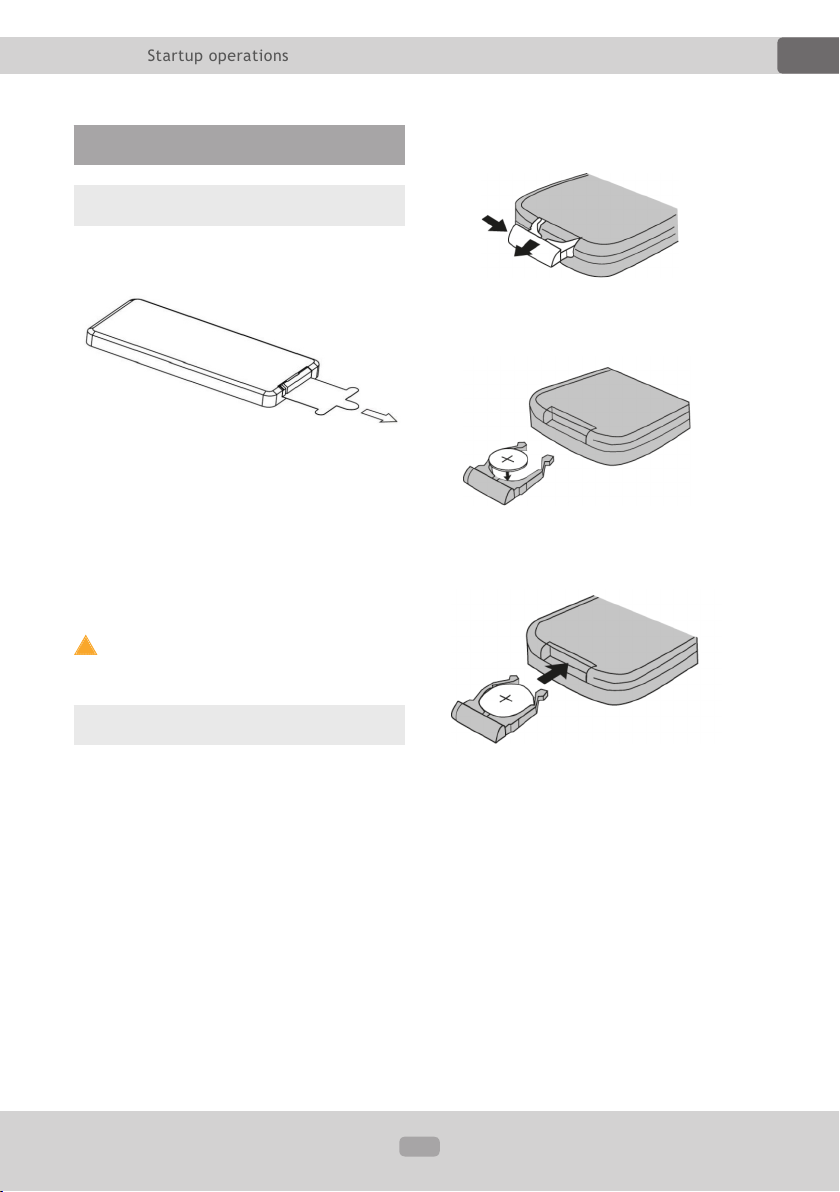

Replacement instructions:

1. Remove the battery compartment:

push it to the left rst, then pull it out.

2. Remove the old battery and insert

the new one (CR-2025 Lithium).

3. Insert the battery compartment back

into the remote control till it clicks into

place.

Startup operations

Usage of the remote control

Before the rst usage please remove

the isolation plate.

Aim the remote control at the IR

receiver on the front operating panel.

The IR receiver should not be blocked.

As soon as the remote control does

not work proper the battery should be

replaced.

Do not expose the remote control to

direct sunlight or air heater.

Replacement of the battery

The remote control is operated by

CR-2025 Lithium battery.

As soon as the remote control does

not work proper the battery should be

replaced.
