XLOCK 102 Manuel utilisateur
XLOCK 102
INSTALLATION Guide
MTA_9 344 050 00
PACKAGING CONTENT
2CR5, 6V Lithium Battery
Always use lithium
batteries!
Important:
Please order
batteries separately.
Lock
XL102
2
Closing part
S12
2 x Countersunk screws
4 x 40 mm for Lock.
1 x Countersunk screw
4 x 25 mm for Lock.
3 x Lens head screws
3 x 12 mm for closing part
3
DIMENSIONS
Lock
XL102
Closing part
S12
32
43
External antenna
XL-A3NFC
TRANSPONDER
Optional ! Please order separately.
ISO ID-Card
XL-AUMIFCL
RFID card transponder ISO14443a
type Mifare Classic reading range
up to 2,5cm
KEY FOB
XL-SAMIFCL
Ultraviolet welded case with stainless
steel ring RFID transponder
ISO14443a type Mifare Classic reading
range up to 2,5cm
KEY FOB
XL-AUMIFCL-2
Encapsulated housing with stainless steel ring
RFID transponder ISO14443a type Mifare
Classic reading range up to 3cm
4
ANTENNA HOUSING with handle
XLOCK Antenna housing with handle
XL-A3S
without antenna and cable
Colour: Gray
XLOCK Antenna housing with handle
XL-A3W
without antenna and cable
Colour: White
XLOCK Antenna housing with handle
XL-A3B
without antenna and cable
Colour: Black
5
Optional ! Please order separately.
PREPARATION FROM THE LOCK
Open the battery cover and
insert the batteries with the
correct polarity (+/-).
1-piece 2CR5, 6V
lithium battery
For error-free operation,
please always use lithium
batteries!
Close the battery cover
and fix it with the screw.
Your lock is now ready
for operation.
6
XL Lock Manager Download the app and
install it on your Smartphone (IOS + Android).
Simply scan the QR code with your camera:
After the installation create your XLOCK account
and confirm in the email -> done.
INSTALL THE APP AND CREATE AN ACCOUNT
Attention for Android devices:
For Android devices, you need to grant the following permissions without restrictions
for Bluetooth device startup: Location and Bluetooth
Afterwards, this is no longer possible with some devices. Then you have to uninstall
and reinstall the app and then restart the device.
For the operation of an XLOCK lock, the location and Bluetooth must be activated in
the Android system! 7

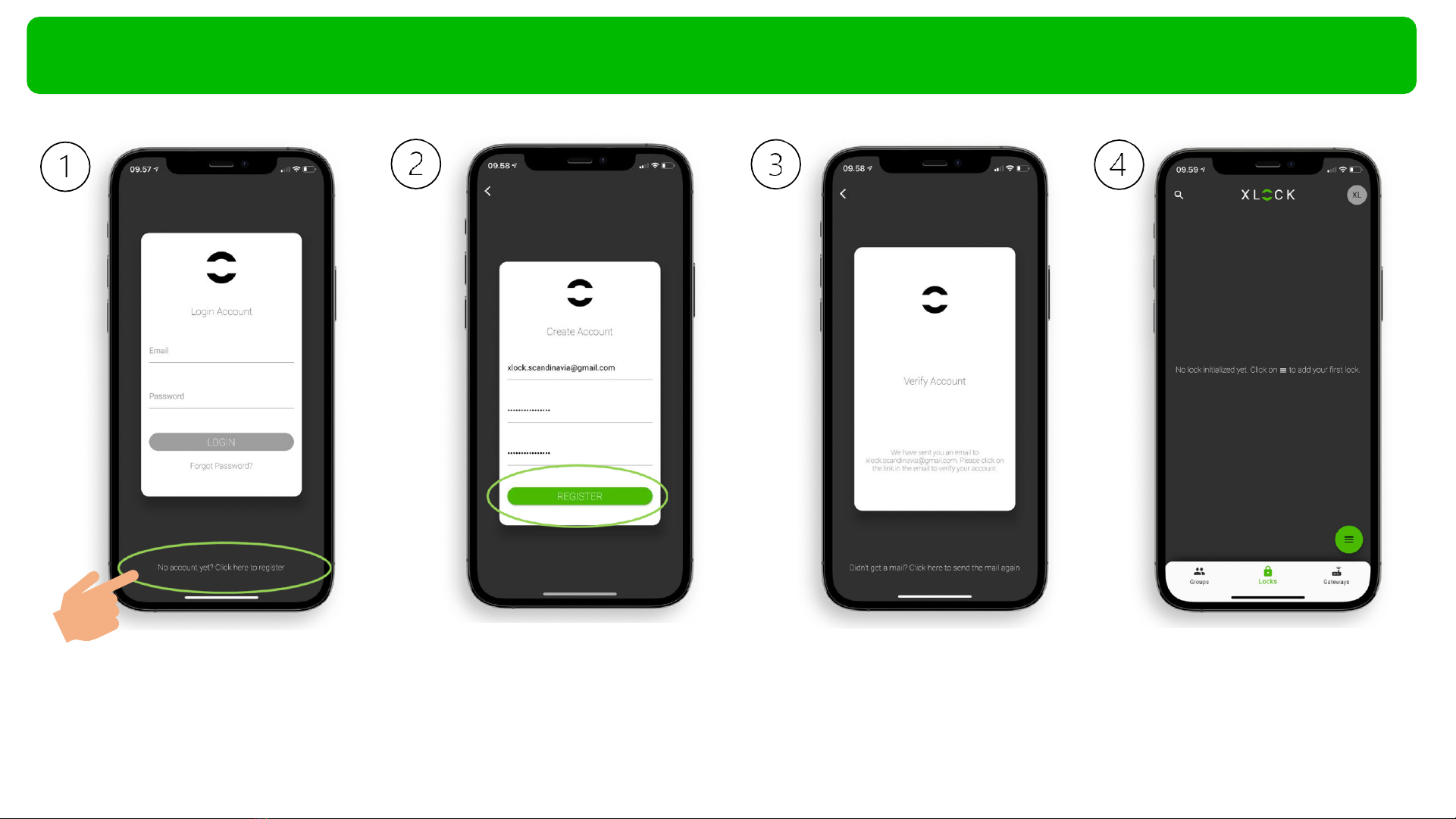

CREATE AN ACCOUNT
1. Click on the button
shown above.
8
2. Enter your email address and
choose a password. To confirm,
type your password again
type it in. Click on Register.
3. Verify your account by clicking on
the confirmation link sent to your
email address by XLOCK. The
confirmation email may have ended
up in your spam folder.
4. Congratulations! You
have successfully installed
the XL LOCK Manager app.
ADD LOCK TO XLOCK ACCOUNT
1. Click on the button
in the lower right
corner.
2. Click on new lock.
3. Have the XLOCK lock
ready. Press and hold the
reset button with a
screwdriver.
4. The lock is displayed
with its ID number. Tap
on the green icon to
add your XLOCK.
5. Give the lock a name
and tap ADD.
6. The XLOCK lock has
now been successfully
linked to the XLOCK APP
and is visible on the home
screen.
9
ADDING A TRANSPONDER
1. Tap on the lock. The
lock menu opens.
2. Tap the card
icon NFC Tags. 3) Tap the in the lower
right corner to add the
transponder.
7) Your transponder is
now registered and
unlocks the lock when it
is hold on the antenna.
6) The lock signals when it
is ready. Then hold the
transponder to the
antenna of the lock as
shown in the photo.
4) Select Bluetooth
and tap Next..
5) Give the transponder
a name. Tap on Next,
the lock starts the
learning process.
10
