Xilica Audio Design XPanel V2 Manuel utilisateur

XPanelV2

RemoteControlPanel

UserManual

XILICA Audio Design

XPanel User's manual - Page 2

Important Safety Instructions

1. READ THESE INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

2. KEEP THESE INSTRUCTIONS

The safety and operating instructions should be retained for future reference.

3. HEED ALL WARNINGS

All warnings on the product and in the operating instructions should be adhered to.

4. FOLLOW ALL INSTRUCTIONS

All operating and use of instructions should be followed.

5. DO NOT USE THIS APPARATUS NEAR WATER

Do not use the product near water. For example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool, and the like.

6. CLEAN ONLY WITH DRY CLOTH

Unplug the unit from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a damp cloth for cleaning.

7. DO NOT BLOCK ANY VENTILATION OPENINGS

Slots and openings in the cabinet back or bottom are provided for ventilation, to ensure

reliable operation of the limit and to protect it from overheating. These openings must

not be blocked or covered. The openings should never be blocked by placing the product

on a bed, sofa, rug, or similar surface. This product should never be placed near or over

a radiator or heat source. This product should not be placed in a built-in installation such

as a bookcase or rack unless proper ventilation is provided or the manufacture's

instructions have been adhered to.

8. DO NOT INSTALL NEAR ANY HEAT SOURCES

XPanel User's manual - Page 3

This Product should be situated away from heat sources such as radiators, stoves, or

other products (including amplifiers) that produces heat.

9. DO NOT DEFEAT THE SAFETY PURPOSE OF THE POLARIZED OR GROUNDING-TYPE

PLUG

A Polarized plug has two blades with one wider than the other. A grounding-type plug

has two blades and a third grounding prong. The wide blade or the third prongs are

provided for your safety. If the provided plug does not fit into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED

PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE

THEY EXIT FROM THE APPARATUS.

11. ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE MANUFACTURER.

12. USE ONLY WITH CART, STAND, TRIPOD, BRACKET, OR TABLE SPECIFIED BY THE

MANUFACTURER, OR SOLD WITH THE APPARATUS. WHEN A CART IS USED, USE

CAUTION WHEN MOVING THE CART/APPARATUS TO AVOID INJURY FROM TIP-OVER.

Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may

fall, causing serious injury to someone, and serious damage to the appliance. A unit and

cart combination should be moved with care. Quick stops, excessive force, and uneven

surfaces may cause the product and cart combination to overturn.

13. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR

LONG PERIODS OF TIME.

For added protection for this unit during a lightning storm, or when it is left unattended

and unused for long periods of time, unplug it from the wall outlet and disconnect the

antenna or cable system. This will prevent damage to the unit due to lightning and power

line surges.

14. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING IS

REQUIRED WHEN THE APPARATUS HAS BEEN DAMAGED IN ANYWAY, SUCH AS

WHEN THE POWER SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED

OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS BEEN

EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN

FROPPED.

15. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPARATUS TO RAIN OR MOISTURE.

16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE

APPARATUS.

XPanel User's manual - Page 4

Table of Contents

Table of Contents ...................................................................4

1.0 Introduction....................................................................5

2.0 Features..........................................................................5

3.0 The XPanel...................................................................6-7

4.0 Firmware upgrading the XPanel...................................7

5.0 Setting Up the XPanel....................................................8

6.0 Programming the XPanel ...........................................8-9

7.0 Control Options............................................................10

8.0 Specifications...............................................................11

9.0 Warranty........................................................................12

XPanel User's manual - Page 5

1.0 Introduction

When it comes to remote control hardware, it is necessary to provide an

easy yet powerful interface for the personnel in charge. XPanel is created

with this purpose in mind. The menu names and control parameters are

programmable via our XConsole software provided along with the device.

As a matter of fact, the XPanel is so flexible that it not only allows the user

to define what parameters to be controlled, but the in/max of the

parameters range. Working seamlessly with Neutrino and X Series

processors, it allows the processors to create a control network not only

with computers, but also with the XPanel. Multiple XPanels, processors and

computers can exist in the same network. It yields total control to the user

with tremendous power and flexibility beyond imagination.

Shipped contents:

- XPanel unit

- Power supply

2.0 Features

> Compatible with Neutrino and X Series processors

> 32 fully programmable menu’s

> Programmable main menu description

> 2x16 Character LCD Display

> Up to 63 XPanels in one network

> Standard Ethernet CAT-5 interface

> Powered by PoE compatible router/switch or 48 V/DC, 100mA

external power supply

XPanel User's manual - Page 6

3.0 The XPanel

2 4

XPanel User's manual - Page 7

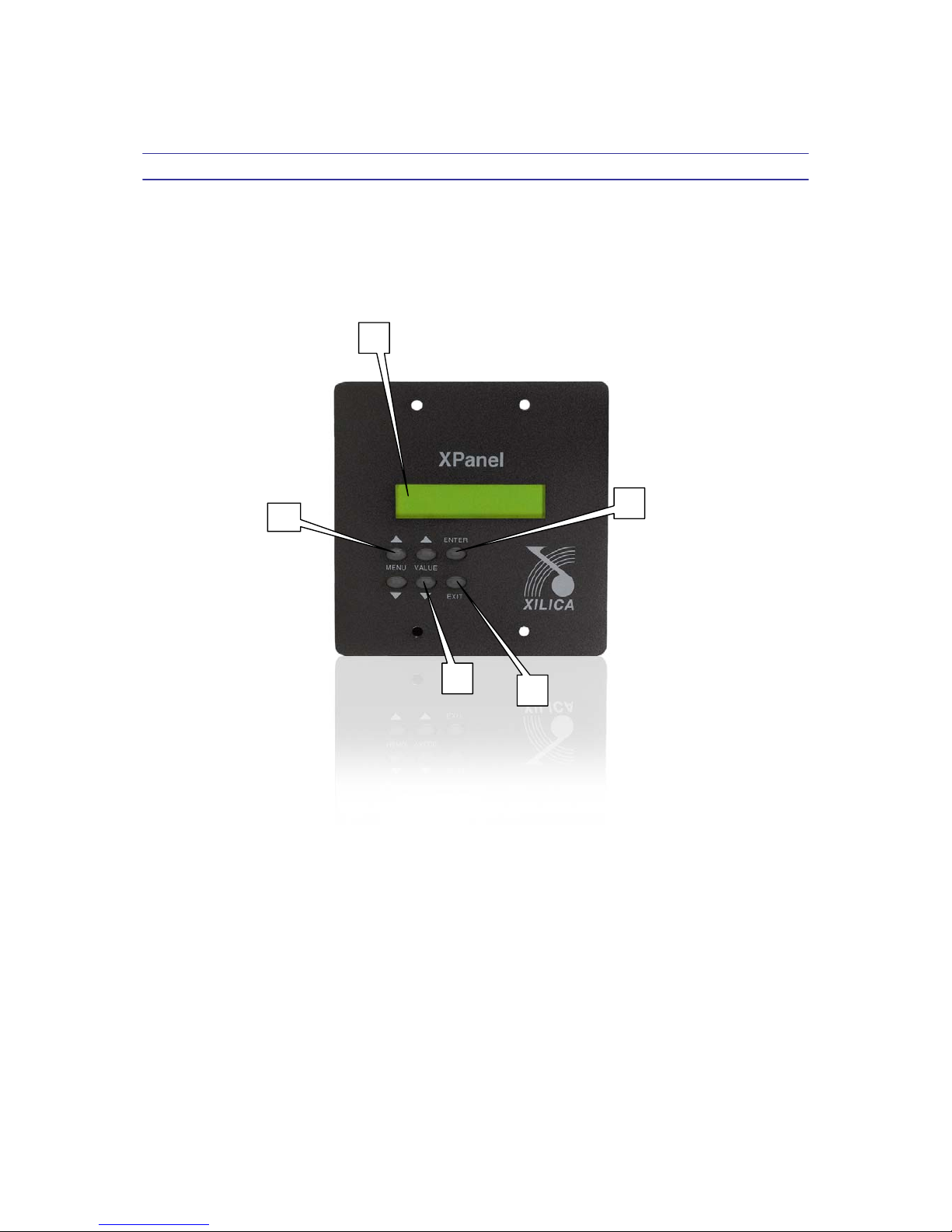

1. LCD –Shows all the necessary information to control the unit.

2. Menu – The menu buttons are used to go to the next/previous menu

programmed into the XPanel. And to go to next/previous cursor in the

menu screen.

3. Value – The value buttons are used for increasing/decreasing the value

of the program you are working in. And to change the characters in the

menu screen.

4. Enter – Enter enters the System Menu from the main menu. In the

System Menu, enter is used only to proceed with selected actions.

5. Exit -Exit to the Main Menu or system settings (Device ID and IP

settings)

4.0 Firmware upgrading the XPanel

New XPanel firmware is included in the latest XConsole Setup. Go to

WWW.XILICA.COM and download the latest XConsole and install . Please

read the XConsole release notes for new XPanel features. Now follow the

next 5 steps to successfully firmware upgrade the XPanel.

1. Connect the XPanel with a USB cable to the PC and startup XConsole.

2. From the menu bar click on XPanel ÆSetup.

3. The XPanel setup windows will now open. Click on Program XPanel

Device to open the firmware upgrade menu.

4. Select the correct COM port and press Firmware Upgrade and when

asked power up the XPanel

5. The XPanel will now upgrade to the new firmware. Wait until the

progress bar reaches 100% and you are ready to configure the XPanel.

XPanel User's manual - Page 8

5.0 Setting Up the XPanel

1. The XPanel can be powered from a standard 48v PoE router/switch

(CAT-5) or an external 48V/DC source. Power consumption approx

100mA. Make sure only one power source is used at a time!

2. Press the VALUE UP,DOWN and the EXIT button at the main menu

simultaneously to access the system settings.

3. Press the VALUE UP/DOWN button to change the Device ID of the

XPanel, each panel should have its own unique Device ID.

4. Press ENTER once to save the changes, press it a second time to

confirm.

5. Press the VALUE UP/DOWN and the EXIT button to bring up the

system settings again, then press the MENU DOWN button to

change to the IP Address setup menu.

6. Assign a Unique IP address to the XPanel, press the MENU

UP/DOWN button will move on to the next digit of the IP address.

Pressing the MENU DOWN at the last digit will move forward to the

next menu, similarly, pressing MENU UP button at the first digit will

move backward to the previous menu.

7. Save the IP address as in step 4, and repeat step 5-6 for gateway

address and subnet mask as needed by the users network.

6.0 Programming the XPanel

The XPanel is shipped with a special PC Graphic User Interface (GUI)

application: XConsole. XConsole gives the user the option to program the

XPanel unit from a remote PC via the Ethernet communication link.

To Program the XPanel:

1. Start up the XConsole software. Press XPanel and then Setup to go

to the XPanel Setup.

2. Device Name: Place you’re Venue or Company name here, any

other will also do. This text will be displayed when the XPanel is idle.

3. Click on Total no. of Menus to select the amount of Menus you want

to program.

4. Click on Menu No. to select the menu number you want to program.

XPanel User's manual - Page 9

5. Enter any description for the selected menu in the Display on LCD

textbox.

6. Select a Control for the selected menu.

7. Click on Data Min or Data Max to specify the data range for the

selected control, the min/max value is indicated in the dialog box.

8. For some modules you can also change the Data Step Size.

9. Click on Enable to link up to 16 devices and channels for the same

control.

10. Click Save Setup File to save the control settings, so you can

recall it for future usage.

11. Click on Program XPanel Devices on the menu strip to go to

the program menu.

12. Select the Computer IP Address, XPanel IP Address and

XPanel Device ID. Click Program XPanel to begin programming the

XPanel.

13. Follow the instruction on the progress bar to continue.

14. Click on Open Setup File to recall a configuration made earlier

to program into the next XPanel. To program repeat step 10 and 11.

XPanel User's manual - Page 10

7.0 Control Options

•Mute: Will display as “Mute” in the XPanel LCD and has 2 values

“On” and “Off”.

•Relative Signal Level: Will display as “Volume” in the XPanel LCD

and has 2 values “Up” and “Down” which can be configured from 0,25

dB up to 3,00 dB steps and will affect the input or output gain level.

•Absolute Signal Level: Will display as “Level” in the XPanel LCD and

lets you control the input or output gain level by 0,25 dB steps.

•Absolute Mixer Level: Will display as “Mixer” in the XPanel LCD and

lets you control the routing of the inputs to the outputs and at the

same time the gain of the routing.

•Preset Recall: Will let you recall presets. Can be configured to control

all presets or just a range of presets. For example you can configure

the XPanel to recall all 30 presets or just the first 5 presets in the

device.

•Custom: Will let you create a custom command string. In other words:

it is now possible to program your own XPanel command(s). Please

refer to the “XConsole communication protocol” to start making your

own commands. The communication protocol can be found under:

Downloads ÆXConsoleÆManuals on WWW.XILICA.COM .

Table des matières

Autres manuels Xilica Audio Design Panneau de contrôle

Xilica Audio Design

Xilica Audio Design XTouch Series: XTouch50 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
