WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Table of Contents

Control Panel

Scan to Home

Banner Sheets 23

Replacing the Toner Cartridges

Tray Settings

Booklet Creation

ID Card Copying

Auditron Setup 19

Simple LAN Faxing

Using Thumbnail Preview

Billing Meters

Control Panel

Touch Screen

The touch screen allows you to select all the available programming features. It

also displays fault clearance procedures and general machine information.

Services Button

Displays the job features on the touch screen.

Job Status Button

Displays job progress information on the touch screen.

4. Machine Status Button

Displays the current status of the machine on the touch screen.

Copy

Paper Supply 2 Sided Copying

Output Color

Auto Detect

Black and White

More...

Quantity

Copy

JobAssemblyImage Quality Layout

Adjustment Output Format

Copy

Output

Color

Reduce / Enlarge

More...

100

1 > 1 Sided

1 > 2 Sided

2 > 2 Sided

2 > 1 Sided

Rotate Side 2

Collated

1 Staple

2 Staples

Folding...

Hole

Punching

Auto

Plain Paper

Auto Paper Select

All

Services

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Control Panel

10.

13.

12.

11.

Dial Pause

Enters a pause in a telephone number when transmitting a fax.

Language

Changes text to an alternative language (when available).

# (Pound)

Indicates the dialing character or designates a group dial number.

Interrupt

Temporarily stops the current copy job to allow a priority job to be run.

Clear

Deletes numeric values or the last digit entered.

Provides password protected access to the Tools used to adjust the defaults

of the machine.

Start

Starts the job.

Stop

Temporarily stops the current job. Follow the message to cancel or resume

your job.

Clear All

If pressed once, resets the default settings and displays the first screen for the

current pathway. If pressed twice, resets all the features to their machine

default settings.

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Tray Settings

There are 3 standard paper trays and 2 optional paper trays,

designed to use a variety of paper and other media. The bypass tray

and trays 1 and 2 are fully adjustable trays and can hold a variety of

paper sizes. Trays 3 and 4 are high capacity feeders holding 8.5" x

11" or A4 paper sizes only.

When a paper tray is opened, your machine assumes that more paper

is to be loaded. Depending on the machine setup, the touch screen

displays a pop-up window, giving the option to change the paper and

its attributes, or load more of the same paper.

Before loading paper into the paper trays, fan the edges. This

procedure separates any sheets of paper that are stuck together and

reduces the possibility of paper jams.

Cancel Save

Tray 1

Change Settings

Plain Paper

White

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Tray Settings

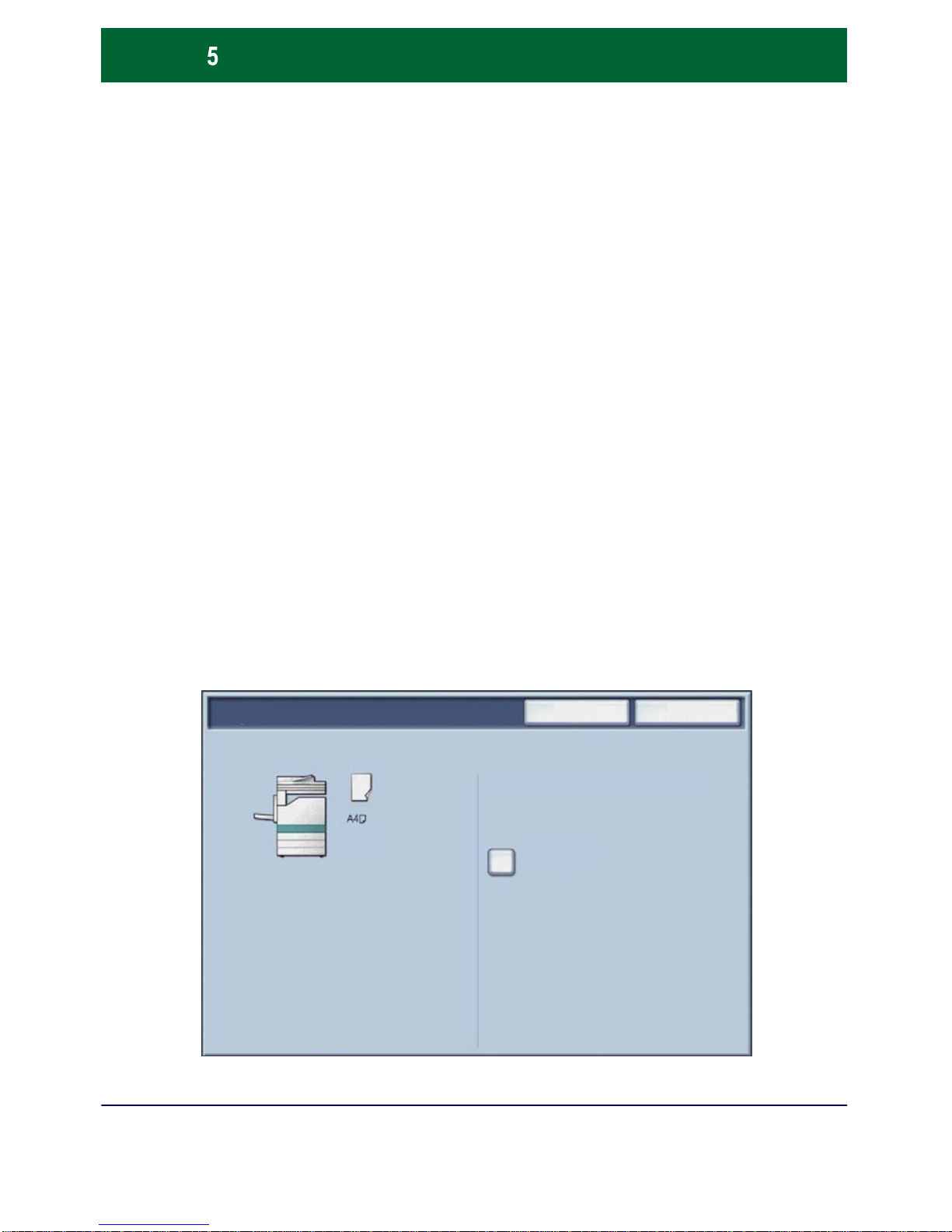

The tray information screen will be displayed on the touch screen. If

the tray information is correct select the Confirm button. Alternatively

change the paper size or paper type by selecting the Change

Settings button on the touch screen.

That completes the procedure for loading the paper tray.

Cancel Save

Tray 1

Change Settings

Plain Paper

White

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Booklet Creation

The Booklet creation feature is switched on from a button

on the Output Format tab.

When Booklet creation is switched on, you need to tell the

machine that your originals are 1-sided or 2-sided. When

you have made your selection you must select Save so

that you can program any other features you may require

from the control panel.

Switch on Booklet creation by selecting the Output

Format tab, the Booklet Creation button and the On

button.

The Booklet Creation feature enables the production of

booklets or multi-page copies from 1 or 2-sided originals.

The machine will scan your originals and automatically

reduce and arrange the images in the correct sequence on

your selected copy paper so that a booklet is created when

the copy set is folded in half.

Page Layout Poster

Off Off

Copy

Job Assembly


Quality Layout

Adjustment Output Format

Annotations Watermark Secure Watermark

Transparency Options

OffOffOff

Off

ID Card Copying

Off

Booklet Creation Covers

Off Off

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

Booklet Creation

There are 2 simple rules that must be followed when making

booklets:

First select the tray that contains the paper you want to use.

Always load your documents with the long edge to the left.

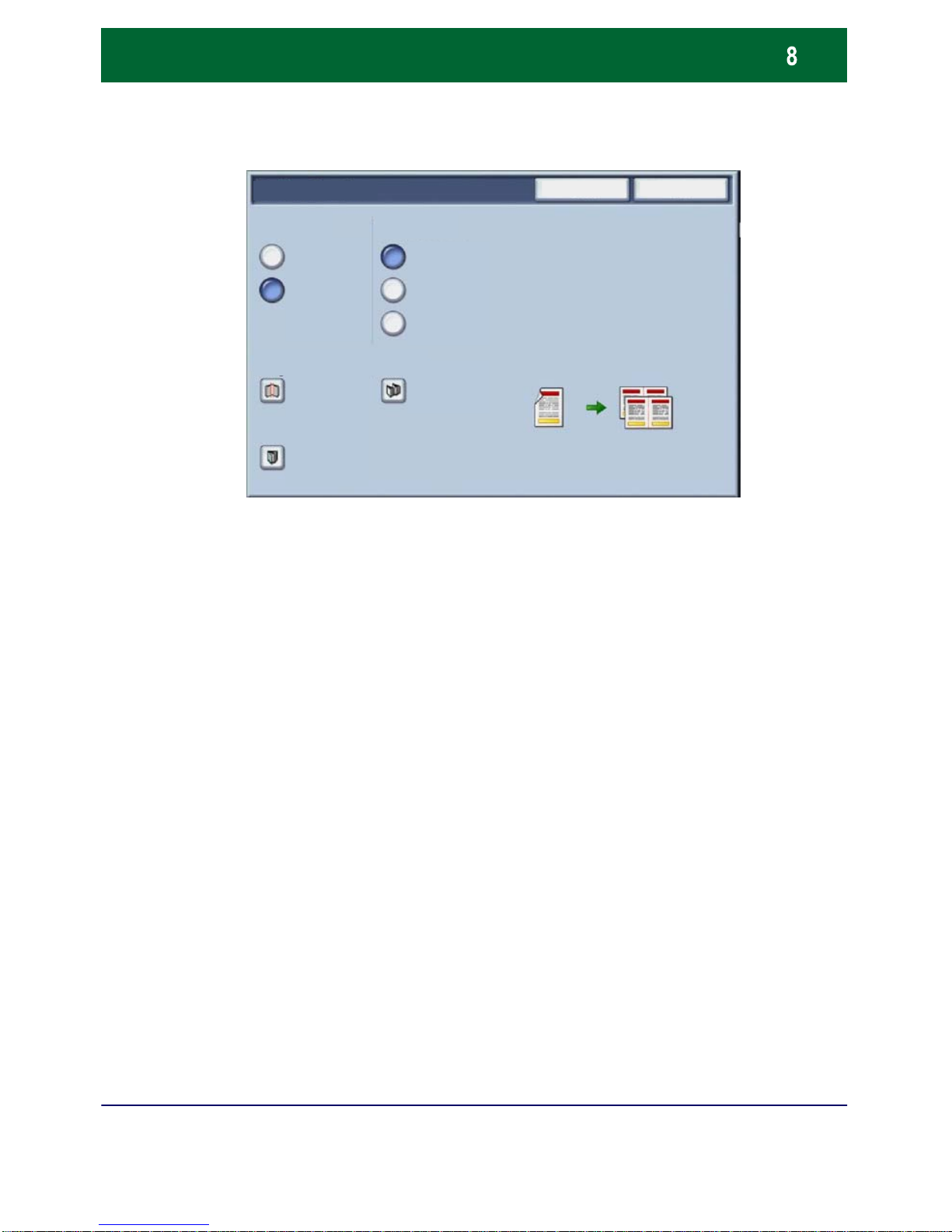

Cancel Save

Booklet Creation

Off

1 Sided Originals

2 Sided Originals

2 Sided/Rotated

Binding Shift Divide Output

Covers

Off Off

No Covers

Booklet Options Original Input

WorkCentre 7300 Series WorkCentre 7300 Series

Quick Use Guide

ID Card Copying

Whether needing to copy insurance cards, a driver's license, or

any other form of identification, the ID Card Copying feature

offers a simple and efficient way to save time.

Information on both sides of the ID Card can be copied onto

one side of one sheet of paper, without the need to reload the

paper into the paper or bypass tray.

WorkCentre 7300 Series WorkCentre 7300 Series
