Xerox Phaser 6115 MFP Manuel d'utilisation
Phaser® 6115MFP
-English- Rev A
Copyright © 2007 Xerox Corporation. All rights reserved.
Quick
Use Guide
www.xerox.com/office/6115support
multifunction product
More Information
www.xerox.com/office/6115support
www.colorconnection.xerox.com
Visit the Support website for:
Print and Scan drivers and utilities
User manuals and instructions
Online Support Assitant
Safety specifications (in User Guide)
Material Safety Data Sheets
Visit the Color Connection website
for templates, tips, and tutorials.
2
Product Features
Product TourContents
OptionsOptions
Duplex UnitDuplex Unit 500-Sheet Feeder500-Sheet Feeder
Automatic Document Feeder (ADF)Automatic Document Feeder (ADF)
ScannerScanner
Output TrayOutput Tray
Tray 1Tray 1
1
2
Product Features 2
Printing 5
Copying 8
Scanning 10
Faxing 13
Troubleshooting 16
www.xerox.com/office/6115support 3
Product Features
Product Features
www.xerox.com/office/6115supplies
For ordering supplies, contact your local reseller,
or visit the Xerox Supplies website.
Transfer BeltTransfer Belt
Imaging UnitImaging Unit
FuserFuser
Toner CartridgesToner Cartridges
Select toner from the control panel to
rotate into position for replacement.
Top Cover
Scanner Latch
Front CoverFront Cover
www.xerox.com/office/6115support 4
Product Features
Product Features
1
.@_- ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
PQRS
Keypad Mode
[1] / [A]
7
TUV
8
WXYZ
9
0 #
Error Display
QualityFunction
2 in 1
Collate Light / Dark
Reduce / Enlarge Stop / Reset
Copy
Fax Scan
Start
Redial / Pause Speed Dial
Auto Receive Resolution
On Hook
01 02 03
04 05 06
07 08 09
Phaser 6115MFP
1A4
MIX x1.00 1
Y M C K
C
Menu
Select
Display
Quality
Menu
Select
Phaser 6115MFP
TONER REMAINING
Y M C K
Reduce / Enlarge
Display
Quality
C
Menu
Select
Control Panel
To print a Menu Map, press the
Display button, and then scroll
down to select Menu Map.
To print a Menu Map, press the
Display button, and then scroll
down to select Menu Map.
Alphanumeric keypad Mode buttons
Copy Settings
Color or B/W Start and Stop/Reset buttonsFax controls
Press Display to view toner levels
and print report pages.
Toner Change button
Navigate/Adjust buttons
Menu/Select button Cancel/Back button
1A4
MIX x1.00 1
1. Document type 2. Zoom ratio 3. Number of copies
4. Output density 5. Media tray/size 6. Status/warnings
www.xerox.com/office/6115support 5
Printing
Printing
Automatic Document Feeder
60 – 90 g/m2
(16 – 24 lb. Bond)
H
WW: 140– 216 mm (5.5 – 8.5 in.)
H: 148 – 356 mm (5.83 – 14 in.)
Tray 1
Photo Size 4 x 6....... 4.0 x 6.0 in. 4X6
Statement................ 5.5 x 8.5 in. ST
Executive................. 7.25 x 10.5 in. EX
UK Quatro................ 8.0 x 10.0 in. UKQ
Gov. Letter.............. 8.0 x 10.5 in. GLT
Foolscap................. 8.0 x 13.0 in. FLS
Letter....................... 8.5 x 11.0 in. LT
Letter Plus............... 8.5 x 12.69 in. LTP
Gov. Legal............... 8.5 x 13.0 in. GLG
Legal....................... 8.5 x 14.0 in. LG
Photo Size 10 x 15... 102 x 152 mm PHO
A5............................ 148 x 210 mm A5
B5 ISO..................... 176 x 250 mm B5
A4............................ 210 x 297 mm A4
SP Folio................... 210 x 330 mm FOL
Custom.................... (W) x (H)
Monarch.................. 3.87 x 7.5 in.
MON
Com# 10.................. 4.12 x 9.5 in. #10
DL............................ 110 x 220 mm DL
C6............................ 114 x 162 mm C6
C5............................ 162 x 229 mm C5
Tray 2
H
W
W: 3.6 – 8.5 in
92 – 216 mm
H: 5.8 – 14.0 in.
148 – 356 mm
Letter....................... 8.5 x 11.0 in. LT
A4............................ 210 x 297 mm A4

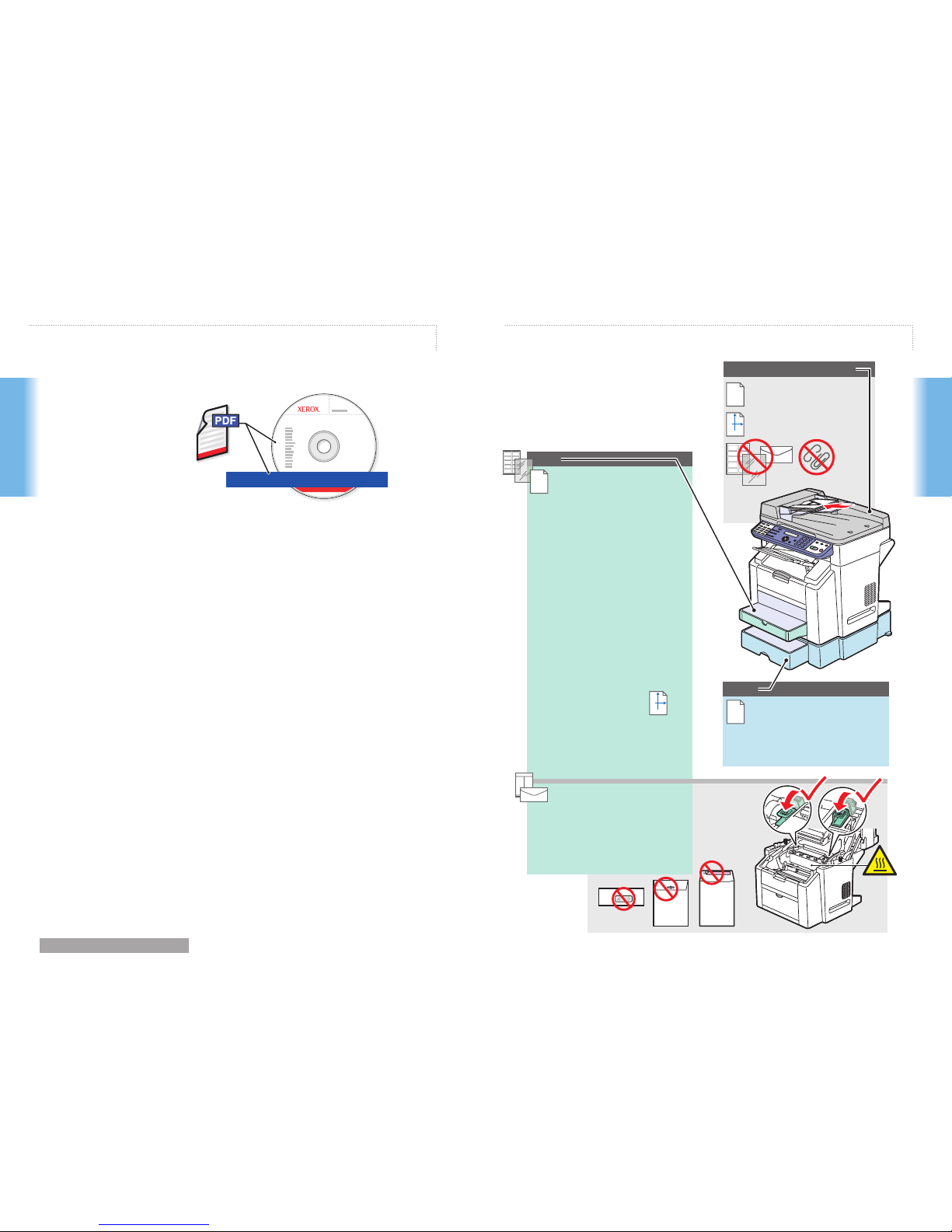

Phaser 6115MFP Software and
Documentation CD-ROM
Print and Scan
Drivers and Utilities
Installation Video
User guide
Windows,
Mac OS
www.xerox.com/office/6115support
Supported PapersPrinting
60 – 200 g/m2
(16 – 53 lb. Bond/
50 – 75 lb. Cover)
60 – 90 g/m2
(16 – 24 lb. Bond)
To learn about advanced printing techniques,
see the Printing Basics chapter in the User Guide.
Click the Recommended Media List link for a
complete list of media for your product.
To learn about advanced printing techniques,
see the Printing Basics chapter in the User Guide.
Click the Recommended Media List link for a
complete list of media for your product.
www.xerox.com/office/6115support 6
Printing
Printing
1 2 34 5
1 2 3 4
PC
Mac
Basic Printing
Select special features
in the Xerox printer driver.
www.xerox.com/office/6115support 7
Printing
Printing
1
5
234
Monarch... 3.87 x 7.5 in.
# 10.......... 4.12 x 9.5 in.
DL.............110 x 220 mm
C6............. 114 x 162 mm
C5............. 162 x 229 mm
PC Mac
1–10
1–10

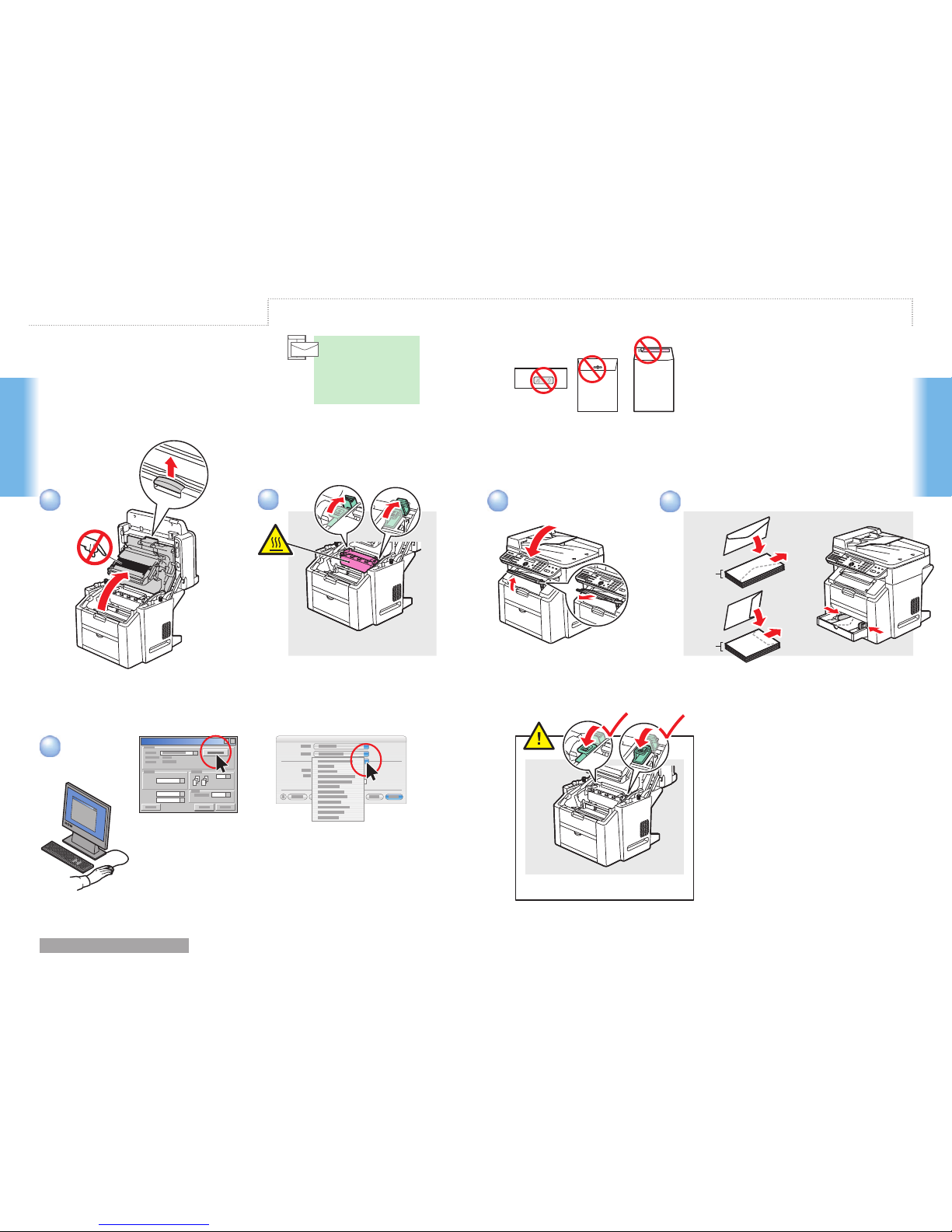

Printing Envelopes
Select envelope size in the Xerox printer driver.
After printing: Lower both fuser levers.
www.xerox.com/office/6115support 8
Copying
Copying
60 – 90 g/m2
(16 – 24 lb. Bond)
H
WW: 140– 216 mm (5.5 – 8.5 in.)
H: 148 – 356 mm (5.83 – 14 in.)
CopyFax Scan
1
Phaser 6115MFP Software and
Documentation CD-ROM
Print and Scan
Drivers and Utilities
Installation Video
User guide
Windows,
Mac OS
www.xerox.com/office/6115support
Basic CopyingCopying
Load original.Load original.
See the Copying chapter in the User Guide
to learn about advanced copying techniques:
Adjusting image quality
Reducing or enlarging
Copying 2 sides to 1 side (2 in 1)
Making 2-sided copies (duplex option)
Making booklets
See the Copying chapter in the User Guide
to learn about advanced copying techniques:
Adjusting image quality
Reducing or enlarging
Copying 2 sides to 1 side (2 in 1)
Making 2-sided copies (duplex option)
Making booklets
www.xerox.com/office/6115support 9
Copying
Copying
6
K
23
4
Error Display
QualityFunction
2 in 1
Collate Light / Dark
Reduce / Enlarge
2
1
2
1
Menu
Select
Menu
Select
x:±0.01
.@_- ABC DEF
GHI JKL MNO
PQRS
Keypad Mode
[1] / [A]
TUV WXYZ
Stop / Reset Start
x0.50
x2.00
x1.00
1 2 3
4 5 6
7 8 9
0 #
Select settings.Select settings.
Select number of copies.Select number of copies.
Press Color or B/W Start button.Press Color or B/W Start button.
Quality: Document type (1x)/Resolution (2x)
Use the Stop/Reset button to stop copying
or restore default settings.
1A4
MIX x1.00 1
1. Document type 2. Zoom ratio 3. Number of copies
4. Output density 5. Media tray/size 6. Status/warnings
Function: Access to optional features
1x 2x
www.xerox.com/office/6115support 10
Scanning
Scanning
Phaser 6115MFP Software and
Documentation CD-ROM
Print and Scan
Drivers and Utilities
Installation Video
User guide
Windows,
Mac OS
www.xerox.com/office/6115support
60 – 90 g/m2
(16 – 24 lb. Bond)
H
WW: 140– 216 mm (5.5 – 8.5 in.)
H: 148 – 356 mm (5.83 – 14 in.)
Scanning
To learn about advanced scanning techniques,
see the Scanning chapter in the User Guide.
To learn about advanced scanning techniques,
see the Scanning chapter in the User Guide.
USB (TWAIN/WIA) and Network (email) scanning function
differently. To setup scanning for your connection, see the
Features Setup Guide (printed booklet or PDF online).
USB (TWAIN/WIA) and Network (email) scanning function
differently. To setup scanning for your connection, see the
Features Setup Guide (printed booklet or PDF online).
Loading Original
