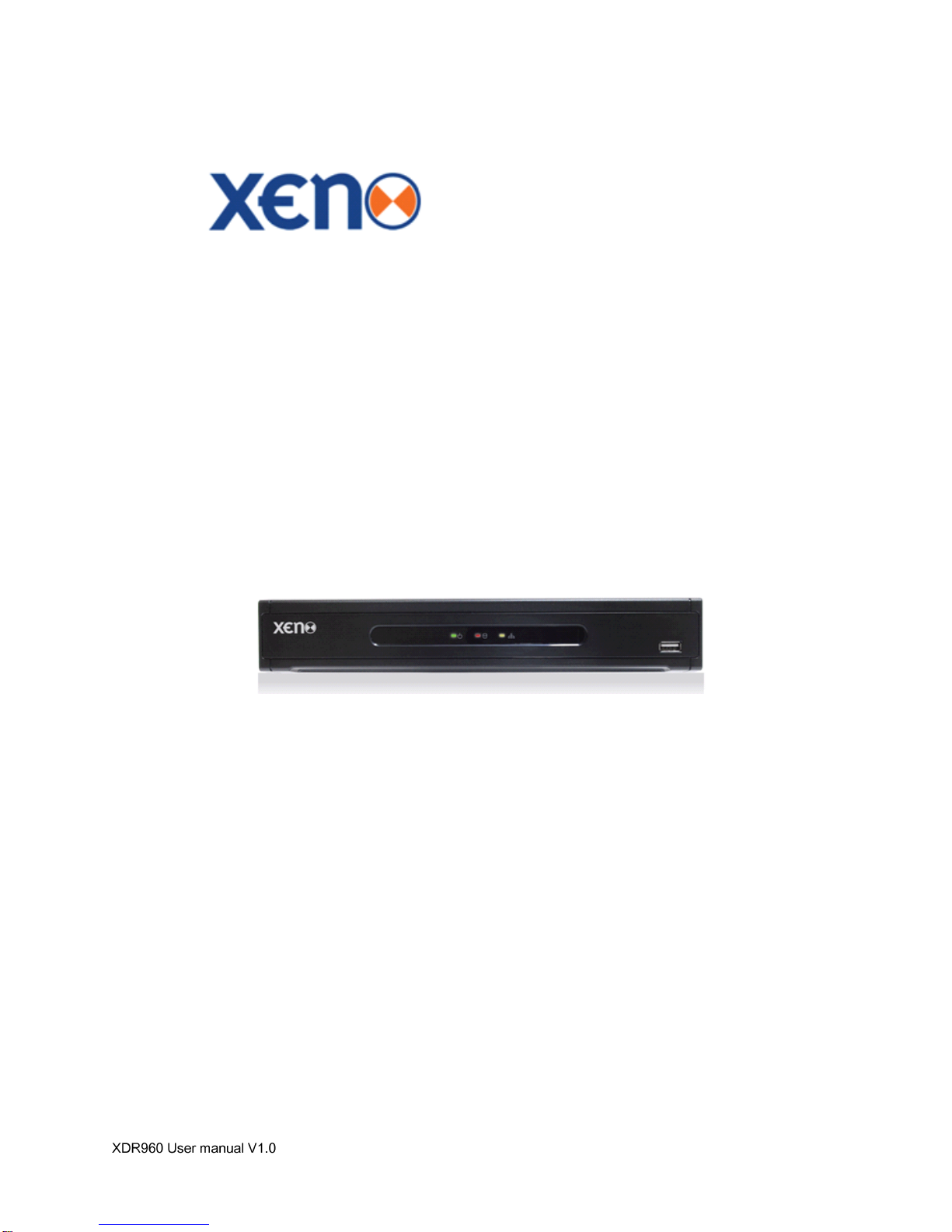

XENO XDR960 Manuel utilisateur

XDR960 4 Channel DVR

User manual

Safety Information

Note:



Note:

* WARNING:

Improper use of this equipment can cause severe bodily injury or equipment damage.

** Caution:

Improper use of this equipment can cause equipment damage.

Note:

3 | H.264 Digital Video Recorder

RISK OF ELECTRIC SHOCK

User’s Manual | 4

Contents

CHAPTER 1:DVR USER MANUAL

1GETTING STARTED 7

1.1 Checking Supplied Items 7

1.2 Connecting Peripheral Device 8

1.3 System Startup and Shutdown 10

2EXPLANATION FOR EACH FUNCTION 12

2.1 Front Panel 12

2.2 Rear Panel 12

2.3 IR Remote Controller(*Option) 15

3OPERATION 16

3.1 User Log-in 16

3.2 Quick Startup Wizard 17

3.3 Live Display Mode 18

3.4 PTZ Operation 23

3.5 Call Monitor Operation 24

3.6 Playback of Recorded Video 25

3.7 Search Recording Image 27

3.8 DST Setting 31

3.9 Screen Saver 32

4SETTING 33

4.1 System 34

4.2 Device 42

4.3 Record 47

4.4 Network 50

4.5 Backup 55

4.6 Quick Setup 57

5WEB SURVEILLANCE 58

5.1 Web Login 58

5.2 Web Configuration 59

5.3 Web monitoring 61

5.4 Web Playback 64

6CMS USER GUIDE 67

6.1 PC REQUIREMENT 67

5 | H.264 Digital Video Recorder

6.2 INSTALL 67

6.3 UNINSTALL 69

6.4 BASIC OPERATION 70

6.5 CMS FUNCTIONS 79

6.6 CMS SETUP 85

7ACS USER GUIDE 93

7.1 System Requirement 93

7.2 Install 93

7.3 Uninstall 95

7.4 Basic Operation 95

7.5 Advanced Operation 101

7.6 ACS Setup 104

8MAC ACS USER GUIDE 111

8.1 System Requirement 111

8.2 Install 111

8.3 Basic Operation 112

9FACE STAMP SOFTWARE 121

9.1 Face Stamp Software Set-up 121

10 MOBILE PHONE SOFTWARE USER GUIDE 129

10.1 iPhone application software 129

10.2 Android application software 139

10.3 Using WAP+3G Connection 149

11 APPENDIX :DYNDNS SITE REGISTRATION 151

12 APPENDIX :NETWORK SETUP FOR EXTERNAL USAGE 153

13 APPENDIX :SPECIFICATION 154

User’s Manual | 6

7 | H.264 Digital Video Recorder

1GETTING STARTED

1.1 Checking Supplied Items

Make sure that you have the following items supplied with yourDVR. If any of these items are missing or damaged, notify your

vendor immediately. Keep the packing utilities for moving or storage purposes afterwards.

Items


Quantity

User Manual

(DVR & Software)

Quick Start Guide

1 Set

CD (Manual & Software)

Rubber Mount

1 Set

1 Set (4 Pieces)

12V DC Adaptor

Power Cable

1 Set

USB Mouse

1 Set

Ground Screw

1 Set

(1piece Vmax960HFlex

Rear / 1piece )

User’s Manual | 8

1.2 Connecting Peripheral Device

This section describes howtoconnect peripheral devices efficientlyto the DVR.

Install the DVR on flat surface. If required, attach a rubber mount for installation. If a19-inch rack is used with 1.5U Height

case, it is recommend to install the system on a shelf and use 2.5~3U (1U=1.75 inch or 4.45 cm) space for proper ventilation.

4 Channel DVR Compact Case Dimensions: 11.0” W x 1.9” H x 9.6” D

8 Channel DVR Compact Case Dimensions: 11.0” W x 1.9” H x 9.6” D

NOTE

Install the system in a location with good ventilation to prevent overheating.

9 | H.264 Digital Video Recorder

16 Channel DVR Compact Case Dimensions: 11.80” W x 2.16” H x 12.46” D

WARNING !

When connecting power cord to the system, it is strongly recommended first to plug the power cord to

the system and then plug the other side of power cord into the wall socket.

User’s Manual | 10

1.3 System Startup and Shutdown

1.3.1 System Startup

After connecting peripheral devices such as cameras, monitors and a mouse to the DVR, power up the DVR by connecting

DC12V 3Aadaptor to the power jack on the rear panel. The boot log will display as shown below. Please wait until the boot

process completes.

Thereis only oneAdministratorAccount configurable in theDVR system. It is assigned with an unchangeable User IDmarked

as ‘admin’. The default password is empty (No Password). Administrator account has full access to the DVR and its

configurable parameters. TheAdministratorAccount also has the ability to create new users and to assign rights to the new

user accounts. Those newusers created by ‘admin’account can also login with a specific password set by ‘admin’account.

NOTE

Do not forget the administrator’s password that was set for the first time. In case the password is lost,

contact your vendor.

NOTE

The mouse is included. In case you need to replace it, it is highly recommended to choose well-known

major brands such as DELL, MICROSOFT, LOGITECH, or SAMSUNG.
