X-Micro PCI Adapter fxmicro Manuel utilisateur

X-Micro WLAN 11g PCI Adapter

User Manual

Contents

1. Introduction 5

1.1 Product Feature ..........................................................................................5

1.2 System Requirement ..................................................................................5

2. Getting Start 5

2.1 LED Indicators...........................................................................................5

2.2 Install the 108Mbps Wireless Network PCI Adapter.................................6

2.2.1 Utility Installation ..........................................................................6

2.2.2 Driver Installation ..........................................................................9

3. Configuration 12

3.1 Link Information............................................................................................12

3.2 Configuration .................................................................................................13

3.3 Advance..........................................................................................................14

3.4 Site Survey.....................................................................................................17

3.5 About US........................................................................................................19

4. Glossary 19

This product is in compliance with the essential

requirements and other relevant provisions of the

R&TTE directive 1999/5/EC.

Product Name: X-Micro WLAN 11g PCI Card

Model Name : XWL-11GCAG

MAX. OUT POWER

COUNTRY CHANNELS INDOOR OUTDOOR

Spain 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

France 2400-2454 MHz 1-8 < 100 mW EIRP < 100 mW EIRP

France 2454-2483.5 MHz 9-13 < 100 mW EIRP < 10 mW EIRP

Italy 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

UK 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Netherlands 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Germany 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Austria 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Belgium 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Switzerland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Luxemburg 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Ireland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Portugal 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Norway 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Denmark 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Finland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Iceland 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Greece 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Lichtenstein 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

Sweden 2400-2483.5 MHz 1-13 < 100 mW EIRP < 100 mW EIRP

FCC INFORMATION

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment.

This equipment should be installed and operated with minimum distance

20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

The equipment has been tested and found to comply with the limits for a

Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction, may cause

harmful interference to radio communication. However, there is no grantee that

interference will not occur in a particular installation. If this equipment dose

cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Notice: The Part 15 radio device operates on a non-interference basis with

other devices operating at this frequency. Any changes or modification not

expressly approved by the party responsible could void the user’s authority to

operate the device.

REGULATORY INFORMATION

X-Micro WLAN 11g PCI Card must be installed and used in strict accordance

with the instructions. This device complies with the following radio frequency

and safety standards.

USA - Federal Communications Commission (FCC)

This device complies with Part 15 of FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference that may cause undesired

operation.

1. Introduction

1.1 Product Feature

●Compliance with IEEE 802.11g and 802.11b standards

●Highly efficient design mechanism to provide unbeatable performance

●Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with wide

range coverage; high performance to deliver up to 108Mbps raw data rate for

802.11g

●Strong network security with WEP and WPA support

●Auto-switch between the two standards, IEEE 802.11b and 802.11g

●Driver/Utility support most commonly used operating systems including

Windows 98SE/ME/200/XP.

1.2 System Requirement

●Windows 98, 98SE, Millennium Edition (ME), 2000 and XP operating systems

●PC with Pentium III 600MHz system or above is recommended

●Equipped with at least one PCI slot.

●One CD-ROM drive

2. Getting Start

2.1 LED Indicators

The LED will be ON when the unit is powered up.

The LED will be Blinking indicates a WLAN connection.

2.2 Install the 108Mbps Wireless Network PCI Adapter

2.2.1 Utility Installation

1. Before insert PCI Adapter into the PCI slot of your computer, please install the

Utility Program first. Make sure that the 108Mbps wireless Network PCI

Adapter is NOT inserted into the PCI slot.

NOTE: all the snapped images of installation mentioned in this manual are based

on Windows XP. For other windows operating system, all the procedures are

the same but the screens are not the exactly same.

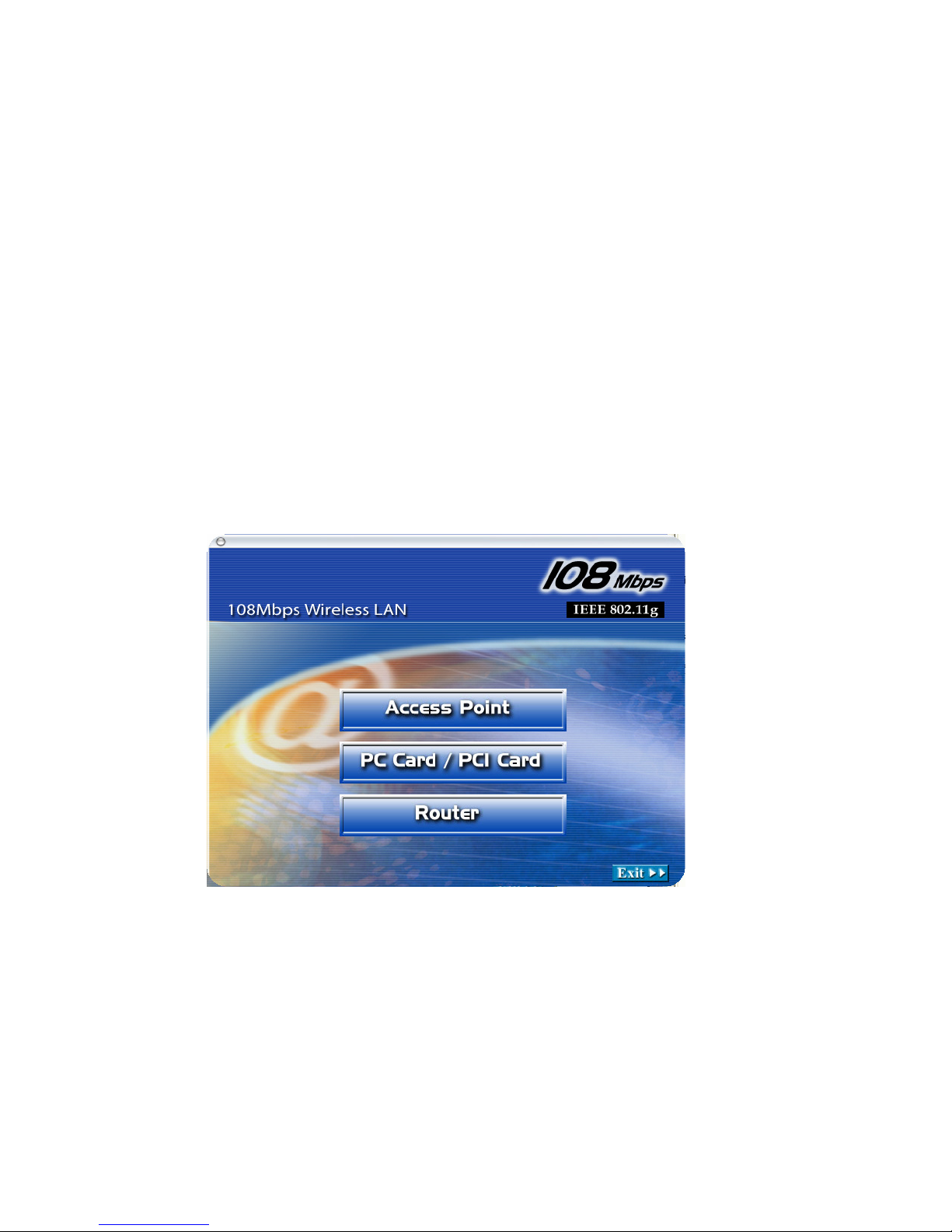

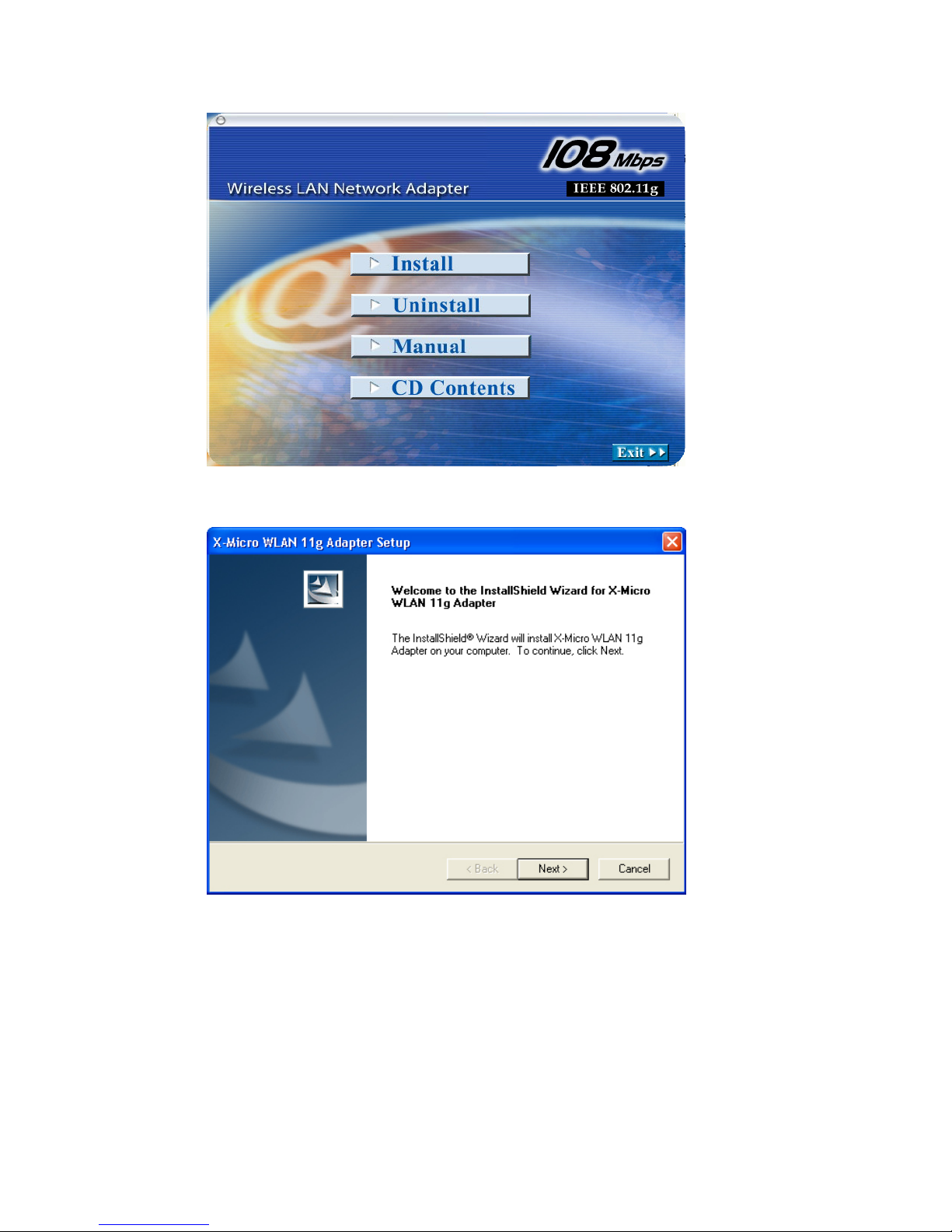

2. Turn on the computer. Insert the CD into the CD-ROM Drive. Please select

“PC Card/ PCI Card” and then click the “Install”.

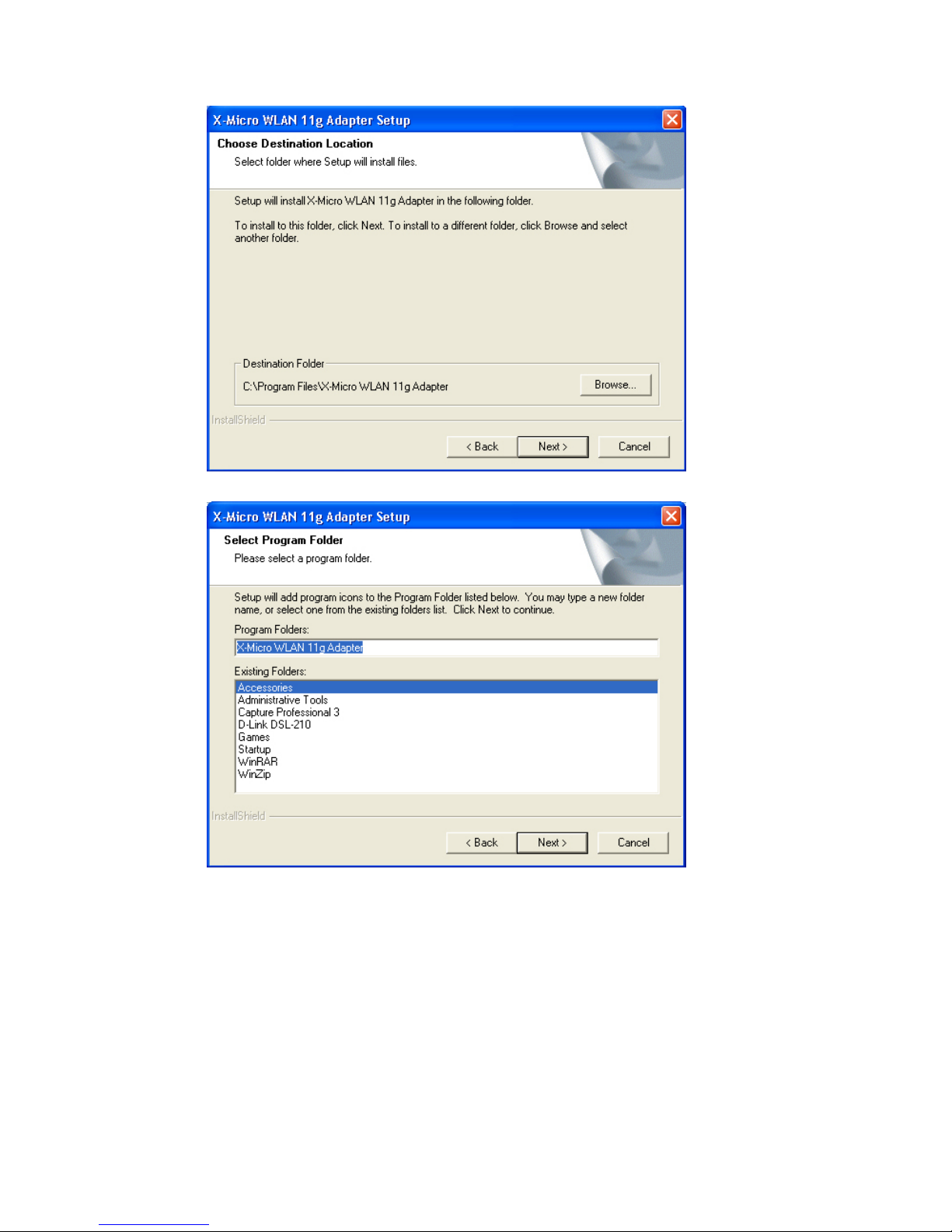

3. InstallShield Wizard will automatically start. Please click “Next” to continue.

4. Please click “Finish”

5. Please make sure TURN OFF your computer and remove the power cord from

your PC. Open the computer case and then please insert the Wireless PCI

Adapter into the empty PCI slot of your computer system. Once the Wireless

PCI Adapter is installed, place the computer case back. Turn ON your

computer.

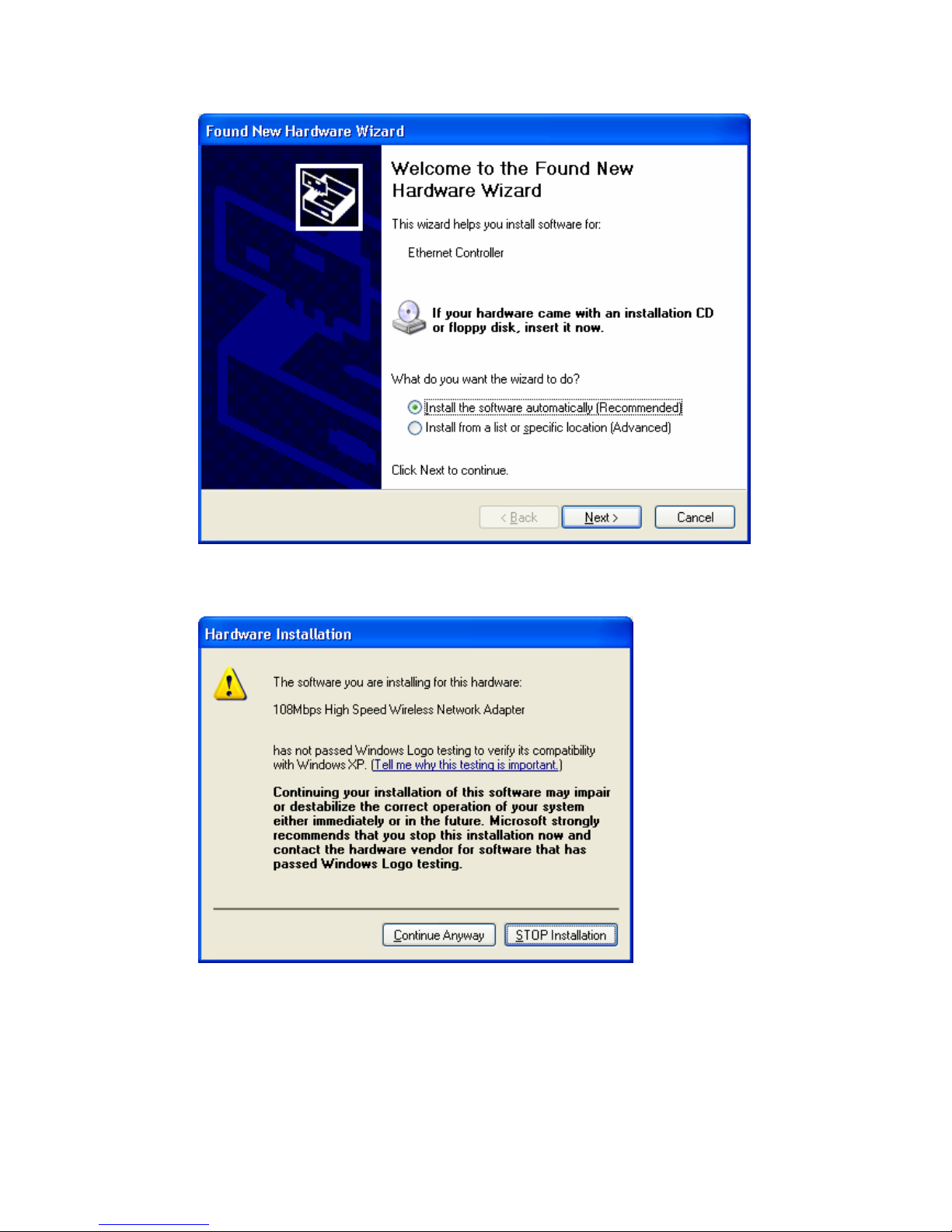

2.2.2 Driver Installation

1. Please select the second option and click “Next”.

2. Please click “Continue Anyway”
