Wyrestorm MAT8T820 Manuel utilisateur

HDMI 8 x 8 Matrixes (Routing Type)

Model No. MAT8T820 (P/N of this Instructions is INS- MAT8T820)

Features

1) Allows up to eight HDMI audio/video devices to be independently switched to eight

HDMI monitors, HDTVs, or projectors.

2) The eight outputs could show the same or different source simultaneously no matter the

source is HDCP or not.

3) Each output includes one HDMI A type connecter and a set of dual RJ-45 connecters as

the second mirrored HDMI output. The two outputs work simultaneously. The UTP

output supports both dual and single cat5e/cat6

4) Reading and saving EDID function from displays.

5) Support high definition resolutions, including 1080p, 1080i, 720p and other standard

video formats.

6) Each port supports both HDMI and DVI inputs.

7) With extra infrared extension receiver.

8) Six switching modes: panel buttons, local IR, IR call back from remote locations, RS232,

RS485 and Ethernet.

9) Eight IR emitters to control the HDMI sources.

10)HDCP compliant.

11)HDMI 1.3 version.

Dear customer:

Thank you for purchasing this product. For optimum performance and safety, please read these

instructions carefully before connecting, operating or adjusting this product. Please keep this

manual for future reference.

NOTICE

Wyrestorm reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE:

1) DO NOT EXPOSE THIS UNIT TO WATER OR MOISTURE OF ANY KIND.

2) DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET

OR IN ANY OTHER CONFINED SPACE. MAKE SURE THE UNIT IS WELL

VENTILATED.

3) TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO

OVERHEATING, DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS.

4) DO NOT INSTALL NEAR ANY HEAT SOURCE OR OTHER UNITS THAT MAY

PRODUCE HEAT.

5) DO NOT PLACE UNIT NEAR FLAMES.

6) CLEAN THIS UNIT ONLY WITH DRY CLOTH.

7) UNPLUG THIS UNIT DURING LIGHTNING STORMS OR WHEN UNUSED FOR

LONG PERIODS OF TIME.

8) PROTECT THE POWER CORD FROM BEING WALKED ON OR PINCHED

PARTICULARLY AT PLUGS.

9) ONLY USE ATTACHMENTS/ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

10)REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.

TABLE OF CONTENTS

Introduction

Package Contents

Panel Descriptions

Connect and Operation

Specification

Typical Application

Maintenance

Product Service

Warranty

Contact Information

INTRODUCTION

Wyrestorm’s MAT8T820 is an 8-by-8 DVI/HDMI true matrix. It allows any of the eight source

(Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be routed to any of

the eight displays simultaneously, no matter the source is HDCP or not. Users can choose several

different ways to control the matrix: by using infrared extension receiver, RS232, RS485, LAN,

and supplied remote control. IR emitters in the matrix are for controlling the sources; the IR

control signal could be from remote locations via STP/UTP type HDMI connection on the rear

panel.

MAT8T820 has the ability of equalization and amplification to ensure HDMI signal's

transmission through long cable without quality loss. The transmission distance of STP/UTP

outputs reaches up to 30 meters under the video format of 1080P, together with infrared control

signal.

MAT8T820offers solutions for digital entertainment center, HDTV retail and show site, HDTV,

STB, DVD and projector factory, noise, space and security concerns, data center control,

information distribution, conference room presentation, school and corporate training

environments.

PACKAGE CONTENTS

Main Unit. P/N_ MAT8T820.

1) 12VDC Power Supply. P/N_VDC1204

2) Remote.

3) IR extension cable.

4) USB to UART cable.

5) Operating Instructions. P/N_INS MAT8T820.

6) Mounting ears.

*PART NUMBER (Abbreviation as P/N).

PANEL DESCRIPTIONS

Front panel

1) Power switch.

2) Output selection push button (Use it to choose the output channel you want to change).

3) LED indicator of input for output port 1 to 8.

4) Action Confirmation button (Push the ‘Enter’ button to confirm the changing of input

channel to the output).

5) Input selection knob(Rotate it to select the input to the output)

6) IR window.

Rear panel

1) IR extension.

2) RS485 port.

3) LAN port.

4) IR emitter, corresponding to the Input port from 1 to 8

5) RS232 port.

6) Output 1 to 4 with HDMI and CAT5E.

7) Input ports 1 to 4.

8) Power input.

9) Output 5 and 8 with HDMI and CAT5E.

10)Input ports 5 to 8.

11)DIP switch setting.

Note: RS232 port and LAN port are for matrix control. The LAN port is connected to the

computer via cross UTP and connected to the router or switcher via direct UTP.

CONNECT AND OPERATION

1) Connect the HDMI input sources (such as HD-DVD, PS3, STB etc) into MAT8T820

2) Connect the standard HDMI outputs (such as HD-LCD, HD-DLP) into MAT8T820.

3) Connect two CAT-5E cables to both the STP/UTP outputs of MAT8T820and inputs of

STP/UTP receiver (such as EXT131/33/51/53 etc). Please pay attention to the sequence

of the two cables, CAT5e-1->CAT5e1, CAT5e-2->CAT5e2. (The cable termination must

follow the standard of EIA/TIA 568B, if Single UTP mode, just connect CAT5E-2)

4) Connect the HDMI output (such as: HD-LCD.HD-DLP) into the STP/UTP receiver.

5) Connect the IR RX receiving cable into STP/UTP receiver IR RX and connect The IR

TX cable into MAT8T820 IR emitter.

6) Power on the input source you want to show. (Keep the unused input power off,

otherwise it may interfere the normal display.)

7) Connect the power supply into MAT8T820

8) Turn on the power, when the LED panel stops flashing circularly, the initialization of the

matrix is ready.

9) Turn on the displays you want to watch.

10)Use the remote supplied or push the button on the front panel to choose input source, or

using infrared extension receiver, RS232, RS485 or LAN port to do the control.

Operation on front panel

1) Press the output select button to the output channel which you want to change. Then the

corresponding LED of the output channel will blink slowly.

2) Rotate the input select knob to choose the desired input channel.

3) Press the ‘Enter’ button to confirm the action. Then the LED stops blinking.

Control via RS232.

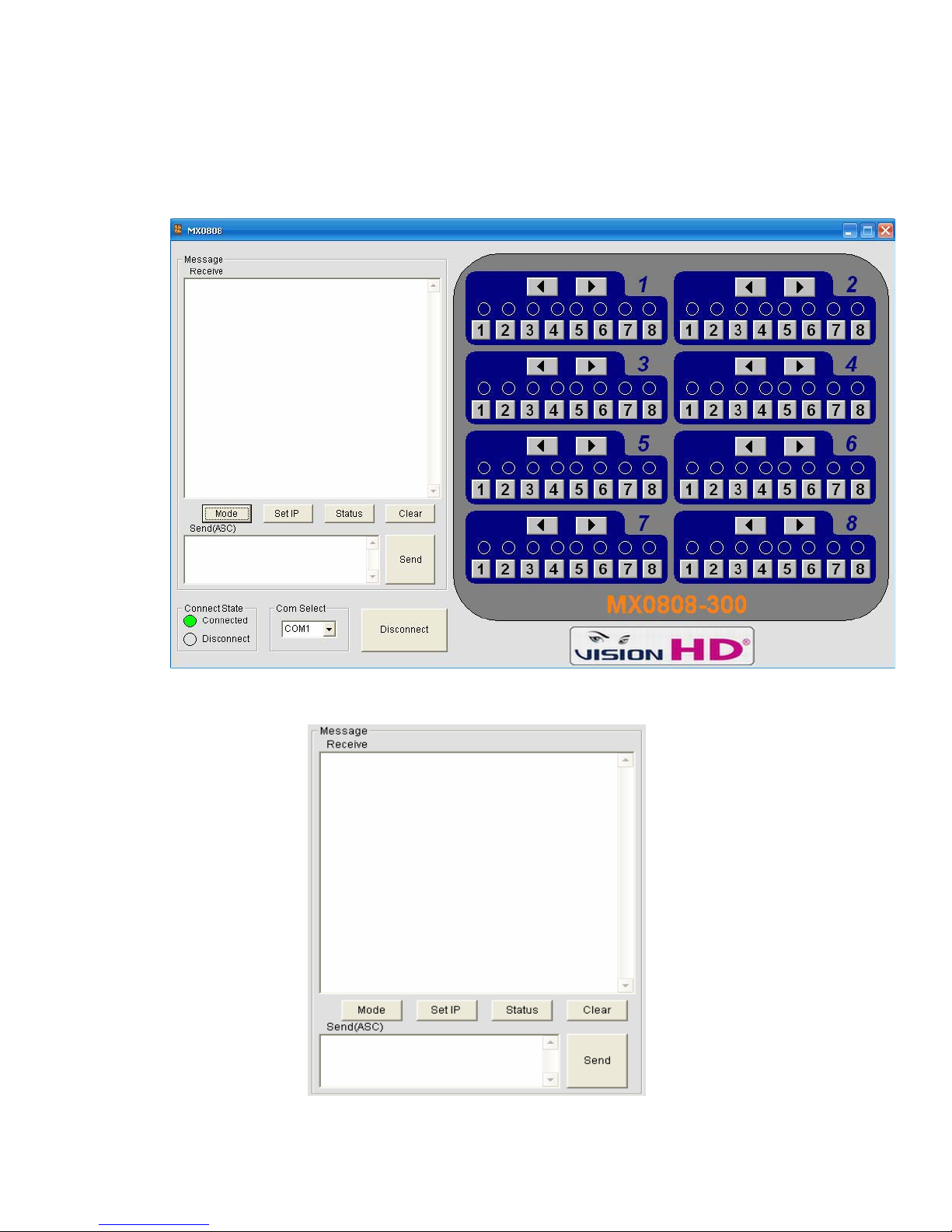

The Interface of MAT8T820_COMCTL

The Message Window

Receive Window

The “receive window” will show the message received from MAT8T820. When you click the

Control Buttons (see step 4) or send Control Command (see 2.3) to MAT8T820, it will send out

the message about “operation results” as seen below:

Status Button

Click this button to read the status of MAT8T820. The status displays which input is selected by

which output.

Send Window

Input the control command in this window. The control command uses ASCII.

Mode button

Click this button to set the switch mode: Quick switch or Normal switch. When you click this

button it will read the current mode of MAT8T820, if you want to change the mode, select the

mode you want and click OK.

Set IP button

Click this button to set IP address for NETCTL.

The Com Status

Connect state

1) Connect state shows if the com is open or not. If it is open, the state is green. Otherwise,

the state is red.
