Wyrestorm EX0101-WH1 Manuel utilisateur

Model No.: EX0101-WH1/WH2

Operating Instructions

Thanks for purchasing our product.

Please be sure to read this instruction manual

carefully before using our product.

Introduction

EX0101-WH1/WH2 is a HDMI extender while using CAT-5E/6 cable as

transmission media.

Benefits from using EX0101-WH1/ WH2:

1) The length of HDMI cable is fixed and unchangeable after it is produced.

Because the HDMI connector can only be soldered or terminated by

professional worker in factory, the users can not reduce or increase by

themselves. However CAT-5E/6E cables are available everywhere and be

processed easily by the user or installer.

2) By using EX0101-WH1/WH2, the transmission distance for 1080P reaches

100 meters. For general HDMI cables, cables must be customized when

the length over 10 meters.

3) EX0101-WH1/WH2 has the ability of buffering and amplifying. Series

connection of EX0101-WH1/WH2 achieves long distance transmission of

HDMI signal. When two pairs or more EX0101-WH1/WH2 are sacked

together, they can be used to create a larger distribution (Daisy chained.)

4) The IR system could control the sources from the sinks or control the sinks

from sources.

EX0101-WH1/WH2 offers solutions for digital entertainment center, HDTV retail

and show site, HDTV, STB, DVD and Projector factory, noise, space and security

concerns, data center control, information distribution, conference room

presentation, school and corporate training environments.

Contents

HDMI Extender ................................................................................................1

Product Overview......................................................................................... 1

Features ....................................................................................................... 1

Package Contents ........................................................................................ 3

Connections and Operations........................................................................ 3

Specifications ............................................................................................... 4

Panel Descriptions .......................................................................................5

Typical Application........................................................................................ 6

Maintenance................................................................................................. 7

Product Service............................................................................................ 7

●Provided Service ................................................................................... 7

●Mail-In Service....................................................................................... 8

●Warranty ................................................................................................ 8

●Warranty Limits And Exclusions............................................................. 9

HDMI Extender (By single CAT-5E/6E cable)

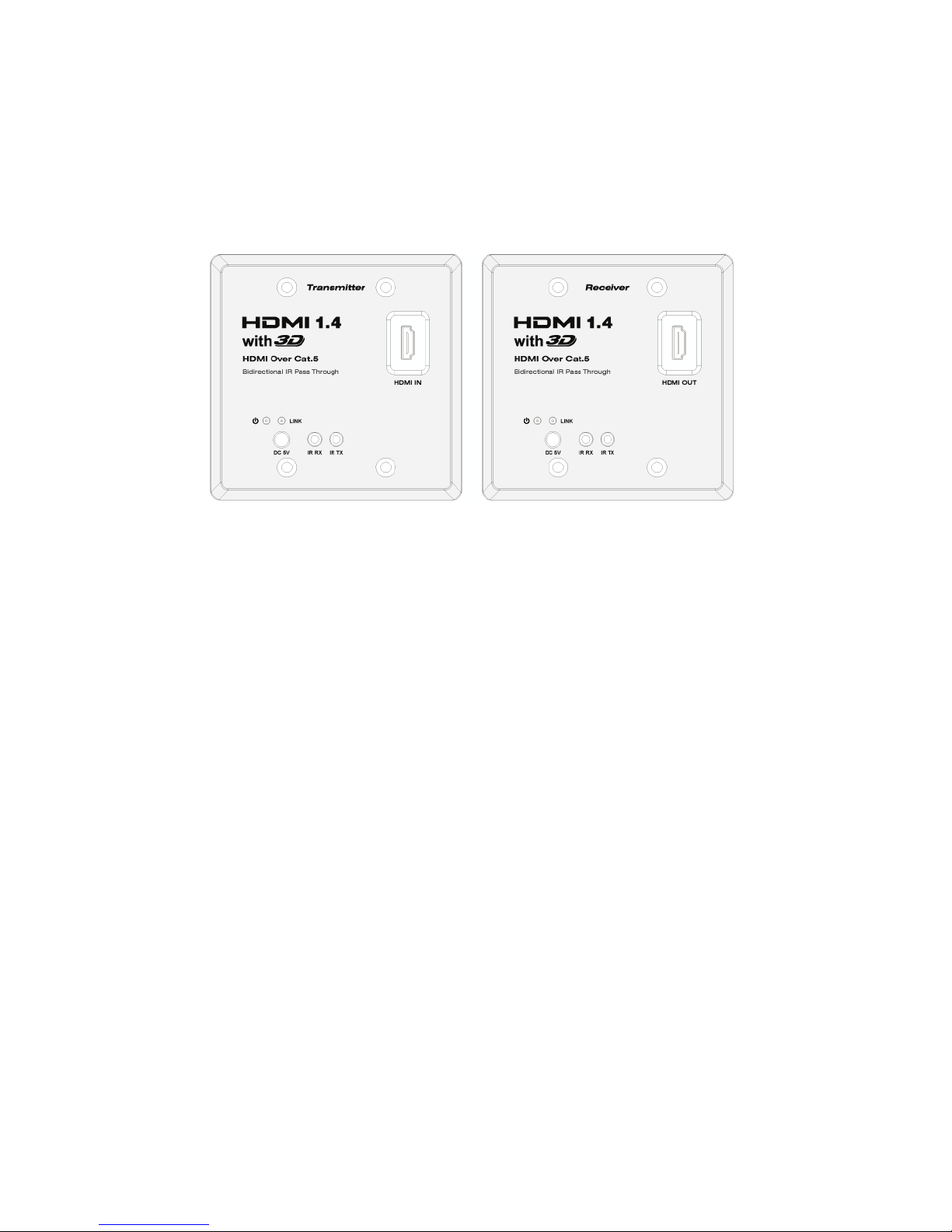

■Product Overview ( Model Number: EX0101-WH1/ WH2 )

■Features

zOne pair as a full functional module, no need for setting.

zUse single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve

long distance transmission.

zUTP cable termination follows the standard of IEEE-568B.

zTransmission distance reaches up to 100 meters under the video format of

1080P.

zAuto-adjustment of feedback, equalization and amplify, the user does not

need to care about the length of the cable.

zHDMI V1.4 supported.

zHDCP compliant.

zFull HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K

zWith LED indicators to show the power status.

zWith ESD protection inside.

zTransfer 10M/100M Ethernet with the HDMI signal.

zTransfer Bidirectional Infrared control signal together with the HDMI signal.

zThis model could be cascaded.

"Notice

We reserve the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

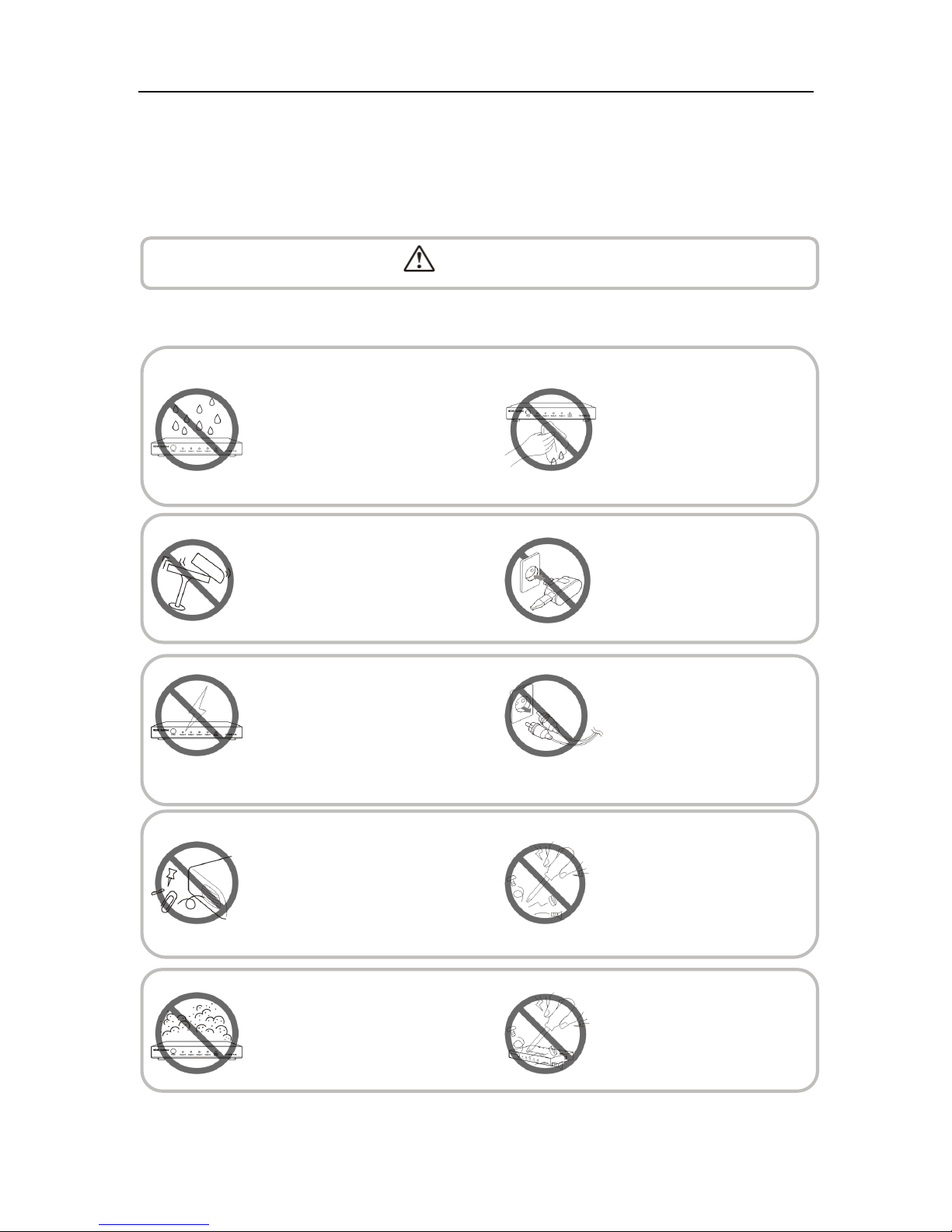

Warning

To reduce the risk of fire, electric shock or product damage:

1. Do not expose this apparatus

to rain, moisture, dripping or

splashing and that no objects

filled with liquids, such as vases,

shall be placed on the apparatus.

6. Clean this apparatus

only with dry cloth.

2. Do not install or place this unit

in a bookcase, built-in cabinet or

in another confined space.

Ensure the unit is well ventilated.

3. To prevent risk of electric

shock or fire hazard due to

overheating, do not obstruct

the unit’s ventilation openings

with newspapers, tablecloths,

curtains, and similar items.

4. Do not install near any heat

sources such as radiators, heat

registers, stoves, or other

apparatus (including amplifiers)

that produce heat.

5. Do not place sources of naked

flames, such as lighted candles,

on the unit.

7. Unplug this apparatus

during lightning storms or

when unused for long

periods of time.

8. Protect the power cord

from being walked on or

pinched particularly at

9. Only use attachments /

accessories specified by

the manufacturer.

10. Refer all servicing to

qualified service

personnel.

■Package Contents

① Main unit NO.1. P/N_EX0101-WH1.

② Main unit NO.2. P/N_EX0101-WH2.

③ Operating instructions. P/N_INSEX0101-WH1/WH2.

④ 2x 5VDC power supply P/N_VDC0502.(One for WH1, one for WH2)

⑤ 1xIR TX unit. (IR emitter cable, for WH1 or for WH2)

⑥ 1xIR RX unit. (IR receiver cable, for WH1 or for WH2)

NOTE: PART NUMBER (Abbreviation as P/N)

■Connections and Operations

1) Connect the HDMI input source ( such as HD-DVD、PS3、STB etc. ) to

EX0101-WH1.

2) Connect a CAT-5E/6E cable from UTP output of EX0101-WH1 to UTP input

of EX0101-WH2.

3) Connect the HDMI sink( such as HD-LCD、HD-DLP）to EX0101-WH2.

4) Connect the IR TX UNIT into EX0101-WH1 IR TX; Connect the IR RX UNIT

into EX0101-WH2 IR RX.

5) Connect the IR RX UNIT into EX0101-WH1 IR RX; Connect the IR TX UNIT

into EX0101-WH2 IR TX.

Attention: Please insert and extract cables gently.

■Specifications

Operating Temperature Range -5 to +35°C (-41 to +95 °F)

Operating Humidity Range 5 to 90 % RH (no condensation)

Input Video Signal 0.5-1.0 volts p-p

Input DDC Signal 5 volts p-p (TTL)

Video Format Supported

DTV/HDTV; 1080P/1080i/720P/576P/

480P/576i/480i

Output Video

HDMI 1.4+HDCP

(repeat the source to the sink)

Output Audio Support DTS-HD, Dolby-HD (repeat the

source to the sink)

Maximum Transmission Distance 100 meters

Power Supply 5VDC

Power Consumption

2.5Watts (EX0101-WH1)

5Watts (EX0101-WH2)

Dimensions 117mmH×114mmW×33mmD/4.61’’W×

4.49’’H×1.30’’D

Mass (Main unit) 0.76Kg / 1.68lb (Pairs)

NOTE1: Specifications are subject to change without notice. Mass and dimensions are

approximate.

■Panel Descriptions

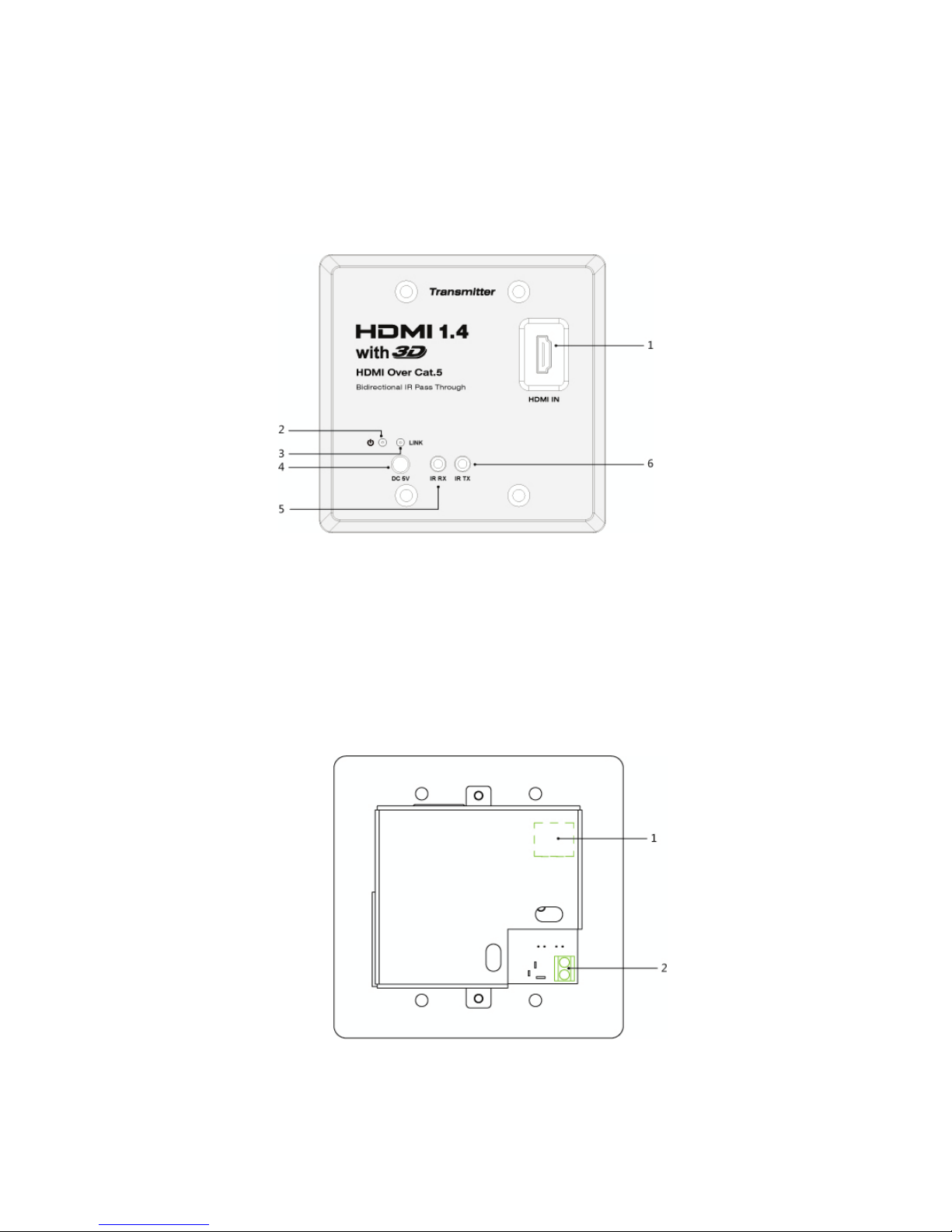

1. EX0101-WH1

Front Panel

1、HDMI Input

2、Status of Power. When power input on, the LED inside lights

3、Status of Link. When UTP cable connected, the LED inside lights

4、Power input 5VDC

5、IR RX

6、IR TX

Back Panel

1、UTP Output

2、Power cable connector

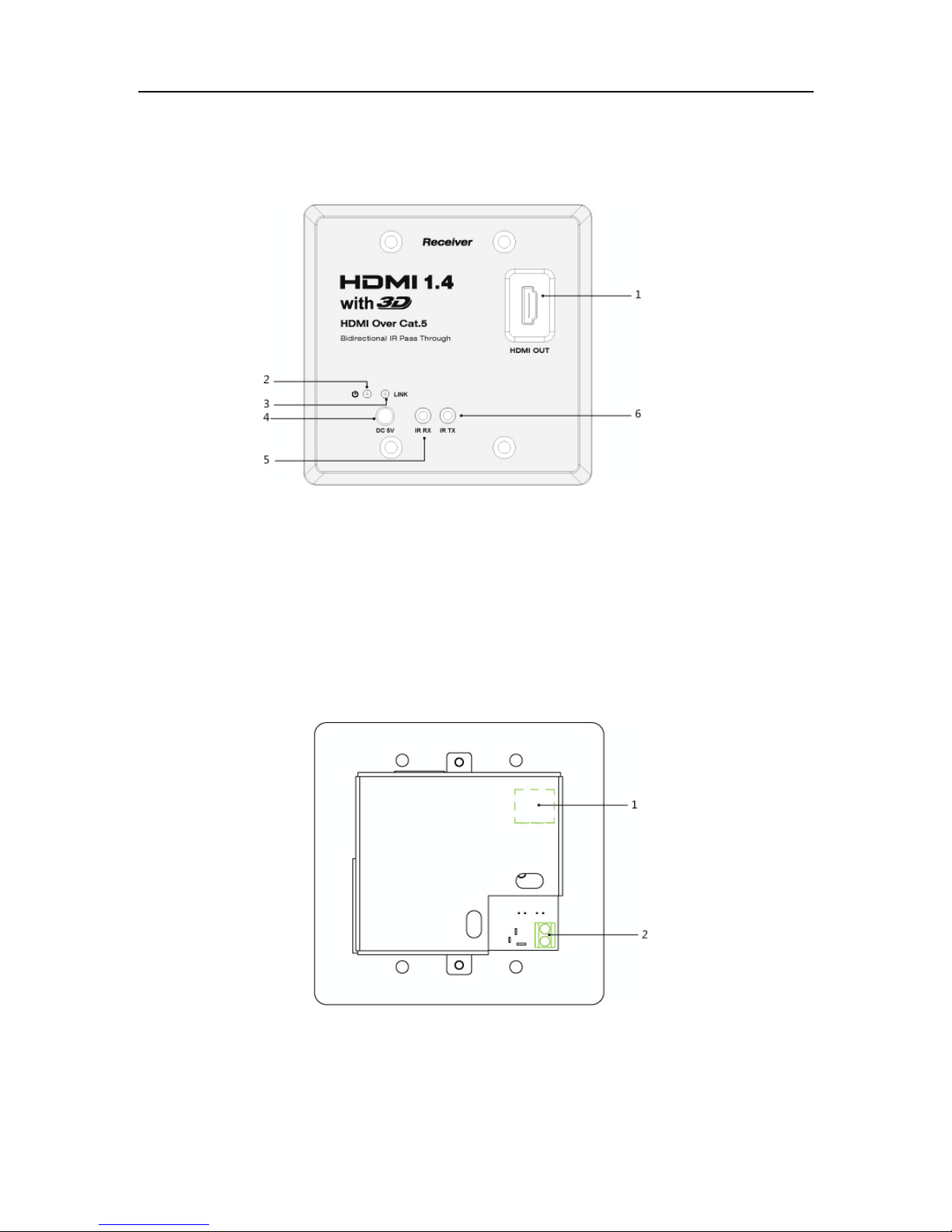

2. EX0101-WH2

Front Panel

1、HDMI Output

2、Status of Power. When power input on, the LED inside lights

3、Status of Link. When UTP cable connected, the LED inside lights

4、Power input 5VDC

5、IR RX

6、IR TX

Back Panel

1、UTP Input

2、Power cable connector
