Wren EM101 Manuel utilisateur

EM101, Video Encoder Module

PROPERTY OF WREN Page 1 of 2 7L224 REV-D 9/21/2007

124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE (800) 881-2249 • FAX (877) 893-2317

www.wrensolutions.com

Overview

The EM101 is utilized to provide an effective method of converting a

previously installed analog solution into a solid IP solution without

the need to replace the camera or its cabling.

Warnings and Safeguards

Prior to installation and use of this product, please observe the

following warnings

1. Installation and servicing should be done by qualified

personnel, and all work done should conform to local

codes.

2. Using replacement parts or accessories other than

Wren may invalidate the warranty.

3. The EM102 is designed to accept 12V DC power.

4. It is recommended that your active network assign an

available IP address through DHCP when connecting

this module for the first time.

Component List

1. EM101 Module

2. Power Adapter

Instructions

1. Connect the Video and Audio (if applicable) feed from

the camera to their respective ports on the EM101.

[Figure 1]

2. Connect a CAT5 cable from the LAN to the Ethernet

jack on the EM101. [Figure 2]

3. If applicable connect the alarm contacts and digital

output to pins 1 through 4 on the I/O terminal

according to the table below. [Figure 2]

IP Solution:

EM101

Video Encoder Module

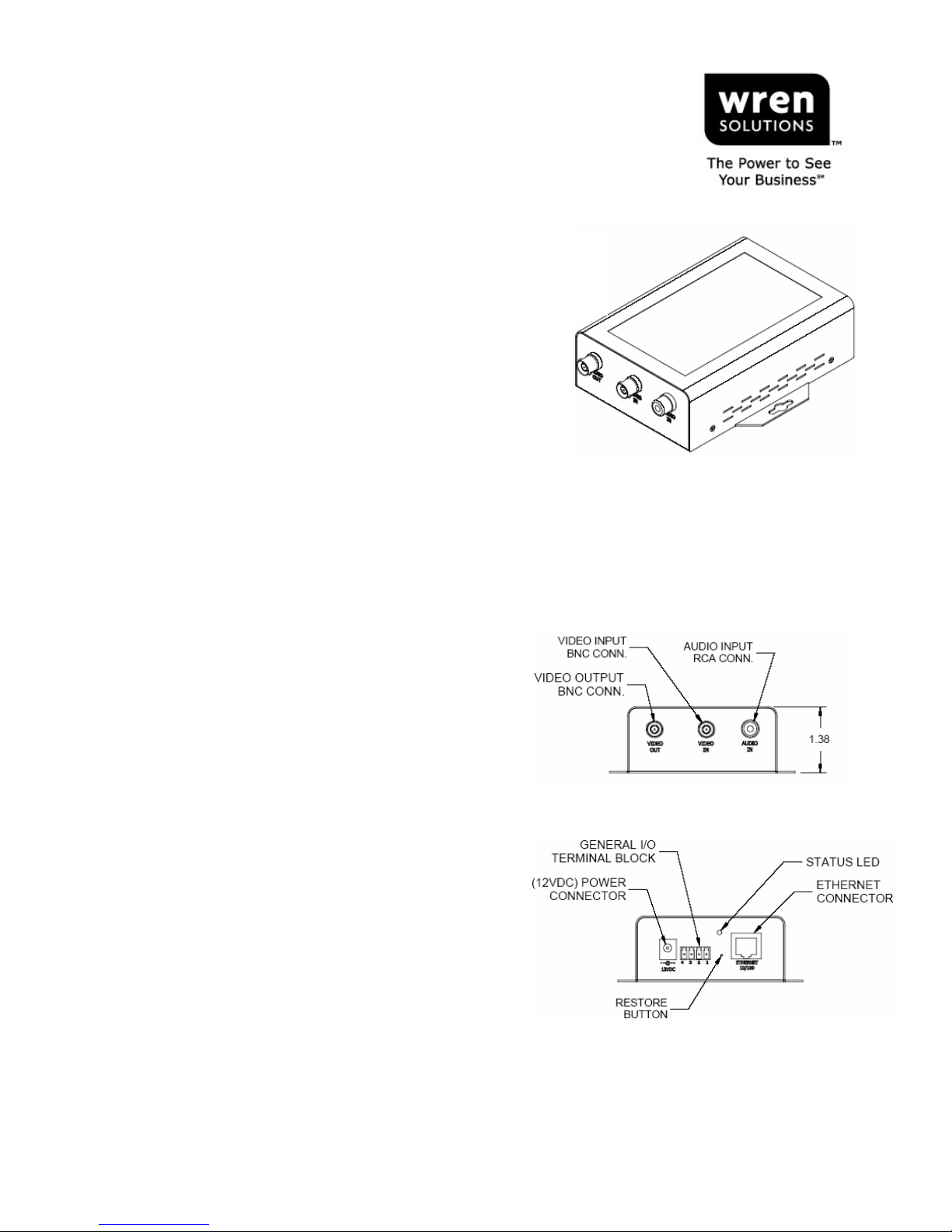

FIGURE 1

FIGURE 2

PROPERTY OF WREN Page 2 of 2 7L224 REV-D 9/21/2007

124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE (800) 881-2249 • FAX (877) 893-2317

www.wrensolutions.com

1 DI- INPUT 12V, Max 50mA

2 DI+ INPUT

3 SW_COMMON OUTPUT

4 SW_NOPEN OUTPUT 1A, 24V or 0.5A, 120 VAC

4. Connect power from the included power adapter or other 12V supply to the power connector on the

EM101. [Figure 2]

NOTE Please see the IP camera settings guide for detailed operating instructions.

DIMENSIONS

(All dimensions are in inches)

See height in Figure 1.

All Products Are Subject to the Current Version of Wren Terms and Conditions

WARRANTY INFORMATION

Wren warrants EM101 for one (1) years from the purchase date, recorded as

the ship date on Wren’s invoice, against any defects in material or workmanship

as long as the product is used for the purposes for which it was intended. This

warranty shall not apply if the product has been damaged or rendered defective

(a) as a result of accident, misuse or abuse; (b) unauthorized modification or

alteration; (c) as a result of service by anyone other than Wren or its authorized

service providers; or (d) used with parts not provided by Wren as part of the

original product. Warranty claims will be processed only when accompanied by

original order numbers which include: purchase order number, sales order

number, invoice number and serial number (if applicable) or other information

allowing Wren to identify the product and its origins.

RETURNS

In order to return parts to the factory for repair or credit,

please call the factory at (800) 881-2249 or (573) 893-

2249 to obtain a Return Authorization (RA) number. All

returns are subject to Wren’s RA Policy. Goods returned

for credit should be in their original condition—new and

unused. All merchandise returned by the Customer for

credit, and accepted by Wren, within 90 calendar days

from the purchase date will be subject to a 20% restocking

fee. Products may not be returned more than 91 calendar

days from the purchase date. Custom, special order and

OEM products may not be returned.
