EN-508 MANUAL

Version:

Model:

EN-508-F10

2021-4

CONTENTS

1. FUNCTION OVERVIEW........................................................................................................................................................1

2. TECHNICAL PARAMETERS...................................................................................................................................................1

3. CONNECTION MODE.......................................................................................................................................................... 2

3.1. PORT INTRODUCTION..................................................................................................................................................2

3.2. CONNECTION DIAGRAM OF CONTROLLER.................................................................................................................. 2

3.3. OPTICAL FIBER COMMUNICATION.............................................................................................................................. 3

3.4. CONNECT WITH LIGHTING FIXTURE............................................................................................................................ 3

3.5. TRANSMISSION DISTANCE........................................................................................................................................... 4

4. BASIC OPERATION.............................................................................................................................................................. 4

4.1. MENU INTRODUCTIION............................................................................................................................................... 4

4.2. PARAMETERS SETTINGS...............................................................................................................................................5

4.2.1. STARTING UP DISPLAY...........................................................................................................................................5

4.2.2. ID SETTINGS.......................................................................................................................................................... 5

4.2.3. IP SETTINGS (ONLY FOR MADRIX SOFTWARE)......................................................................................................5

4.2.4. CONFIGURE ADDRESSING.....................................................................................................................................6

4.2.5. TEST EFFECT.......................................................................................................................................................... 6

4.2.6. CHIP SETTINGS (FOR TEST FUNCTION AND MADRIX SOFTWARE)........................................................................6

4.2.7. CHANNEL OF CHIP (FOR TEST FUNCTION AND MADRIX SOFTWARE).................................................................. 7

4.2.8. BAUD RATE SETTINGS (FOR TEST FUNCTION AND MADRIX SOFTWARE)............................................................. 7

4.2.9. LANGUAGE SETTINGS........................................................................................................................................... 7

4.2.10. RESTORE FACTORY SETTING............................................................................................................................... 8

5. IP ADDRESS SETTINGS (PC)................................................................................................................................................ 8

6. ADDRESSING BY LED PLAYER............................................................................................................................................. 9

7. APPENDIX (CHIPS ADDRESSING)......................................................................................................................................10

7.1. CHIP SUPPORT........................................................................................................................................................... 10

7.2. UCCESSFULLY ADDRESSED AND SET PARAMETERS................................................................................................... 11

8. PARTS LIST.........................................................................................................................................................................12

1. FUNCTION OVERVIEW

1. Support access and control by Madrix software or LED Player software.

2. Unique data processing method for the display with complex shape, it’s easy to make a solution.

3. It supports 1,000,000 channels or cascade connection of 400 pieces controllers.

4. Use Art-Net Tool software to set the IP address of the controller online (which can also be set by key of the

controller), the self-check chip, the baud rate and the number of channels.

5. Support one-key addressing function, LED Player software search equipment and detection of packet loss rate.

6. Support our IAP-Loader software upgrade online.

7. 8-port data-independent signal output (with the isolation), control variety of regular chips in LED digital tube screen,

LED pixel light screen, and etc.

SW Single chip:

D**S, D**J.

Single-wire:

TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**.

DMX512:

SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH/G4/G6, DMX512AP/SM512,

SM16500P/511/512, SM17500P/512P/522P, SM17512/522, SM18522P/PH,

SM16823E/824E, Hi512A0/A4/A6, TM512AB3/AL1/ACx/AD/AE, QED512P,

GS8512/513/515, standard DMX512 lighting fixture on the market.

Please refer to the "CHIP SUPPORT" section for addressing.

Break-point resume:

UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

65536 gray scale:

UCS8903, UCS8904, UCS9812, SM16813.

8. With professional LED Player software, user can make any effect by themselves.

9. Encryption function is available when use with customized controller.

10. The load capacity of different lighting fixtures is different. (If frame frequency is not required, load capacity of each

channel can be increased independently, and must test it in the factory.)

2. TECHNICAL PARAMETERS

Cover material:

Iron

Input voltage:

AC100V - 240V

Input signal:

The RGB signal of Art-Net protocol, SW Ethernet Protocol

Output port:

TTL & RS-485 * 8 ports

Pixel driven:

Madrix software:

Single chip: 4 universes × 512 channels × 8 ports

Standard DMX512: 2 universes × 512 channels × 8 ports

LED Player software:

Single chip: 2880 channels ×8 ports, Single-wire: 3072 channels ×8 ports,

Standard DMX512: 512 channels ×8 ports, Extensible DMX: 1024 channels ×8 ports,

Break-point resume: 2160 channels ×8 ports, 65536 gray scale: 2160 channels ×8 ports.

Output power:

Working temperature:

-15℃～60℃

Relative humidity:

≤50%

Connecting mode:

In parallel (address manually)

IP grade:

IP20 (Prevent people from touching the components inside electrical appliance, prevent

object which diameter is more than 12.5mm from getting in, no special protection to water

or moisture.)

Working environment:

1.Please do not install the controller in magnetic, high pressure, high temperature or

seriously wet environment.

2.Please do connect the earth safely in order to reduce risks of fire and damage which cause

by short circuit.

3.Please ensure AC100-240V power supply is used, and same polarity is connected between

transformer and controller in order to guarantee the proper supply voltage.

4.No waterproof function in the control system, please pay attention on rainproof and

waterproof during installing.

Net weight:

1.5kgs

Size:

L285*W156*H44

Unit mm

3. CONNECTION MODE

3.1. PORT INTRODUCTION

Port

Description

Connect with PC / SN controller / EN controller.

Top left light

Signal indicator, flicker when the 8 output port output the correct signal.

Top right light

Nonuse.

OUT

Connect with EN controller.

Top left light

Receive data indicator, flicker when the control gain the data completely..

Top right light

Nonuse.

3.2. CONNECTION DIAGRAM OF CONTROLLER

★

Connect with switch (gigabit) in order to improve the efficiency of data transmission.

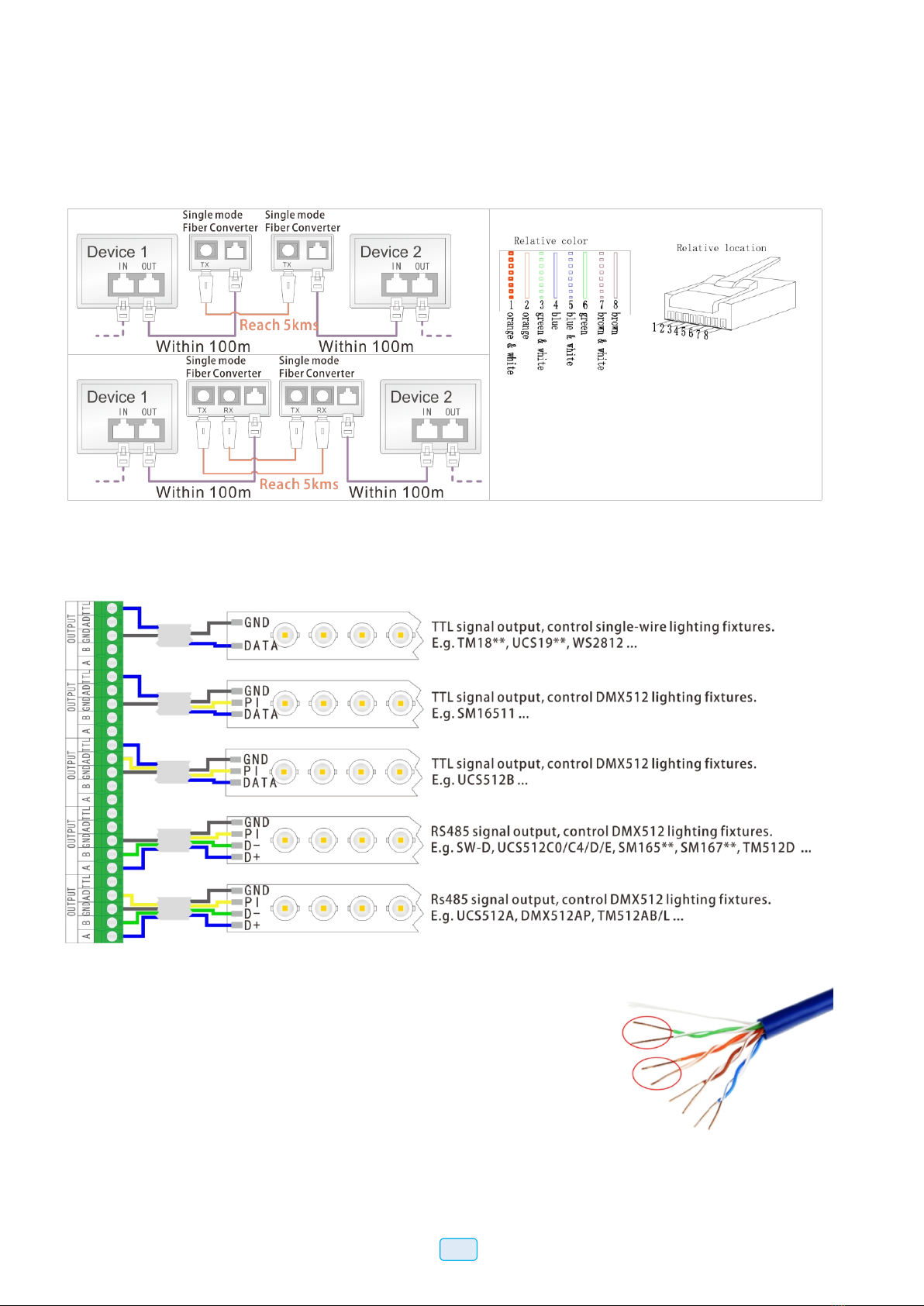

3.3. OPTICAL FIBER COMMUNICATION

Must use single mode transceivers. User can use single fiber or double fiber (alternative) according to on-site condition.

The double fiber transceiver must be connected with two optical fibers. It cannot use in EN controller when ID is 00

and the connecting position of EN controller and lighting fixture.

T568B structure

Use UTP, distance between the controllers can be 100m. It can be 5km if use the optical fiber.

3.4. CONNECT WITH LIGHTING FIXTURE

Please connect the cables in accordance with silk print on lighting fixture.

★Signal cables connection cautions:

1. Use UTP—Unshielded Twisted Pair (resistance per 100M<10Ω), low quality

Ethernet cables, telephone cables and copper wires are unavailable.

2. Use one group twisted pair, suggest green + green white or orange + orange

white. The quality and color of the cable are very important. Blue and brown

wires greatly influence the signal transmission. Please don't use several groups

of twisted pairs together.

3. Controller signal output GND must connect directly with input GND of lighting

fixture. Cannot connect with lighting fixture through power supply.

4. Switch on the controller after all hardware signal and power cables are

connected. Please don’t CONNECT / DISCONNECT the signal cables while the controller is power on;avoid back-flow

current burning circuit and components of output port.

3.5. TRANSMISSION DISTANCE

Transmission Type

Signals

Medium

Distance (M)

Remark

MP / PC → EN controller

EN controller → EN controller

100M Ethernet

UTP CAT5e

50-80

EN controller→DMX lighting

DMX lighting→DMX lighting

RS-485

UTP CAT5e

30-50

The address wire

must be within

5m.

Controllable pixels

reduce if wire is

over 5m.

Three core wire

1-20

Four core wire

1-20

EN controller→Single-wire lighting

DMX lighting→DMX lighting

TTL

UTP CAT5e

5-20

Two core wire

1-5

Three core wire

1-5

Single-wire lighting→Single-wire lighting

TTL

UTP CAT5e

1-2

Pixels controlled

less if over 1m.

Two core wire

0.1-1

4. BASIC OPERATION

4.1. MENU INTRODUCTIION

CHIP:

UCS512A

CHANNEL:

IP:

002.000.000.101

ID:

001

◄

►

ENTER

Universe Page

Port:

12345678

UNum:

11111111

Start:

End:

◄

►

ENTER

Button

Description

Function list: ID Setting, IP Setting, Configurate Addressing, Test Effect, Chip,

Channel, Baud Rate Setting, Language Setting, Restore factory Setting.

ENTER

Enter in setting interface.

Confirm and save after modification.

ID Setting

◄

Decrease value.

►

Increase value.

IP Setting

◄

Increase value.

►

Move the cursor to the right.

Configurate Addressing

ENTER

Long press, start addressing.

Test Effect

◄

Press to toggle the previous effect.

►

Press to toggle the next effect.

Chip

◄

Press to toggle the previous chip.

►

Press to toggle the next chip.

Channel

◄

Move the cursor to the left.

►

Move the cursor to the right.

Baud Rate Setting

◄

Press to toggle the previous baud rate.

►

Press to toggle the next baud rate.

语言设置

◄

Move the cursor to the left.

►

Move the cursor to the right.

Restore Factory Setting

◄

Move the cursor to the left.

►

Move the cursor to the right.

4.2. PARAMETERS SETTINGS

4.2.1. STARTING UP DISPLAY

1. PC connects with controller by network cable, switch on the power. Controller screen will display “Network INIT...”.

After few seconds, it becomes “Network INIT OK” and jump to the page of IP address information. In this case, the

network of the controller is accessible.

Network INIT ...

Network INIT OK

SWnet-8

IP:

002.000.000.101

GW:

002.000.000.001

Controller_ID:

001

2. When the network of the controller is unavailable, the controller will show “Network INIT Fail Check the cable?” after

the power switches on for a while. In this case, press “MENU” button to enter different options and conduct the

setting.

Network INIT ...

Network INIT Fail

Check the cable?

4.2.2. ID SETTINGS

1. Press “MENU” button and select ID Setting, press “ENTER” button to enter it and set the ID.

ID Settings

Controller_ID

2. Press“►” and “◄” button to decrease/increase the value.

Controller_ID

Note: Please don't open the LED Player when you are setting ID, and restart the controller to confirm the address after the setting is

completed.

3. Press “ENTER” button to save ID if it is confirmed.

Controller_ID

4.2.3. IP SETTINGS (ONLY FOR MADRIX SOFTWARE)

1. Press “MENU” button and select IP Setting, press “ENTER” button to enter it and set the IP.

IP Settings

IP Address Setting

002.000.000.101

2. Press“►” and “◄” button to decrease/increase the value.

IP Address Setting

002.000.000.102

Note: All controller must be set different IP. In the meantime, Set the first controller to 101, set the second to 102, the third is 103, and so

on. The IP segment of the controller should correspond to computer. If the IP of the controller is 192.168.1.101, and computer can be

set to 192.168.1.98.

3. Press “ENTER” button to save IP if it is confirmed.

4.2.4. CONFIGURE ADDRESSING

1. Press “MENU” button and select Configurate Addressing, long press “ENTER” button to start addressing.

Configurate

Addressing

Addressing...

Configurate

Addressing

2. When the interface returns "Configurate Addressing", the address operation is completed.

Note, the feature requires LED Player to send address parameters to the controller by the addressing function.

Whether the light-fixture amp is successfully addressed actually depends on the display color of the light-fixture,

refer to "UCCESSFULLY ADDRESSED AND SET PARAMETERS".

The controller without signal can also use this function by press “MENU”.

4.2.5. TEST EFFECT

1. Press “MENU” button and select Test Effect, press “ENTER” button to start playing the test effects.

Test Effect

Red

2. Press“►” and “◄” button to toggle the next effect. Support: Red, Green, Blue, White(RGB), White(W), Color Hopping,

Pixel Pile-up, Single Port Pile-up, Port Check.

Green

Note, The chips and channels should be set first.

The controller without signal can also use this function by press “MENU”.

4.2.6. CHIP SETTINGS (FOR TEST FUNCTION AND MADRIX SOFTWARE)

1. Press “MENU” button and select Chip, press “ENTER” button to set the chip.

Chip

UCS512A

TM1804

TM1914

TM1814

UCS1903N

UCS2904B

SM16703P

GS8206

2. Press“►” and “◄” button to toggle the chip. The chips can be set via our Art-net tool software. The maximum

number of chips is 32. Default: UCS512A, TM1804, TM1914, TM1814, UCS1903N, UCS2904B, SM16703P, GS8206,

LX1003, P9883.

UCS512A

TM1804

TM1914

TM1814

UCS1903N

UCS2904B

SM16703P

GS8206

3. Press “ENTER” button to save chip if it is confirmed. The corresponding chip can be viewed on the first line of the

main interface.

CHIP:

TM1804

CHANNEL:

IP:

002.000.000.101

ID:

001

4.2.7. CHANNEL OF CHIP (FOR TEST FUNCTION AND MADRIX SOFTWARE)

1. Press “MENU” button and select Channel, press “ENTER” button to set the channel of chip.

Channel

3 Channels

4 Channels

2. Press“►” and “◄” button to toggle the channel. The text flashed is selected or editable.

3 Channels

4 Channels

3. Press “ENTER” button to save channel if it is confirmed.

CHIP:

UCS512A

CHANNEL:

IP:

002.000.000.101

ID:

001

4.2.8. BAUD RATE SETTINGS (FOR TEST FUNCTION AND MADRIX SOFTWARE)

1. Press “MENU” button and select Baud Rate Setting, press “ENTER” button to set the baud rate.

Baud Rate Setting

250K

500K

2. Press“►” and “◄” button to toggle the baud rate. The text flashed is selected or editable.

DMX512 lighting fixture supports 250k and 500k, and TTL lighting fixture supports 650k, 700k, 800k.

250K

500K

3. Press “ENTER” button to save baud rate if it is confirmed.

4.2.9. LANGUAGE SETTINGS

1. Press “MENU” button and select Language Setting; press “ENTER” button to enter it. Set the display language of the

controller.

Language Setting

中文

English

2. Flickering content is the one can be modified (cursor location). Press “◄” and “►” buttons to move the cursor to the

left and right.

中文

English

3. Press “ENTER” button to confirm the language selected, then it returns to the page of parameters.

The language selected can be seen on the bottom right corner: CH is Chinese and EN is English.

CHIP:

UCS512A

CHANNEL:

IP:

002.000.000.101

ID:

001

4.2.10.RESTORE FACTORY SETTING

1. Press “MENU” button and select Restore Factory Setting; press “ENTER” button to enter it.

Restore

Factory Setting

Restore:

YES

2. Flickering content is the one can be modified (cursor location). Press “◄” and “►” buttons to move the cursor to the

left and right.

Restore:

YES

3. Press “ENTER” button to save modification if it is confirmed, then it returns to the page of parameters and all

parameters become factory defaults.

CHIP:

UCS512A

CHANNEL:

IP:

002.000.000.101

ID:

001

Note, parameters restored to factory state include: Chip, Channel, IP address, ID, chip list, baud rate and language.

5. IP ADDRESS SETTINGS (PC)

1. Open “Network Connection” on the PC, right click “Local Connection” and select “Properties”.

2. Select Internet Protocol (TCP/IP), then click “Properties”. Set the IP address as below.

3. Click “OK” after the setting is finished.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels World Uniqueen Contrôleurs

World Uniqueen

World Uniqueen EN-408 Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
