WorkPro Light Mouse Series Manuel utilisateur

2 / 21

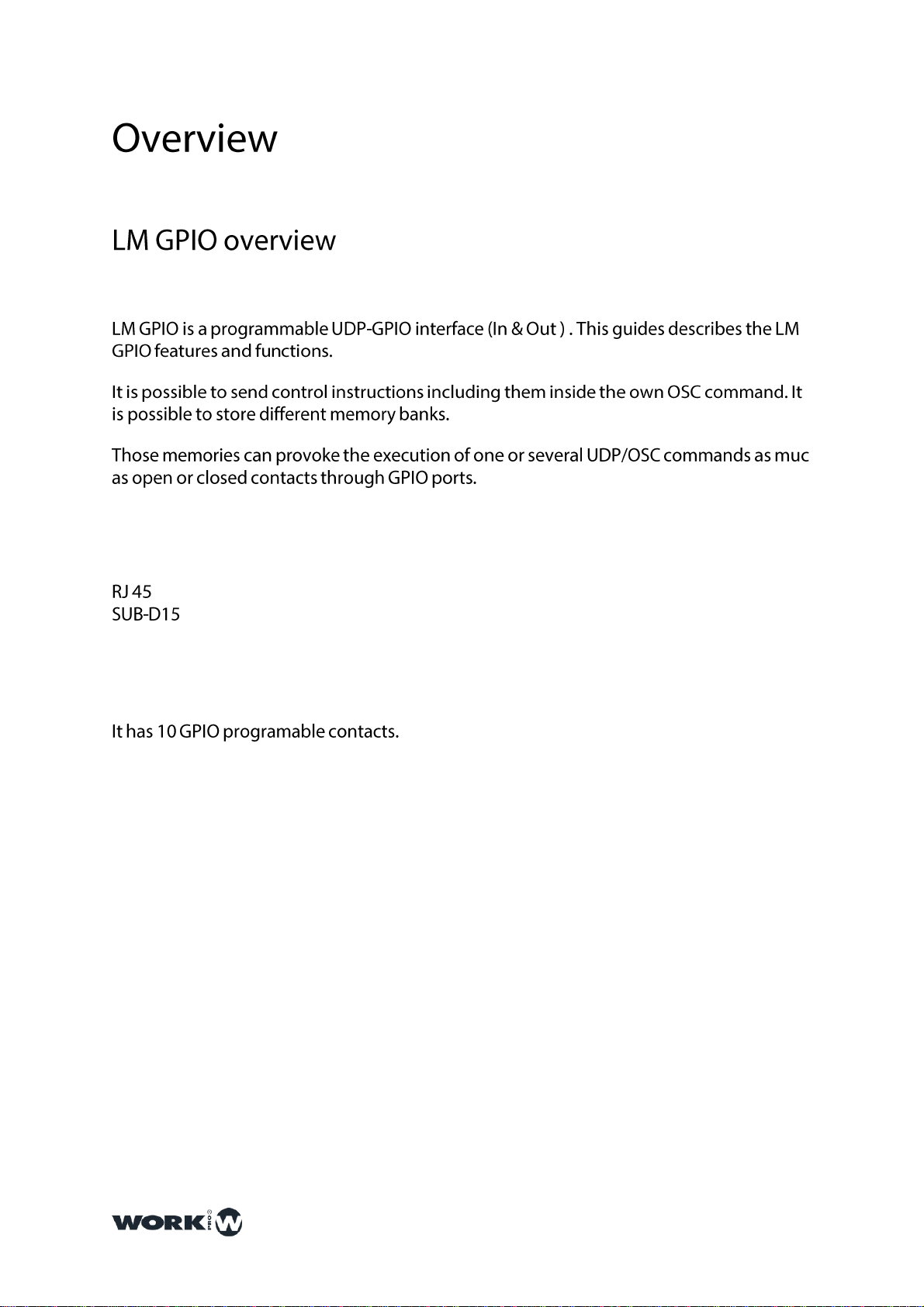

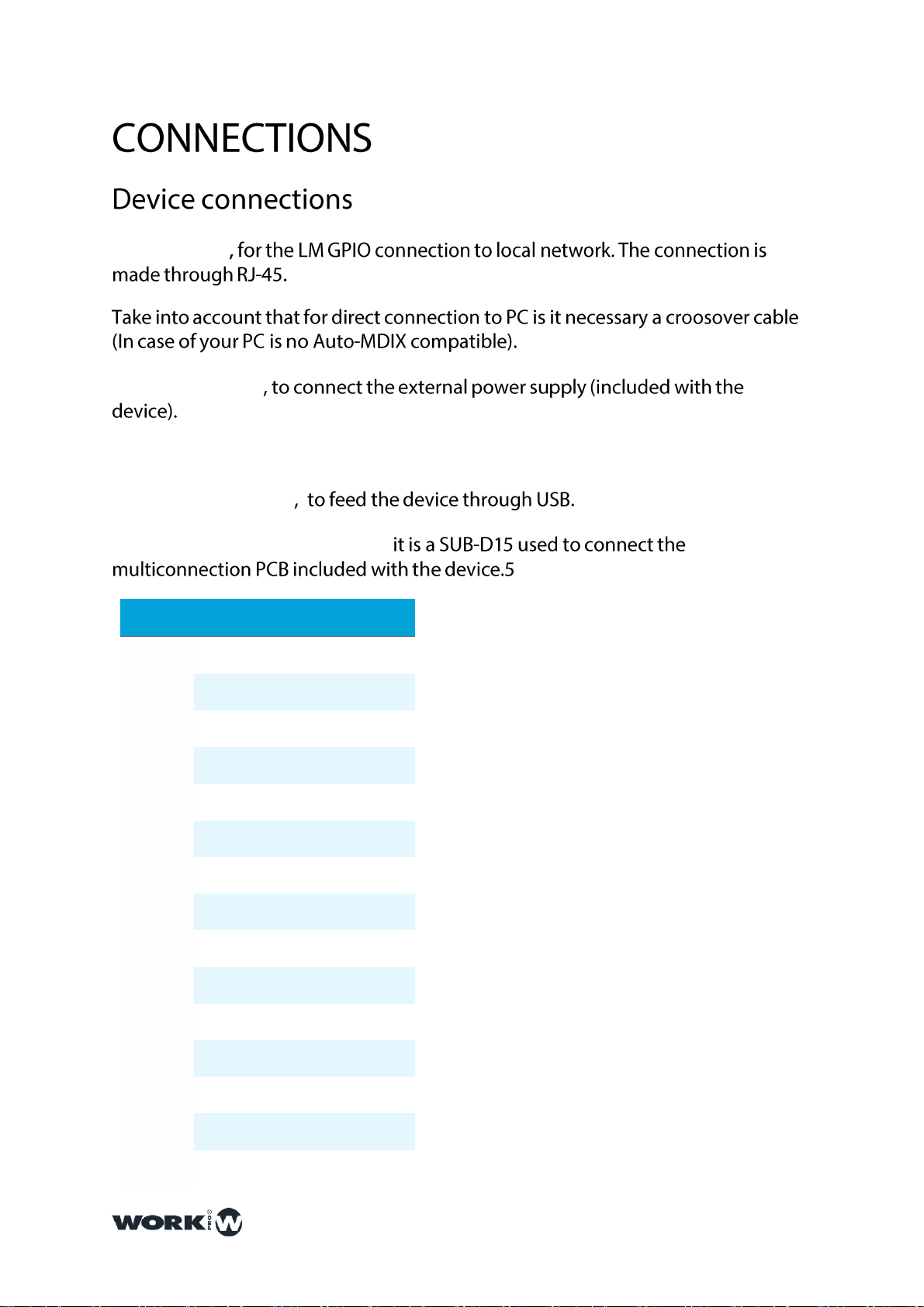

Ports:

Contacts:

3 / 21

Ethernet port

Main supply port

Supply optional port

Multifunction connection port,

Contact

GPIO 1

GPIO 2

GND

GPIO 3

GPIO 4

GND

GPIO 5

GPIO 6

GPIO 7

GPIO 8

GND

GPIO 9

GPIO 10

A 1

A 2

4 / 21

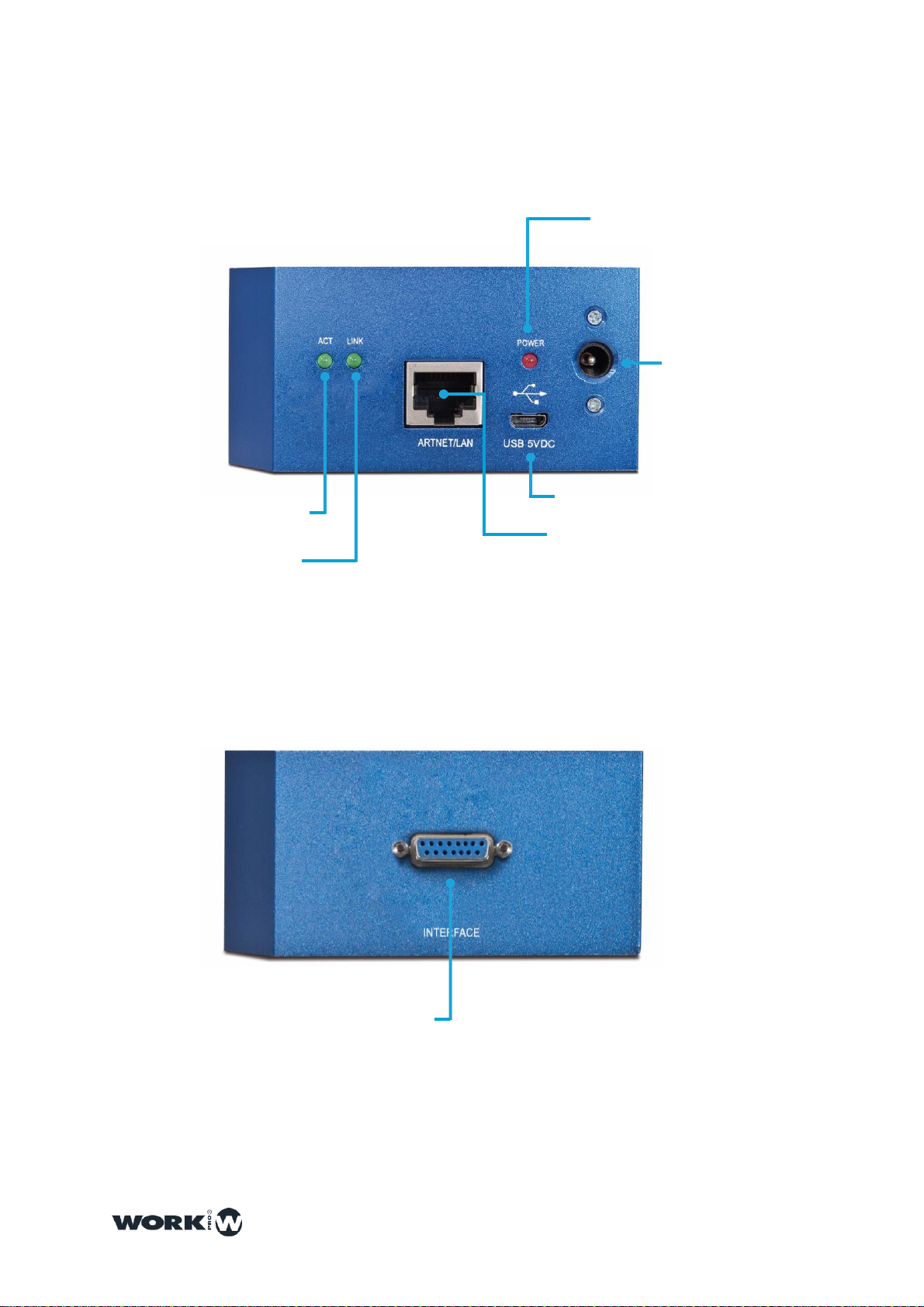

Activity LED indicator

Connection LED indicator

Ethernet port

Main supply port

Option supply port

Power LED indicator

Multifunction connection

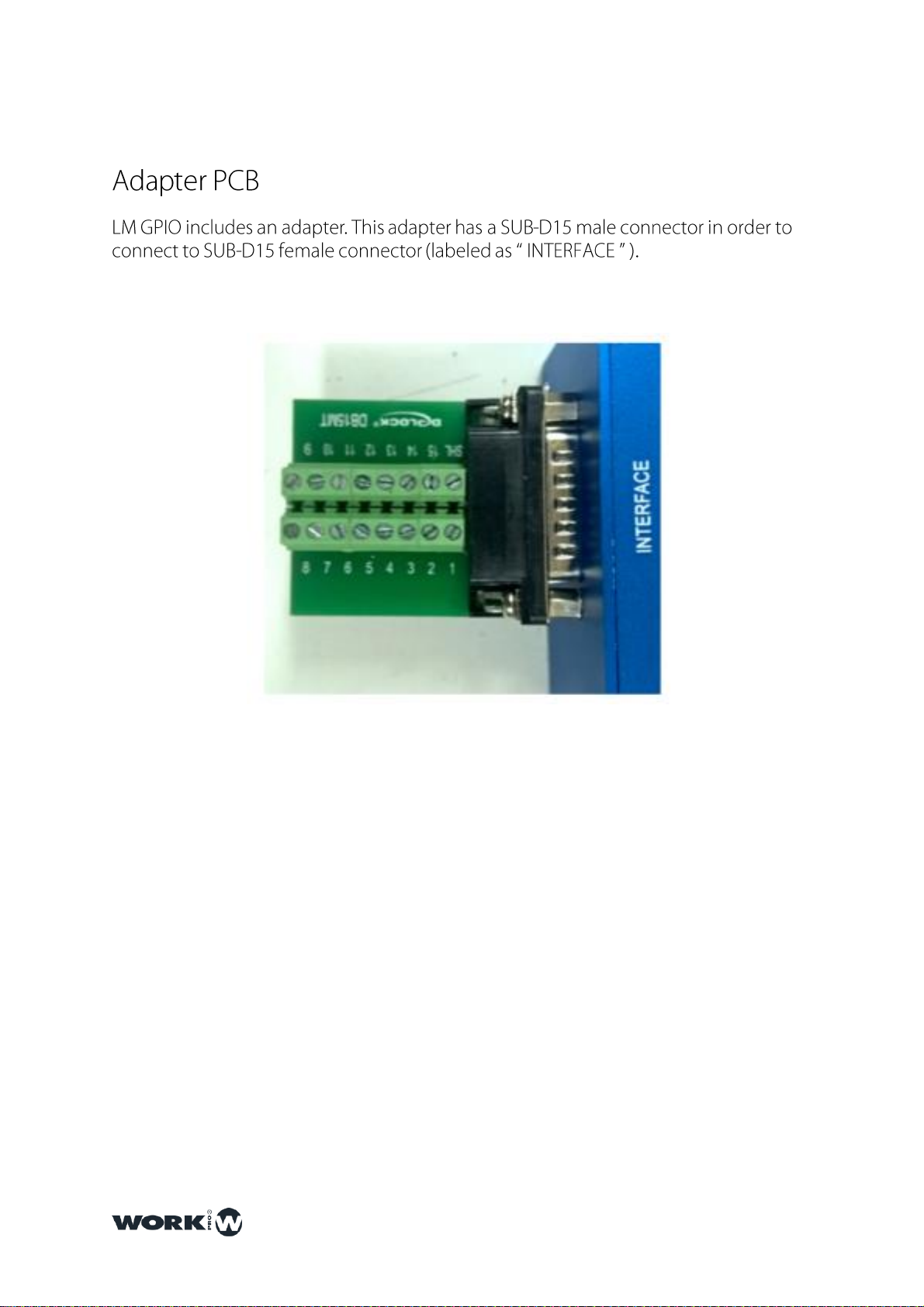

5 / 21

6 / 21

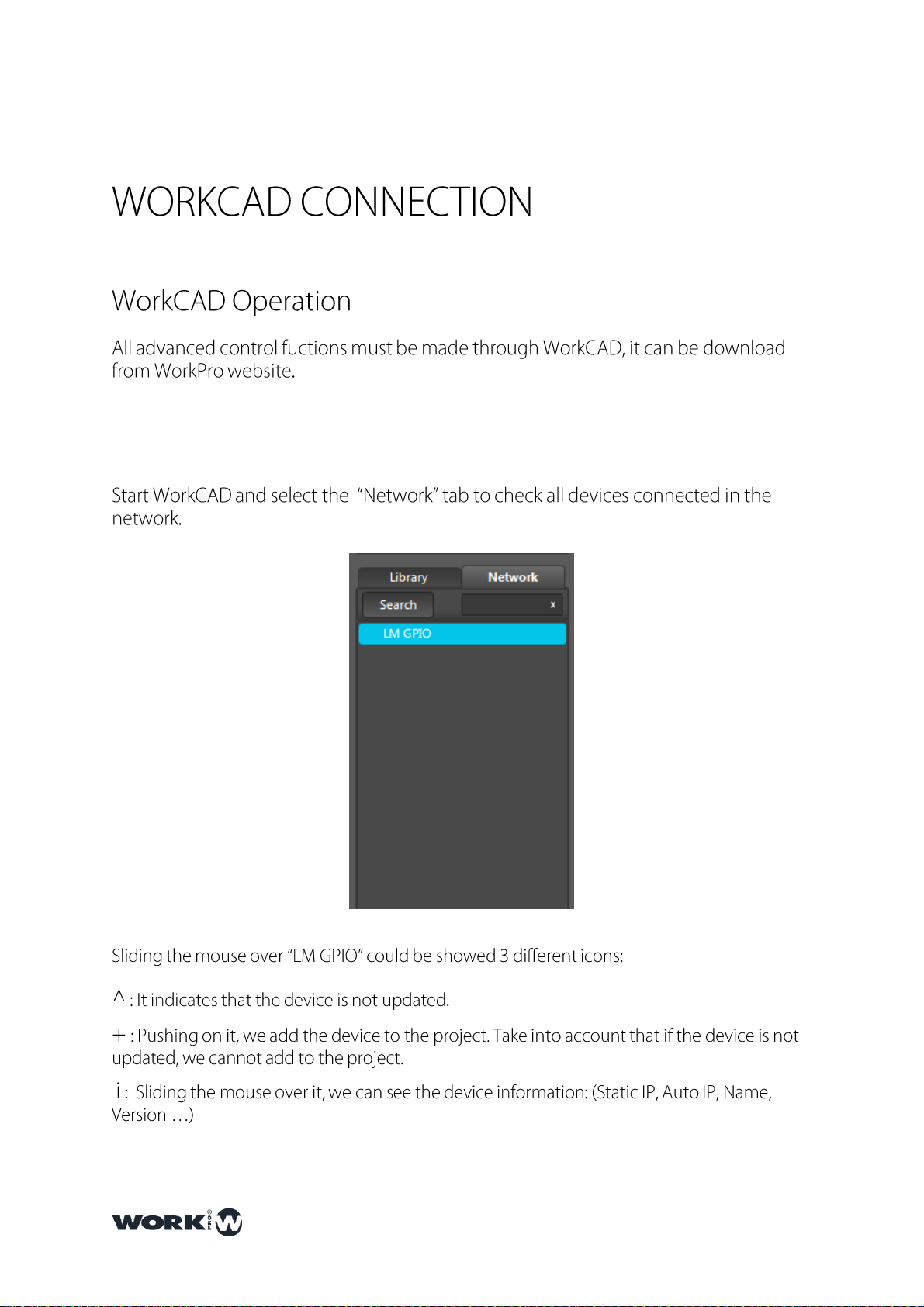

LM GPIO detection in WorkCAD

7 / 21

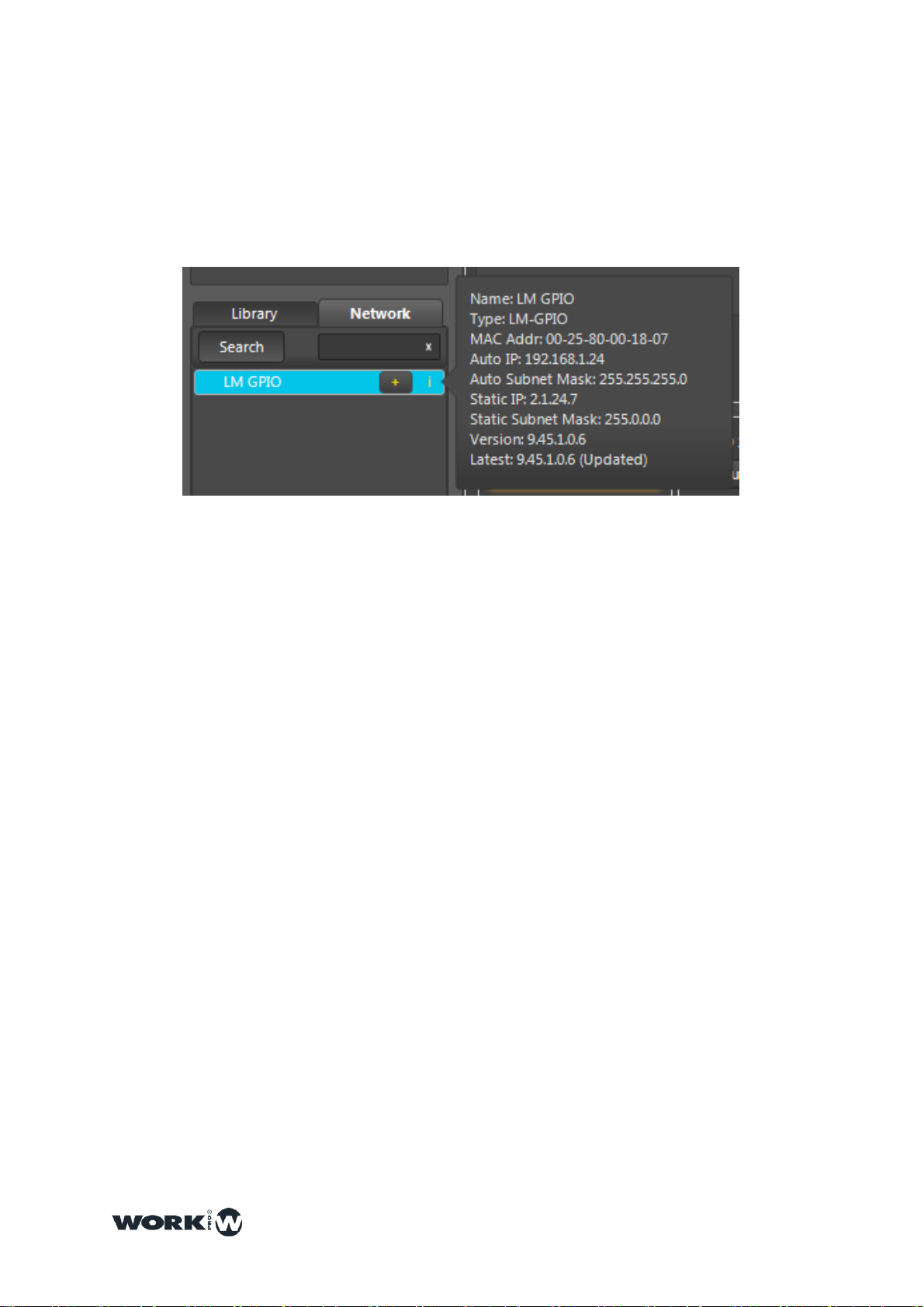

Getting information about LM GPIO in WorkCAD

To get information about any device, place the mouse pointer over “i” icon of each device

Updating the LM GPIO in WorkCAD

Before to install the LM devices is recommended to update all of them to a recent

software version, they include bugs corrections and new functionalities. The steps for

device updating are the following:

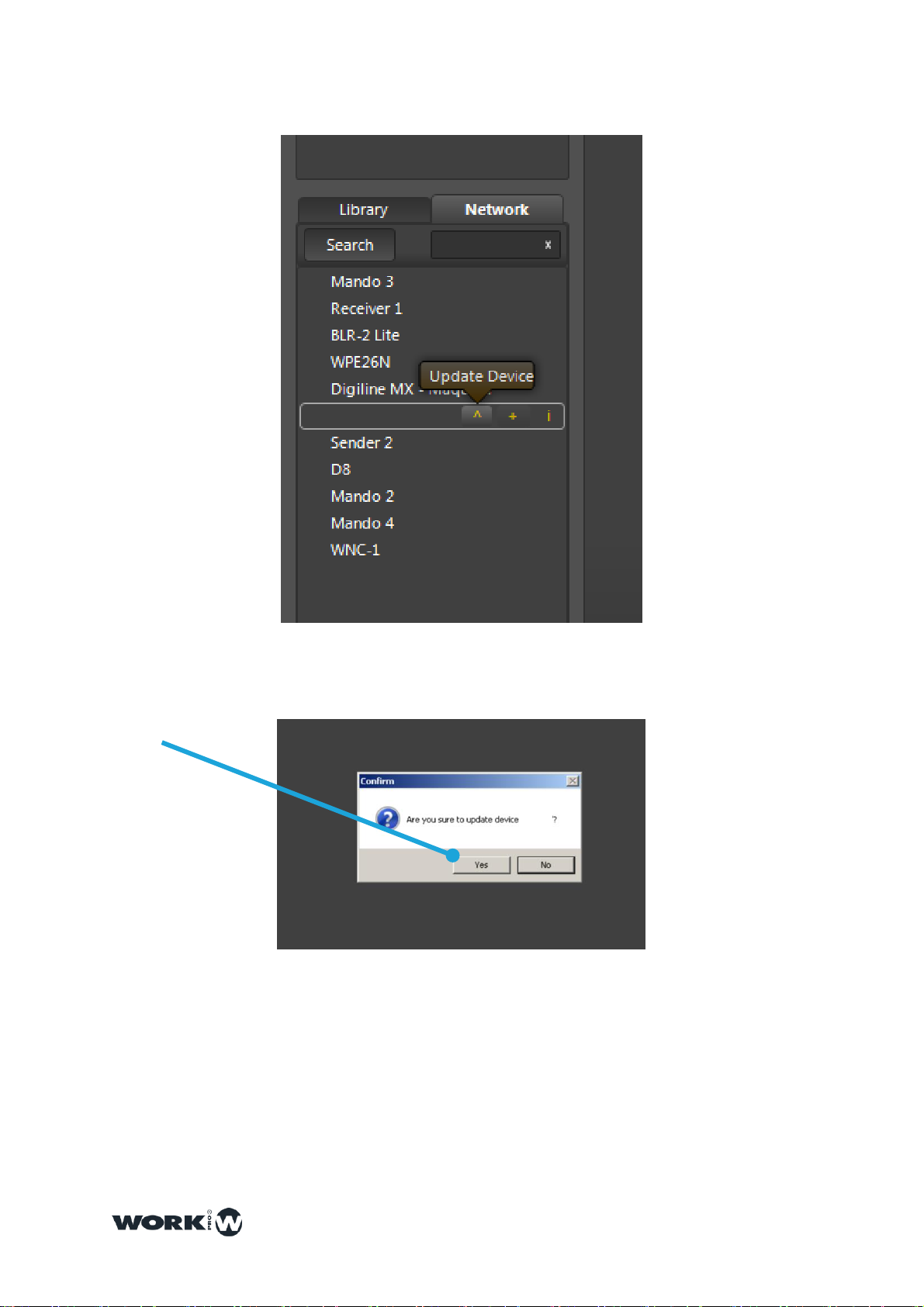

1.Start WorkCAD and press“Network” tab, there you can find all LM family devices

available in the network.

2. Sliding the mouse pointer over the name of the device, you can see different icons, if it

appear the ^icon, it means we need to update the device.

8 / 21

3. Click on ^ icon ( in case of it is showed ) to update the device.

If an error mistake appears pressing “Yes”, please, check the IP range in the PC with

WorkCAD, it must be the same as the LM device.

GPIO

LM GPIO

9 / 21

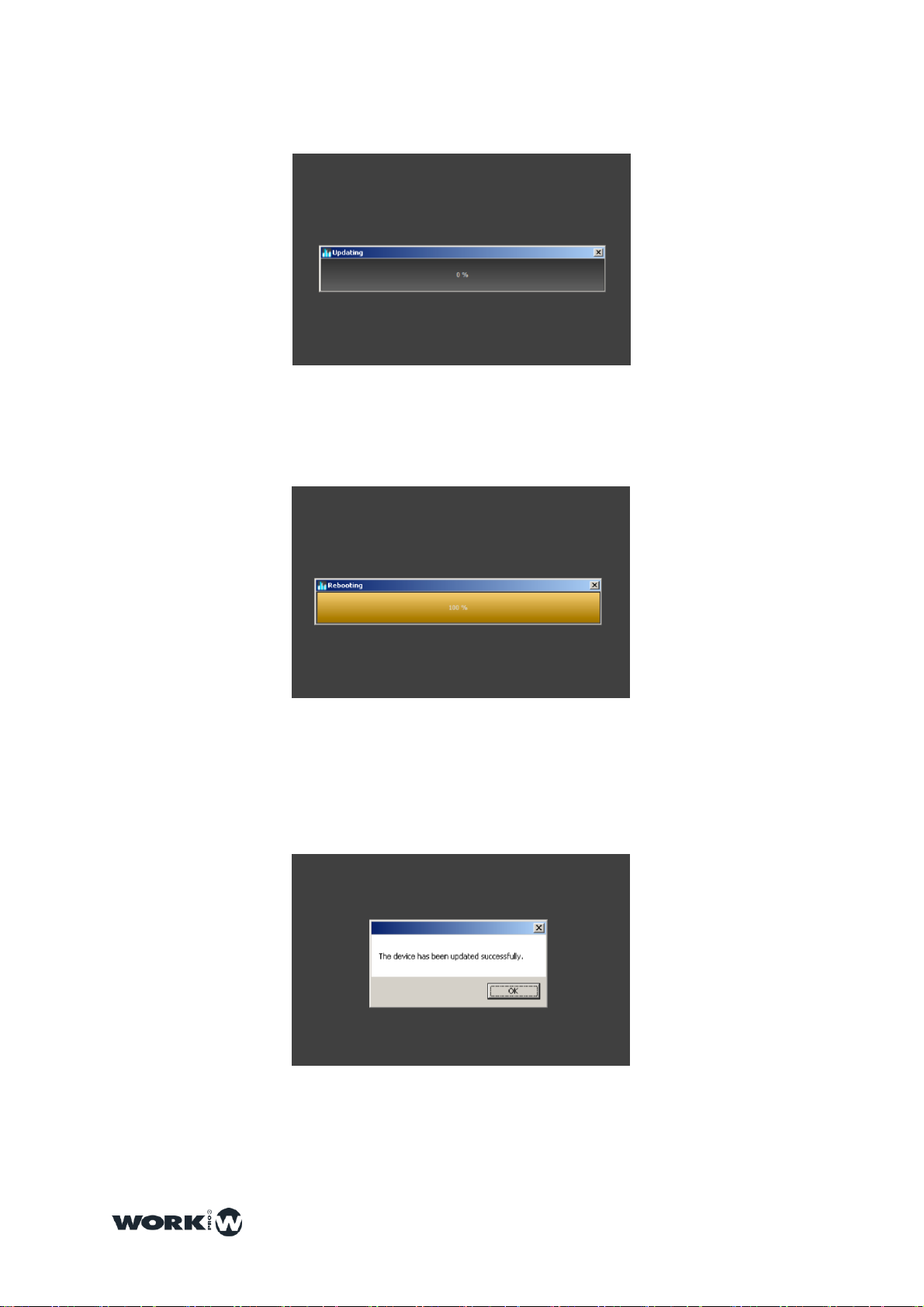

4.Click on “YES” and the updating process will start.

5.During the updating process the progress bar will stop some seconds during the

auto-reset, please, keep some seconds and do not disconnect the device until the

process finishes

6.Once finished the updating process, WorkCAD will show a window indicating that

the process must be finished successfully.

10 / 21

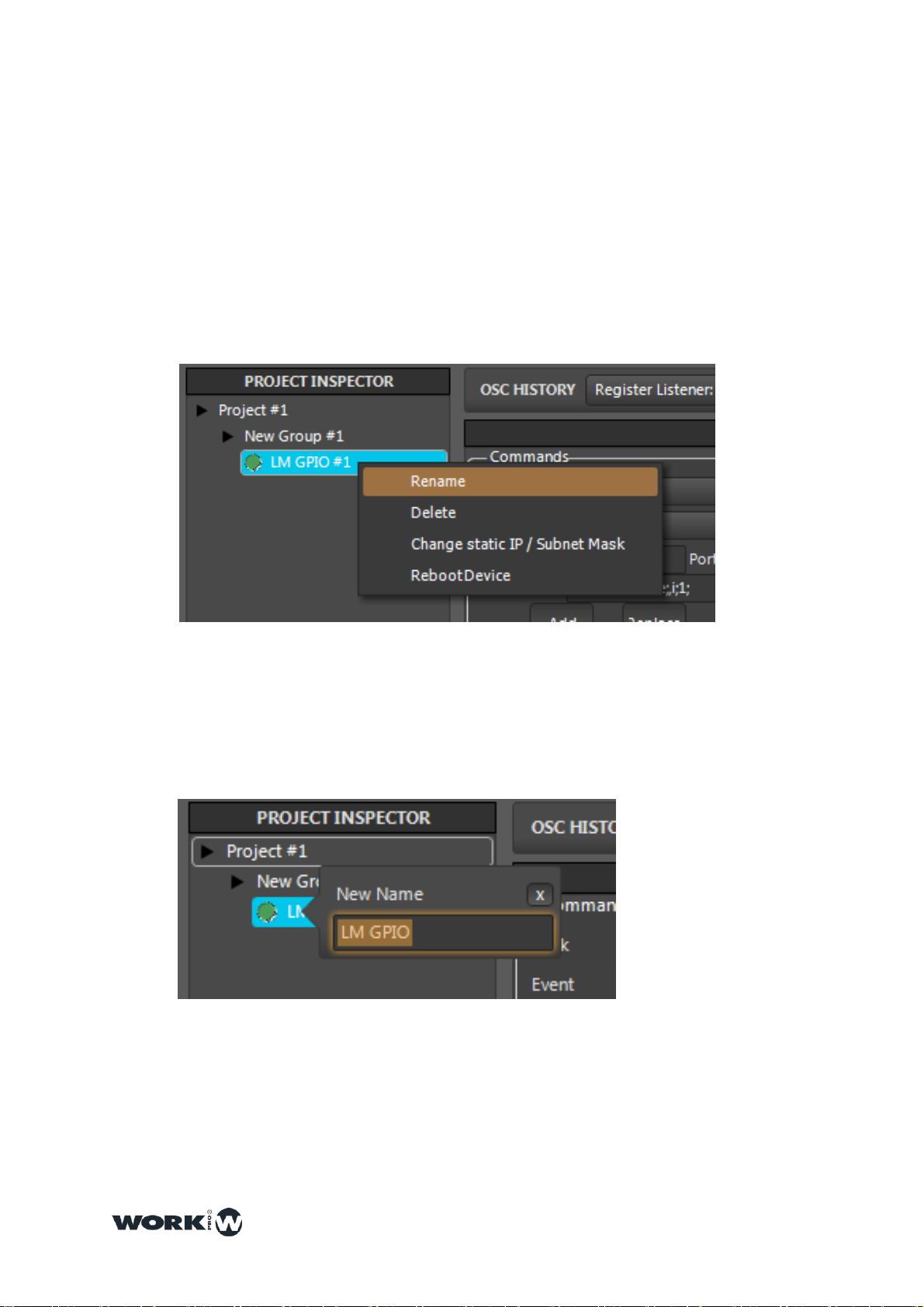

Changing the LM GPIO name in WorkCAD

1-In order to change the name of the device, it is necessary to add it to a project,

therefore, press “+” icon in a device will be showed in “Network” tab. The device will

be inside “Project inspector” (Upper/left side).

2-Over the device name, press “left click” and a dropdown menu will be showed,

then, select “Rename” option.

3-Assign a new name.

Ones modified the name and IP address, it is advisable to reset the device in order

to store the data correctly.
