English

Indicator light

Screws

Screw hole

Double-sided

mounting tape.

Reset

Battery compartment

A x 2 B x 2

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 1 2020/6/29 10:14:16

English

Introduction

The smart PIR motion sensor detects movement

and send real-alert notication to smartphone.

Requirement to use

1. Tuya smart app

2. Tuya zigbee gateway (not included)

Installation

1. Pull the insulation sheet from battery

compartment of the PIR motion sensor.

2. Set up the PIR motion sensor with Tuya smart

app.

3. Make sure the PIR motion sensor is in the

range of Zigbee gateway's signal.

4. It is recommended to install the PIR motion

sensor at 2.2m height. It's detection angle is

110°, detection distance is up to 6 meters.

5. Attach the PIR motion sensor to wall with

provided screws (Machining 4 mm screw hole

with screw driver on PIR motion sensor and

6 mm hole in the wall, and insert expansion

sleeves into the wall) or double-sided

mounting tape.

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 2 2020/6/29 10:14:16

English

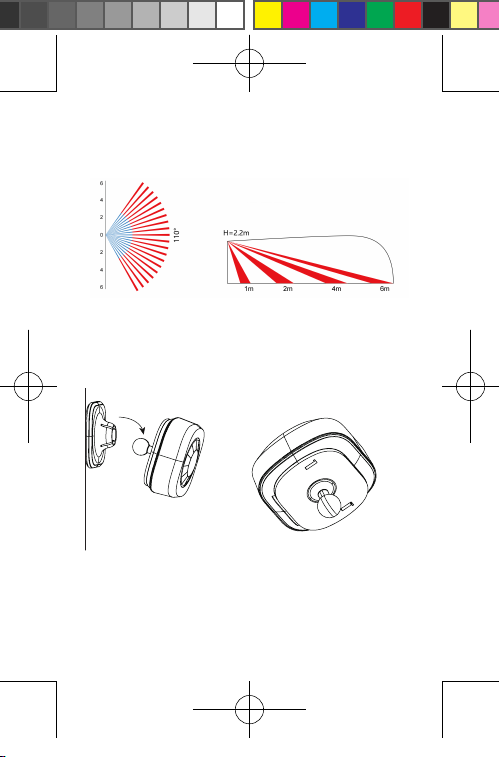

Top view Side view

Replace battery

Take the PIR motion sensor o from bracket base

rst, then replace the battery.

Take PIR motion sensor o from bracket.

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 3 2020/6/29 10:14:17

English

Remove battery compartment

Set up the PIR motion sensor with

Tuya smart app

1. Download and install the app "Tuya smart"

from Apple App Store or Google Play Store on

your mobile device.

2. Launch the app "Tuya smart".

3. Create a new account or log in to your existing

account.

4. Tap“+” to add the device.

5. Select the applicable product type from the list

of products.

6. Select a Zigbee Gateway.

7. Ensure the indicator light is quick flashing.

If the indicator light isn't flashing: press and

hold the reset button for 5 seconds until the

indicator light starts to quick ashing.

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 4 2020/6/29 10:14:17

English

8. Press conrm button in the Tuya smart app.

9. The app will now search for the device and

10. Enter the device name.

Specification

Battery: CR2450 x 1 (included)

Dimension: 57x57x52mm

Detection angle: 110°

Wireless connection: Zigbee 3.0

Connection distance: indoor 10-30m

Frequency: 2.4-2.483GHz

Working temperature: -10℃- 50℃

Working humidity: 0-95%RH, no condensation

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 5 2020/6/29 10:14:17

Caution:



ThisdevicecomplieswithPart15oftheFCCrulesandIndustryCanadalicense‐exemptRSS

standard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcause

harmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation.



ThemanufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized

modificationsorchangetothisequipment.Suchmodificationsorchangecouldvoidtheuser’s

authoritytooperatetheequipment.

Thisradiotransmitter(identifythedevicebycertificationnumberormodelnumberifCategoryII)

hasbeenapprovedbyIndustryCanadatooperatewiththeantennatypeslistedbelowwiththe

maximumpermissiblegainindicated.Antennatypesnotincludedinthislist,havingagaingreater

thanthemaximumgainindicatedforthattype,arestrictlyprohibitedforusewiththisdevice.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.



TomaintaincompliancewithFCC’sRFexposureguidelines,thisequipmentshouldbe

installedandoperatedwithaminimumdistanceof20cmbetweentheradiatorandyour

body.


