WolfPack 2x4VW Manuel utilisateur

Version: V22.01

User Manual

WolfPack 2-Input & 4-Output Video Wall Controller

with TV Rotation

SKU: 2x4VW

Contents

1. Introduction.................................................................................................................................... 4

2. Features...........................................................................................................................................4

3. Specification....................................................................................................................................4

4. Packing............................................................................................................................................ 4

5. Panels.............................................................................................................................................. 4

5.1 Front Panel............................................................................................................................ 4

5.2 Back Panel..............................................................................................................................4

6. Operation diagram..........................................................................................................................4

6.1 Connection diagram.............................................................................................................. 5

7. After sales .............................................................................................................................8

1. Introduction

2. Features

Supports 2 inputs, resolution up to 4K60

Outputs support image 90, 180 and 270 degrees rotation

Supports 4 HDMI with 1080P60 resolution outputs

Supports multiple splicing ways: 2x2, 1x4, 4x1, 1x3 ...

Supports the splicing edge adjustment

Supports HDMI 2.0, HDCP compatible

Supports the IR remote, push-button control and RS232 commands

3. Specification

Product name

Control

Input

1* HDMI, 1*DP

Output

4*HDMI, 1*3.5mm audio

Resolution

Input:

1920X1080,1920X2160,1920X3240,1920X4320,3840X1080,3840X2160,5760X1080,

7680X1080

Output: 1080P60Hz

Display splice mode

2x2, 1x4, 4x1, etc...

Power Supply

DC 12V3A

Power Consumption

10W

Dimension (WxHxD)

223*104*27mm

Weight

2.5KG/ 5.5lbs

This WolfPack 2-Input & 4-Output Video Wall Controller with TV Rotation is

designed to be atruly capture, AD convert, route, distribute all-format signal to

the video wall(LCD displays), while maintaining atrue digital signal. The controller with many

different video interfaces, include 2inputs(HDMI+DP) with up to 4K60 resolution and 4HDMI outputs

with 1080P resolution and 3.5mm audio output. Supports different Video Wall modes, 1x2, 1x3, 1x4,

2x2 etc, with the 4K input and 1080P output, it can realize the point to point(pixel to pixel) display.

This controller can be controlled by remote control, front buttons and RS232 commands. .

WolfPack 2-Input & 4-Output Video Wall Controller with TV Rotation

Front buttons, remote control, RS232 commands

4. Packing

TV Wall Controller

Unit

Power adapter

Pcs

Remote control

Pcs

Mount ears

Pair

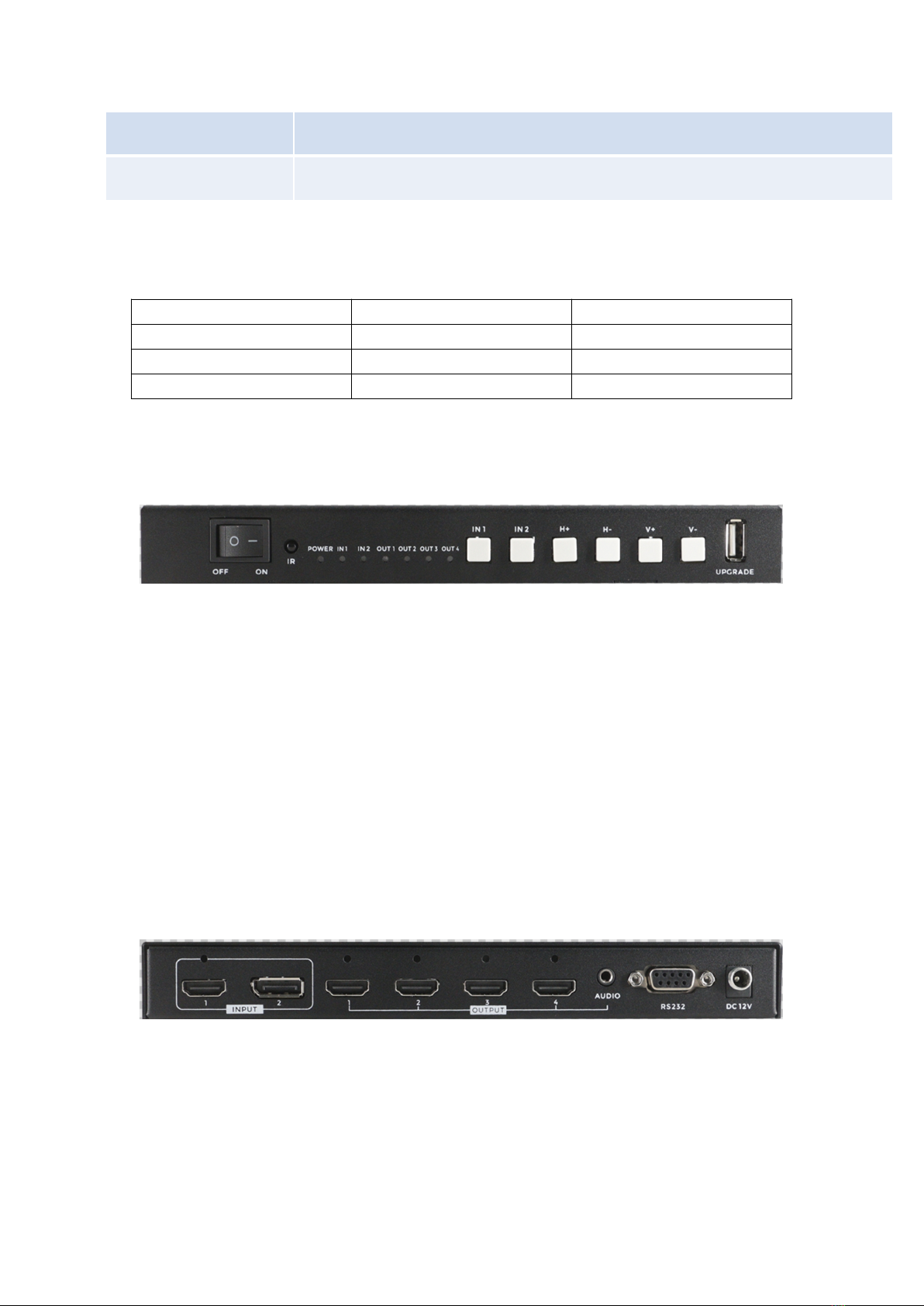

5. Panels

5.1 Front Panel

OFF/ON: power switch

IR: for the IR remote control

POWER: power switch

IN1: The HDMI input indicator

IN2: The DP input indicator

OUT1~4: The 4 HDMI outputs indicators

IN1: For selecting the HDMI input

IN2: For selecting the DP input

H+: For the horizontal bezel increase

H-: For the horizontal bezel decrease

V+: For the vertical bezel increase

V-: For the vertical bezel decrease

UPGRADE: for the firmware upgrading

5.2 Back Panel

INPUT: 1 HDMI input, 2 DP (only one to output at time)

OUTPUT: 4 HDMI outputs to connect to displays

AUDIO OUT: for the audio de-embedded

RS232: female DB9 port for commands control

DC 12V: power supply

Operating Temperature

-10℃to 50℃

Storage Temperature

-25℃to 55℃

6. Diagram and control operations

6.1 Connection diagram

6.2 IR remote control

* The other gray buttons on this remote control is for the HDMI multiviewer

IN1, IN2: when 2 inputs connected, users can press the IN1 for HDMI or IN2 for DP to

output

RESET: Press to reset when want to reset the bezel correction, output ports flip/rotating.

SPLICING MODES: quick setup buttons for users to set the video wall

ROT1: For HDMI output 1 flipping, need to press reset button when want the normal display.

ROT2: For HDMI output 2 flipping, need to press reset button when want the normal display.

ROT3: For HDMI output 3 flipping, need to press reset button when want the normal display.

ROT4: For HDMI output 4 flipping, need to press reset button when want the normal display.

BEZEL H+, H-:For the video wall horizontal bezel corrections(Reset button to back or 100 hits)

BEZEL V+, V-: For the video wall vertical bezel corrections(Reset button to back or 100 hits)

6.3 RS232 commands control

Factory default: EB 90 00 12 00 ff 21 00 00 00 00 00 00 00 00 00 00 00

Output standard resolution:

EB 90 00 12 00 ff 23 00 00 00 00 00 00 00 00 00 00 00 //1920x1080@60

EB 90 00 12 00 ff 23 14 00 00 00 00 00 00 00 00 00 00 //1920x1080@30

EB 90 00 12 00 ff 23 02 00 00 00 00 00 00 00 00 00 00 //1920x1200@60

Customize output resolution: H<=2048, V<=2048, Hz<=170M

EB 90 00 12 00 ff 23 FF 00 00 00 00 00 00 00 00 00 00

Red for H, blue for V, Orange for Hz

Eg1.: 1920X1080@60

EB 90 00 12 00 ff 23 FF 07 80 04 38 3C 00 00 00 00 00 //1920x1080@60

Eg 2: 2000 X 1000@60

EB 90 00 12 00 ff 23 FF 07 D0 03 E8 3C 00 00 00 00 00 //2000x1000@60

Recall Presets:

EB 90 00 12 00 ff 2E 00 00 00 00 00 00 00 00 00 00 00// Recall Preset 1

EB 90 00 12 00 ff 2E 01 00 00 00 00 00 00 00 00 00 00// Recall Preset 2

EB 90 00 12 00 ff 2E 02 00 00 00 00 00 00 00 00 00 00// Recall Preset 3

EB 90 00 12 00 ff 2E 03 00 00 00 00 00 00 00 00 00 00// Recall Preset 4

EB 90 00 12 00 ff 2E 04 00 00 00 00 00 00 00 00 00 00// Recall Preset 5

EB 90 00 12 00 ff 2E 05 00 00 00 00 00 00 00 00 00 00// Recall Preset 6

EB 90 00 12 00 ff 2E 06 00 00 00 00 00 00 00 00 00 00// Recall Preset 7

EB 90 00 12 00 ff 2E 07 00 00 00 00 00 00 00 00 00 00// Recall Preset 8

EB 90 00 12 00 ff 2E 08 00 00 00 00 00 00 00 00 00 00// Recall Preset 9

EB 90 00 12 00 ff 2E 09 00 00 00 00 00 00 00 00 00 00// Recall Preset 10

Save Presets:

EB 90 00 12 00 ff 2F 00 00 00 00 00 00 00 00 00 00 00// Save Preset 1

EB 90 00 12 00 ff 2F 01 00 00 00 00 00 00 00 00 00 00// Save Preset 2

EB 90 00 12 00 ff 2F 02 00 00 00 00 00 00 00 00 00 00// Save Preset 3

EB 90 00 12 00 ff 2F 03 00 00 00 00 00 00 00 00 00 00// Save Preset 4

EB 90 00 12 00 ff 2F 04 00 00 00 00 00 00 00 00 00 00// Save Preset 5

EB 90 00 12 00 ff 2F 05 00 00 00 00 00 00 00 00 00 00// Save Preset 6

EB 90 00 12 00 ff 2F 06 00 00 00 00 00 00 00 00 00 00// Save Preset 7

EB 90 00 12 00 ff 2F 07 00 00 00 00 00 00 00 00 00 00// Save Preset 8

EB 90 00 12 00 ff 2F 08 00 00 00 00 00 00 00 00 00 00// Save Preset 9

EB 90 00 12 00 ff 2F 09 00 00 00 00 00 00 00 00 00 00// Save Preset 10

TV Wall Working modes:

EB 90 00 12 00 ff 32 00 00 00 00 00 00 00 00 00 00 00// Mode1 1x1

EB 90 00 12 00 ff 32 01 00 00 00 00 00 00 00 00 00 00// Mode2 1x2

EB 90 00 12 00 ff 32 02 00 00 00 00 00 00 00 00 00 00// Mode 3 2x1

EB 90 00 12 00 ff 32 03 00 00 00 00 00 00 00 00 00 00// Mode 4 1x3

EB 90 00 12 00 ff 32 04 00 00 00 00 00 00 00 00 00 00// Mode5 3x1

EB 90 00 12 00 ff 32 05 00 00 00 00 00 00 00 00 00 00// Mode 6 1x4

EB 90 00 12 00 ff 32 06 00 00 00 00 00 00 00 00 00 00// Mode 7 4x1

EB 90 00 12 00 ff 32 07 00 00 00 00 00 00 00 00 00 00// Mode8 2x2

Input Standard EDID setting:

EB 90 00 12 00 ff 26 00 00 00 00 00 00 00 00 00 00 00 // Both inputs to 1080P60

EB 90 00 12 00 ff 26 00 00 01 01 00 00 00 00 00 00 00 // Both inputs to 4k30

EB 90 00 12 00 ff 26 00 00 02 02 00 00 00 00 00 00 00 // Both inputs to 4k60

Input Customize EDID setting:

EB 90 00 12 00 ff 24 02 04 38 05 EC 3C 00 00 00 00 00// HDMI switch to 1080x1516x60

EB 90 00 12 00 ff 24 03 04 38 05 EC 3C 00 00 00 00 00// DP switch to 1080x1516x60

Inputs switching

EB 90 00 12 00 ff 31 02 00 00 00 00 00 00 00 00 00 00 // Switch to input 1 HDMI

EB 90 00 12 00 ff 31 03 00 00 00 00 00 00 00 00 00 00 // Switch to input 2 DP

Image freeze and unfreeze

EB 90 00 12 00 ff 2A 00 00 00 00 00 00 00 00 00 00 00 // unfreeze

EB 90 00 12 00 ff 2A 01 00 00 00 00 00 00 00 00 00 00 // freeze

Outputs rotation:

EB 90 00 12 00 ff 34 00 00 00 00 00 00 00 00 00 00 00 //OUT1 ROT 0

EB 90 00 12 00 ff 34 00 01 00 00 00 00 00 00 00 00 00 //OUT1 ROT 90

EB 90 00 12 00 ff 34 00 05 00 00 00 00 00 00 00 00 00 //OUT1 ROT 180

EB 90 00 12 00 ff 34 00 02 00 00 00 00 00 00 00 00 00 //OUT1 ROT 270

EB 90 00 12 00 ff 34 01 00 00 00 00 00 00 00 00 00 00 //OUT2 ROT 0

EB 90 00 12 00 ff 34 01 01 00 00 00 00 00 00 00 00 00 //OUT2 ROT 90

EB 90 00 12 00 ff 34 01 05 00 00 00 00 00 00 00 00 00 //OUT2 ROT 180

EB 90 00 12 00 ff 34 01 02 00 00 00 00 00 00 00 00 00 //OUT2 ROT 270

EB 90 00 12 00 ff 34 02 00 00 00 00 00 00 00 00 00 00 //OUT3 ROT 0

EB 90 00 12 00 ff 34 02 01 00 00 00 00 00 00 00 00 00 //OUT3 ROT 90

EB 90 00 12 00 ff 34 02 05 00 00 00 00 00 00 00 00 00 //OUT3 ROT 180

EB 90 00 12 00 ff 34 02 02 00 00 00 00 00 00 00 00 00 //OUT3 ROT 270

EB 90 00 12 00 ff 34 03 00 00 00 00 00 00 00 00 00 00 //OUT4 ROT 0

EB 90 00 12 00 ff 34 03 01 00 00 00 00 00 00 00 00 00 //OUT4 ROT 90

EB 90 00 12 00 ff 34 03 05 00 00 00 00 00 00 00 00 00 //OUT4 ROT 180

EB 90 00 12 00 ff 34 03 02 00 00 00 00 00 00 00 00 00 //OUT4 ROT 270

EB 90 00 12 00 ff 35 00 00 00 00 00 00 00 00 00 00 00 //OUT1~OUT4 ROT 0

EB 90 00 12 00 ff 35 01 01 01 01 00 00 00 00 00 00 00 //OUT1~OUT4 ROT 90

EB 90 00 12 00 ff 35 05 05 05 05 00 00 00 00 00 00 00 //OUT1~OUT4 ROT 180

EB 90 00 12 00 ff 35 02 02 02 02 00 00 00 00 00 00 00 //OUT1~OUT4 ROT 270

EB 90 00 12 00 ff 35 00 01 05 02 00 00 00 00 00 00 00 //OUT1~OUT4 ROT 0~270

Output image setting

EB 90 00 12 00 ff 2B FF 00 80 80 80 00 00 00 00 00 00 //RGB 128 (Default)

EB 90 00 12 00 ff 2B FF 00 32 32 32 00 00 00 00 00 00 //RGB 50

EB 90 00 12 00 ff 2B FF 01 32 80 80 00 00 00 00 00 00 //Contrast 50

EB 90 00 12 00 ff 2B FF 01 19 80 80 00 00 00 00 00 00 //Contrast 25

Bezel correction setting(from 0~100)

EB 90 00 12 00 ff 40 00 00 00 00 00 00 00 00 00 00 00 //H0

EB 90 00 12 00 ff 40 00 05 00 00 00 00 00 00 00 00 00 //H0.005

EB 90 00 12 00 ff 40 00 0A 00 00 00 00 00 00 00 00 00 //H0.01

EB 90 00 12 00 ff 40 00 14 00 00 00 00 00 00 00 00 00 //H0.02

EB 90 00 12 00 ff 40 00 1E 00 00 00 00 00 00 00 00 00 //H0.03

EB 90 00 12 00 ff 40 00 28 00 00 00 00 00 00 00 00 00 //H0.04

EB 90 00 12 00 ff 40 00 32 00 00 00 00 00 00 00 00 00 //H0.05

......

EB 90 00 12 00 ff 40 00 00 00 00 00 00 00 00 00 00 00 //V0

EB 90 00 12 00 ff 40 00 05 00 00 00 00 00 00 00 00 00 //V0.005

EB 90 00 12 00 ff 40 00 0A 00 00 00 00 00 00 00 00 00 //V0.01

EB 90 00 12 00 ff 40 00 14 00 00 00 00 00 00 00 00 00 //V0.02

EB 90 00 12 00 ff 40 00 1E 00 00 00 00 00 00 00 00 00 //V0.03

EB 90 00 12 00 ff 40 00 28 00 00 00 00 00 00 00 00 00 //V0.04

EB 90 00 12 00 ff 40 00 32 00 00 00 00 00 00 00 00 00 //V0.05

7. After-Sales

7.1 Warranty Information

The Company warrants that the process and materials of the product are not defective

under normal use and service for 2 (2) years following the date of purchase from the

Company or its authorized distributors.

If the product does not work within the guaranteed warranty period, the company will

choose and pay for the repair of the defective product or component, the delivery of

the equivalent product or component to the user for replacement of the defective item,

or refund the payment which users have made.

The replaced product will become the property of the Company.

The replacement product could be new or repaired.

Whichever is longer, any replacement or repaired of the product or component is for a

period of ninety (90) days or the remaining period of the initial warranty. The Company

shall not be responsible for any software, firmware, information, or memory data

contained in, stored in, or integrated with the product repaired by the customer's return,

whether or not during the warranty period.

7.2 Warranty limitations and exceptions

Except above limited warranty, if the product is damaged by over usage, incorrectly use,

ignore, accident, unusual physical pressure or voltage, unauthorized modification,

alteration or services rendered by someone other than the Company or its authorized

agent, the company will not have to bear additional obligations. Except using the

product properly in the proper application or normal usage

Table des matières

Autres manuels WolfPack Contrôleurs

WolfPack

WolfPack HDTV-B29VW Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
