Induction Range (IR) Series

Component Removal

3-2

#827176 - Revision A.1 - December, 2016

COMPONENT REMOVAL

This section explains how to remove components from a Wolf Induction Range (IR) Series. Depending on which

component you are going to remove, you may have to remove other components first. Refer to the appropriate sec-

tion in this manual that explains how to remove those various components. When reassembling, just reverse the

steps that were used to remove the components.

NOTE: Before attempting to access or remove any components from a Wolf appliance, take note of the WARN-

INGS and CAUTIONS below.

•TO AVOID ELECTRIC SHOCK, POWER TO THE UNIT MUST BE DISCONNECTED WHENEVER SERVICING

AND/OR ACCESSING COMPONENTS.

•KEEP IN MIND THAT UNIT SURFACES AND COMPONENTS GET HOT DURING USE OF THE APPLIANCE.

•PULLING A UNIT FROM ITS INSTALLATION SHOULD ONLY BE PERFORMED BY A CERTIFIED SERVICE

TECHNICIAN OR INSTALLER.

•When working on the induction range and components, be careful when handling sheet metal parts. They

may have sharp edges.

Tools Needed

6-Lobe Torx type driver size T-15•

6-Lobe Torx type driver size T-20•

6-Lobe Torx type driver size T-25•

Phillips screw driver•

Small flat blade screw driver•

Flat blade screw driver•

Needle nose pliers•

Putty knife•

5/32” Allen wrench•

5/8” Box wrench•

Component Removal

Induction Range (IR) Series

3-3 #827176 - Revision A.1 - December, 2016

Induction Range

The induction range has a Induction Cooktop attached

to a Dual Fuel oven. This first section is components

that can be removed without pulling the unit from the

installation.

Skirt Removal

At the base of the unit is the skirt. The skirt shield is

attached to the back of the skirt.

To remove the skirt (See Figure 3-1):

Extract the two screws at the top of the skirt.1

The skirt is supported by two key slots at the bot-2

tom. Lift the skirt to remove it from the shoulder

screws.

Oven Door Adjustment

The oven door has two adjusting posts at the bottom of

the oven door. Adjusting the screw in or out raises or

lowers that side of the oven door, changing the space

between the top of the oven door and the bullnose.

To adjust the oven door (See Figure 3-2):

Remove the unit skirt.1

Use a 5/32” allen wrench to adjust the screw.2

Clockwise raises the door, and counterclockwise

lowers the door.

Oven Door Removal

The oven door uses a spring and damper system. Only

one hinge arm is spring loaded, which requires use of

the hinge pin for removal.

To remove the oven door, first remove the skirt, then

(See Figure 3-3):

Open the door to its fully opened position.1

Insert the hinge pin through hole in the spring2

loaded hinge.

Extract the screws from the top and bottom of the3

hinge retainer plate. The hinge retainer remains

with the door.

Close the oven door to about a 60° angle from the4

horizontal and lift up on the door while continuing to

pull the door away from the unit.

Figure 3-1. Shirt Removal

Figure 3-3. Door Removal

Hinge Pin

Hinge Retainer

Figure 3-2. Door Adjustment

Induction Range (IR) Series

Component Removal

3-4

#827176 - Revision A.1 - December, 2016

Door Skin Removal

The door skin and handle are attached to the liner

assembly by two screws below the logo, three screws

on the bottom of the door, and four screws at the top of

the liner assembly.

To remove the door skin, first remove the door, then

(See Figure 3-4):

Place tape around the logo and use a putty knife to1

peal the logo from the front of the door.

Extract the screws behind the logo.2

Extract the screws from the bottom of the door.3

Extract the screws from the top of the liner assem-4

bly.

Lift the door skin from the liner assembly.5

Hinge Removal

The hinges are attached to the liner assembly by two

screws at the bottom of the liner assembly, and a tab

on the liner assembly at the top of the hinge.

To remove a hinge, first remove the door skin, then

(See Figure 3-5):

Extract the screws at bottom of the liner assembly.1

Lift the bottom of the hinge up past the edge of the2

liner and disengage the hinge from the tab.

Remove the hinge from the liner assembly.3

Glass Pack Assembly Removal

The glass pack is inserted into the liner assembly and

has insulation and brackets around it to keep it in place.

To remove the glass pack assembly, first remove the

door skin, then (See Figure 3-6):

Extract screws from reinforcement bracket and1

remove the reinforcement bracket.

Extract the screws from the four glass pack retainer2

brackets, and remove them.

Extract the screws from the door baffle and remove3

the door baffle.

Remove the glass pack.4

Figure 3-5. Hinge Removal

Tab for Hinge

Figure 3-6. Glass Pack Removal

Reinforcement

Bracket

Glass Pack

Retainer Brackets

Door Baffle Glass Pack

Figure 3-4. Door Skin Removal

Component Removal

Induction Range (IR) Series

3-5 #827176 - Revision A.1 - December, 2016

Handle Removal

The handle bar is locked between the two handle

standoffs that are attached to the door skin.

To remove the handle, first remove the door skin, then

(See Figure 3-7):

Extract the screws from handle pad that pass1

through the door skin into the handle standoffs.

Remove the standoffs and handle bar.2

Gasket Removal

The oven gasket is a two part gasket with one part

around the top and the two sides of the cavity, and the

second part at the bottom of the oven cavity. The gas-

kets are attached to the oven face by a series of spring

pins.

To remove the gasket, first open the oven door, then

(See Figure 3-8):

Use needle nose pliers to compress the spring pins1

on the back of the gasket.

Remove the gasket.2

Rack Removal

There are three types of racks in the oven. The flat rack

which can be used in any position in the oven, the bent

rack, designed to be used in the lowest position and to

be pulled out on to the door, and the sliding rack which

rolls out on sliding rails.

To remove a rack, first open the oven door, then (Not

Shown):

Pull the rack forward until it stops.1

Lift the front of rack up and pull the rack from the2

oven.

Rack Guide Removal

To remove the rack guides, first remove the racks, then

(See Figure 3-9):

Lift the rack guide up.1

Pull the top of the rack guide toward the center of2

the oven, disengaging it from the shoulder screws.

Pull the rack guide forward from the oven.3

Figure 3-7. Handle Removal

Figure 3-8. Gasket Removal

Figure 3-9. Rack Guide Removal

•The rails on the sliding rack move by themselves.

Keep hands and fingers out of the line of travel.

Induction Range (IR) Series

Component Removal

3-6

#827176 - Revision A.1 - December, 2016

Halogen Bulb Removal

There are two halogen lamps in the oven cavity. There

is a pressed on glass lens that covers the bulb.

To remove the halogen bulb, first remove the rack guide

on the side of the oven where the halogen bulb needs

to be replaced, then (See Figure 3-10):

Use a flat bladed screw driver to remove the glass1

lens.

Use a clean, dry, oil free cloth to remove and install2

the new halogen bulb.

Convection Baffle Removal

The convection baffle covers the convection fans and

elements. It is attached to the back wall with screws.

To remove the convection baffle, first remove the rack

guides, then (See Figure 3-11):

Extract the screws above and below the convection1

baffle.

Remove the convection baffle from the oven cavity.2

Convection Element Removal

The convection element surrounds the convection fan

and is held in place with three screws.

To remove the convection element, first remove the

convection baffle, then (See Figure 3-12):

Extract the two top screws and one bottom screw1

from the convection element supports.

Tilt the bottom of the element up to pull the spade2

terminals with the wires attach through the back

wall.

Disconnect the wires from the convection element3

spade terminals.

Remove the convection element.4

Figure 3-11. Convection Baffle Removal

Figure 3-12. Convection Element Removal

Figure 3-10. Convection Baffle Removal

Component Removal

Induction Range (IR) Series

3-7 #827176 - Revision A.1 - December, 2016

Convection Fan Removal.

The convection fans are held in place with screws to

the back wall of the oven. The left fan has five screws

and the right fan has six screws so that the fans can

not be reversed.

To remove the convection fan, first remove the convec-

tion element, then (See Figure 3-13):

Extract the screws from the fan shroud.1

Remove the fan from the back wall.2

Disconnect the electrical wires from the fan.3

Remove the fan from the oven.4

Temperature Sensor Removal

The temperature sensor is attached to the back wall of

the oven.

To remove the temperature sensor, first remove the

oven racks, then (See Figure 3-14):

Extract the screws from the temperature sensor.1

Pull the temperature sensor into the oven cavity.2

Disconnect the wire harness.3

Remove the temperature sensor.4

Smoke Catalyst Removal

The smoke catalyst is located in the top of the oven

cavity.

To remove the smoke catalyst, first remove the oven

racks, then (See Figure 3-15):

Extract the screws from the smoke catalyst.1

Remove the smoke catalyst.2

Figure 3-13. Convection Fan Removal

Figure 3-14. Temperature Sensor Removal

Figure 3-15. Smoke Catalyst Removal

Induction Range (IR) Series

Component Removal

3-8

#827176 - Revision A.1 - December, 2016

Probe Cover Removal

The probe cover is on the right hand side of the oven

cavity.

To remove the probe cover, first remove the oven racks,

then (See Figure 3-16):

Lift the probe cover and use a 5/8” box wrench to1

remove the retaining nut.

Remove the probe cover.2

Broil Element Removal

The broil element and the broil element deflector are

attached to the ceiling of the oven cavity.

To remove the broil element, first remove the oven

racks, then (See Figure 3-17):

Extract the screws holding the broil element and1

broiler deflector pan to the ceiling of the oven.

Pull the broil element and broil deflector pan for-2

ward into the oven and disconnect the electrical

connectors.

Remove the broil element and broil deflector pan3

from the oven.

Remove the broil element from the broil deflector4

pan.

Bake Element Removal

The bake element is accessed from the front of the unit.

It sits in a tray that lowers down to remove the bake

element.

To remove the bake element, first remove the unit skirt,

then (See Figure 3-18):

Extract the screws from the tray assembly.1

Lower the front of the tray assembly and pull it for-2

ward from the unit.

Use a pair of Needle Nose pliers to disconnect the3

spade terminals from the bake element.

Lift the bake pan assembly from the tray assembly4

and pull it forward.

Remove the bake pan assembly from the unit.5

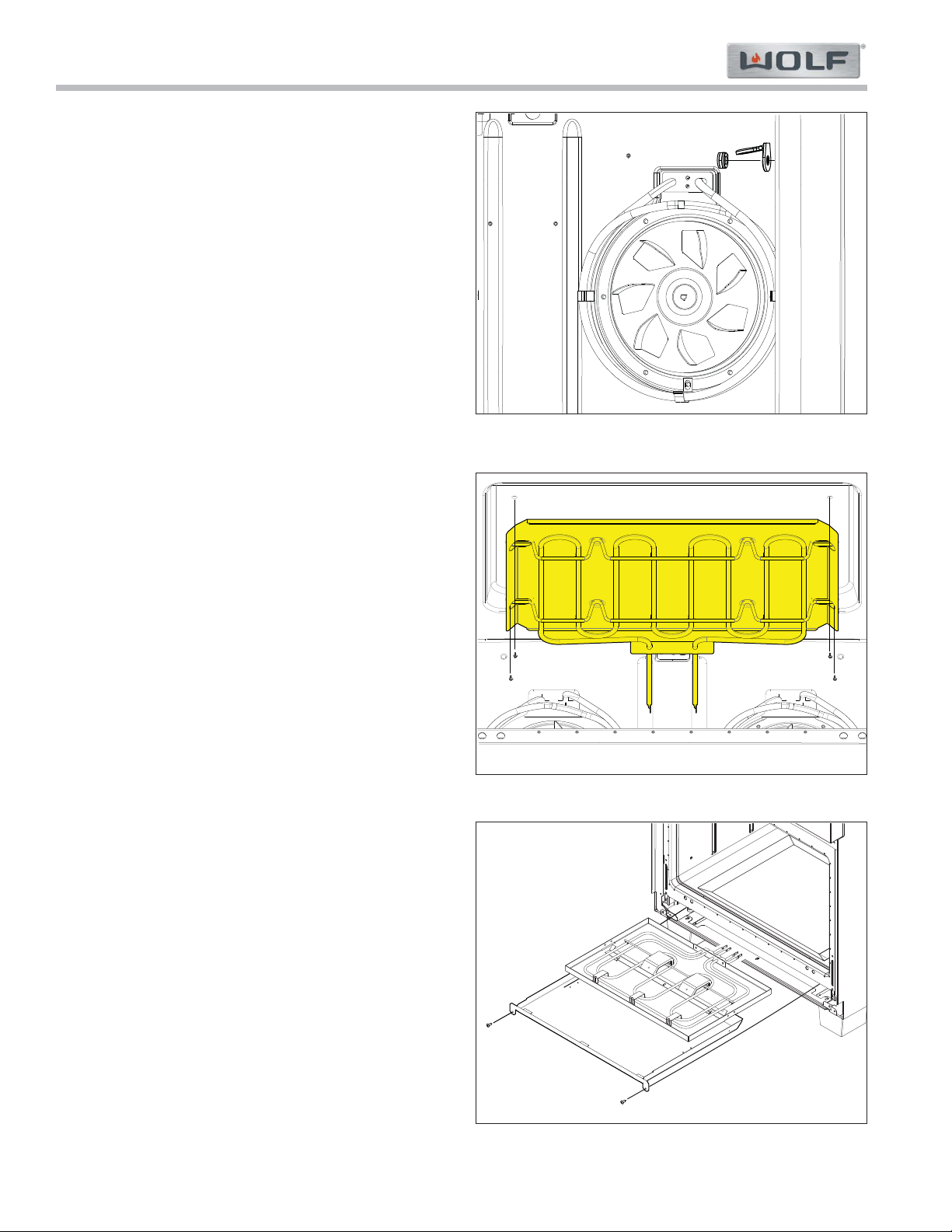

Figure 3-17. Broil Element Removal

Figure 3-18. Bake Element Removal

Figure 3-16. Prove Cover Removal

Component Removal

Induction Range (IR) Series

3-9 #827176 - Revision A.1 - December, 2016

Induction Range

The induction range has a Induction Cooktop attached

to a Dual Fuel oven. To access the majority of the com-

ponents the unit needs to be pulled from the installa-

tion, and the induction cooktop needs to be removed.

Induction Cooktop Removal

To remove the induction cooktop top, first remove the

unit from the installation, then (See Figure 3-19):

Extract the six screws from the back of the island1

trim.

Remove the island trim.2

Extract the two outer screws from the rear of the3

cooktop.

Lift the cooktop from the rear, disengaging the front4

of the cooktop from the keyhole slots on the bull-

nose.

Disconnect the induction cooktop electrical connec-5

tion.

Remove the cooktop.6

Bullnose Removal

To remove the bullnose, first remove the cooktop, then

(See Figure 3-20):

Open the oven door and extract the two screws on1

each side of the unit below the bullnose.

Lift the bullnose straight up, disengaging it from the2

four shoulder screws.

Disconnect the Control to ECH harness from the3

ECH.

Remove the bullnose.4

Figure 3-19. Induction Cooktop Removal

Figure 3-20. Bullnose Removal

Induction Range (IR) Series

Component Removal

3-10

#827176 - Revision A.1 - December, 2016

Alternate Method For Bullnose Removal (suction

cup required)

There is an alternate method for removing the bullnose

that removes the need to pull the unit from the installa-

tion, but requires the use of a suction cup.

To remove the bullnose without pulling the unit from the

installation or removing the induction cooktop (See

Figure 3-21):

Extract the screws from under the bullnose.1

Place the suction cup on the front center of the2

induction cooktop.

Lift the induction cooktop and bullnose about one3

inch.

Move the bullnose up and down to disengage it4

from the shoulder screws on the bullnose and the

face of the unit.

Disconnect the wire harness from the ECH.5

Remove the bullnose.6

Side Panel Removal

The side panels are attached to the front and back of

the unit, with the induction cooktop resting on top of

them.

To remove a side panel, first remove the induction

cooktop, and the bullnose, then (See Figure 3-22):

Extract the screws from the rear of the side panel.1

Extract the screws from the front of the side panel2

and oven trim.

Remove the side panel and oven trim.3

Probe Switch Removal

The probe switch is located behind the right hand side

panel.

To remove the probe switch, first remove the right side

panel, then (See Figure 3-23):

Remove the probe cover from the interior of the1

oven (see page 3-7).

Extract the screw to remove the meat probe access2

cover.

Pull the probe switch from the insulation.3

Disconnect the electrical leads from the probe4

switch.

Remove the probe switch.5

Figure 3-21. Alternate Bullnose Removal Method

Figure 3-22. Side Panel Removal

Figure 3-23. Probe Switch Removal

Component Removal

Induction Range (IR) Series

3-11 #827176 - Revision A.1 - December, 2016

Halogen Lamp Removal

The halogen lamp is located behind the inner side

panel.

To remove the halogen lamp, first remove the side

panel, then (See Figure 3-24):

Extract the screws from the inner side panel.1

Remove the inner side panel and insulation.2

Disconnect the electrical connector.3

Remove the halogen lamp.4

Back Panel Removal

The back panel covers most of the element connec-

tions, Thermal Cutout (TCO), convection fan connec-

tions, terminal block, wire harnesses, and cooling fan

cover.

To remove the back panel (See Figure 3-25):

Extract the far left and far right screws from the1

island trim.

Extract the screws from the back panel.2

Remove the back panel.3

Thermal Cut Out (TCO) Removal

The TCO is located on the back of the unit. The TCO

can be reset by removing the left convection fan, but

replacing the TCO requires the back of the unit to be

accessed.

To remove the TCO, first remove the back panel, then

(See Figure 3-26):

Disconnect the electrical wires from the TCO.1

Extract the screws from the TCO.2

Remove the TCO.3

Figure 3-24. Halogen Lamp Removal

Figure 3-25. Back Panel Removal

Figure 3-26. TCO Removal

Autres manuels Wolf Gamme

Wolf

Wolf DF486C Instructions d'utilisation

Wolf

Wolf C36S-36G-P Manuel utilisateur

Wolf

Wolf DF366 Manuel utilisateur

Wolf

Wolf R304 Manuel du propriétaire

Wolf

Wolf DF604CF Instructions d'utilisation

Wolf

Wolf FS-4J-0-24-M Manuel du propriétaire

Wolf

Wolf R364C Manuel utilisateur

Wolf

Wolf CHALLENGER CHR-6-0 Manuel utilisateur

Wolf

Wolf CHALLENGER XL Series Manuel utilisateur

Wolf

Wolf IR304TESTH Manuel utilisateur

Wolf

Wolf C24S-2FT12 Manuel utilisateur

Wolf

Wolf C34S Manuel utilisateur

Wolf

Wolf Ranges Manuel utilisateur

Wolf

Wolf 762 Manuel utilisateur

Wolf

Wolf R484CG Instructions d'utilisation

Wolf

Wolf DF484CG Manuel utilisateur

Wolf

Wolf Drawer Microwave Oven Guide de configuration

Wolf

Wolf R606CG Instructions d'utilisation

Wolf

Wolf Gas Range Manuel utilisateur

Wolf

Wolf DF304 Instructions d'utilisation

Wolf

Wolf F-39110 Manuel du propriétaire

Wolf

Wolf DUAL FUEL RANGES Manuel utilisateur

Wolf

Wolf DF304 Manuel utilisateur

Wolf

Wolf DUAL FUEL RANGES Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Whirlpool

Whirlpool 8575985-W Manuel de la liste des pièces

Frigidaire

Frigidaire 316000635 Manuel utilisateur

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Whirlpool

Whirlpool Roper FGP305KW3 Manuel utilisateur

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Frigidaire

Frigidaire FFEF3012LS Guide de l'utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur
