The RMT-170e-HD monitor is an ideal solution for viewing many different types of

HD/SD-SDI (up to 1080i and 720p) or analog video and computer input. Perfect for

the many feeds in mobile trucks, news and transmission control rooms,

duplication, and post production applications.

Using TFT/LCD screens, a perfect medium is reached in the scaling and

interpolation process, providing superb imaging regardless of video format.

This monitor comes with many in-monitor display features including in-screen

labeling, tally, time-code, format display, waveform, vectorscope, and safe area/

title display markers.

The RMT-170e-HD also provides a host of audio tools including level metering,

headphone output, and built-in speaker monitoring of its dual stereo analog

inputs or SDI embedded audio.

Beneﬁts:

• On-screen level meters provide conﬁdence audio monitoring

• Tally and on-screen labeling provide quick and easy signal identiﬁcation

• CRT-style image controls allow video image enhancement for each screen

individually

Features:

• In-picture level metering, waveform, and vectorscope display

• Labelling, tally, timecode, safe and title markers

• Full gamma color calibration

• Built-in color bars

• Headphone and / or speaker outputs

• User-deﬁned function buttons

• Intuitive on-screen menu

RMT-170e-HD

17” HD/SD-SDI Video Monitor

info@wohler.com ww w.wohler.com +1 888 5 WOHLER

Full feature set, cost

effective, reliable

17” HD/SD-SDI video

monitor with in-screen

audio level meters

vectorscope, and

waveform

SDI

AHD

ORDER PART #

RMT-170e-HD: #8011-0310

Rack Mount Kit: #790018 (rack mount frame)

Table Top Kit: #790017

HD/SD-SDI

Rear Panel

• 2 HD/SD-SDI

• 1 DVI-I/DVI-D/VGA

• 1 Composite CVBS

• 1 Component (Y/C & YPbPr)

• 2 RCA Analog Audio Stereo Input Pairs

SD-SDI

HD/SD-SDI

Input 1

RS-485

Out

RS-485

RS-232

Interface

GPI

Interface

LED Tally

Programming

4-8 for De-embedded, 2-4 for Analog

Audio

Channel

Select

SDI Input

Select

Video

Source

Select

Audio

Source

Select

HD/SD-SDI

Input 2

HD/SD-SDI

Select Out

Line 1

Composite

Video

Line 2

Video/Y

Line 2

Video/Pr

Line 2

C/Pb

DVI-I

Video

EDID

LCD

17” (16:9)

with OSD

(UMD, OSD Tally)

Composite

A/D Video

Decoder

VGA

DVI-D

Select

Composite

Component

A/D Video

Decoder

L R

Audio In 1

Audio In 2

Audio Out 2

RMT-170e-HD

Part Number: 712058_A

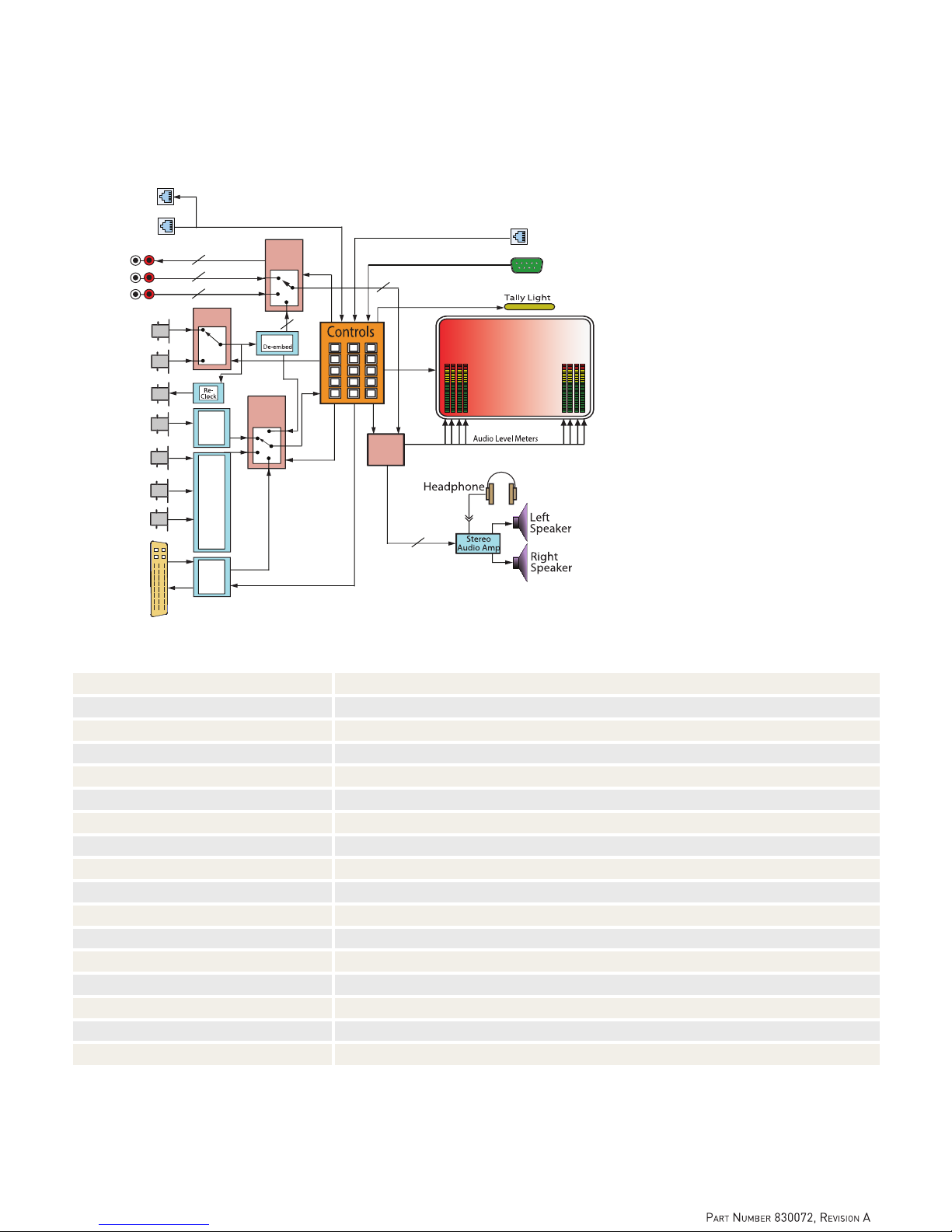

Block Diagram

RMT-170e-HD

17” HD/SD-SDI Video Monitor

Wohler USA Headquarters

Wohler Technologies, Inc.

31055 Huntwood Avenue

Hayward, CA 94544

Phone: +1 510 870 0810

Fax: +1 510 870 0811

Email: sales@wohler.com

Wohler Asia

Wohler Technologies, Inc.

1704 Lucky Commercial Centre

103 Des Voeux Road West

Sheung Wan, Hong Kong

Phone: +852 2851 8325

Fax: +852 2850 8182

Email: salesasia@wohler.com

Wohler Europe

Wohler Technologies, Inc.

Les Perrettes

26120 Barcelonne

France

Phone: +33 970 440 253

Fax: +33 1 77 72 59 99

Email: saleseurope@wohler.com

Wohler UK

453 Stroude Road

Virginia Water

Surrey GU25 4BU

United Kingdom

Phone: +44 (0) 2081 236 658

Fax: +44 (0) 208 181 6500

Email: salesUK@wohler.com

Inputs

Outputs

• 1 Reclocked HD/SD-SDI

• 1 RCA Analog Audio Stereo Ouput Pair

• 1 Headphone

Dimensions (H x W x D) 12.25” x 17” x 4.5” (285.7 mm x 431.8 mm x 114.3 mm)

Shipping Weight / Net Weight 26 lbs (11.8 kg) / 21 lbs (9.5 kg)

Space Requirements 8RU / 9RU with Rack Kit in a standard 19” rack

Accessories Included AC power cord

Power Connector Power cord plugs into standard U.S. outlet, Alternate 12V power cables are available

Power Requirements Power to the unit connects to mains power (100 to 240 VAC ± 10%, 50/60Hz)

Power Consumption 60W

Display Type Active color matrix amorphous 17”, LCD TFT screen

Display Size 17” Diagonal

Aspect Ratio 16:9 native 4:3 selectable

Active Viewing Area 14.5” H × 9” V (368.3 mm H x 228.6 mm V)

Resolution 1366 x 768

Luminance 400 cd/m^2

Colors 16.7 million

Contrast 900:1

Pixel Pitch 0.191 mm H x 0.191 mm Y

Pixel Response <8ms off-on-off (black to white to black)

Speciﬁcations View complete list of speciﬁcations online at wohler.com
