WMF 5000S+

Operating & cleaning instructions

WMF 5000S+ - OPERATOR OVERVIEW

5000S+

VERSION. 1.2.18

KEY

Espresso Milk coee Milk

Milk+Choc Cappuccino Latte Macchiato

Milk foam

BEVERAGE SELECTION DISPLAY

COFFEE BEAN HOPPER (UP TO 2)

POWDER HOPPER (CHOCOLATE)

CLEANING TABLET INSERT

TOUCH DISPLAY FOR BEVERAGE BUTTONS AND SETTINGS

BEVERAGE DISPENSE SPOUT

GROUNDS CONTAINER / GROUNDS THROUGH

REMOVABLE DRIP TRAY WITH DRIP GRID

HOT WATER SPOUT

OPERATING PANEL

SIDE ILLUMINATION

ON / OFF SWITCH

BEVERAGE BUTTONS

MENU PAD

MESSAGES PAD

WMF 5000S+ - OPERATOR OVERVIEW

10L SIDE FRIDGE

VERSION. 1.2.18

KEY

FRONT

VIEW

INTERNAL

VIEW

TEMPERATURE LCD

DOOR LOCK

ON / OFF SWITCH

DOOR

FRIDGE SEAL

MILK LINE

MILK LANCE

MILK CONTAINER LID

MILK CONTAINER BASE

WMF - CLEANING INFORMATION

CLEANING TABLET CHECK SHEET

RINZA MILK CAFIZA COFFEE

ACTUAL

SIZE

HOLD TABLET OVER

SHAPE ABOVE TO

CHECK

HOLD TABLET OVER

SHAPE ABOVE TO

CHECK

ACTUAL

SIZE

VERSION. 1.1.15

Part No: 71100Part No: 71147

WMF 5000S - OPERATING INFORMATION

VERSION. 2.2.14

SELF SERVICE

EMERGENCY ALERT

ATTENTION

TO RESOLVE DO THE FOLLOWING:

REMOVAL OF GROUTS

IMPORTANT PROCESS

REMOVING GROUTS CONTAINER SPOUT LOWERED BACK

TO READY POSITION

1. INSTRUCTIONS DISPLAYED ON SCREEN OR.

IF RED LIGHTS ARE FLASHING

PLEASE ATTEND MACHINE.

Follow instructions displayed on coffee

machines screen to clear the message

1. Lift the dispense spout (foamer)

to its highest position

2. Remove and empty the grouts

container, wiping down the inside

3. Carefully replace the grouts

container back into the machine

4. Conﬁrm on the display that

container has been emptied

5. Lower the dispense spout

(foamer) to the cup position

2. DRINKS DISPLAYED ON SCREEN

If the lights are ﬂashing red and the

Symbol is displayed in the top right part of

the screen, above the drinks, then press this

symbol, and follow instructions displayed on

coffee machines screen to clear the message.

WMF 5000S - CLEANING INFORMATION

VERSION. 2.2.14

1. ACCESSING THE CLEANING MENU

A. FINDING MENU

SYSTEM CLEANING

B. CLEANING OPTIONS

2. END OF DAY

CLEANING PROCESS

3. CLEANING INTERVALS

OVERVIEW

Gently double tap the

bottom right of screen

Select the home icon when

it displays

Select the care options tab

CLEANING PROGRAMS

1. System cleaning

2. Milk system rinsing

3. Foamer rinsing

Different cleaning options

End Of Day Cleaning Process. This needs to

be performed daily. NOTE: WMF blue

cleaning container is required for cleaning.

PROCESS

For further information please refer to

care menu instructions or user manual

Access the Care menu

Touch Cleaning programs

Touch System cleaning

Follow prompts to setup - Information /

instructions will be shown on the display

Machine will perform clean cycle -

Up to 14 mins

Pack away the cleaning containers

CAFIZA TABLET INSERTED

FOR BREWER

RINZA TABLET INSERTED

FOR MILK SYSTEM.

DO NOT ADD WATER.

CLEANLOCK

A 15-second

countdown starts

and the screen is

deactivated. The

touch display can

now be cleaned by

wiping action.

INSTRUCTIONS

Animated

instructions for the

weekly cleaning

procedures,

includes choc mixer

and combi spout.

DAILY

WEEKLY

MONTHLY

xClean Screen (CleanLock)

xSystem cleaning

xGrouts container cleaning

xClean the brewing unit

xDrip tray cleaning

xBean hopper cleaning

WMF 1500S / 5000S - CLEANING INFORMATION

END OF DAY SYSTEM CLEAN

VERSION. 4.4.18

STEP 1.

1. 1.2.

STEP 2. STEP 3.

Access the home menu, and

select the Care option.

Select Cleaning programs

then select System cleaning

Conﬁrm if machine needs to

shutdown after cleaning

Plug milk line into the blue WMF cleaning

container. Place the cleaning box on

drip tray during the cleaning process

If you are leaving the machine on, but

closing for the day = No

If you plan to make coffees after

the clean = Yes

Insert 1 RINZA tablet into each

blue container. Do not add water.

Part No: 12-MKTAB12-40 Rinza

Part No: 12-E18UX100-12 Caﬁza E18

Insert CAFIZA tablet into

top chute for brewer cleaning

Empty & clean the

coffee grounds container

System will progress with cleaning

(up to 14 minutes max)

STEP 4. STEP 5. STEP 6.

STEP 7. STEP 8. STEP 9.

THIS CLEANING PROCEDURE

TAKES APPROX. 14 MINUTES

PERFORM THIS AT LEAST

ONCE EVERY 24 HOURS

CHECK CORRECT TABLET IS

USED FOR EACH STAGE. USE

ONLY URNEX TABLETS.

WMF 1500S / 5000S - CLEANING INFORMATION

END OF DAY SYSTEM CLEAN

VERSION. 4.4.18

STEP 10. STEP 11.

STEP 13.

THIS CLEANING PROCEDURE

TAKES APPROX. 14 MINUTES

PERFORM THIS AT LEAST

ONCE EVERY 24 HOURS

CHECK CORRECT TABLET IS

USED FOR EACH STAGE. USE

ONLY URNEX TABLETS.

Un-plug milk line from blue

container and back into milk.

Careful warm water inside

If you are continuing to use

machine after cleaning, please note

the machine will restart, perform a

milk line purge and ready itself for

service. You are required to

activate several prompts for this.

Once completed, machine will

return to home screen

STEP 12.

Machine will complete cleaning

and ﬂush lines. And set milk.

IMPORTANT : MILK ACTIVATION

Care menu Select ‘Release Milk System’

If you have selected ‘No’ at Step 4.

STEP 5. STEP 5A

VERSION. 4.2.18

WMF 1500S / 5000S - EASY MILK - CLEANING INFORMATION

MILK SYSTEM EXCHANGE & CLEAN

THIS CLEANING PROCEDURE

TAKES APPROX. 15 MINUTES

PERFORM THIS AT THE END

OF THE WEEK.

USE ONLY WMF CERTIFIED

MILK CLEANING TABLETS.

STEP 7.

Store in tub with lid to avoid

contamination ready for next

weekly exchange

STEP 6.

After soaking, rinse all pieces

under tap and dry

STEP 5.

Fill container with warm water and

add one RINZA tablet. Place dirty

foamer & milk line, soak for 5 hours

STEP 1.

Disconnect the milk line

from the foamer

Re-mount the spare clean

foamer, choc hose & milk line

STEP 4.

STEP 2.

Remove combi spout &

remove milk hose

Separate foamer into separate

pieces ready for soaking

STEP 3.

• Add one Rinza tablet in a milk jug

with 500ml of lukewarm water

• Completely immerse the nozzle

in the cleaning solution

• For auto steam wand brieﬂy press

auto-steam button

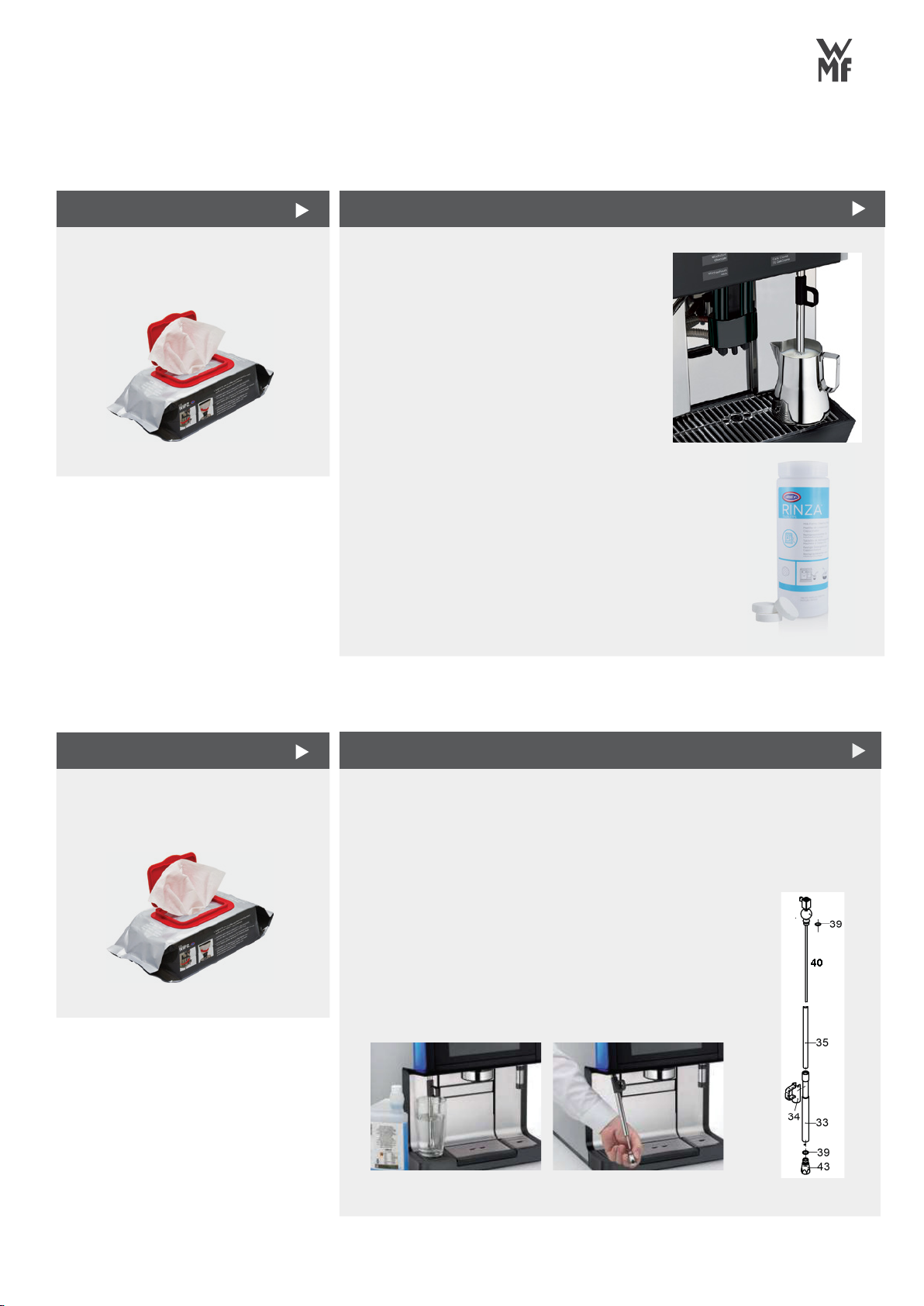

WMF 5000S/8000S/9000S+ CLEANING INFORMATION

CLEANING INSTRUCTIONS

AUTO STEAM WAND CLEANING - DAILY

AUTO STEAM WAND CLEANING + DISMANTLE - WEEKLY

STEP 1. STEP 2.

Clean machine with clean

damp cloth

12-MKTAB12-40

19-WIPZ12-100

The steam clears the holes of the steam

nozzle of milk residue and removes

cleaner residue.

Wipe the steam outlet with a damp

cloth.

Soak time: 30 minutes

• Clean with a brush

• Rinse thoroughly with water

• Brieﬂy press auto-steam button

•Unscrew the steam nozzle

•Immerse the steam nozzle in the cleaning solution

for at least 5 hours

•Clean with a brush

•Rinse thoroughly with clean water

•Screw the steam nozzle onto the Auto Steam outlet

•Immerse the steam nozzle in a jug with clear water

•Brieﬂy touch an Auto Steam button

•Wipe the steam outlet with a damp cloth

STEP 1. STEP 2.

Clean machine with clean

damp cloth

19-WIPZ12-100

VERSION. 1.1.17
