WM Systems M2M Easy2s Manuel utilisateur

M2M Easy2s

Security Communicator®

2G / 3G / 4G

Installation Guide

for PCB v9.x

_____________________________________

Doc v 1.53

2021-01-11

Document specifications

This documentation was made for the

M2M Easy2s Security Communicator

®PCB revision

V9.1 and newer versions, which were developed by

WM Systems LLc.

The document contains the step-by-step description of its installation, the program update process

and the detailed introduction of the setup parameters necessary for its operation.

Document Type:

Installation Guide

Document Theme:

M2M Easy2s Security Communicator

(v9.x PCB)

Author:

Tóth Csaba, Horváth Attila Tamás (WM

Systems LLC.)

Checked by:

Tóth Zoltán, Kim Balázs, Horváth Attila

Document revision:

Doc v1.53

Pages:

101

Hardver version:

v9.17

Firmware version:

V2.1 R08F10

Bootloader version:

REV 0.95

EasyTerm Software version:

REV 1.3.5

Document Status:

Final

Availibilty:

Public

Made at:

2nd of July, 2014

Last Modification:

11th of January, 2021

Valid from:

11th of January, 2021

Table of Contents

1. Connecting the ports ......................................................................................5

1.1 Connecting/wiring possibilities................................................................................................5

1.2 Wiring ................................................................................................................................. 7

1.3 LED signals......................................................................................................................... 12

1.4 Operation requirements ....................................................................................................... 16

2. Installation of the device .............................................................................18

2.1 Installation on site .............................................................................................................. 18

2.2 Turning on the device ......................................................................................................... 19

3. Connecting the device to a computer ...........................................................21

4. Usage of the EasyTerm software ..................................................................22

4.1 Introducing the EasyTerm tool ............................................................................................. 23

4.2 Connecting to the device ..................................................................................................... 24

4.3 Status info and device data .................................................................................................. 26

4.4 Terminal window, communication messages.......................................................................... 28

4.5 Load / save configuration..................................................................................................... 29

4.6 Restarting the device........................................................................................................... 32

4.7 Reload of factory settings .................................................................................................... 32

4.8 Set manual arming.............................................................................................................. 33

4.9 Output relay control ............................................................................................................ 34

4.10 Bypass zones .................................................................................................................... 35

5. Configuring the Easy 2 ................................................................................37

5.1 GSM transmitter settings...................................................................................................... 37

5.2 Setup signaling to Enigma IP-receiver / SIMS Cloud®............................................................ 40

5.3 Celllar network transmitting settings ..................................................................................... 47

5.4 Standalone Alarming mode (SMS notification) ....................................................................... 57

5.5 Output control and gate opening settings.............................................................................. 66

5.6 Advanced safety settings ..................................................................................................... 70

5.7 Firmware update/refresh (via serial port, TCP port)................................................................ 72

5.8 Firmware update/refresh via FTP server................................................................................ 76

6. Further information about of the Easy2S operation .....................................78

6.1 Primary and secondary communication channel ..................................................................... 78

6.2 Using the secondary channel................................................................................................ 78

6.3 Signaling through GSM voice call .......................................................................................... 79

6.4 Receiving the signaling of events.......................................................................................... 79

6.5 Life signals ......................................................................................................................... 80

6.6 Voice call notification (ringing) ............................................................................................. 80

7. Configuration by SMS messages ...................................................................81

7.1 Authentication command ..................................................................................................... 82

7.2 Query commands................................................................................................................ 82

7.3 Configuration by SMS messages (list of commands) .............................................................. 83

7.4 Examples for SMS command parameters ............................................................................... 86

7.5 Examples for output control with SMS messages.................................................................... 88

7.6 Examples for output control with GSM call (ringing) ............................................................... 91

8. Contact ID codes (table) ..............................................................................93

9. Troubleshooting ...........................................................................................96

9.1 A failure codes signed by LEDs............................................................................................. 96

9.2 Signing the status and signal strength problems .................................................................... 97

10. Support availability ...................................................................................100

10.1 Support help................................................................................................................... 100

10.2 Product support .............................................................................................................. 101

11. Legal notice ..............................................................................................102

Chapter 1. Connecting the ports

1.1

Connecting/wiring possibilities

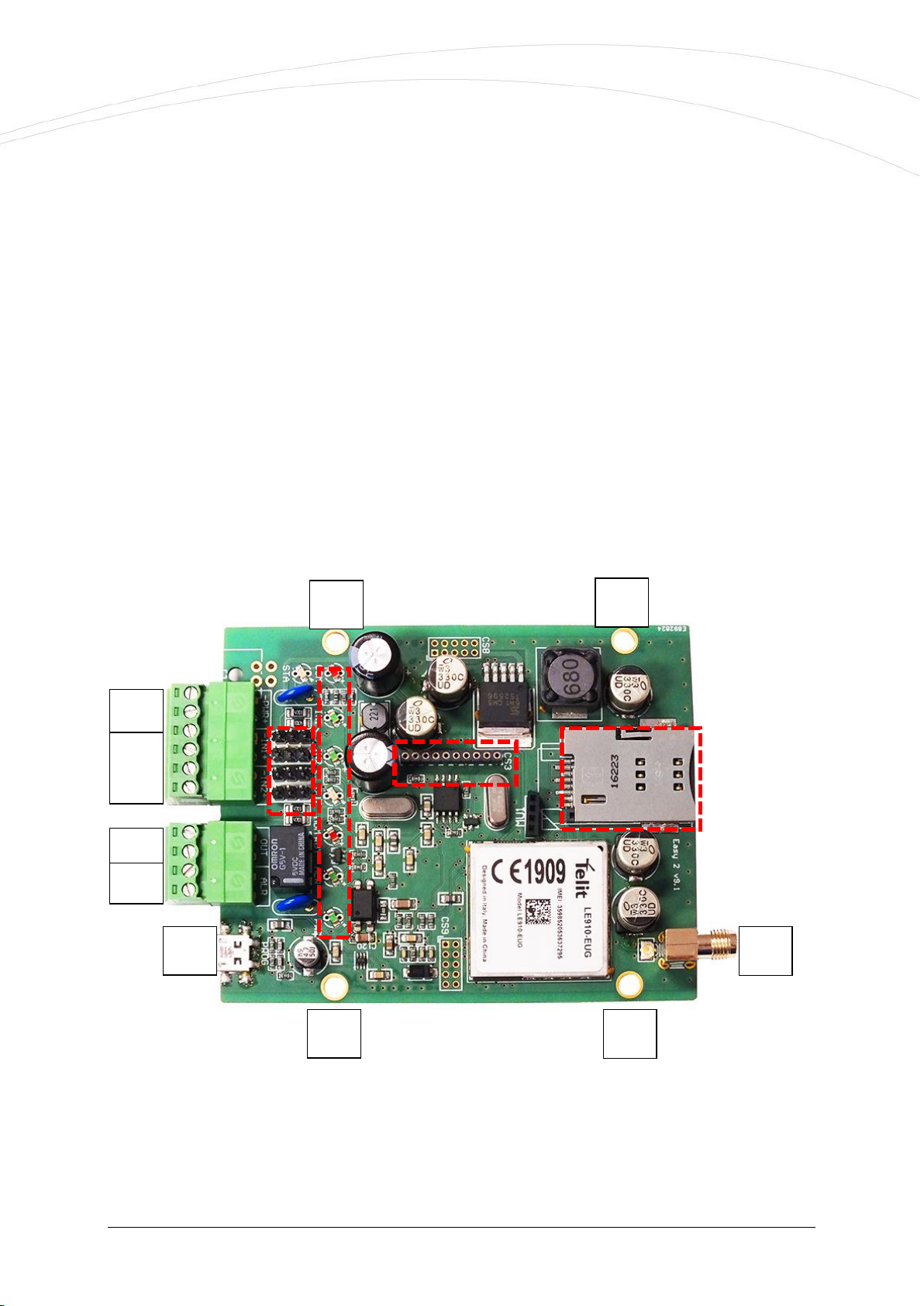

◼Input, output connections

1 –SIM-card tray (push-insert)

2 –SMA antenna connector (for 2G, 3G or LTE antenna –depending on the module

version, SMA-M, 50 Ohm)

3 –PWR -/+: Power supply connector (8-24VDC, 1A), alternative battery connection

4 –IN1, IN2 -/+: connectors for input lines (for sensors, sabotage detection)

5 –Jumpers for handling the the input lines (IN1, IN2). You can select the following

operation modes:

•galvanically splitted, independent voltage input lines

•contact input (detection of wire cut (by using a 10kΩ EOL resistor) or short)

6 –Status LEDs

7 –OUT: relay output (for control the output –open a gate, for siren)

8 –ALR: Alarm TIP RING input (for alarm center’s connection) –simulated analogue phone

line

9 –PROG: micro-USB connector (for configuration, firmware refresh)

10 –Holes for fastening the PCB (into metal safety alarm system’s box)

11–Expansion board connector (use in case of presencre of the

Easy2 IO

expander)

12 –IO-expansion PCB (connects to the Easy2S mainboard through the no. 11 connector)

13 –Easy2S PCB mainboard

1.2 Wiring

◼Preparation

Take the 4 spacer fastening tabs (which are provided to the device), and place them into the

PCB holes of the Easy2S and the safety box where you want to install the device.

Prepare a screwdriver, the 2 terminal blocks

provided with the device, and the stripped

wire pair necessary for connection, with

appropriate distinctive colors (power

connector –e.g. black-red, input-output wire

pairs –e.g. black-blue, alarm input –e.g.

black-white).

◼Connecting the inputs

The Easy2S has two input lines (IN1, IN2),

where sensors can be connected by connecting its wire pairs, in accordance with the standard

connection method shown below, by fixing the blanked cable wire pairs for each input.

In case of voltage inputs make attention to the order of polarity (+/-), the assembly must be

done according to the inputs line titles (on PCB board).

Take care for the proper position of the input line jumpers.

The device is able to detect wire cut on its input lines.

The inputs may also be used against sabotage purposes –e.g detecting the opening of the

alarm system enclosure / top cover (by connecting a magnetic switch wires to the device).

In voltage input operation mode, the input lines can be activated with 5-24V DC voltage, in

opposite way these are inactive.

The proper operation mode must be configured as well with the

EasyTerm

application.

The inputs can be configured seperately - to operate as a voltage or contact mode for the related

input. These settings can be installed by the closing the related jumper pairs, besides the input

terminal block –according to the input line nr. titles.

Jumperable input modes (with the JP1, JP2 jumpers):

•Contact mode

oThe input line jumper pairs - approach from the connector side (lower two

pins must be closed)

oThe ground point of the input lines (-) are common

oThe wiring of input lines has independent polarity

BEMENETEK

(IN1, IN2)

KIMENET

(OUT)

JP2

(IN2)

JP1

(IN1)

•Voltage mode

oThe input line jumper pairs –approach from the LED’s side (upper two jumper

pins must be closed)

oGalvanically divided and independent input lines

oMake attention to the polarity when wiring!

The device on the photo is configured to contact input mode (e.g. for safety sensors)

(the jumpers are closed by pairs at lower 2-pins position)

Mode

Contact

Voltage

Not inverted

•NO (Normal Open)

•Inactive mode: contact opened

•Active mode: contact closed

•High active

•Inactive mode: 0…1V

•Active mode: 2…24V

Inverted

•NC (Normal Closed)

•Inactive mode: contact closed

•Active mode: contact opened

•Low active

•Inactive mode: 2…24V

•Active mode: 0…1V

Signal levels:

•Input high signal level: 2-24V

•Input low signal level: 0-1V

•Current in active status (for the

Easy2S

inputs): 0.33mA

•Current in active status (for the further IO-expansion board inputs): 1-12mA

When the input were activated (IN1, IN2) the INx titled LEDs are signing the active (closed)

status during the operation, with the proper light and colour. See

LED signals

part.

In case of using the

-expander board, further 6 pcs of inputs are available (IN3..IN8), which

have the same operation and configuration possibility as listed here above.

In case of using the

Easy2 IO

-expander board, further 6pcs inputs are available

(IN3..IN8). Their operation and configuration are the same as we described for the

main board. The IO-expnader inputs can be activated with 2-32V voltage.

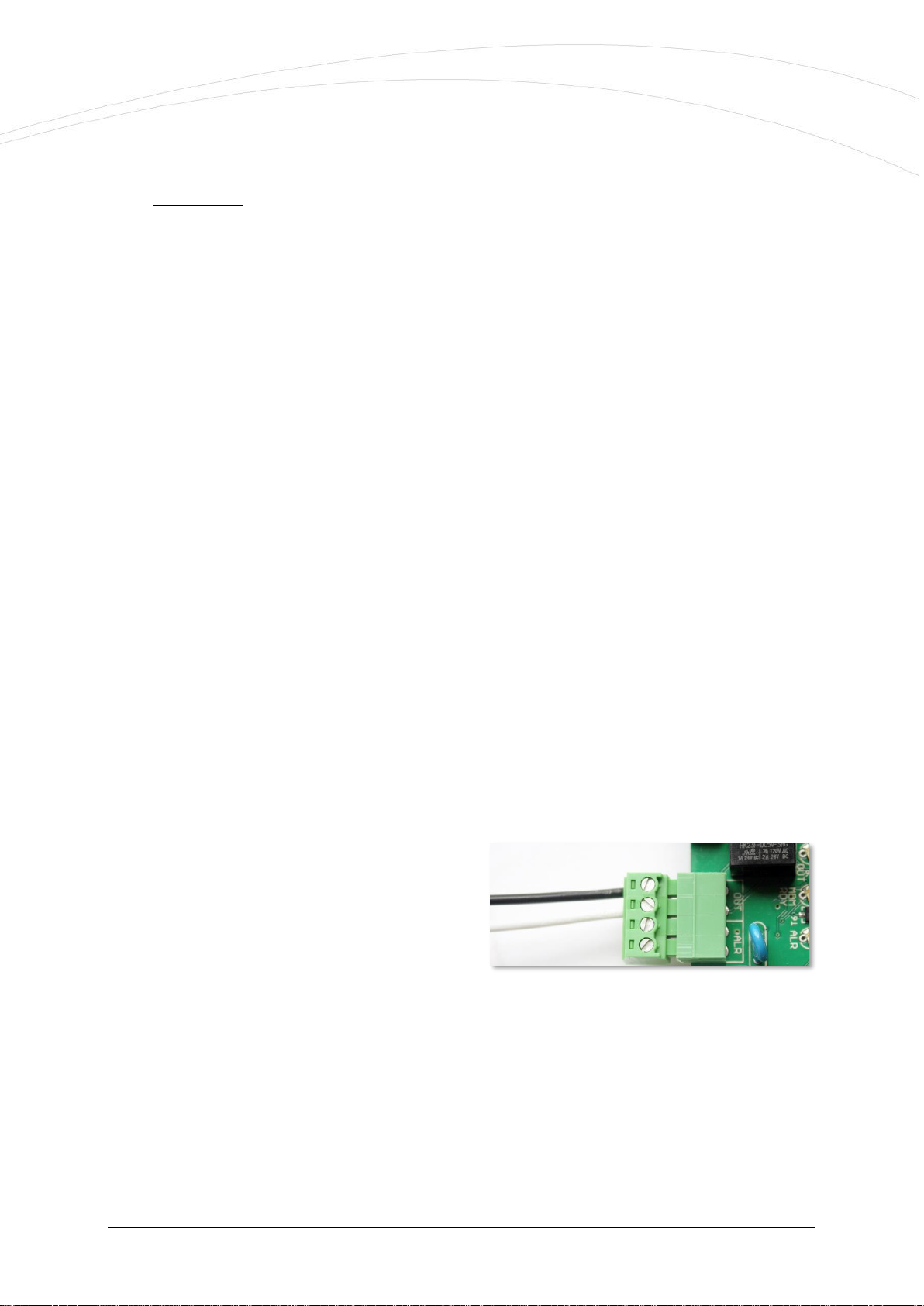

◼Connecting the relay output

One switchable output device can be connected to the relay output (OUT) of the mainboard),

according to the next figure. Connect the blanked cable wire pair to the OUT title output line’s

terminal block (by sliding the companion piece and inserting the stripped wire pair, then fixing

the screws).

Through the relay output a 2A - 120VAC or 1A

- 24VDC voltage can be switched. When

activating the output line (OUT), the OUT LED

–beside the output - indicates the active

(closed) position with the appropriate

color/light - during the operation.

Attention!

Always switch off power supply before the wiring!

Check that the metal parts of the connected wires are not touch to each other!

The Easy2 IO

expander

provides further 3 outputs (OUT2..OUT4). Their operation and

configuration is the same as we described.
