Wisi VX 56 B Series Manuel utilisateur

Quick start guide

WISI COMPACT LINE

This equipment must be installed and operated by qualiﬁed and trained

personnel only.

Please familiarize with the instructions before start-up.

Carefully inspect the device for any obvious damage. If it appears to have been dama-

ged, contact your WISI representative.

Do not use any equipment with noticeable damage!

Stay up to date

For more information on your device, please visit our support web-

site at wisiconnect.tv and browse to:

VX 56 B / VX 57 B series

RF ampliﬁer - dual output stage

417822-a (12/2019)

Knowledge Base > VX series > Products > VX 56 B / VX 57 B

http://bit.ly/wisivx56_57b

WISI COMPACT LINE

Quick start guide

VX 56 B / VX 57 B series

RF ampliﬁer - dual output stage

ESD protection

This product contains electrostatic sensitive components.

These parts can be damaged or effectively destroyed by electrostatic di-

scharge (ESD) during unpacking, installation, removal, storage, or shipment

if incorrectly handled.

Please note that discharge might go unnoticed by a user.

Always take common antistatic precautions when handling the equipment.

Electrical safety

Risk of bodily injury from electric shock!

Failure to adhere to these instructions could result in personal injury and/or

damage to electrical components.

• The equipment must be grounded in accordance to local and national electrical

standards.

• Power supply modules connected to the chassis are started up immediately when

mains supply voltage is applied to the power connector. In order to isolate the

chassis from mains voltage, the power connection must be separated.

• The power supply modules as well as all coaxial interfaces carrying remote power

feeding contain dangerous voltages. All service or maintenance work should be

carried out by qualiﬁed personnel who can get assistance by contacting the ma-

nufacturer’s agent.

CE declaration of conformity

Please ﬁnd the declaration of conformity at our website:

https://www.wisi.de/en/communications/service/download-area/

Then navigate through “CE Declarations of Conformity” and select the document link

corresponding to your device.

WISI COMPACT LINE

VX 56 B / VX 57 B series

RF ampliﬁer - dual output stage

Quick start guide

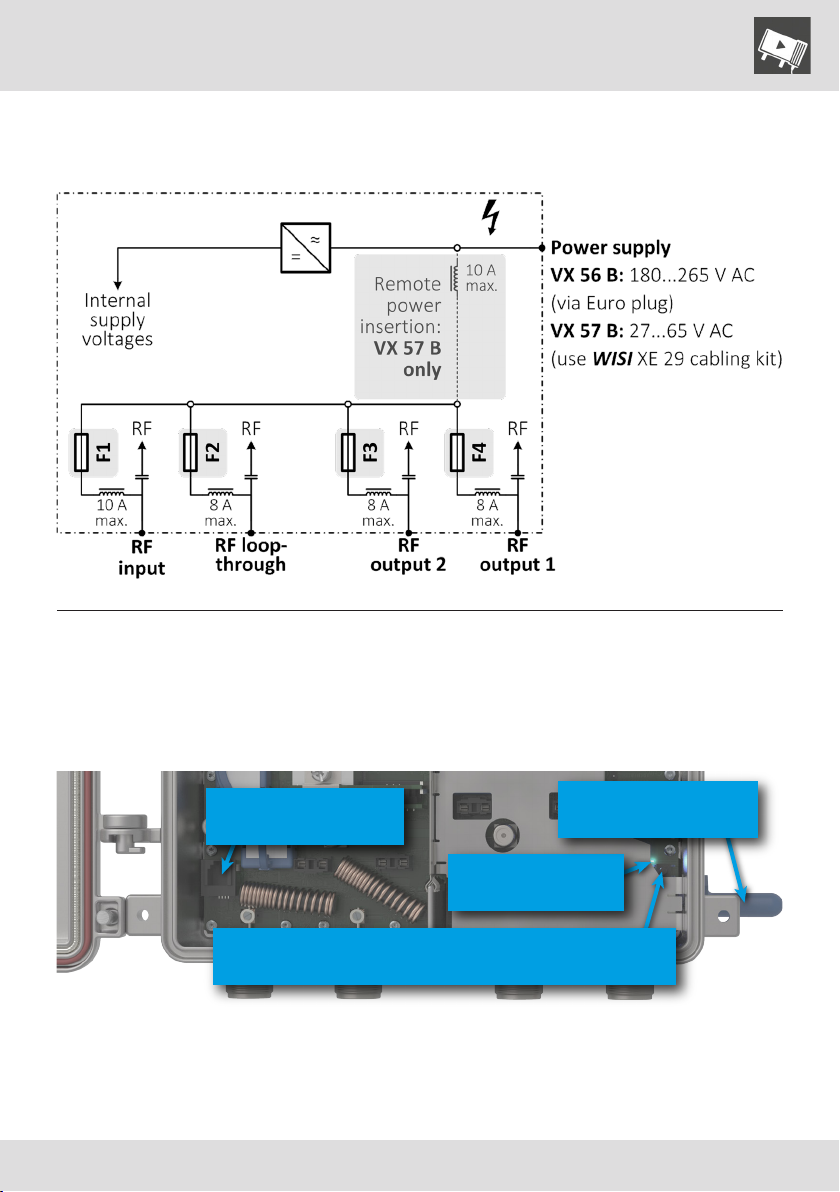

Remote powering

User interfaces: Handset OH 41 and Bluetooth

NOTE: The VX 5x B only works with handsets OK41A and OH41. OK41 is outdated and

not compatible.

Bluetooth

activation LED

Socket for

handset control

Bluetooth activation button

Effective only if „BT function“ is set to „Timeout“

WISI LB 01

bluetooth antenna

WISI COMPACT LINE

Quick start guide

Technical Modiﬁcations reserved.

WISI cannot be held liable for any printing error. www.wisi.de-4-

VX 56 B / VX 57 B series

RF ampliﬁer - dual output stage

WISI Communications GmbH & Co. KG

Wilhelm-Sihn-Strasse 5-7

75223 Niefern-Öschelbronn

Germany

Functional diagram
