Please read this instructions before operating the device and retain them for future reference.

15”/17”/19”/21.5”/23.8”

P-Cap Open Frame Panel PC

Intel® Core™ i7-7700T, 2.9 GHz

Intel® Core™ i5-7500T, 2.7 GHz

Intel® Core™ i3-7100T, 3.4 GHz

Incredible system expandability for versatile applications

Model No. R15IK7T-POC3

R17IK7T-POM1

R19IK7T-POM1

W22IK7T-POA3

W24IK7T-POA2

Quick Start Guide

Document Part No. 91521110104M

Document Version 1.0

15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide

Contents

Preface...................................................................................................................... 3

About This Quick Start Guide................................................................................. 6

Chapter 1: Introduction ........................................................................................... 7

1.1 Overview.............................................................................................................. 8

1.2 Product Features.................................................................................................. 8

1.3 Package Contents................................................................................................ 8

1.4 Product Overview................................................................................................. 9

1.5 Connector Description........................................................................................ 14

1.6 Dimming Knob.................................................................................................... 14

1.7 Physical Buttons and LED Indicators ................................................................. 15

Chapter 2: Mounting.............................................................................................. 16

2.1 Wall Mount......................................................................................................... 17

2.2 VESA Mount....................................................................................................... 18

Chapter 3: Getting Started .................................................................................... 19

3.1 Cable Mounting Considerations ......................................................................... 20

3.2 Wiring Requirements.......................................................................................... 20

3.3 Connecting Power.............................................................................................. 21

3.4 Connecting to Other Devices ............................................................................. 22

3.4.1 Power Input Connector............................................................................. 22

3.4.2 Serial Port Connector ............................................................................... 22

3.4.3 RJ-45 Connector ...................................................................................... 22

3.4.4 USB 3.0 Connector................................................................................... 23

3.4.6 DisplayPort 1.2 Connector........................................................................ 23

3.4.7 HDMI 1.4 Connector................................................................................. 23

3.4.8 Audio Connector....................................................................................... 24

Chapter 4: Operating the Device .......................................................................... 25

4.1 Operating System............................................................................................... 26

4.2 How to Enable Watchdog................................................................................... 26

4.3 Using Recovery Wizard to Restore Computer.................................................... 28

Appendix A: Product Specifications.................................................................... 29

Preface

No part of this document may be reproduced, copied, translated, or transmitted in any form or

by any means, electronic or mechanical, for any purpose, without the prior written permission

of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer

We reserve the right to make changes, without notice, to any product, including circuits and/or

software described or contained in this manual in order to improve design and/or performance.

We assume no responsibility or liability for the use of the described product(s) conveys no

license or title under any patent, copyright, or masks work rights to these products, and make

no representations or warranties that these products are free from patent, copyright, or mask

work right infringement, unless otherwise specified. Applications that are described in this

manual are for illustration purposes only. We make no representation or guarantee that such

application will be suitable for the specified use without further testing or modification.

Warranty

Our warranty guarantees that each of its products will be free from material and workmanship

defects for a period of one year from the invoice date. If the customer discovers a defect, we

will, at his/her option, repair or replace the defective product at no charge to the customer,

provide it is returned during the warranty period of one year, with transportation charges

prepaid. The returned product must be properly packaged in its original packaging to obtain

warranty service. If the serial number and the product shipping data differ by over 30 days, the

in-warranty service will be made according to the shipping date. In the serial numbers the third

and fourth two digits give the year of manufacture, and the fifth digit means the month (e. g.,

with A for October, B for November and C for December).

For example, the serial number 1W16Axxxxxxxx means October of year 2016.

Customer Service

We provide a service guide for any problem by the following steps: First, visit the website of

our distributor to find the update information about the product. Second, contact with your

distributor, sales representative, or our customer service center for technical support if you

need additional assistance.

You may need the following information ready before you call:

Product serial number

Software (OS, version, application software, etc.)

Description of complete problem

The exact wording of any error messages

In addition, free technical support is available from our engineers every business day. We are

always ready to give advice on application requirements or specific information on the

installation and operation of any of our products.

15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide

Advisory Conventions

Four types of advisories are used throughout the user manual to provide helpful information or

to alert you to the potential for hardware damage or personal injury. These are Notes,

Important, Cautions, and Warnings. The following is an example of each type of advisory.

Note:

A note is used to emphasize helpful information

Important:

An important note indicates information that is important for you to know.

Caution A Caution alert indicates potential damage to hardware and

explains how to avoid the potential problem.

Attention Unealerted’ attention indique un dommage possible à

l’équipement et explique comment éviter le problem potentiel.

Warning! An Electrical Shock Warning indicates the potential harm from

electrical hazards and how to avoid the potential problem.

Avertissement ! Un Avertissement de Choc Électriqueindique le

potentiel de chocssur des emplacements électriques et comment

éviterces problèmes.

Safety Information

Warning! Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not make connections

while the power is on. Sensitive electronic components can be damaged

by sudden power surges. Only experienced electronics personnel should

open the PC chassis.

Avertissement ! Toujours débrancher le cordon d’alimentation du

chassis lorsque vous travaillez sur celui-ci. Ne pas brancher de

connections lorsque l’alimentation est présente. Des composantes

électroniques sensibles peuvent être endommagées par des sauts

d’alimentation. Seulement du personnel expérimenté devrait ouvrir ces

chassis.

Alternating Currrent ! The Protective Conductor Terminal (Earth

Ground) symbol indicates the potential risk of serious electrical shock

due to improper grounding.

Mise à le Terre! Le symbole de Miseà Terre indique le risqué

potential de choc électrique grave à la terre incorrecte.

Preface

CAUTION Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very sensitive to static

electric charges. As a safety precaution, use a grounding wrist strap at all

times. Place all electronic components in a static-dissipative surface or static-

shielded bag when they are not in the chassis.

ATTENTION Toujours verifier votre mise à la terre afin d’éliminer toute

charge statique avant de toucher la carte CPU. Les équipements

électroniques moderns sont très sensibles aux décharges d’électricité

statique. Toujours utiliser un bracelet de mise à la terre comme précaution.

Placer toutes les composantes électroniques sur une surface conçue pour

dissiper les charge, ou dans un sac anti-statique lorsqu’elles ne sont pas dans

le chassis.

Safety Precautions

For your safety carefully read all the safety instructions before using the device. Keep this user

manual for future reference.

Always disconnect this equipment from any AC outlet before cleaning. Do not use liquid or

spray detergents for cleaning. Use a damp cloth.

For pluggable equipment, the power outlet must be installed near the equipment and must

be easily accessible.

Keep this equipment away from humidity.

Put this equipment on a reliable surface during installation. Dropping it or letting it fall

could cause damage.

The openings on the enclosure are for air convection and to protect the equipment from

overheating.

Before connecting the equipment to the power outlet make sure the voltage of the power

source is correct.

Position the power cord so that people cannot step on it. Do not place anything over the

power cord.

If the equipment is not used for a long time, disconnect it from the power source to avoid

damage by transient over-voltage.

Never pour any liquid into an opening. This could cause fire or electrical shock.

Never open the equipment. For safety reasons, only qualified service personnel should

open the equipment.

All cautions and warnings on the equipment should be noted.

Caution Always ground yourself to remove any static charge before

touching the board. Modern electronic devices are very sensitive to static

electric charges. As a safety precaution, use a grounding wrist strap at all

times. Place all electronic components in a static-dissipative surface or static-

shielded bag when they are not in the chassis.

Attention Reliez-vous toujours à la terre pour éliminer toute charge statique

avant de toucher le tableau. Les appareils électroniques modernes sont très

sensibles aux charges d'électricité statique. Par mesure de sécurité, utilisez

toujours un bracelet antistatique. Placez tous les composants électroniques

dans une surface antistatique ou dans un sac antistatique lorsqu'ils ne sont

pas dans le châssis.

15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide

About This Quick Start Guide

This User Manual provides information about using the Winmate® 15~23.8”P-Cap Open

Frame Panel PC. The documentation set provides information for specific user needs, and

includes:

IK70 SBC User Manual –contains detailed description on how to use the panel PC

running on IK70 SBC, contains BIOS setting and driver installation procedure.

Quick Start Guide –describes how to get the panel PC up and running.

Note:

Some pictures in this guide are samples and can differ from actual product.

Document Revision History

Version

\ Date

Note

1.0

1-Aug-2019

New document release

Chapter 1: Introduction

This chapter gives you product overview, describes features and hardware

specification. You will find all accessories that come with the panel PC in

the packing list. Mechanical dimensions and drawings included in this

chapter.

15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide

1.1 Overview

Congratulations on purchasing Winmate® P-Cap Open Frame Panel PC. Versatile panel PC in

an open-frame housing designed for rear and VESA mount solution with integrated bracket

design for KIOSK and smart retail applications. It is designed to meet the demanding

performance requirements of today’s business and industrial applications and offers incredible

system expandability for versatile smart retail scenarios.

The Winmate P-Cap Open Frame Panel PC is a microprocessor-controlled computer that runs

on Intel® 7th Generation Core™i3/i5/i7 (Kaby Lake) processor and has screen sizes available

15”, 17”, 19”, 21.5”and 23.8” TFT LCD. Panel PC feature all necessary connectors, four USB

3.0 ports, two RS-232/422/485, VGA, two RJ-45 Ethernet ports and one D.P1.2 and one HDMI

port.

1.2 Product Features

Winmate® P-Cap Open Frame Panel PC features:

15”, 17”, 19”, 21.5” and 23.8” TFT LCD

Intel® 7th Generation Core™ i3/i5/i7 (Kaby Lake) processor

Slim-line design in open-frame housing

Multitouch P-Cap flat design, optional anti-glare coating

12V DC input with power jack

Wall mount or VESA mount

Suitable for KIOSK, smart retail applications

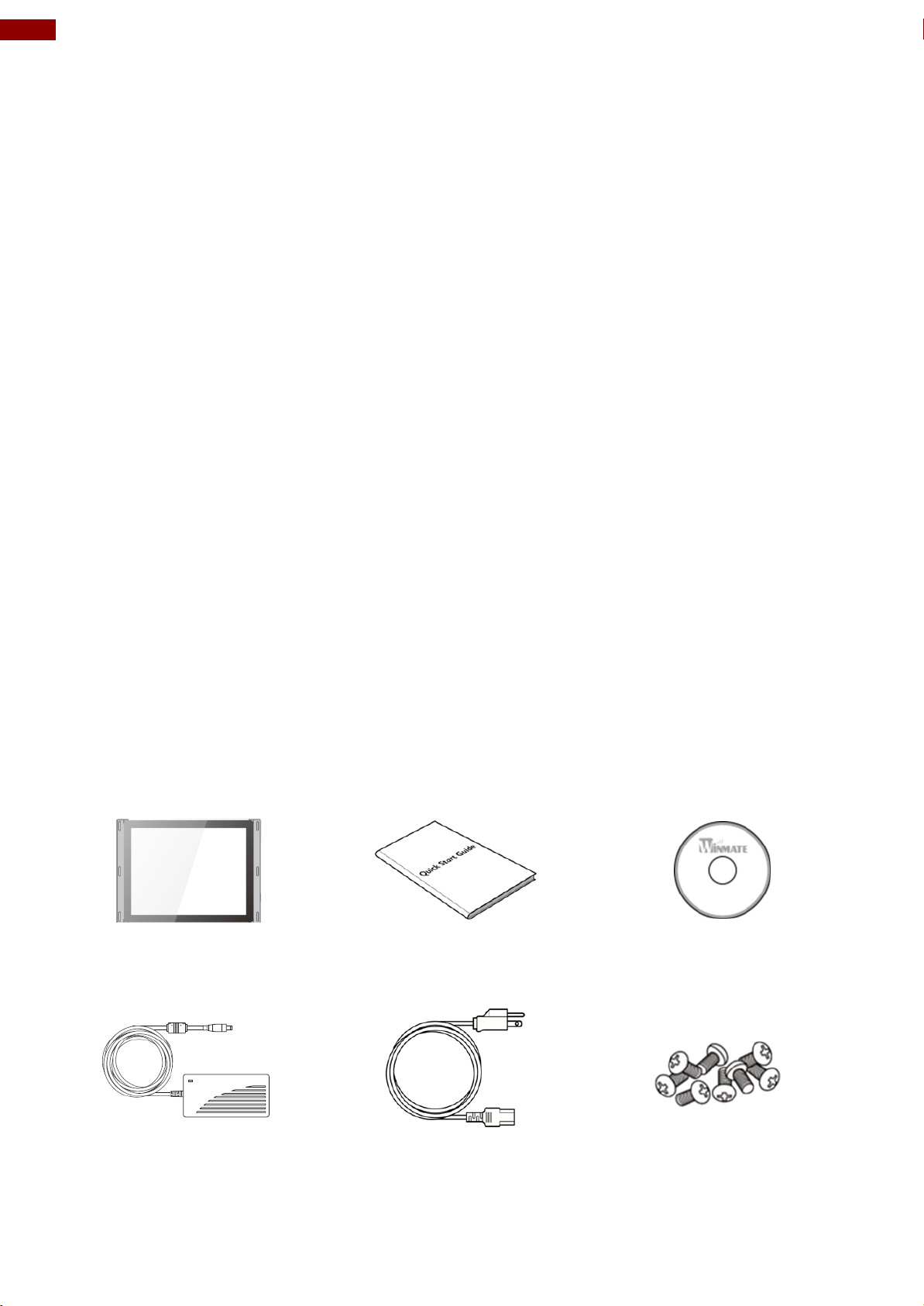

1.3 Package Contents

Carefully remove the box and unpack your Panel PC. Please check if all the items listed below are

inside your package. If any of these items are missing or damaged contact us immediately.

Standard factory shipment list:

Panel PC

Quick Start Guide

(Hardcopy)

Driver CD & IK70 SBC

User Manual

Varies by product specifications

Part No. 91521110104M

Part No. 9171111I103Y

AC Adapter (12V/ 50W)

Power Cable

Black Screw Bolts*

Part No. 922D050W12VA

Varies by country

Part No. 913511101111

*Notice: Screw bolts provided by Winmate only to be used to screw the panel PC onto a console

from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in length.

Chapter 1: Introduction

1.4 Product Overview

This section describes physical appearance of the Open Frame Panel PC.

Notice that input and output connectors vary by product size and specifications. The picture above

shows only a prototype model for information purposes only.

15”, R15IK7T-POC3 Unit: mm

Dimensions: 360 x 272 x 72

№

Description

№

Description

①

OSD Membrane (Physical Buttons and

LED Indicators)

⑥

DisplayPort 1.2

②

2 x RS-232/422/485

⑦

HDMI 1.4

③

Mic In/Line Out

⑧

Power Jack 4-pin (12V DC)

④

4 x USB3.0

⑨

Dimming Knob

⑤

RJ45 (LAN)

15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide

17”, R17IK7T-POM1 Unit: mm

Dimensions: 407 x 338 x 78

№

Description

№

Description

①

OSD Membrane (Physical Buttons and

LED Indicators)

⑥

DisplayPort 1.2

②

2 x RS-232/422/485

⑦

HDMI 1.4

③

Mic In/Line Out

⑧

Power Jack 4-pin (12V DC)

④

4 x USB3.0

⑨

Dimming Knob

⑤

RJ45 (LAN)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Winmate Écran tactile

Winmate

Winmate T5-series Manuel utilisateur

Winmate

Winmate G-Win Series Manuel utilisateur

Winmate

Winmate R15IB3S-65EX Manuel utilisateur

Winmate

Winmate W04FA3S-EHT1 Manuel utilisateur

Winmate

Winmate R15IK3S-SPC3 Manuel utilisateur

Winmate

Winmate R15IB7T-POC3 Manuel utilisateur

Winmate

Winmate R15ID3S-65EX Manuel utilisateur

Winmate

Winmate W15IB3S-EHA4 Manuel utilisateur

Winmate

Winmate W07FA3S-EHT1 Manuel utilisateur

Winmate

Winmate R15IB3S-65EX Manuel utilisateur

Winmate

Winmate W04FA3S-EHT1 Manuel utilisateur

Winmate

Winmate W19IB3S-CHA1 Manuel utilisateur

Winmate

Winmate R17IB3S-RKA1ML Manuel utilisateur

Winmate

Winmate W07FA3S-GCM1 Manuel utilisateur

Winmate

Winmate W22IB3S-PCA3 PPC Manuel utilisateur

Winmate

Winmate R15IH3S-MRA3FP Manuel utilisateur

Winmate

Winmate R15IT3S-SPC369 Manuel utilisateur

Winmate

Winmate W10IB3S-GSH2 Manuel utilisateur

Winmate

Winmate W10IB3S-PCH2-PoE S-Series Manuel utilisateur

Winmate

Winmate W07L100-GCM1 Manuel utilisateur

Winmate

Winmate W05TA3S-PCT3AC Manuel utilisateur

Winmate

Winmate R17IK3S-SPM1 Manuel utilisateur

Winmate

Winmate R15IH3S-MRA3FP Manuel utilisateur

Winmate

Winmate R10FA3S-GST2 Manuel utilisateur

Manuels Écran tactile populaires d'autres marques

FlowLine

FlowLine Data loop Manuel utilisateur

ALPEX

ALPEX AEx-8 P Series Manuel utilisateur

Ltech

Ltech E5S Manuel utilisateur

Harman

Harman AMX MODERO S MSD-701-L2 Manuel utilisateur

Acnodes

Acnodes PC 1150 Manuel utilisateur

AIS

AIS IP10IA99 series Manuel utilisateur

IBASE Technology

IBASE Technology ASTUT-152-RE1S Manuel utilisateur

YASKAWA

YASKAWA TP 610C Manuel utilisateur

B&R

B&R Power Panel C Series Manuel utilisateur

Beijer Electronics

Beijer Electronics X2 control Manuel utilisateur

AXIOMTEK

AXIOMTEK GOT321W-521 Manuel utilisateur

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Manuel utilisateur

Qomo

Qomo QIT1386 Manuel utilisateur

DFI

DFI KS104-CD Manuel utilisateur

AMX

AMX AXP-PPC Mode d’emploi

Sartorius

Sartorius X3 PR 5410 Manuel utilisateur

AMX

AMX Modero X Series Manuel utilisateur

Advantech

Advantech TPC-30 Series Manuel utilisateur
