Winmate M133WU Series Manuel utilisateur

Please read these instructions carefully before using this product, and save this manual for future use.

M133WU Series

Ultra-Rugged Tablet PC

Ubuntu OS

Quick Start Guide

V1.0

For more information on this

and other Winmate products,

please visit our website at:

www.winmate.com

Contents

Read Me First 2

Advisory Conventions 2

Safety Information 3

Handling and Maintenance 5

Getting Started 6

Unpacking 6

Description of Parts 7

Docking ConnectorDetail: 8

Combination Keys (Keyboard Key Emulation) 9

First-time Operation 10

Inserting SIM card 10

Inserting Battery Pack 11

Removing the Battery Pack 11

Using Hot Swappable Battery Feature 11

Connecting to Power Supply 12

Kickstand Installation 13

Turning On and Off 13

Turning On 13

Turning Off 13

Using Win-set Utility 14

Changing Touch Mode 15

Changing Touchscreen Mode in Win-Set 15

Troubleshooting (Basic) 16

2 M133WU Quick Start Guide

Read Me First

Advisory Conventions

Four types of advisories are used

throughout the user manual to provide

helpful information or to alert you to the

potential for hardware damage or

personal injury. These are Notes,

Important, Cautions, and Warnings. The

following is an example of each type of

advisory.

NOTE:

A note is used to emphasize

helpful information

IMPORTANT:

An important note indicates

information that is important

for you to know.

CAUTION/ ATTENTION

A Caution alert indicates

potential damage to hardware

and explains how to avoid the

potential problem.

Unealerted’attentionindique un

dommage possible à

l’équipement et explique

comment éviter le

problèmepotentiel.

WARNING!/AVERTISSEMENT!

An Electrical Shock Warning

indicates the potential harm

from electrical hazards and how

to avoid the potential problem.

Un Avertissement de Choc

Électriqueindique le potentiel de

chocssur des emplacements

électriques et comment

évitercesproblèmes.

M133WU Quick Start Guide 3

Safety Information

Follow and adhere to all warnings and instructions in this manual. For your safety, please

read all safety and operating instructions before using the product.

Precaution on

Battery Pack

Do Not Expose the Battery Pack to

Excessive Heat, or Extreme Heat

(Near Fire, in Direct Sunlight for

example) Generation of heat, ignition

or rupture may result

Do Not Disassemble, Modify, or Insert

Sharp Objects Into the Battery Pack.

Electrolyte leakage, generation of heat,

ignition or rupture may result.

Do Not Short the Positive (+) and

Negative (-) Terminals of the Battery.

Generation of heat, ignition or rupture

may result. When carrying or storing

the device, do not place the battery

pack together with articles that may

contact electricity.

Do Not Apply Shocks to the Battery by

Dropping It or Applying Strong

Pressure to It. Electrolyte leakage,

generation of heat, ignition or rupture

of battery may occurs.

Do Not Charge the Battery Other Than

Methods Those Specified In This

Manual. If the battery is not charged

using one of the specified methods,

electrolyte leakage, generation of heat,

ignition or rupture may result.

General Product

Safety

This product should not be used

near water such as bathtubs,

sinks, swimming pools, wet

basement, etc.

Do not block any ventilation

openings. Do not place the

product against a wall or in an

enclosed space as doing so might

impede the flow of cooling air.

Do not place the product near any

heat sources such as radiators,

warm air intakes, stoves or other

heat-generating devices (including

amplifiers or other heat producing

equipment).

Refer all servicing to qualified

service personnel. A technical

intervention is required when the

apparatus has been damaged in

any way, for example if the power

cord or plug is damaged, liquid

has been spilled or objects have

fallen inside the unit, if the product

has been exposed to rain or

moisture, if it does not operate

normally or if it has been dropped.

4 M133WU Quick Start Guide

When the Battery Pack Has

Deteriorated, Replace It with a New

Battery. Continued use of a damaged

battery pack may result in heat

generation, ignition or battery rupture.

Do Not Use the Battery Pack With Any

Other Products. The battery pack is

rechargeable and is only designed for

this specific product. If it is used with a

product other than the specified

product, electrolyte leakage,

generation of heat, ignition or rupture

may result.

Do Not Use This Productеwith Battery

Other Than the One Specified.

General Product

Safety

Do not use excessive force on the

display. Avoid placing objects on top of

the display as this may cause the glass

to break.

When there is a noticeable discrepancy

in the operation of the touchscreen

function (your touch does not correlate

to the proper location on the screen),

recalibrate the touchscreen display.

Do not disregard the safety that a

polarized or grounded connection

can provide. A polarized

connection consists of two plugs,

one of which is larger than the

other. A grounded connection has

two blades and a third one that is

grounded. If the main plug

provided cannot be inserted into

your outlet, consult an electrician

to replace your obsolete outlet.

Protect the power cord from being

crushed or pinched, particularly in

the area of the plugs, any

receptacles used, and the point of

exit from the apparatus. Do not

break off the ground pin of the

power cord.

Use only accessories specified by

the manufacturer.

General Product

Safety

Use only with its transport

carriage, stand, tripod, console or

table specified by the

manufacturer or sold with the

product. When using a carriage,

move the carriage assembly with

the product carefully to avoid

damage from falling over.

Unplug this apparatus during

lightning storms or when it is not

being used for long periods.

M133WU Quick Start Guide 5

Handling and Maintenance

Follow and adhere to all warnings and instructions in this manual. For the longevity of the

product usage, please read all operating instructions before using the product.

General Guideline

Keep the product at least 13 cm (5

inches) away from electrical

appliances that can generate a strong

magnetic field such as TV, refrigerator,

motor, or a large audio speaker.

Do not place heavy objects on top of

the tablet computer as this may

damage the display.

The screen surface can be easily

scratched. Use with care. Do not use

paper towels to clean the display but

use the included cleaning cloth. Avoid

touching it with a pen or pencil.

To maximize the life of the backlight in

the display, allow backlight to

automatically turn off as a result of

power management. Avoid using a

screen saver or other software that

prevents the power management from

working.

•It is recommended to reboot the

device when some functions are

defect or inactive. If it still can't solve

the problems please contact your

dealer or agent.

Cleaning Guideline

Use a soft cloth moistened with water

or a non-alkaline detergent to wipe

the exterior of the product.

Gently wipe the display with a soft,

lint-free cloth. Do not use alcohol or

detergent on the product.

Touchscreen

Guideline

Use your finger or the stylus on the

display. Using sharp or metallic

object may cause scratches and

damage the display, thereby causing

errors.

6 M133WU Quick Start Guide

Getting Started

Congratulations on purchasing Winmate® M133WU Ultra-Rugged Tablet Computer. The

rugged design allows you to use it in harsh outdoor environments.

This quick start guide tells you step by step how to get the Tablet Computer up and running.

Unpacking

Check and identify the supplied accessories:

Tablet Computer

Standard Battery

Power Adapter

Power Cord and Plugs

Stylus

VESA Mounting Kit (Optional)

Kickstand (Optional)

Shoulder Strap (Optional)

Quick Start Guide & Driver CD

M133WU Quick Start Guide 7

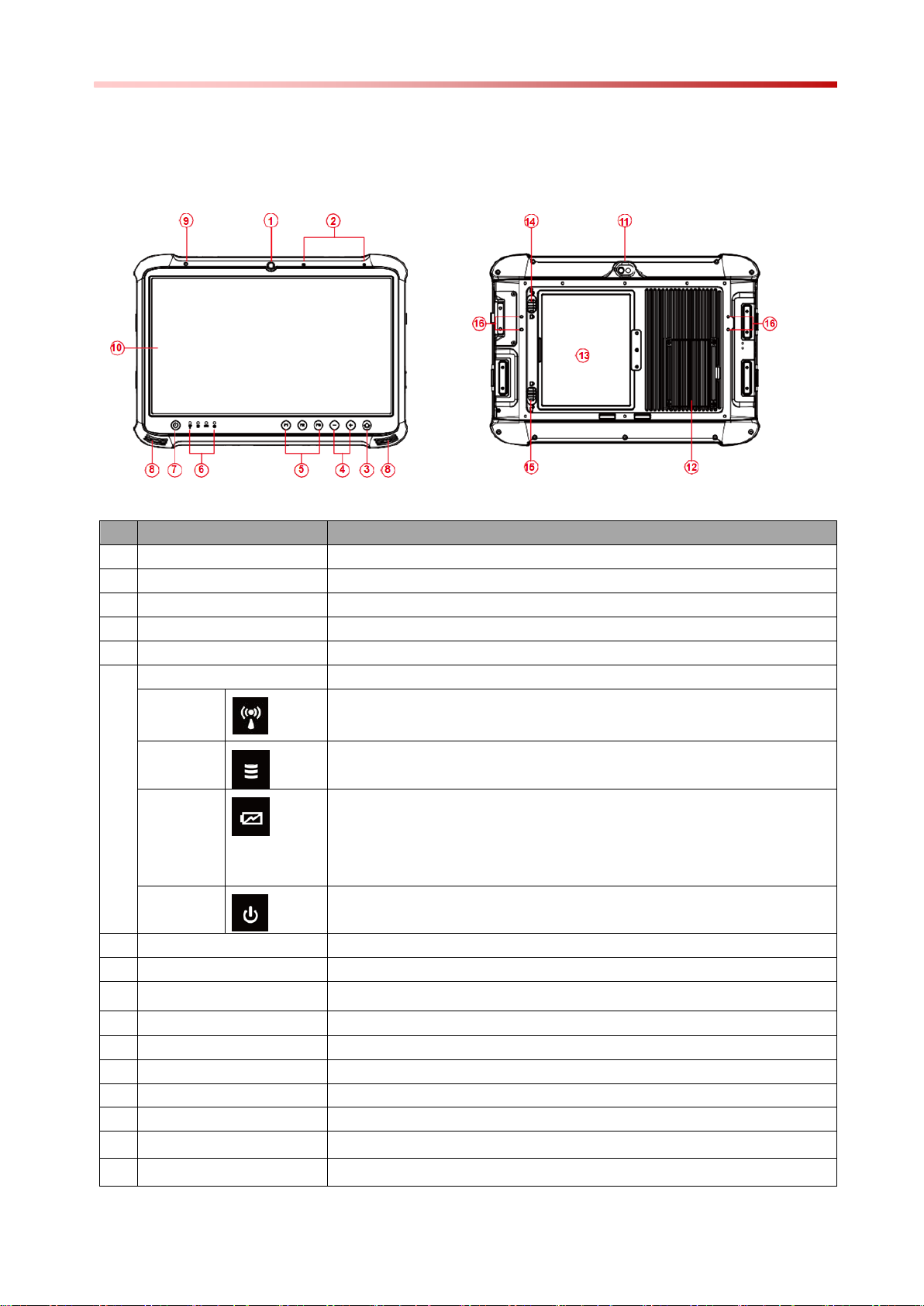

Description of Parts

Front:

Rear:

Item

Description

Front Camera

2 Megapixel Webcam

Microphone

Digital Microphones

Menu Button

WinSet Quick Access

+/- Buttons

Volume Control Buttons

Fn Buttons

Programmable Function Buttons

LED Indicators:

Show the current status of the Tablet Computer

Green - WiFi/BT/3G/GPS ON

No light - None of WiFi/BT/3G/GPS is ON

HDD

Green - Harddrive Activity

No light - Harddrive Idling

Battery

Orange –AC adapter is plugged in and charging

Green –AC adapter is plugged in and battery is completely charged

Solid Red - Low battery (<10%)

Blinking Red –Battery is being hot swapped.

Not lit –Battery is in use and more than 10%

Power

Blue –Tablet is ON

No light –Tablet is OFF

Power Button

Turns on/off tablet

Speakers

Emit sounds

Light Sensor

Controls screen brightness

Touchscreen

Display and input for tablet

Rear Camera

5 Megapixel Camera with Flash

Service Window

Access to 2 SSD M.2 slots,1 WWAN mPCIe slot, and Micro Sim Slot.

Battery

User-replaceable battery

Battery Lock Latch

Latch to lock the battery once battery is inserted. Not spring-loaded.

Battery Release Slider

Spring-loaded slider that latches the battery in.

Kickstand Screw Holes

Screw holes to mount the kickstand onto the tablet

8 M133WU Quick Start Guide

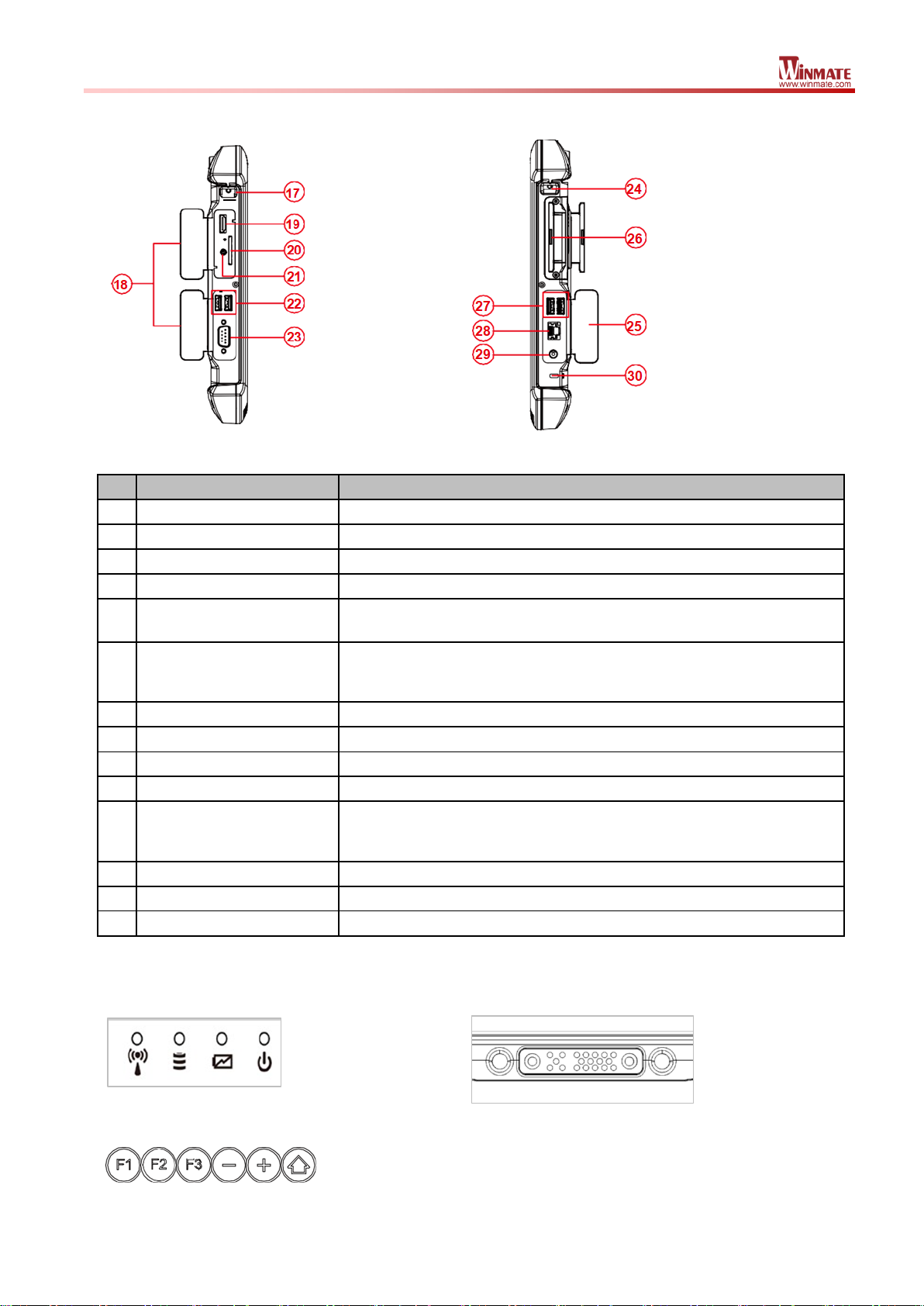

Left:

Right:

Item

Description

Shoulder Strap D-Ring

Provides loop to mount shoulder strap

I/O Cover

Protects I/O Ports

HDMI

HDMI output to external display

SD Card

Memory card reader port for SD Card

Audio Jack

(Mic In/Line Out)

Headset or headphone can be connected

(Mic is only supported with 3.5mm 4-pin headset)

USB 3.0 x 2

2 Ports High Speed USB ports, connects to USB devices such as USB

flash

drive, mouse, keyboard, printer, etc.

RS232 Serial Port

RS232 COM Port interface for serial communication

Shoulder Strap D-Ring

Provides loop to mount shoulder strap

I/O Cover

Protects I/O Ports

Optional I/O Slot

Option of Smart Card Reader or 1D/2D Barcode Scanner

USB 2.0 x 2

2 Ports High Speed USB ports, connects to USB devices such as USB

flash

drive, mouse, keyboard, printer, etc.

LAN Port

Gigabit Ethernet RJ45 Connector for LAN connection

Power Jack

DC-IN Power input jack

Kensington Lock Port

Provides lock access for Kensington Lock.

Front LED Indicators Detail:

Docking ConnectorDetail:

Front Button Details:

M133WU Quick Start Guide 9

Combination Keys (Keyboard Key Emulation)

For the physical buttons on the tablet computer, in addition to their dedicated functions

detailed in the previous section, they can also be used to emulate commonly used

keyboard key strokes. Under different scenario, a single physical button or a combination of

physical buttons provide different keyboard key strokes, which are specified below:

Under POST (before Ubuntu boots up):

Buttons

Keystroke

Fn1

Recovery Menu

Fn2

ESC

Fn3

No Function

Up (+)

Down (-)

Down

Menu + Fn1

Enter

Menu + Up (+)

Right

Menu + Down (-)

Left

Under Ubuntu:

Buttons

Keystroke

Ctrl + Alt + 0

Fn1

Short Press

Default: Google

Chrome

Long Press

Default: Touch mode

switch

Fn2

Short Press

- Default: Camera

(without Barcode)

- Barcode (with

Barcode)

Long Press

Default: Volume Mute

(without Barcode)

Up (+)

Default: Increase panel

brightness

Down (-)

Default: Decrease panel

brightness

Power

Power ON/ OFF

Up (+)

Down (-)

Ctrl + Alt + Del

LED Indicators:

Item

Description

Power Indicator

Blue–Tablet is ON

No light–Tablet is OFF

Battery Status

Orange–AC adapter is plugged in and charging

Green–AC adapter is plugged in and battery is full

charged

Solid Red - Low battery (<10%)

Blinking Red –Battery is being hot swapped.

No light –Battery is in use and more than 10%

Disk Activity Indicator

Green - Disk Activity

No light - Disk Idling

RF Communication

Green - One of WiFi/BT/WWAN/GPS is ON

No light - WiFi/BT/WWAN/GPS are all OFF

Table des matières

Autres manuels Winmate Ordinateur de bureau

Winmate

Winmate FM10 Manuel utilisateur

Winmate

Winmate IHMH100 Manuel utilisateur

Winmate

Winmate IBMH100 Manuel utilisateur

Winmate

Winmate M-Series Manuel utilisateur

Winmate

Winmate IKMH100 Manuel utilisateur

Winmate

Winmate IBDRW100-P Manuel utilisateur

Winmate

Winmate IBMH100 Manuel utilisateur

Winmate

Winmate I330EAC-IKW Manuel utilisateur

Winmate

Winmate FM10E Manuel utilisateur

Winmate

Winmate FM10 Manuel utilisateur

Winmate

Winmate FA30SB3-210 Manuel utilisateur

Winmate

Winmate IH7T-RK2U Manuel utilisateur

Winmate

Winmate IHMH100 Manuel utilisateur

Winmate

Winmate M700DT4 Manuel utilisateur

Winmate

Winmate FM07E Manuel utilisateur

Winmate

Winmate 98T012A0002G Manuel utilisateur

Winmate

Winmate M133W Manuel d'installation et d'exploitation

Winmate

Winmate IBDRW100-EL Manuel utilisateur

Winmate

Winmate Tandy Sensation Manuel utilisateur

Winmate

Winmate E430RQ8 Series Manuel utilisateur

Winmate

Winmate FM12Q Manuel utilisateur

Winmate

Winmate FM-V Series Manuel utilisateur

Winmate

Winmate FM10A Manuel utilisateur

Winmate

Winmate FM12E Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
