Trouble Shooting for AS-2003 Satellite Antenna

I. Will not turn on

This trouble-shooting guide will help you solve problems with Model AS-2003 satellite antenna. If, after following these steps, you

need further assistance, call Winegard Technical Services at 1-800-788-4417.

Are you using a

power supply from

Winegard that

came with

the unit?

YES YES YES YES

Is the power

source plugged

into an active 120

VAC outlet?

Are you using a 13.8 VDC fil-

tered power source with at

least 3 amps of constant cur-

rent and no current limiting?

Replace power supply.

Is the power

source turned

on?

Measure the DC volt-

age between the

black (ground) and

brown wire at the pin

on the back of your

wall plate. See Figure

1. Does it measure

13+ VDC? 5

Remove the electron-

ics box lid. Find the

3-terminal connector

and the pins con-

nected to the red and

black (ground) wires.

Measure the DC volt-

age between these

pins. Does it measure

13+ VDC? Figure 2.

Now measure the

screw heads con-

nected to brown and

black wires on back

of control panel. Does

this measure 13+

VDC? Figure 1.

Does the power source

measure 13+ VDC?

Replace

connector YES

Replace

electronics

box.

Replace

power sup-

ply with 13.8

VDC filtered

power

source with

at least 3

amps of

constant

current and

no current

limiting.

Now measure the

screw heads con-

nected to the red and

black wires on the

3-terminal connector.

Does the voltage

measure 13+ VDC

between these screw

heads? Figure 2.

YES

Replace

3-terminal

connector.

Replace

cable

containing

the power

wires.

YES

Figure 2

Figure 1

Pin connected

to red wire

Screw head

connected to

red wire

Pin connected

to black

(ground) wire

Screw head

connected to

black (ground) wire

YES

Screw head

connected to red wire Screw head connected

to brown wire

Pin connected to

black (ground) wire

Pin connected to

brown wire

Screw head

connected to

black (ground)

wire

Pin connected

to red wire

Control panel inside RV

Electronics box on RV roof

YES

Replace

control panel.

Replace 9-terminal

connector.

Replace cable with

9 colored wires.

YES Replace connector

Measure the DC volt-

age between the

black (ground) and

red wires at the pin.

Does it measure 12.5

VDC?

Now measure the

screw heads con-

nected to red and

black wires on back

of control panel. Does

this measure 12.5

VDC also? Figure 1.

Remove the electron-

ics box lid. Find the

9-terminal connector

and the pins con-

nected to the red and

black (ground) wires.

Measure the DC volt-

age between these

pins. Does it measure

12.5 VDC? Figure 3.

Now measure the

screw heads con-

nected to the red and

black wires on the

9-terminal connector.

Does the voltage

measure 12.5+ VDC

between these screw

heads? Figure 3.

YES

Figure 3

Replace

electronics box

YES

Screw head connected to red wire

Pin connected to

black (ground) wire

Pin connected

to red wire

Screw head

connected to

black wire

Electronics box on roof

II. On, Park, Search & Off LEDs are on (No LNB power)

Is the receiver

plugged into an

active 120 VAC

outlet? Power on

receiver to verify.

YES

Plug into receiver,

turn on and set

menu to signal

strength screen.

Is the bright white primary coax cable connected

from Satellite In jack on the back of the receiver to

the coax connection on the left side of the

electronics box? Figures 4 and 5.

Connect the white

primary coax

cable correctly.

Figure 4 Figure 5

Coax cable connects from electronics

box to receiver.

Control panel inside RV

Wall Plate

Control Panel

inside vehicle

SEARCH/

MOVING

WINEGARD

ON OFF

PARK

AS-2003

SATELLITE SYSTEM

Do the lights

flush once?

then remain

ON?

YES

Replace

electronics

box.

YES

Is LNBF coax

cable con-

nected from

the LNBF to

the coax posi-

tioned on the

right connec-

tor on the

electronics

box? Figures

6, 7.

Are all coax

connections

properly

crimped and

free of shorts?

YES YES

Does the

coax cable

connected to

the LNB mea-

sure 11-18

VDC between

the copper

center con-

ductor (+) and

connector (-)?

Figure 8.

Substitute

LNBF with an

LNBF known to

be good.

Power down,

then try to run

again. On the

control panel,

do all lights re-

main on?

Replace

connectors.

Replace receiver.

Does voltage

on Satellite In

receiver jack

measure be-

tween 12 & 18

volts?

See Note.

YES Replace coax

cable connecting

receiver and

LNBF.

Connect

the LNBF

coax cable

correctly.

Connects from LNBF to

electronic box

Figure 6 Figure 7

YES

Replace elec-

tronics box.

NOTE

Do not try to insert the test meter probes into the

coax cable connectors. This will cause permanent

damage to the connectors. Use a short piece of

coax with a connector on one end, or Winegard’s

TE-1400 voltage tester (available from your

Winegard Distributor).

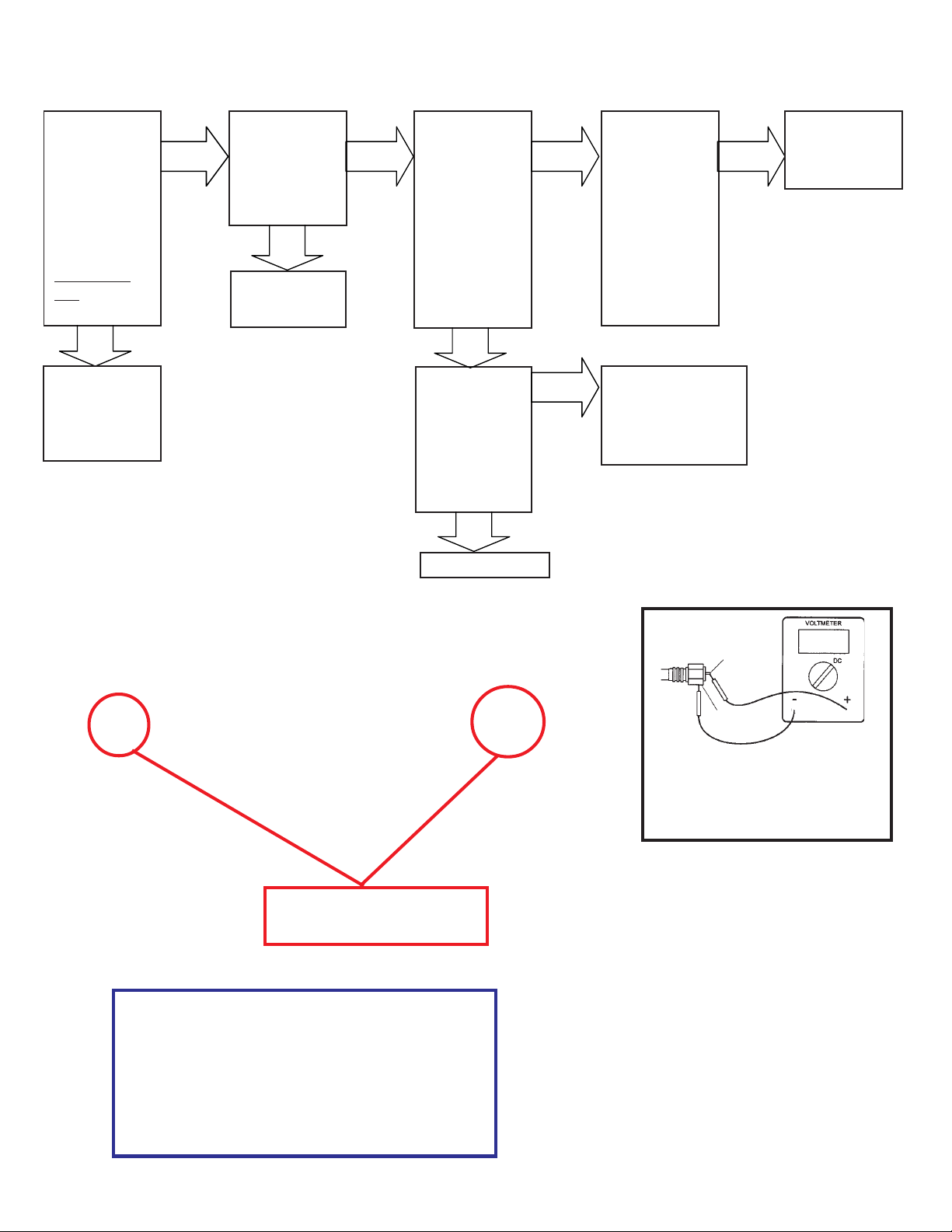

Figure 8

+ to coax

center conductor

- to coax

connector

The “Voltmeter”, com-

monly called a Multimeter,

can be purchased from

your local retailer.

Has the search

been selected

for 10 minutes or

more? See

Note. For the

initial search,

time could equal

10 minutes.

YES YES

Is the GPS an-

tenna mounted at

least 3 feet from

system and free

of obstructions?

Reposition GPS

antenna.

Wait 10 minutes.

Remove lid on the elec-

tronics Box. Is GPS lead

connected correctly to

jumper cable in the

Electronic box? Fig. 9, 10

NO NO

Reconnect GPS

antenna lead.

III. Does not initiate Search routine

NOTE: If the vehicle

has gone 600 or more

miles since the last

use of the AS-2003,

GPS acquisition may

take longer. Also,

obstructions (buildings,

trees, hills, etc.) will

delay acquisition time.

Figure 9 Figure 10

YES

Reposition GPS

antenna and re-ini-

tiate Search routine.

Electronics box on RV roof Electronics box on RV roof

GPS antenna lead

Measure DC volt-

age between the

black and brown

(ground) wires at

the pin. Does it

measure 13

+VDC? Fig. 11.

Does the unit

run into an ob-

stacle while

attempting to el-

evate or rotate?

Does the cable

restrict movement

while elevating or

rotating?

Adjust cables.

Remove obstacle.

Remove the

dish assembly

and turret. Are

there broken or

stripped gears?

Replace gears.

IV. On and Off LEDs are on (Motor stall error)

Replace connector.

Measure the screw

heads connected to

the brown and

black wires on the

back of the control

panel. Does it also

measure at least 13

VDC? Figure 11.

Does the power

source measure at

least 13 VDC?

Replace power

supply with a 13.8

VDC power source

with at least 3

amps of constant

current and no cur-

rent limiting.

NO YES

YES

YESYES

YES

Remove lid to electronics box.

Identify the 3-terminal connector.

On connector, find pins connected

to the red and black (ground)

wires. Measure the DC voltage be-

tween these pins. Does it measure

at least 13 VDC? Fig. 12.

YES

Measure the screw

heads connected to

the red and black

wires on the 3-termi-

nal connector. Does

the voltage measure

at least 13 VDC be-

tween these screw

heads? Figure 12.

Figure 12

Replace

electronics

box.

Replace cable

containg the

power wires.

YES

Replace

3-terminal

connector

Screw head

connects to

red wire

Screw head

connects to

black wire

Pin connected to

black (ground) wire

Pin connected to

red wire

Figure 11

Screw head connected

to brown wire

Screw head connected

to black wire

Pin connected to

black (ground) wire

Pin connected

to brown wire

Wall Plate

Control Panel

inside vehicle

SEARCH/

MOVING

WINEGARD

ON OFF

PARK

AS-2003

SATELLITE SYSTEM

Control panel inside RV

Electronics box on RV roof

V. On, Search and Off LEDs are on (Will not find signal)

Clear view of

SW sky

Any satellite within 20° longitude of the desired

satellite will be included as a required satellite

in the Search routine. To find 119, for example,

101, 110 and 119 are all required for a success-

ful Search routine.

Satellites 101, 110 and 119 are within 20° of each other Is the satellite

dish level,

within 3° with

horizon?

YES

Try to level dish to

within 1° of horizon.

The unit will find the

signal with a 1° to

3° tilt, but search

time increases.

VI. Will not pass “Check Switch” function (DISH Network only)

Did you run Check

Switch within 6 minutes

after unit has acquired

satellite signal on

satellite 119?

YES YES NO

Did you

retest the

Check

Switch

function?

Wait for unit to acquire

satellite signal on 119.

Run Check Switch again

within 6 minutes.

Retest Check

Switch function.

Does the

dish move

while per-

forming the

Check

Switch?

Does the dish rotate almost a full

revolution while trying to locate

the second satellite during the

Check Switch function? Fig. 20.

Connect LNBF correctly.

Is the bright white pri-

mary coax connected

from the Satellite In jack

on the receiver back to

the coax connection of

the left side of the elec-

tronics box? Fig. 14, 15.

YES

Is the LNBF coax con-

nected from LNBF to

coax connection on the

right of electronics

box? Fig. 16, 17.

Connect

white

primary

coax

correctly.

YES

Move vehicle to

a different angle

so the stop is

not located be-

tween the two

satellites.

Connects from elec-

tronics box to LNBF.

Fig. 14

Connects

from elec-

tronics box

to receiver.

Fig. 15

Fig. 16 Fig. 17

61.5°

82°

92°

101°

110°

119°

148°

Figure 13

Wall Plate

Control Panel

inside vehicle

SEARCH/

MOVING

WINEGARD

ON OFF

PARK

AS-2003

SATELLITE SYSTEM

Does the unit run

into obstruction

or catch the wire

harness white

raising or rotat-

ing?

YES

Remove

obstruction.

YES

On the connector on the

back of the control panel,

find the pins connected to

the purple and black

(ground) wires. Measure the

DC voltage between these

pins. Does it measure 4.8-

5.0 VDC? Figure 19.

Have you tried

changing transpon-

ders? 11 for DISH, 1

or 3 for DIRECTV, 11

for ExpressVu.

Change transponders.

Measure screw heads con-

nected to purple and black

wires on back of control

panel. Does it measure 4.8-

5.0 VDC? Figure 19.

For DISH, have

you cleared the

Check Switch,

started a new

search and run-

ning the Check

Switch again? For

DIRECTV, is the

receiver set to

“Two Sat. Oval

Dish”?

For DISH, retest

Check Switch

function; for

DIRECTV, set

receiver correctly.

Figure 18

Remove to

set switches

Is the primary (bright white) coax con-

nected to receiver that’s operating the

Check Switch routine? Fig. 21, 22.

Operate Check Switch routine from

primary receiver.

YES

Are any devices inserted on the coax

between the satellite antenna and pri-

mary receiver?

YES

Remove device.

Fig. 21

Fig. 22

Fig. 20

Built-in stop (not visible)

119°

110°

Stop interrupts Check

Switch operation

Stop does not interrupt

Check Switch operation.

Built-in stop

(not visible)

119°

110°

Connects from electron-

ics box to PRIMARY

receiver.

YES

Replace

electronics.

NO YES

Are the rotary

switches set to the

proper satellite?

Figure 18.

Replace

connector.

Set to 119 for DISH

Network, 101 for

DIRECTV and 092

for ExpressVu.

Switches will ap-

pear upside down

and numbers coun-

terclockwise.

YES

Figure 19

Screw head

connected to

purple wire

Screw head

connected

to black wire

Pin connected

to black

(ground) wire

Pin connected

to purple wire

Control panel inside RV

VII. Unit will not park

Press Off button. Press

On button. Wait 5 sec-

onds for all LEDs to

flash. Press Park 1 time.

Does unit park?

Now measure the screw

heads connected to the

white and black wires

on the back of the con-

trol panel. Does this

measure 4.8-5.0 VDC?

Figure 23.

On the connector on

the back of the control

panel, find the pins

connected to the

white and black

(ground) wires. Mea-

sure the DC voltage

between these pins.

Does this measure

4.8-5.0 VDC? Fig. 23.

YES

Replace electronics.

Are you using a 13.8

VDC filtered power

source with at least 3

amps of constant cur-

rent and no current

limiting?

YES Replace connector.

Replace power supply.

Fig. 23

Screw head

connected to

white wire

Pin connected to

white wire

Screw head

connected to

black (ground) wire

Pin connected to

black (ground) wire

Control panel inside RV

Autres manuels pour AS-2003

Autres manuels Winegard Antenne

Winegard

Winegard HD-7084P Manuel utilisateur

Winegard

Winegard Carryout G2 Manuel utilisateur

Winegard

Winegard RAYZAR RV-RZ20 Manuel utilisateur

Winegard

Winegard RAYZAR z1 Manuel utilisateur

Winegard

Winegard HD7000R Manuel utilisateur

Winegard

Winegard Sensar HV Manuel utilisateur

Winegard

Winegard roadtrip T4 RT2000T Manuel utilisateur

Winegard

Winegard WPM-300 Manuel utilisateur

Winegard

Winegard TRAV’LER DISH 1000 Manuel utilisateur

Winegard

Winegard TRAV'LER DIRECTV SK-SWM3 Manuel utilisateur

Winegard

Winegard FlatWave Micro Manuel utilisateur

Winegard

Winegard Rayzar Z1 RZ-5000 Manuel utilisateur

Winegard

Winegard Movin' View MV3500A Manuel utilisateur

Winegard

Winegard sensar series Manuel utilisateur

Winegard

Winegard RM-4600 Instructions originales

Winegard

Winegard DS-4248 Manuel utilisateur

Winegard

Winegard TR-6100 Manuel utilisateur

Winegard

Winegard ROADSTAR RS-1000 Manuel utilisateur

Winegard

Winegard Movin' View MV-4000 Manuel utilisateur

Winegard

Winegard Movin' View MV-0099 Manuel utilisateur

Winegard

Winegard SENSAR III Manuel utilisateur

Winegard

Winegard SENSAR III ANTENNA Manuel utilisateur

Winegard

Winegard Movin' View MV-0500 Manuel utilisateur

Winegard

Winegard Carryout PM-2000 Manuel utilisateur

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur
