Windsor Titan T1 Manuel utilisateur
T1 98648 03/27/00
B
WET/DRY VACUUM
Operating Instructions (ENG)
MODEL: T1
Read these instructions before operating the machine.
y
QUEST…
for Continuous Improvement
Windsor’s Quality Management System is Certified ISO 9001.
TABLE OF CONTENTS
T1 98648 03/28/00
1
Data Log/Table of Contents...............1
Safety Instructions.............................2
Hazard Intensity Level.......................3
Grounding Instructions………………4
Operations .........................................5
Troubleshooting.................................6
Wiring Diagram..................................7
Machine Assembly ............................8
Parts Lists ..........................................9
Warranty............................................10
INSPECTION
Carefully unpack and inspect your machine for shipping damage. Each unit is operated and thoroughly inspected
before shipping, and any damage is the responsibility of the carrier, who should be notified immediately.
MODEL
DATE OF PURCHASE
SERIAL NUMBER
SALES REPRESENTATIVE #
DEALER NAME
T1 98648 03/27/00
2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
!
WARNING:
HAZARD INTENSITY LEVEL
T1 98648 03/27/00 3
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use Windsor approved replacement parts.
!
WARNING
!CAUTION
GROUNDING INSTRUCTIONS
T1 98648 03/27/00
4
THIS PRODUCT IS FOR COMMERCIAL USE ONLY.
ELECTRICAL:
In the USA this machine operates on a standard 15 amp
115V, 60 hz, A.C. power circuit . The amp, hertz, and
voltage are listed on the data label found on each machine.
Using voltages above or below those indicated on the data
label will cause serious damage to the motors.
EXTENSION CORDS:
If an extension cord is used, the wire size must be at least
one size larger than the power cord on the machine, and
must be limited to 50 feet (15.5m) in length.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should malfunction
or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric
shock. This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
This appliance is for use on a nominal 120-volt circuit, and
has a grounded plug that looks like the plug in “Fig. A”. A
temporary adaptor that looks like theadaptor in “Fig . C”
may be used to connect this plug to a 2-pole receptacle as
shown in “Fig. B”, if a properly grounded outlet is not
available. The temporary adaptor should be used
only until a properly grounded outlet (Fig. A) can
be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from
the adaptor must be connected to a permanent
ground such as a properly grounded outlet box
cover. Whenever the adaptor is used, it must be
held in place by a metal screw.
Improper connection of the equipment-grounding con-
ductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance - if
it will not fit the outlet, have a proper outlet installed by
a qualified electrician.

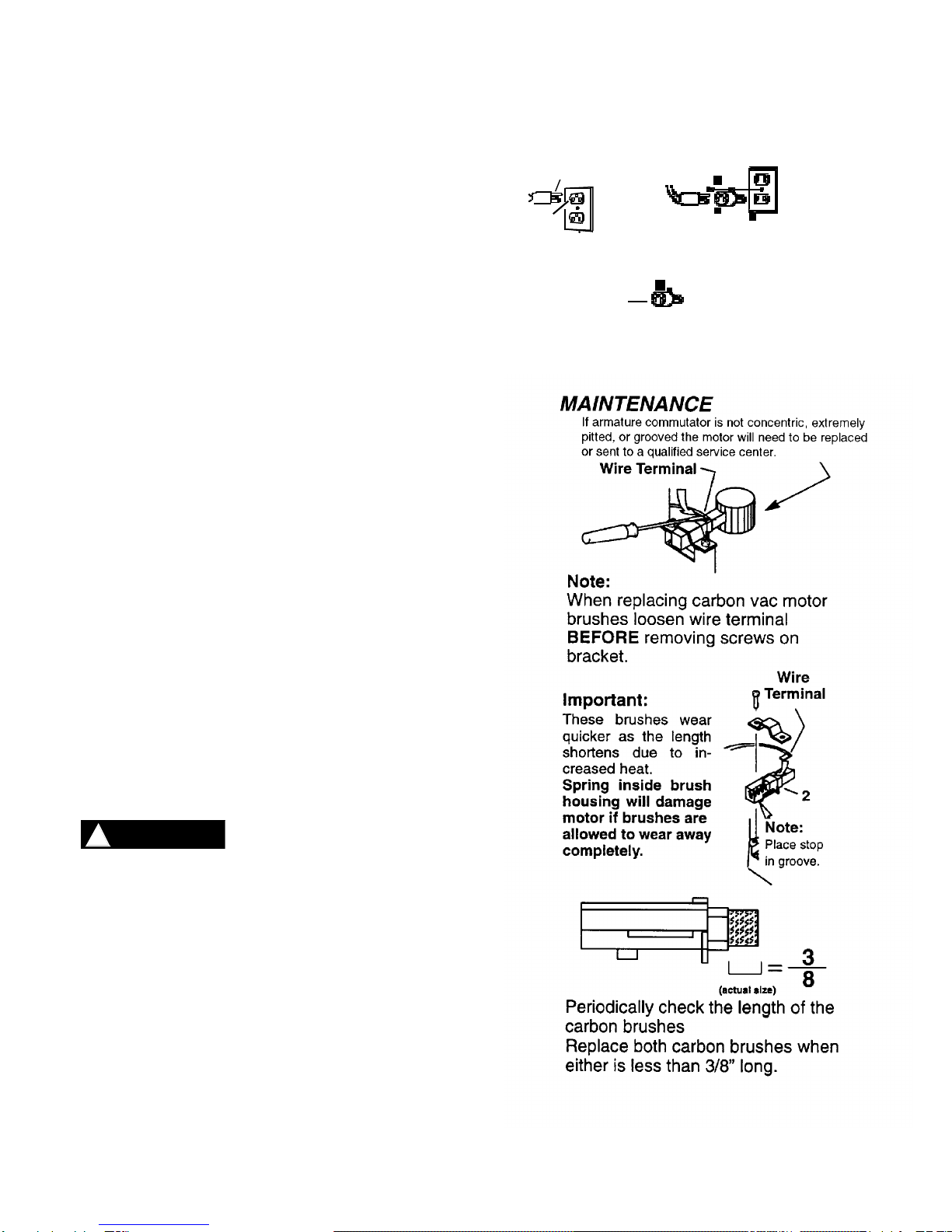

PROPER GROUNDING
NOTE: In Canada, the use of a temporaryadaptor is not
permitted by the Canadian Electrical Code
Grounded
Outlet
Grounding Pin
Fig. A
! WARNING
Metal Screw
Adaptor
Grounded Outlet
Box
Fig. B
Fig. C
Tab For Grounding Screw
Adaptor

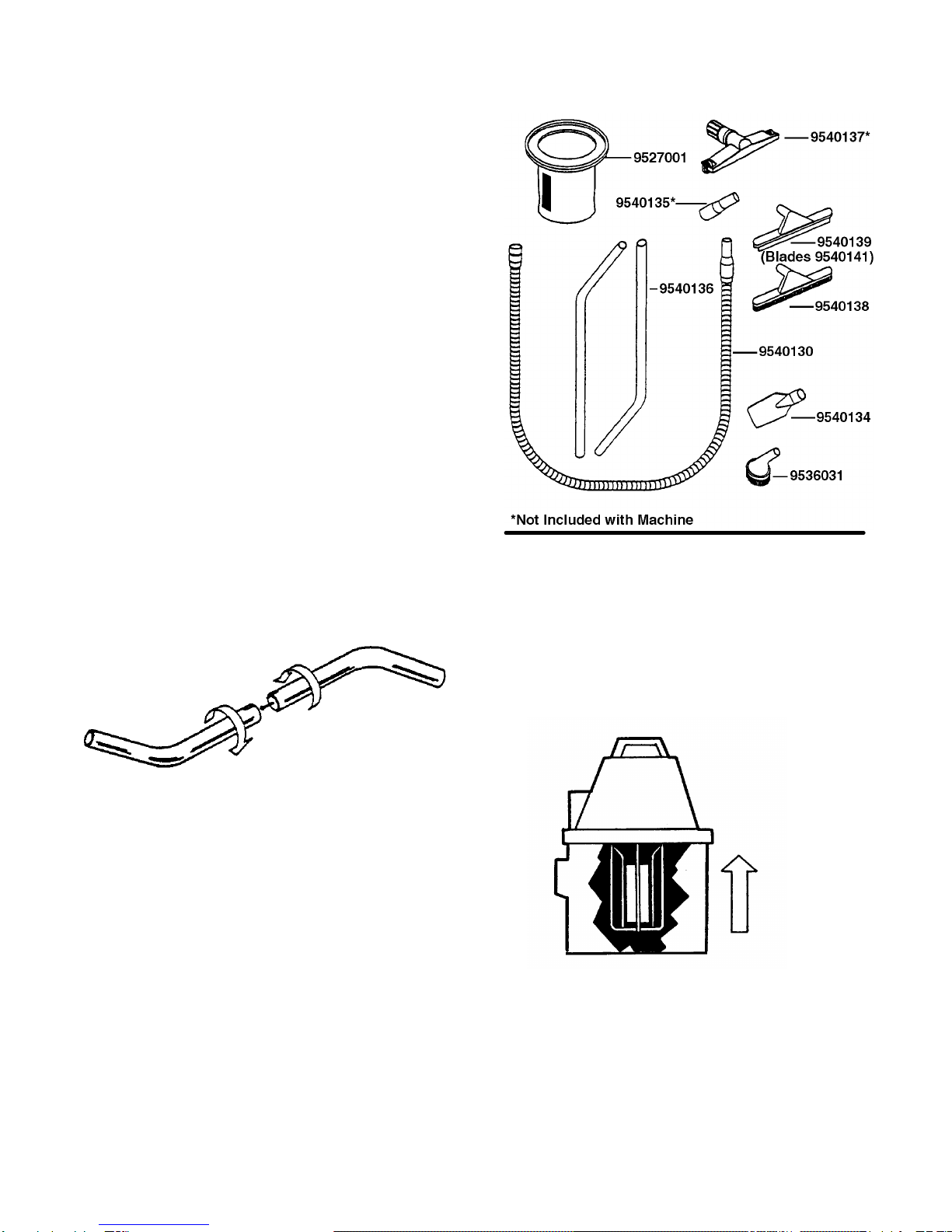

OPERATING INSTRUCTIONS AND ACCESSORIES
T1 98648 03/27/00 5
Dry Pick Up
Dry Filter must be used during all dry pick up jobs to protect
vacuum motor(s) against dirt and debris. Routine cleaning
of filter will increase life of machine. Use of supplemental
paper filters will greatly reduce time spent cleaning Dry
Filter.
Wet Pick Up
Remove Dry Filter. Thoroughly empty dirt and debris from
tank. Securely fasten top on tank with latches. Machine is
ready for wet pick up using hose, extension wand(s) and/or
wet tools.
Hose Connection
Insert large end of hose into inlet on side of tank. Hose will
automatically lock in place. To release, press button on top
of inlet and remove hose.
Dry Pick Up Floor Tool
Use for dry pick up. Best when used on hard floors. Twist
floor tool clockwise onto extension wand until snug.
Wet Pick Up Floor Tool
For use on wet surfaces. Twist clockwise onto extension
wanduntil snug.
Extension Wands
The two extension wands can be used individually or fitted
together for “stand-up” floor cleaning. Slip one wand inside
other as far as it will go and twist together until indentations
on sides of wands line up.
Large Crevice Tool
Use for wet or dry pick up. For best fit, twist snugly onto
extension wand or hose.
Hose Adapter
For wet or dry use. Your machine is equipped with a 1.5”
diameter hose. HoseAdaptor enables machine to use
1.25” tools. Dusting tool included with machine must be
used with Hose Adapter,
Dusting Tool
For dusting dry surfaces. Twist onto HoseAdaptor or
Extension Wand(s).
AUTOMATIC SHUT OFF
Automatic shut off functions when tank has been filled with
liquid. As tank fills, float rises until it covers lower motor
filter. This shuts off vacuum suction when machine is full.
To continue use, turn off power switch and unplug power
cord. Remove top and empty tank.
TROUBLESHOOTING
T1 98648 03/27/00
6
TROUBLESHOOTING GUIDE
NOTE: Remember to disconnect the power source.
This guide can be used to find the reason for malfunctions that can occur.
PROBLEM REASON
Motor Does Not Run Not plugged in.
Fuse or circuit breaker blown.
Worn plug, connection loose inside plug.
Wire break in electrical cord.
Motor brushes worn.
Defective switch or motor.
Weak Vacuum Power Obstructions in tool, wand or hose, such as lint
or paper clips caught sideways in hose: foam
(wet pick up only).
Dirty filter bag.
Plugged deflector inside tank at air inlet.
Cracks or air leaks in hose, loose cuffs at
connections.
Air leak between head and tank, clamps not
tight, tank rim deformed or head seal defective.
No Vacuum Air Flow Hose, wand or tool plugged.
Float in raised position. Obstruction inside
head or on motor.
Float Shuts Off Without Water in Tank Filter bag pushed into float cage, holding too
loose to motor.
Parts damaged, missing or incorrectly
assembled, holding float too close to motor.

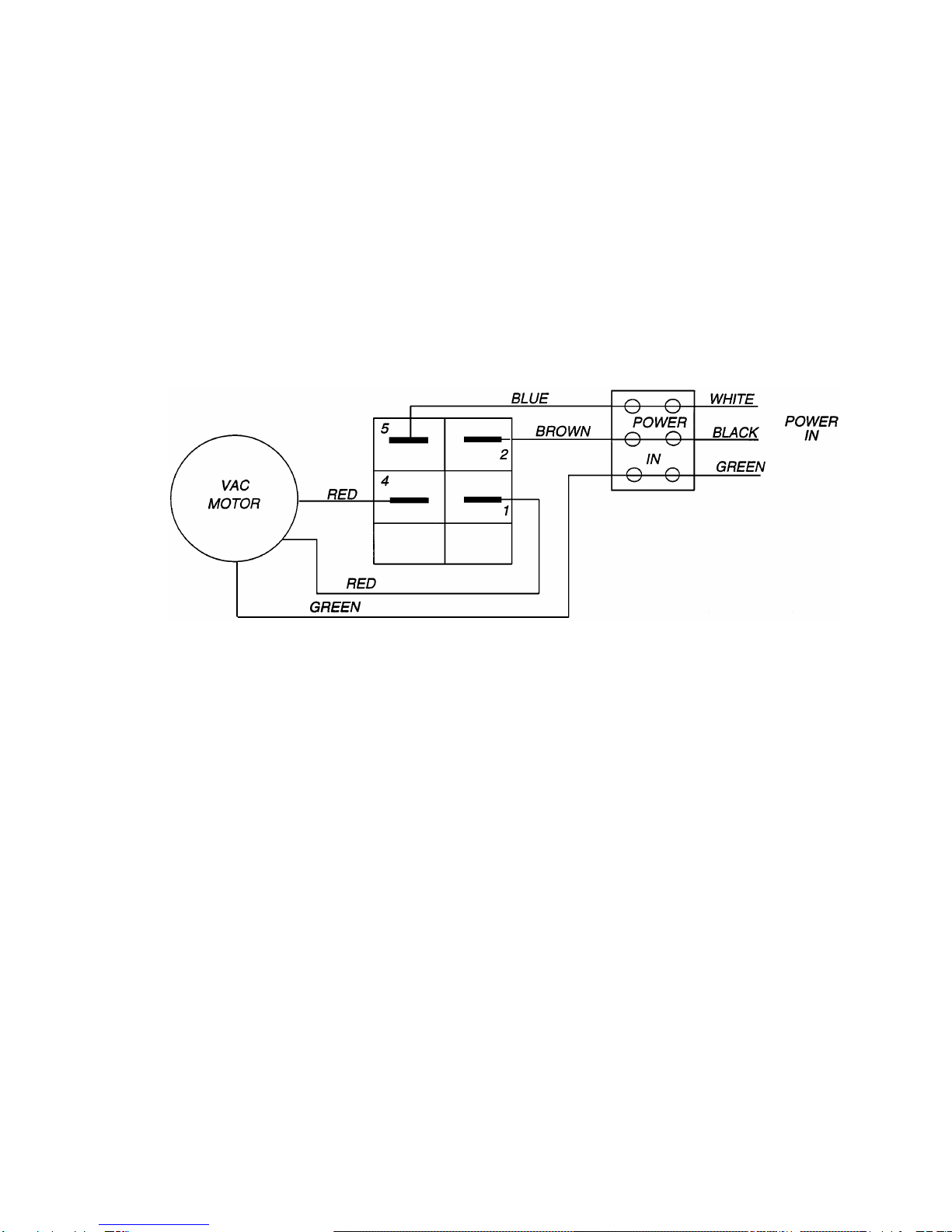

WIRING DIAGRAM
T1 98648 03/27/00 7

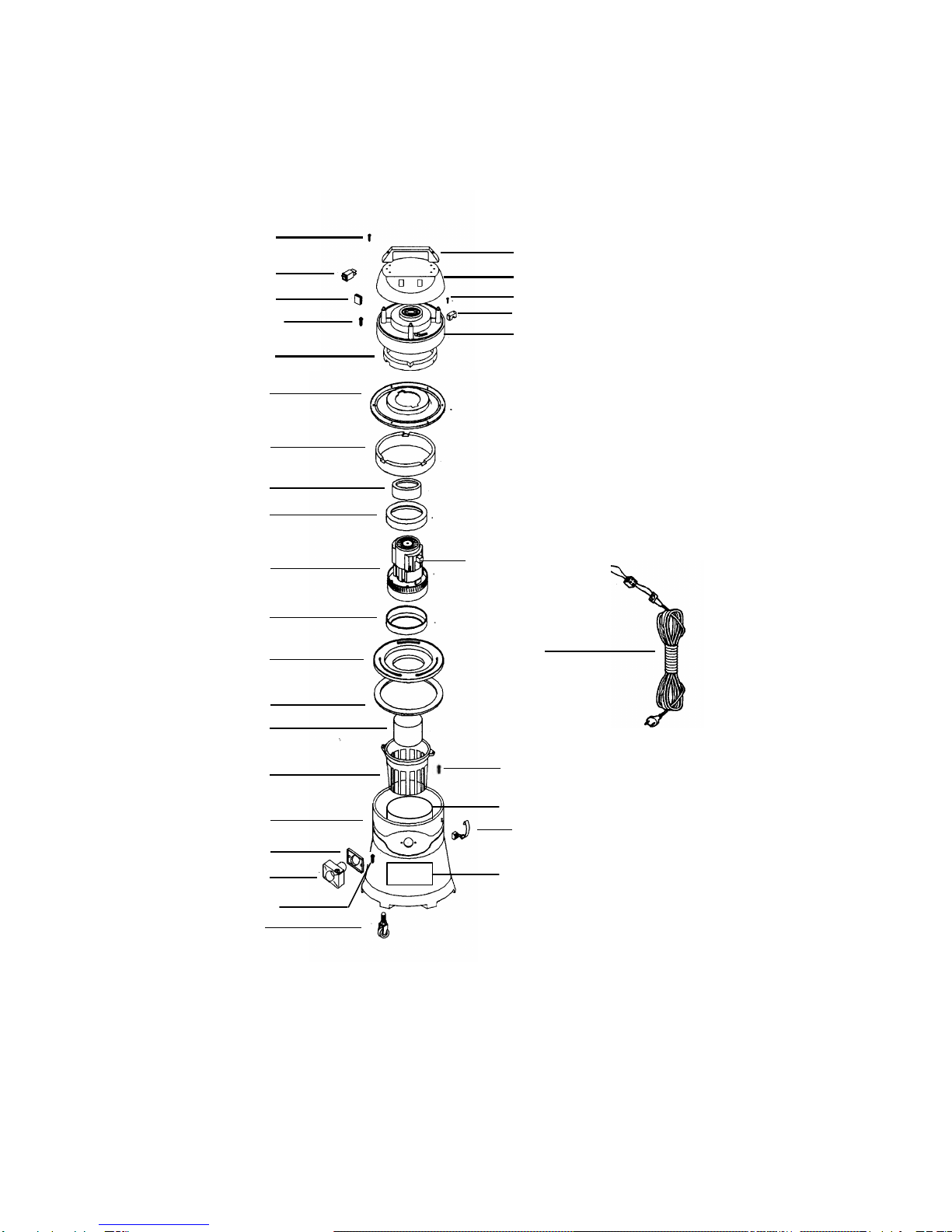

MACHINE ASSEMBLY
T1 98648 03/27/00
8
1
2
3
9
10
11
13
14
13
12
15
4
5
17
16
24
8
7
6
21
20 23
25
19
18
22
1
1
1
26
27
MACHINE ASSEMBLY PARTS LIST
T1 98648 03/27/00 9
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
19560002 22 Screw
29510531 1Switch, Power 115V
39550021 1Plug
49560048 1Handle, Motor Housing
59560007 1Cover, Upper Motor
69560010 3Screw, Power Cord Support
79540506 1Support, Power Cord
89560049 1Housing, Motor
99560051 1Insulation, Vacuum Motor Top
10 9560022 1Support, Vacuum Motor
11 9595006 1Insulation, Vacuum Motor Bottom
12 9595007 1Gasket, Upper Vacuum Motor
13 9560037 1Gasket, Lower Vacuum Motor
14 9527003 1Motor, Vacuum
15 9560027 1Cover, Tank
16 9560028 1Gasket, Tank Cover
17 9527014 1Float
18 9558023 1Cage, Float
19 9527002 1Tank
20 9560017 1Gasket, Hose Coupler
21 9560043 1Coupler, Hose
22 9560021 4Caster
23 95PL061 2Latch
24 9560041 1Power Cord, Complete
25 9595018 1Filter, Sponge
26 95R003 1Carbon Brushes for 9527003 Not shown
27 500015 1Label, Main
Table des matières
Autres manuels Windsor Aspirateur
Windsor
Windsor CV34 Manuel utilisateur
Windsor
Windsor Carpet Maintainer IMIE17 10066550 Manuel utilisateur
Windsor
Windsor WAV Manuel utilisateur
Windsor
Windsor Voyager DUO Basic Manuel utilisateur
Windsor
Windsor PV5 Manuel
Windsor
Windsor Saber Compact 22 Manuel utilisateur
Windsor
Windsor wave Manuel utilisateur
Windsor
Windsor Sensor SR 15 Manuel utilisateur
Windsor
Windsor versamatic 14 Manuel utilisateur
Windsor
Windsor Sensor S15 Manuel utilisateur
Windsor
Windsor Senson SRXP15IA Manuel utilisateur
Windsor
Windsor VERSAMATIC 10120340 Manuel utilisateur
Windsor
Windsor 1.012-052.0 VSP14 Manuel utilisateur
Windsor
Windsor SENSOR XP15 240V AUSTRALIA Manuel utilisateur
Windsor
Windsor VERSAMATIC VS14 Manuel utilisateur
Windsor
Windsor Chariot 2 iVac 24 ATV CV2410125760 Manuel utilisateur
Windsor
Windsor Sensor SRXP18 Manuel utilisateur
Windsor
Windsor Chariot iCapsol CI24 Caractéristiques techniques
Windsor
Windsor Voyager DUO Basic Manuel utilisateur
Windsor
Windsor Versamatic Plus 10120390 Manuel utilisateur
