TMM PUSH HANDLE ASSEMBLY

FIELD INSTALLATION AND USAGE INSTRUCTIONS

FOR TMM4, TMM5, TMM4 PLUS, TMM5

PLUS, TMM4-X, TMM5-X, TMM4 PLUS-X,

AND TMM5 PLUS-X

IMPORTANT - DO NOT DISCARD THESE INSTRUCTIONS.

KEEP FOR FUTURE REFERENCE.

This page has been intentionally left blank.

Page 3 of 12

Document No.: IM tma227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

TABLE OF CONTENTS

IMPORTANT NOTES ABOUT THIS MANUAL ............................................................................. 4

SPECIAL NOTES - SIGNAL WORDS.............................................................................................. 4

TOOLS REQUIRED........................................................................................................................... 5

PARTS INCLUDED............................................................................................................................ 5

REMOVING AN OLD PUSH HANDLE ASSEMBLY...................................................................... 6

INSTALLING A NEW PUSH HANDLE ASSEMBLY....................................................................... 7

PUSH HANDLE PLUNGER KNOB INSTALLATION ..................................................................... 9

REMOVING AN OLD PLUNGER KNOB ........................................................................................ 9

INSTALLING A NEW PLUNGER KNOB ......................................................................................... 10

UPHOLSTERY CARE AND CLEANING INSTRUCTIONS ........................................................... 11

PREVENTATIVE MAINTENANCE................................................................................................... 11

Page 4 of 12

Document No.: IM TMA227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

IMPORTANT NOTES ABOUT THIS MANUAL

This Field Installation and Usage Instruction document is designed to assist you with the installation of the

TransMotion by Winco product. Read this document thoroughly before using the equipment or performing service

or maintenance. If you are unable to understand the warnings, cautions, or instructions, contact Winco Customer

Service before attempting to operate or service the equipment, otherwise injury or damage may result.

To assure safe operation of this device, it is essential that methods and procedures be established for educating

and training sta on the safe and eective operation of the product.

Winco, Mfg., LLC reserves the right to change speciﬁcations without notice.

The information contained in this document is subject to change without notice.

Speciﬁcations listed are nominal and may vary slightly from unit to unit due to tolerance variations or power supply

variations.

Photographs and illustrations contained within this document may not depict exactly the model you have. This

document can cover many closely related models.

SPECIAL NOTES - SIGNAL WORDS

Signal words are used in this manual and apply to hazards which could result in injury or property damage. The

following is a deﬁnition of those signal words as used in this document:

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It

may also be used to alert against unsafe practices or potential property damage hazards.

Provides important information, makes special instructions clearer, or provides service personnel

information to make maintenance easier.

Page 5 of 12

Document No.: IM tma227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

TOOLS REQUIRED

• (1) 3/16” Allen Wrench

• (1) 1/2” Socket Wrench

• (2) Thin 3/8” Open End Wrenches

PARTS INCLUDED

1. Push Handle Assembly (TMA227-15)

PART NUMBER DESCRIPTION QUANTITY IMAGE

TMM-374-06 TMM5 PUSH BAR ASSEMBLY - LEFT 1 A

TMM-373-06 TMM5 PUSH BAR ASSEMBLY - RIGHT 1 B

TMM-406-11 PUSH BAR GRIP 2 C

TMM-489-11 ADHESIVE BACKED BUMPER 2 D

TMM-080-04 SHOULDER SCREW 5/16 X 1-3/4” 2 E

TMM-165-04 HEX ACORN LOCKING NUT 5/16” 2 F

TMM-1023-04 NYLON WASHER 0.328” 4 G

TMM-194-04 NYLON WASHER 3/8” 2 H

TMM-2439-04 LOCK-TITE 1 I

TMM-057-12 PLUNGER KNOB 2 J

GIJ

Page 6 of 12

Document No.: IM TMA227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

REMOVING AN OLD PUSH HANDLE ASSEMBLY

1. Using the pendant, adjust the device into the chair position

(Fig. 1).

2. Locate the bolt connecting the push handle to the back

frame. The position of this bolt will be slightly dierent on the

TMM4 and TMM5 Models (Fig. 2 and Fig. 3).

NOTE: FOR THE TMM5 MODEL CHAIR, THE BOTTOM BOLT

OF THE SURGICAL BAR WILL NEED TO BE REMOVED AND

THE SURGICAL BAR WILL NEED TO BE MOVED OUT OF

THE WAY BEFORE CONTINUING TO THE NEXT STEP. THIS

WILL ALLOW ACCESS TO THE BOLT CONNECTING THE

PUSH HANDLE TO THE BACK FRAME (FIG. 3).

3. Using the 3/16” allen wrench and 1/2” socket wrench, remove

the bolt and fastener nut connecting the push handle to the

back frame (Fig. 4).

4. Once the bolt and fastener nut are removed, locate the red

plunger knob and pull to release the old push handle from

the back frame (Fig. 4).

5. Repeat this entire process on the opposite side of the device.

Fig. 1

Fig. 2

TMM4

Fig. 4

Fig. 3

TMM5

←

Page 7 of 12

Document No.: IM tma227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

INSTALLING A NEW PUSH HANDLE ASSEMBLY

NOTE: FOR A TMM5 MODEL CHAIR, THE BOTTOM BOLT OF

THE SURGICAL BAR WILL NEED TO BE REMOVED USING A

3/16” ALLEN WRENCH AND THE SURGICAL BAR WILL NEED

TO BE MOVED OUT OF THE WAY BEFORE INSTALLING A

NEW PUSH HANDLE ASSEMBLY. SEE PAGE 6 FOR IMAGES

SHOWING DIFFERING BOLT LOCATIONS.

NOTE: If there was never a push handle assembly installed on

the device, the red plunger knob will need to be installed ﬁrst.

See “Push Handle Plunger Knob Installation” on page 9.

1. Align the bolt with the holes of the back frame and insert through the backrest frame tube. Slide one

(1) thicker nylon washer (closest to the outside of the chair) onto the bolt, followed by the push handle

assembly tube, and one (1) or two (2) thinner nylon washer(s) on the opposite side (closest to the inside of

the chair) of the bolt. Hand thread the cap nut onto the bolt (Fig. 1).

NOTE: The correct placement of two (2) or all three (3) nylon washers should be as indicated. Depending

on the need for adjustment, there should be either one (1) thinner nylon washer on the inside of the chair

with one (1) thicker nylon washer on the outside of the chair OR two (2) thinner washers on the inside of

the chair with one (1) thicker washer on the outside of the chair (Fig. 2).

INSTRUCTIONS CONTINUED ON NEXT PAGE

←

Fig. 1

Fig. 2

←

Page 8 of 12

Document No.: IM TMA227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

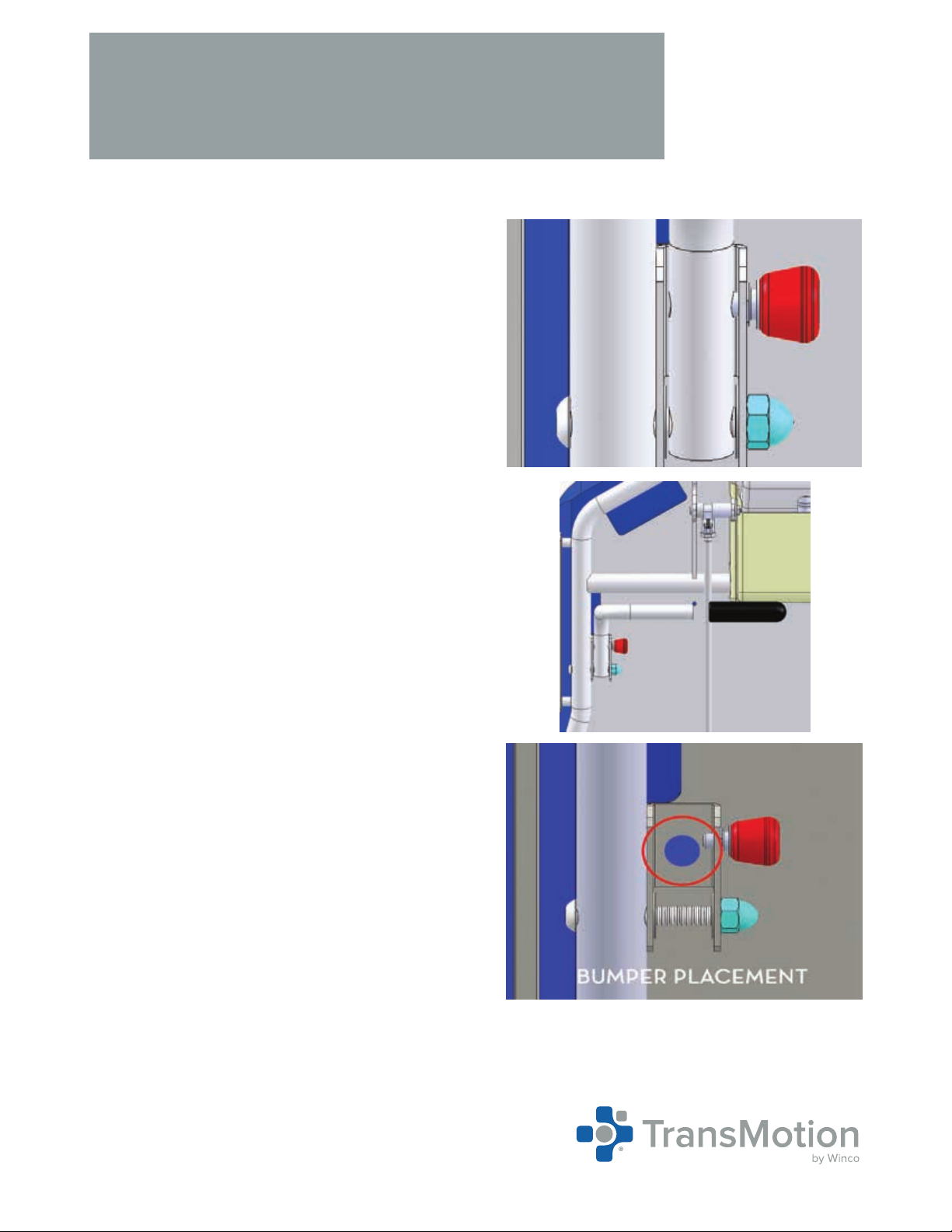

INSTALLING THE NEW PUSH HANDLE ASSEMBLY (CONTINUED)

2. Securley tighten the cap nut onto the bolt using the

3/8” allen wrench and 1/2” socket wrench (Fig. 3).

3. Slide one (1) push bar grip onto the push handle

assembly (Fig. 4).

4. If the device does not already have one installed,

add one (1) adhesive backed bumper to the back of

the device as shown (Fig. 5). If the device already

has one installed, you may remove the old one and

replace it with a new one if necessary.

5. Repeat this entire process on the opposite side of

the device.

←

Fig. 3

Cap Nut

Fig. 4

←

Page 9 of 12

Document No.: IM tma227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

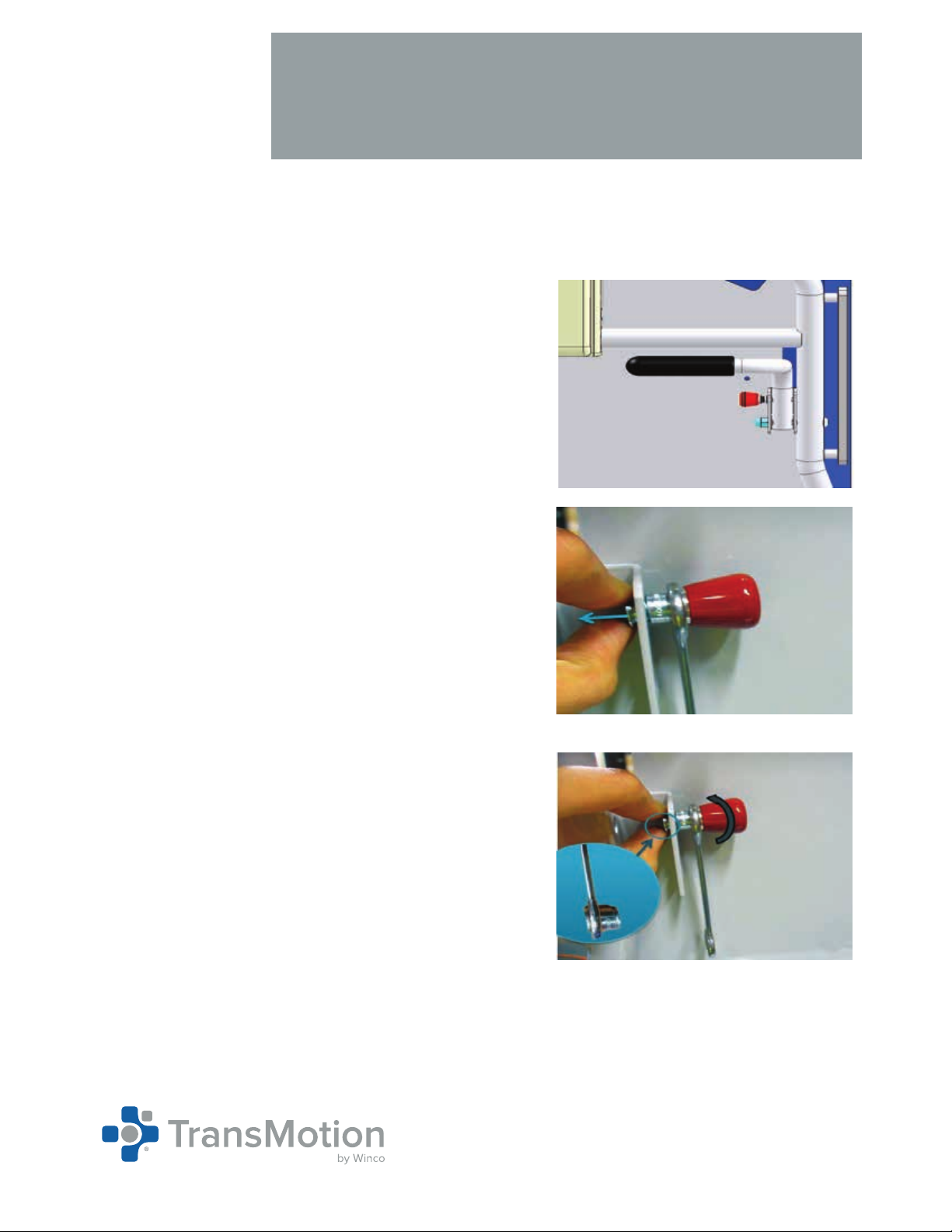

PUSH HANDLE PLUNGER KNOB INSTALLATION

REMOVING AN OLD PLUNGER KNOB

1. Pull knob to release handle. Swing handle down and out of

way (Fig. 1).

2. Place one 3/8” open end wrench near the knob. Pull the

spring loaded inner section out with your ﬁngers (Fig. 2).

3. Use an additional 3/8” open end wrench to hold the piece if

you cannot grip it with your ﬁngers. Loosen knob by turning

the wrench near the knob and remove (Fig. 3).

←

Fig. 1

Fig. 2

Fig. 3

Page 10 of 12

Document No.: IM TMA227-15

Revision: A

TMM PUSH HANDLE

FIELD INSTALLATION AND USAGE INSTRUCTIONS

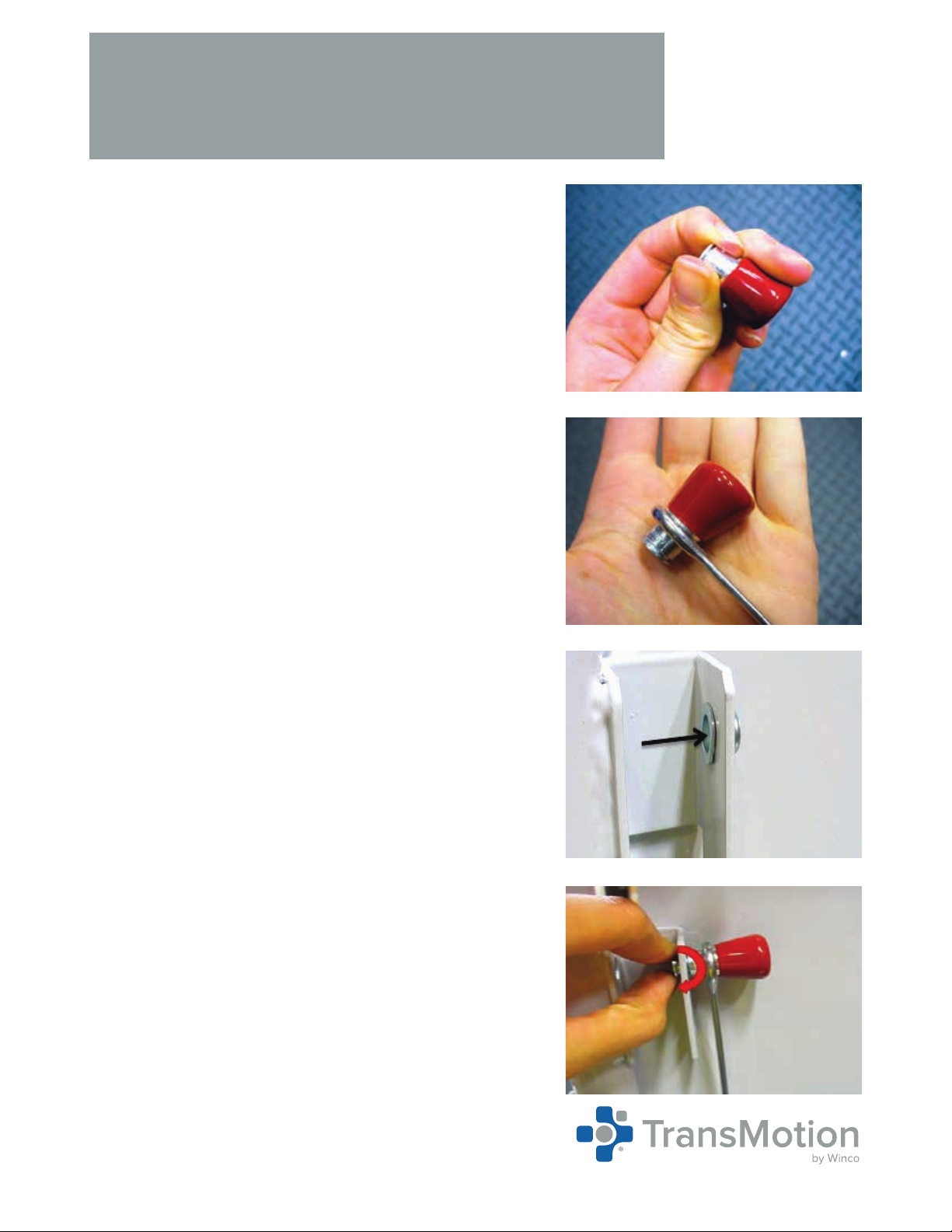

INSTALLING A NEW PLUNGER KNOB

1. Pull the inner rod out of the handle plunger knob (Fig. 1).

2. Slide the 3/8” open end wrench onto the ﬂat grooves of the

inner rod to hold it in place. Either unscrew the back portion

counter clockwise with your ﬁngers or use the 2nd 3/8” open

end wrench to remove the inner rod from the plunger knob

(Fig. 2).

3. Apply Locktite to the inner rod threading.

4. Push the inner rod into the mounting hole (Fig. 3).

5. Leaving the 3/8” open end wrench in place to keep the spring

extended, screw the inner rod into place clockwise with

ﬁngers. Securely tighten the plunger knob onto the bracket

with the 2nd 3/8” open end wrench (Fig. 4).

Fig. 1

Fig. 2

Fig. 3

Fig. 4
