Williams Sound PPA R751 Manuel utilisateur

Personal PA

FM Monitor Receiver, Model PPA R751

Williams Sound ®

Helping People Hear

Description:

The R751 Monitor Speaker is ideal for cry rooms, nurseries, office areas or any location where a remote speaker

is needed and wiring is difficult to run. It is designed to use with any Williams Sound PPA wideband transmitter,

and will operate up to 150 feet away. System includes R751 receiver, slave speaker and ANT 026 whip antenna.

Dimensions: 4.3" W x 8.9" H x 5.1" D (10.9 cm x 22.6 cm x 13 cm)

Weight: 5 lbs (1.9 kg)

Color: Putty

Power: 120 VAC, 50 or 60 Hz, 60 VA max

FCC ID: CNMR751

Operating Freq.’s: Pre-tuned, adjustable, 72 MHz – 76 MHz

FM Deviation: Wideband, 75 kHz, 75 µS de-emphasis

AFC Range: ± 160 kHz

Sensitivity: 5 µV at 12 dB Sinad

Freq. Response: 115 Hz to 20 KHz, ± 3 dB

Controlled by bass & treble

Signal-to-Noise Ratio: 50 dB at 10 µV

Audio Output Power: 20 W RMS total

Receive Antenna: 39" telescoping whip (ANT 026)

Loudspeakers (each): 3" woofer, 1.25" tweeter, wide-range

Headphone Jack: 3.5 mm stereo

Controls: ON/OFF pushbutton switch, rotary volume,

bass, treble, and 3D pushbutton on/off

(3D button boosts high freq. response.)

Warranty: 5 years, parts and labor

90 days on cords, antennas and other accessories

Notes: The R751 Receiver can be field tuned to any of 10

wideband channels using the PLT 005 tuning tool.

FCC Rules limit the use of the 72–76 MHz band

to hearing assistance for the handicapped only.

OPTIONAL ACCESSORIES

Remote Antennas: ANT 005 Coaxial Antenna

ANT 024 Wall Mount Dipole Antenna

Wall Mount Kit: Consult factory

Stand Mount Kit: Consult factory

Compatible Transmitters (US Only) PPA T4 PPA T20 (wide-band)

PPA T16 PFM T16

PPA T17 PFM T30

PPA T17–6 PFM T31ON Indicator Light: Green LED,

glows when power is applied to the transmitter.

There is no on/off switch. The T17 is designed to

be left on continuously.

Specifications:

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

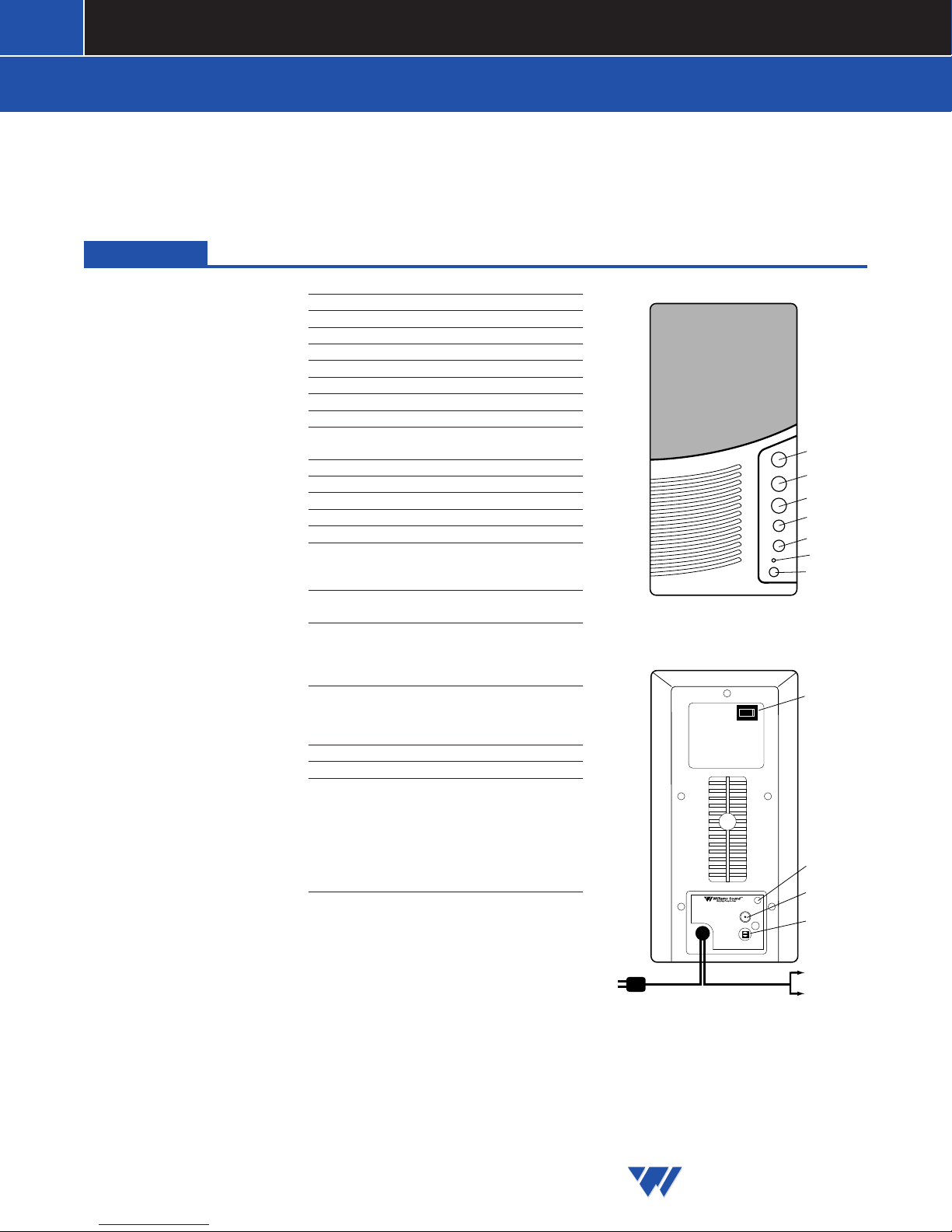

Volume

Treble

Bass

3D On/Off

Power Switch

Power LED

Headphone 

Jack

Channel

Designation

Tuning Coil

Antenna

Connection

Speaker 

Connection 

Wire

Antenna Clip

FM Monitor Receiver Model PPA R751

S/N : A0097

Date: 9909

Power: 120 VAC

This device complies with part 15 of the

FCC Rules. See instruction manual.

FCC ID: CNMR751

Antenna

Tune

Williams Sound Corp., Minneapolis, MN

60VA max

AC Power

R751 Rear

R751 Front

Slave

Speaker

Personal PA

FM Monitor Receiver, Model PPA R751

Williams Sound ®

Helping People Hear

The PPA R751 is a wideband single channel tabletop receiver/speaker with extra slave speaker. It shall be compatible

with all Williams Sound Corp. wideband FM Transmitters. The PPA R751 is field tunable (72 MHz to 76 MHz FM), 75

KHz deviation and 75 mS de-emphasis. It shall have a max output of 20W RMS. It shall be housed in a putty colored

plastic case measuring 4.3" W x 8.9" H x 5.1" D. The slave speaker shall be the same dimensions and color. The front

of the speaker shall have rotary volume, treble and bass controls, 3D push button ON/OFF (boosts high frequency

response), pushbutton power switch, power LED and 3.5 mm stereo headphone jack. The rear of the receiver shall have

a 120 VAC-power cord, speaker cord for the slave speaker connect, F-connector for antenna and tuning coil access. A

39" telescopic antenna shall be supplied with the receiver. The receiver shall be covered by a five-year parts and labor

warranty (90-day on cords, antenna and other accessories). This receiver shall be the Williams Sound Corp. model PPA

R751.

Bid Specs:

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!

Personal PA

FM Monitor Receiver, Model PPA R751

Williams Sound ®

Helping People Hear

United States and Mexico

Williams Sound Corp.

10321 W. 70th Street

Eden Prairie, MN 55344-3446

Ph: 800-328-6190 / 952-943-2252 / FAX: 952-943-2174

Web: www.williamssound.com

Email: [email protected]

Canada

Thorvin Electronics

2861 Sherwood Heights Dr. Units 36-37

Oakville, ON L6J-7K1 Canada

Ph: 800-323-6634 / 905-829-3040 / FAX: 905-829-4196

Web: www.thorvinelectronics.com

South America

DPTech

SIA Trecho 3/4 Lote 335 2°. Andar

71200-030 Brasília, DF

BRAZIL

Ph: (5561) 361-1384

Fax: (5561) 361-0948

Web: www.dptech.com.br

Email: [email protected]

Europe and Asia

International Sales Department

Williams Sound Corp.

10321 W. 70th Street

Eden Prairie, MN 55344 USA

Phone: +1 651 493 2578 or +1 952 943 2252

Fax: +1 952 943 2174

Email: [email protected]

Web: www.williamssound.com
