1. Introduction

Foreword Thank you for purchasing Universal Calibrator CEP6500. The

CEP6500 calibrator is compact hand-held calibrator with an easy

to use graphical user interface. This manual describes the basic

functions and operation methods. Please read through this user’s

manual carefully before using the product.

Notice The contents of this manual are subject to change without notice as

a result of continuous improvements to the instrument’s performance

and functions.



this manual. Should any errors or omissions come to your attention,



Under no circumstances may the contents of this manual, in part or

in whole, be transcribed or copied without our permission.

Trademarks Our product names or brand names mentioned in this manual are

the trademarks or registered trademarks Of WIKA Instruments India

Private Limited. (Herein after referred to as WIKA) Adobe,

Acrobat, and Postscript are either registered trademarks or

trademarks of Adobe Systems Incorporated. All other product

names mentioned in this user’s manual are trademarks or registered

trademarks of the respective companies.

Safety Before you use the instrument, make sure that you read and

understand all the related data. This includes: the applicable local

safety procedures, this publication, And the instructions for the

accessories/options/equipment you are using it with.

Cleaning For Cleaning Use Soft cloth without water

WARNING

General  

Warnings related accessories.

Donotusetheinstrumentoraccessoryifitisnotinitsnormalcondition.

Use the applicable protection and obey all safety precautions. Do

not use the instrument in locations with explosive gas, vapor or dust.

There is a risk of an explosion

Electrical To prevent electrical shocks or damage to the instrument, do not

Warnings connect more than 30V between the terminals, or between the

terminals and the ground.

This instrument uses a Lithium-Ion battery pack. To prevent an



it safe from damage. For operating conditions, see section 6.1 on

Page-85.

WIKA operating instructions, Model CEP6500

To prevent battery leakage or heat generation, only use the battery

charger in the temperature range 0 to 45°C (32 to 113°F). For

operating conditions, see section 6.1 on Page-85.

To make sure the display shows the correct data, disconnect the test

leads before you set the power to on or change to another measure

or source function.

Cautions To prevent damage to the display, do not use sharp objects on the

screen.Before you start an operation or procedure in this publication,

make sure that you have the necessary skills (if necessary, with



engineering practice at all times.

When Replacing Battery replace with the same type of battery (3.7V

/3000Ah) from the Manufacturer ONLY.

The connector for battery connection is polarized. Please correctly

connect or disconnect the connector to the charger board.

In case there is battery leakage, Replace as per above instruction.

Summary of This table gives a summary of the available functions with the

Functions CEP6500 calibrator.

Function

Easy to read liquid crystal display (LCD) in color

Rechargeable lithium Ion battery with enhanced power control for

prolonged battery life.

* Measure RTD (Pt10, Pt50, Pt100, Pt200, Pt400, Pt1000, Pt100

(3926),Ni100 (672), Ni100 (618), Ni120 (672), Cu10 (427),

Cu50 (427), Cu100 (427)), Resistance (0to4000ohms), mA,

mA (2W), Thermocouple (E,J,K,T,B,R,S,N), mV (-10to 250mV),

Switch-test, Frequency, Pulse

* Simulate RTD (Pt10, Pt50, Pt100, Pt200, Pt400, Pt1000, Pt100

(3926), Ni100 (672),Ni100 (618), Ni120 (672), Cu10 (427),

Cu50 (427), Cu100 (427), Resistance (0 to 4000

ohms),Thermocouple (E,J,K,T,B,R,S,N), mV (-10to250mV), mA

mA(2W), V, Frequency, Pulse

Step/Ramp functions: Automatic/Manual

Universal Serial Bus (USB) communications ports: For computer

Communications, Battery Charging& Firmware Upgrade

Data Logging

Other functions:



alarm indication (on the display and buzzer), Glance Screen.

Continuity Test,Automatic/Manual Wire Selection for RTD

Measurement, RTD CJ Compensation.

*Refer to the Specication Sheet on Page: 95

WIKA operating instructions, Model CEP6500 7

2. CEP6500 Hardware Parts & Accessories

2.1 Unpacking & Inspection

At the factory each new CEP6500 passes a careful inspection.It should be free of scrapes

and scratches and in proper operation order upon receipt.The receiver should, however,

inspect the unit for any damage that may have occurred during transit. If there are signs

of obvious mechanical damage, package contents are incomplete, or the instrument

           

soon as possible. The standard accessories are as follows:

Sr. No Description Qty

1.  1

2. CEP6500 user guide 1

3. 4mm to 4mm banana cable Red, 100cm 3

4. 4mm to 4mm banana cable Black, 100cm 3

5. Crocodile clip Red 3

6. Crocodile clip Black 3

7. Test lead Cu-Cu (Miniature TC Plug Cutypeto 4mm Test lead) 1

8. USBA to mini USBB type cable for PC

communication and charging

9. 5V1 A charging adaptor 1

If you have to return the instrument to the factory for any reason, use the original

packing whenever possible. Include a detailed description of the reason for the return.

WIKA operating instructions, Model CEP6500

2.2 Operational Sections and Connections

All sections and connections are presented in detail on the next pages.

Note:

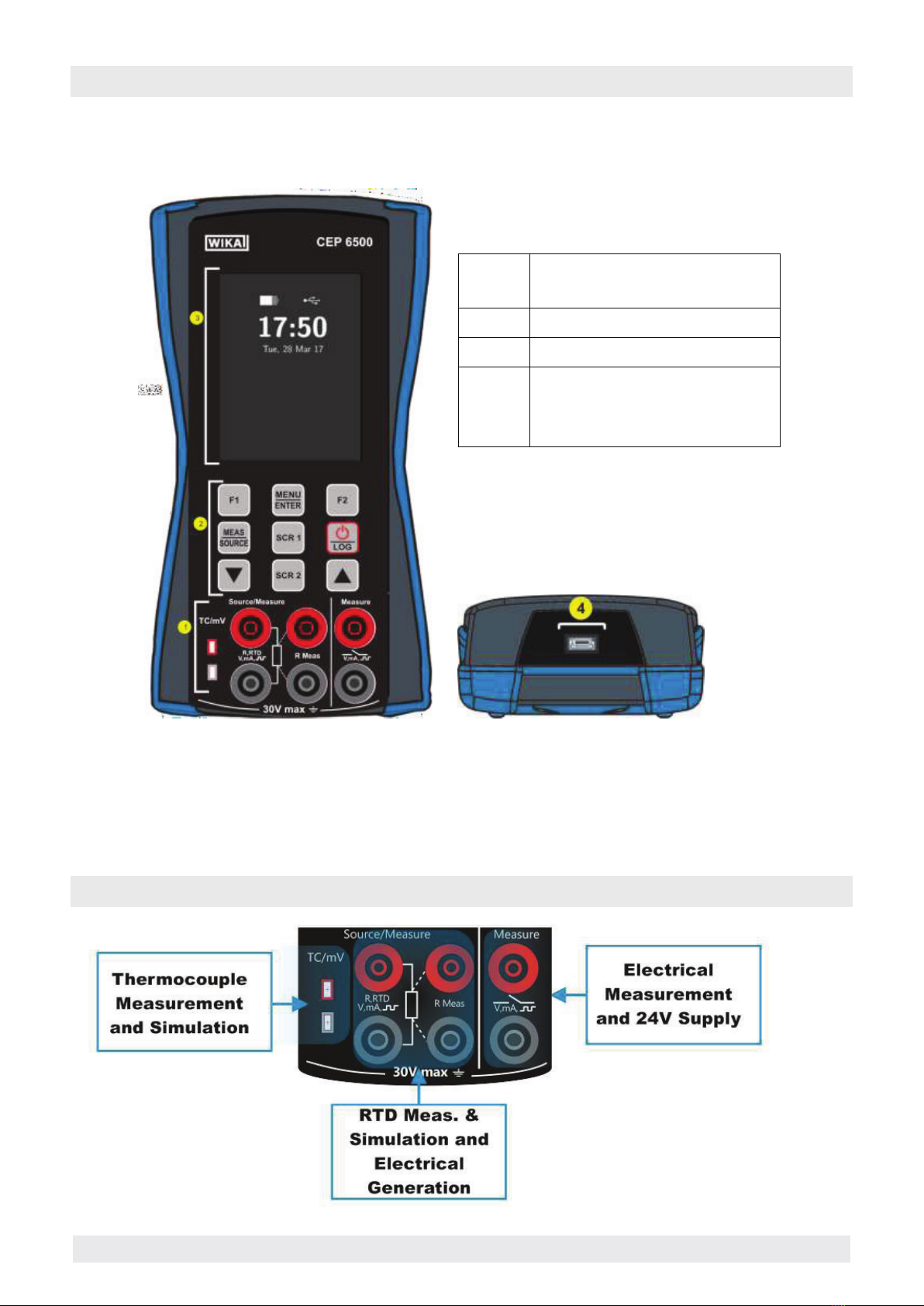

1Terminal Connection For

Measure & Source

2Keypad Section

3TFT Color Display

USB Connection Slot for PC

Communication & Charging

Keep in mind that the next picture (as well as all pictures of CEP6500 in this manual)

has an example con guration of modules. The con guration of your CEP6500 may

vary signi cantly from the one in the picture.

2.2.1 The Terminal Connections

WIKA operating instructions, Model CEP6500 9

EM (Electric Measurements and 24V Supply) Measure Terminals

Input Terminals for measuring voltage, current, supplying loop power, and Frequency

no. 95 Section 6.6 and page no. 97

Section 6.13, 6.14.

Current Measurement

CEP6500 supports current measurement using either CEP6500 as the loop power

supply while at the same time measuring the current or simply measuring the current

while an external power supply is used.





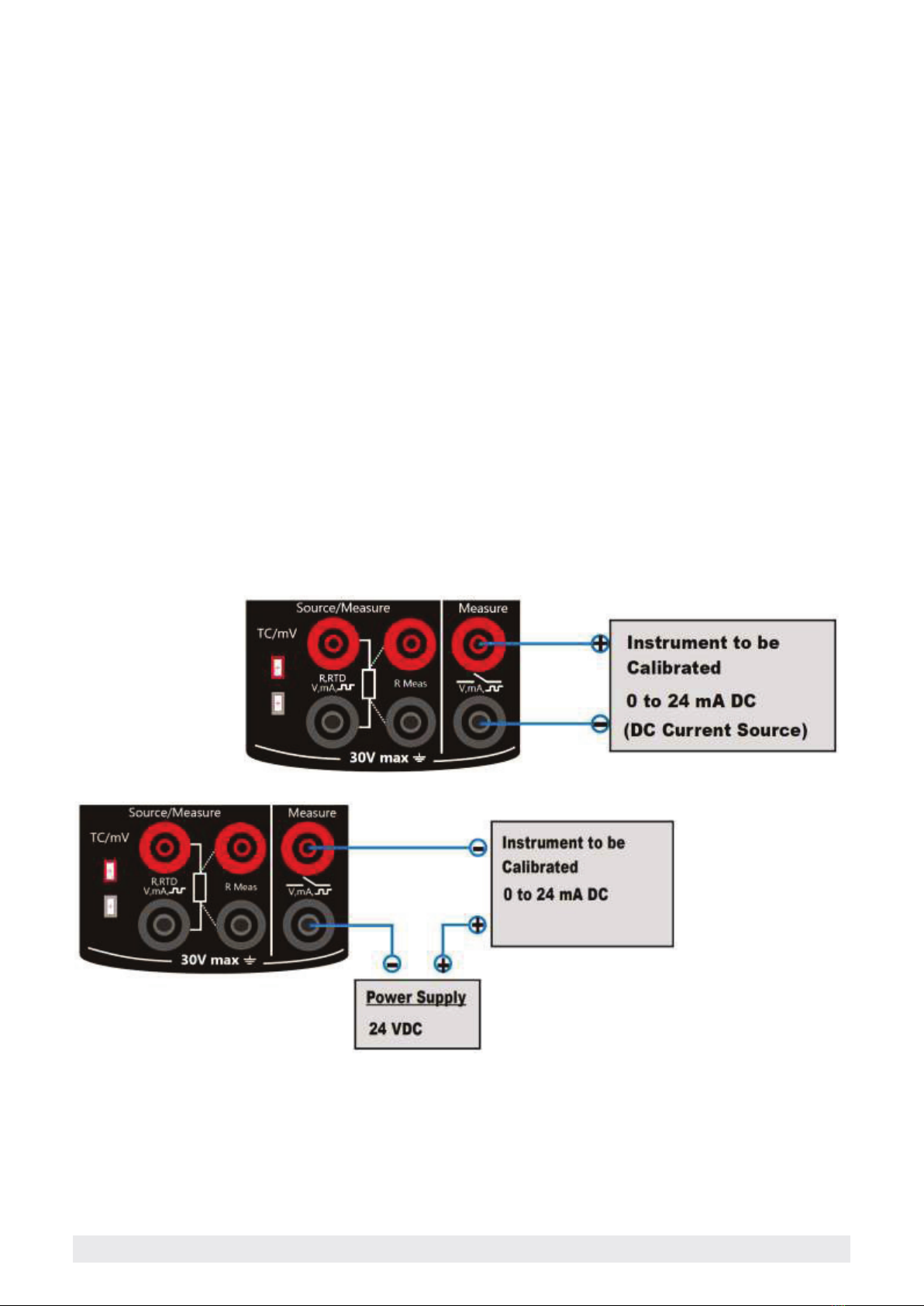

mA Current Measurement

In this mode CEP6500 not providing any supply voltage. For proper measurement the

external device should capable of providing the voltage supply. If the external device

should not capable, an external Power Supply should be connected in series.

WIKA operating instructions, Model CEP6500

mA Read Power Current Measurement

In this mode CEP6500 works as Loop Power Supply while at the same time measuring

the current.

Voltage Measurement

CEP6500 is capable of voltage measurement. The following picture displays the

connection for voltage measurement.

Frequency Measurement

CEP6500 is capable of frequency measurement. The following picture displays the

connection for frequency measurement.

Also check the Trigger Level setting.There you can specify the trigger level and whether

to use a test voltage during the frequency measurement
