WIKA operating instructions thermowell, model TW61

11593963.06 04/2019 EN/DE/FR/ES

Operating instructions model TW61

Page 3 - 18

Betriebsanleitung Typ TW61

Seite 19 - 34

Mode d'emploi type TW61

Page 35 - 50

Manual de instrucciones modelo TW61

Página 51 - 65

WIKA operating instructions thermowell, model TW61

11593963.06 04/2019 EN/DE/FR/ES

Contents

1. General information 4

2. Design and function 5

3. Safety 10

4. Transport, packaging and storage 12

5. Commissioning, operation 13

6. Additional notes for instruments with EHEDG and 3-A 14

7. Faults 14

8. Maintenance and cleaning 15

9. Dismounting, return and disposal 16

10. Specifications 17

11593963.06 04/2019 EN/DE/FR/ES

WIKA operating instructions thermowell, model TW61

1. General information

■The thermowells described in the operating instructions have been manufactured

using state-of-the-art technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems are certified to

ISO 9001 and ISO 14001.

■These operating instructions contain important information on handling the thermowell.

Working safely requires that all safety instructions and work instructions are observed.

■Observe the relevant local accident prevention regulations and general safety

regulations for the thermowell's range of use.

■The operating instructions are part of the product and must be kept in the immediate

vicinity of the thermowell and readily accessible to skilled personnel at any time.

■Skilled personnel must have carefully read and understood the operating instructions

prior to beginning any work.

■The manufacturer's liability is void in the case of any damage caused by using the

product contrary to its intended use, non-compliance with these operating instructions,

assignment of insufficiently qualified skilled personnel or unauthorised modifications to

the thermowell.

■The general terms and conditions contained in the sales documentation shall apply.

■Subject to technical modifications.

■Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: TW 95.61

- Application consultant: Tel.: +49 9372 132-0

Fax: +49 9372 132-406

info@wika.de

1. General information

WIKA operating instructions thermowell, model TW61

11593963.06 04/2019 EN/DE/FR/ES

2. Design and function

2.1 Description

The model TW61 thermowell is used to adapt thermometers and measuring inserts to the

process and protects the sensor against harsh process conditions. Furthermore, it enables

the removal of the temperature probe without having to open the process.

To integrate it into the process, the thermowell is directly orbitally welded into a pipeline.The

connection ends are smooth and prepared for orbital welding.

In combination with a resistance thermometer, the rotatable threaded connection of the

connection head or the display can be loosened and turned to the desired orientation.

The measuring insert can be withdrawn together with the connection head. In this way,

it is possible to calibrate the entire measuring chain (sensor, transmitter if applicable,

connection cable) on site, without having to disconnect the electrical connection. In addition

this avoids having to open the process, and thus the risk of contamination is minimised.

The thermowell is not piggable.

2.2 Dimensions in mm

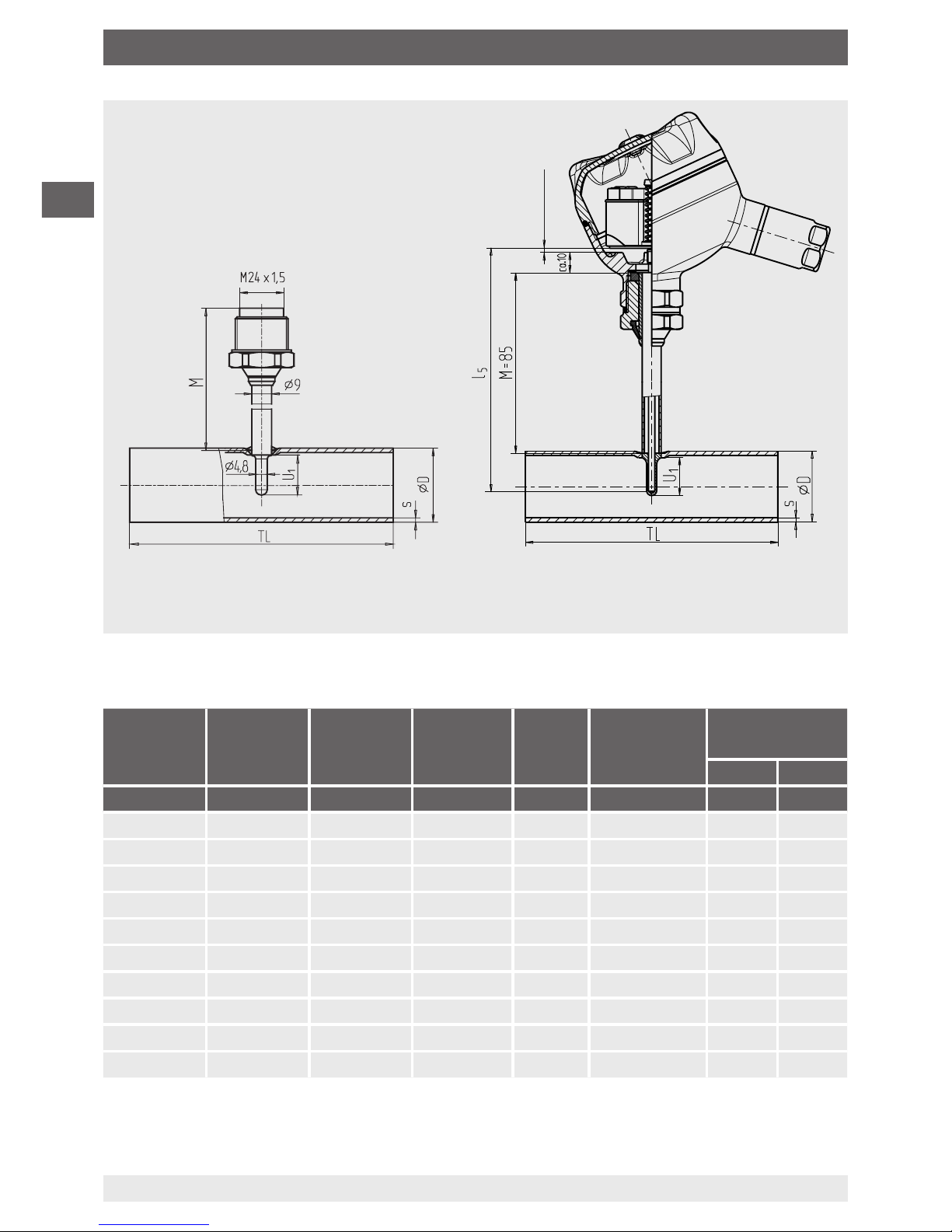

■Flow-through housing

alternative Darstellung

14000996.01

For miniature resistance thermometer model TR21-B

1) In the event of replacement,

calculate the probe insertion

length, l1, as follows:

l1 (TR21-B) = U1+ M + 3 mm

11593963.06 04/2019 EN/DE/FR/ES

WIKA operating instructions thermowell, model TW61

11528266.01

For model TR22-B resistance thermometer

2) In the event of replacement, select a resistance thermometer measuring insert model TR11-A.

The corresponding sensor length, l5, is calculated as follows:

Insertion length U1 + neck tube length M (85 mm) + 5 mm pre-load + 10 mm head dimension

Pre-load

DIN 11866 row A or metric

3) Maximum operating temperature 150 °C

4) All thermowells of this series that are internally pressurised, with a nominal diameter (DN) > 25 mm, are

manufactured and tested to module H of the pressure equipment directive.

14006093.04

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

OD PN 3) 4) Ø D s TL U1M M

10 25 13 1.5 70 6 51 129

15 25 19 1.5 70 9 48 126

20 25 23 1.5 80 11 46 124

25 25 29 1.5 100 18 39 117

32 25 35 1.5 110 18 39 117

40 25 41 1.5 120 18 39 117

50 25 53 1.5 160 30 27 105

65 16 70 2.0 210 30 27 105

80 16 85 2.0 260 45 12 90

100 12.5 104 2.0 310 45 12 90

2. Design and function

WIKA operating instructions thermowell, model TW61

11593963.06 04/2019 EN/DE/FR/ES

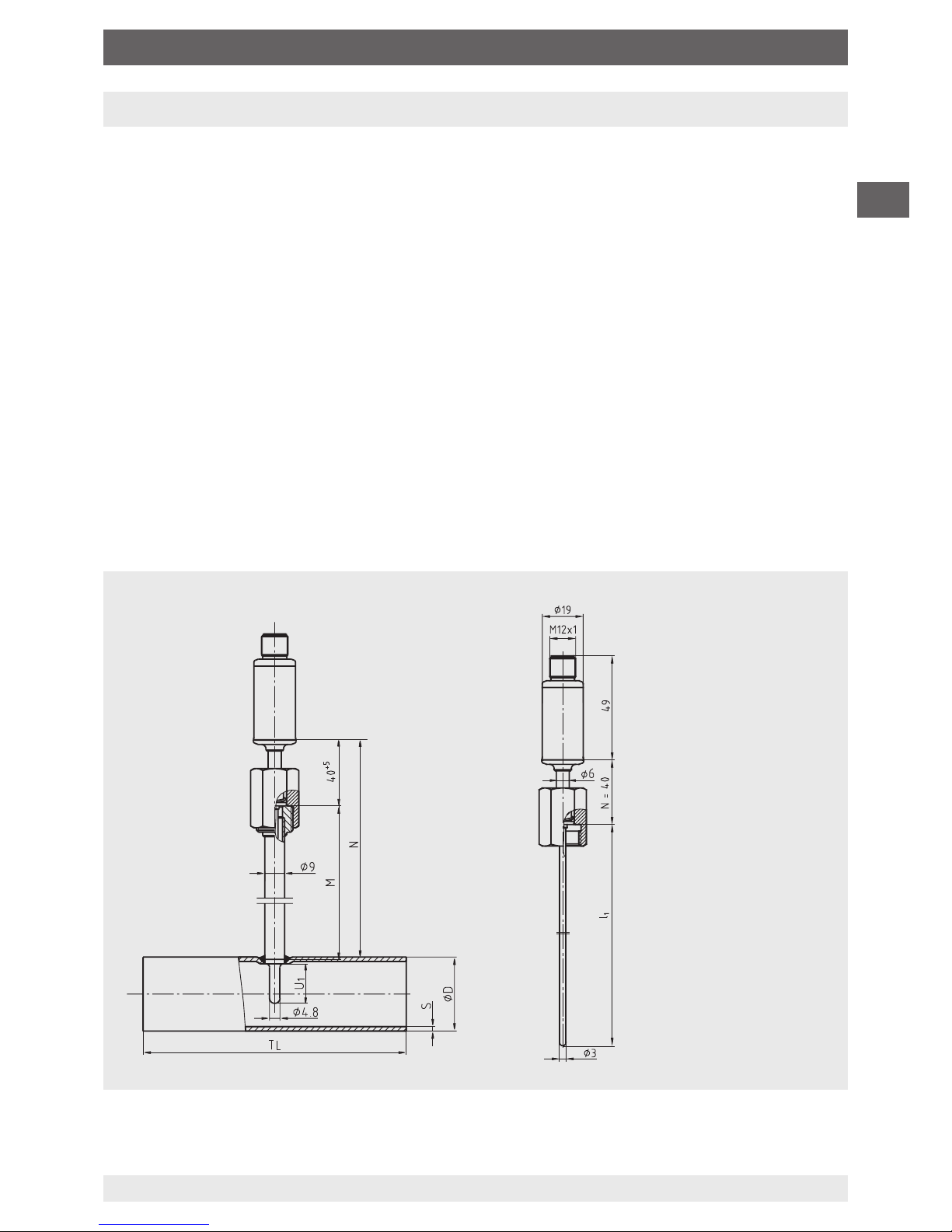

DIN 11866 row B or ISO pipes

2. Design and function

DIN 11866 row C or ASME BPE

3) Maximum operating temperature 150 °C

4) All thermowells of this series that are internally pressurised, with a nominal diameter (DN) > 25 mm, are

manufactured and tested to module H of the pressure equipment directive.

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

DN (OD) PN 3) 4) Ø D s TL U1M M

8 (13.5) 25 13.5 1.6 64 6 51 129

10 (17.2) 25 17.2 1.6 68 9 48 126

15 (21.3) 25 21.3 1.6 72 11 46 124

20 (26.9) 25 26.9 1.6 110 11 46 124

25 (33.7) 25 33.7 2.0 120 18 39 117

32 (42.4) 25 42.4 2.0 130 18 39 117

40 (48.3) 25 48.3 2.0 130 18 39 117

50 (60.3) 25 60.3 2.0 180 30 27 105

65 (76.1) 16 76.1 2.0 220 30 27 105

80 (88.9) 16 88.9 2.3 260 45 12 90

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

OD PN 3) 4) Ø D s TL U1M M

½" 13.8 12.7 1.65 95.2 6 51 129

¾" 13.8 19.05 1.65 101.6 9 48 126

1" 13.8 25.4 1.65 108.0 11 46 124

1 ½" 13.8 38.1 1.65 120.6 18 39 117

2" 13.8 50.8 1.65 146.0 18 39 117

2 ½" 13.8 63.5 1.65 158.8 30 27 105

3" 13.8 76.2 1.65 171.4 30 27 105

4" 13.8 101.6 2.11 209.6 45 12 90

11593963.06 04/2019 EN/DE/FR/ES

WIKA operating instructions thermowell, model TW61

2. Design and function

11528452.01

11575795.02 14000996.01

1) In the event of replacement, calculate the

probe insertion length, l1, as follows:

l1 (TR21-B) = U1+ M + 3 mm

For miniature resistance thermometer model TR21-B

For model TR22-B resistance thermometer

2) In the event of replacement, select a

resistance thermometer measuring insert

model TR11-A.

The corresponding sensor length, l5, is

calculated as follows:

Insertion length U1 + neck tube length

M (85 mm) + 5 mm pre-load + 10 mm head

dimension

alternative Darstellung

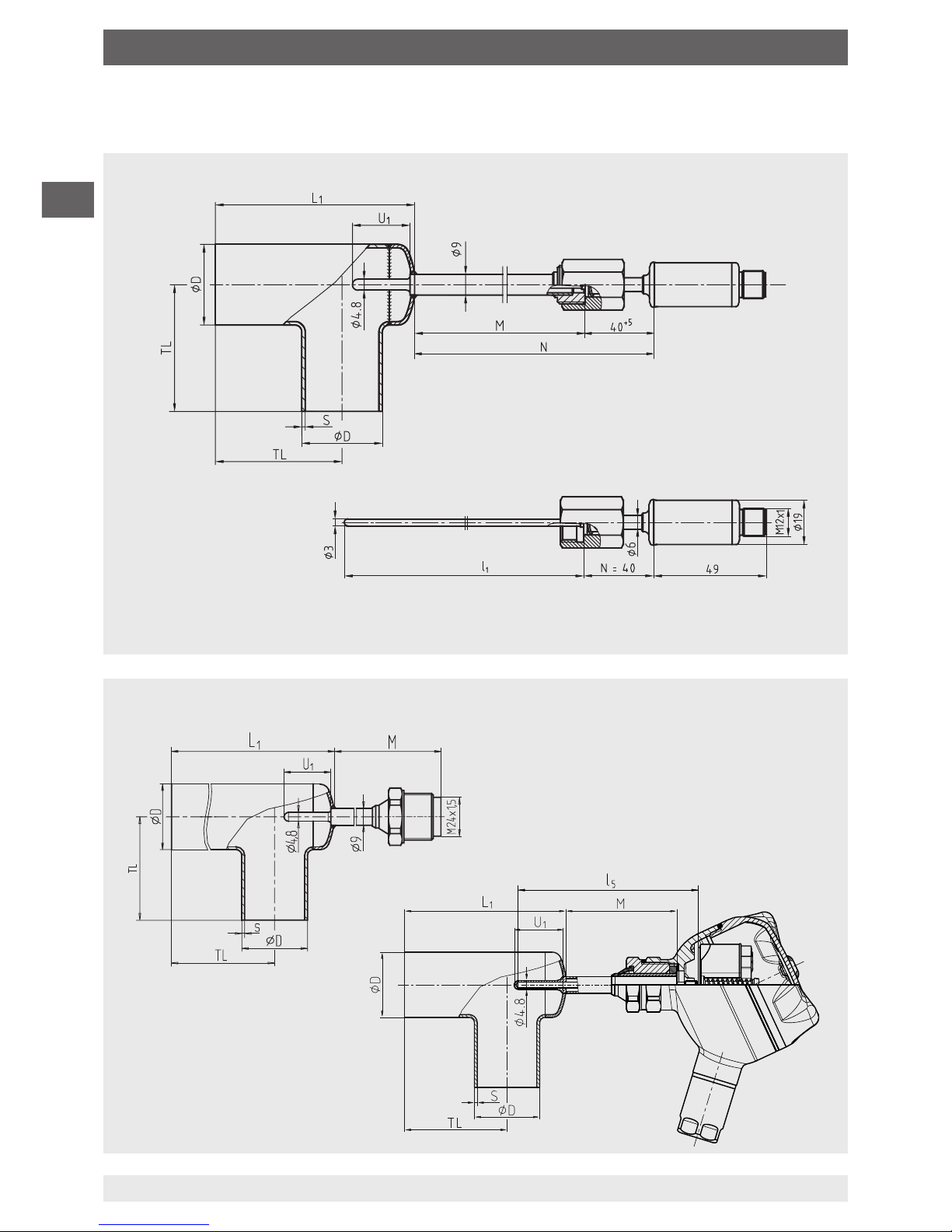

■Angular housings (recommended mounting position, see chapter 5 “Commissioning,

operation”)

WIKA operating instructions thermowell, model TW61

11593963.06 04/2019 EN/DE/FR/ES

2. Design and function

DIN 11866 row B or ISO pipes

DIN 11866 row A or metric

3) Maximum operating temperature 150 °C

4) All thermowells of this series that are internally pressurised, with a nominal diameter (DN) > 25 mm, are

manufactured and tested to module H of the pressure equipment directive.

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

DN (OD) PN 3) 4) Ø D s TL L1U1M M

8 (13.5) 25 13.5 1.6 32 55 14 43 121

10 (17.2) 25 17.2 1.6 34 55 16 41 119

15 (21.3) 25 21.3 1.6 36 58 18 39 117

20 (26.9) 25 26.9 1.6 55 81 30 27 105

25 (33.7) 25 33.7 2.0 60 91 30 27 105

32 (42.4) 25 42.4 2.0 65 102 30 27 105

40 (48.3) 25 48.3 2.0 65 108 30 27 105

50 (60.3) 25 60.3 2.0 90 145 45 12 90

65 (76.1) 16 76.1 2.0 110 173 45 12 90

80 (88.9) 16 88.9 2.3 130 203 45 12 90

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

OD PN 3) 4) Ø D s TL L1U1M M

10 25 13 1.5 35 55 14 43 121

15 25 19 1.5 35 55 18 39 117

20 25 23 1.5 40 63 18 39 117

25 25 29 1.5 50 77 30 27 105

32 25 35 1.5 55 87 30 27 105

40 25 41 1.5 60 97 30 27 105

50 25 53 1.5 80 126 30 27 105

65 16 70 2.0 105 165 45 12 90

80 16 85 2.0 130 201 45 12 90

100 12.5 104 2.0 155 241 45 12 90

11593963.06 04/2019 EN/DE/FR/ES

WIKA operating instructions thermowell, model TW61

2.3 Scope of delivery

Cross-check scope of delivery with delivery note.

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in serious injury or

death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in light injuries or

damage to equipment or the environment, if not avoided.

DANGER!

... identifies hazards caused by electric power. Should the safety instructions not

be observed, there is a risk of serious or fatal injury.

WARNING!

... indicates a potentially dangerous situation that can result in burns, caused by

hot surfaces or liquids, if not avoided.

2. Design and function / 3. Safety

DIN 11866 row C or ASME BPE

3) Maximum operating temperature 150 °C

4) All thermowells of this series that are internally pressurised, with a nominal diameter (DN) > 25 mm, are

manufactured and tested to module H of the pressure equipment directive.

Nominal

width of

pipe

Nominal

pressure

in bar

Outer

diameter

of pipe

Pipe

schedule

Pipe

length

Thermowell

insertion

length

Neck tube

length

TR21-B TR22-B

OD PN 3) 4) Ø D s TL L1U1M M

½" 13.8 12.7 1.65 47.6 71 14 43 121

¾" 13.8 19.05 1.65 50.8 71 18 39 117

1" 13.8 25.4 1.65 54.0 79 18 39 117

1 ½" 13.8 38.1 1.65 60.3 94 30 27 105

2" 13.8 50.8 1.65 73.0 118 30 27 105

2 ½" 13.8 63.5 1.65 79.4 134 45 12 90

3" 13.8 76.2 1.65 85.7 150 45 12 90

4" 13.8 101.6 2.11 104.8 190 45 12 90

Autres manuels pour TW61

Table des matières

Langues :

Autres manuels WIKA Équipement industriel

WIKA

WIKA DSSA11SA Manuel utilisateur

WIKA

WIKA 990.45 Mode d'emploi

WIKA

WIKA TR21-A Manuel utilisateur

WIKA

WIKA 732.15.160 Manuel utilisateur

WIKA

WIKA 712.15.160 Manuel utilisateur

WIKA

WIKA TW61 Manuel utilisateur

WIKA

WIKA 5 Manuel utilisateur

WIKA

WIKA MTUT007MOEN Mode d'emploi

WIKA

WIKA NETRIS 1 Manuel utilisateur

WIKA

WIKA F5301 Manuel utilisateur

WIKA

WIKA F4801 Manuel utilisateur

WIKA

WIKA F4801 Manuel utilisateur

WIKA

WIKA PGT23.063 Manuel utilisateur

WIKA

WIKA TR12 Series Manuel utilisateur

WIKA

WIKA 212.20.100 Manuel utilisateur

WIKA

WIKA F7301 Manuel utilisateur

WIKA

WIKA GAYESCO TEFRACTO-PAD TC59-T Manuel utilisateur

WIKA

WIKA GFU08 Series Manuel utilisateur

Manuels Équipement industriel populaires d'autres marques

ABB

ABB Unifix AD Manuel

Mark 7

Mark 7 Evolution Manuel utilisateur

Husky

Husky HyPET Manuel utilisateur

bora

bora PM-1800 Manuel utilisateur

Grizzly

Grizzly T32428 Manuel utilisateur

Siemens

Siemens 8MF1 Series Manuel utilisateur

ABB

ABB HT610965 Manuel utilisateur

ABB

ABB SafeLink Manuel utilisateur

Phoenix

Phoenix PHX-150 Manuel utilisateur

ABB

ABB A165-L32 Manuel utilisateur

ABB

ABB HT842936 Manuel utilisateur

Rioned

Rioned UrbanJet Manuel utilisateur

Hermetica

Hermetica 10 Series Manuel utilisateur

HORNER

HORNER OEE Solution Manuel utilisateur

Hammerhead

Hammerhead HG375 Manuel utilisateur

SCHUNK

SCHUNK VERO-S NSE-A3 138 Instructions d'utilisation

ABB

ABB HT566657 Manuel utilisateur

Webasto

Webasto GSE CAN Manuel utilisateur
