50T35-743

Integrated Furnace Control

FAILURETOREADANDFOLLOWALLINSTRUCTIONSCAREFULLYBEFORE

INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL

INJURY AND/OR PROPERTY DAMAGE.

PART NO. 37-6533A

0414

DESCRIPTION

INSTALLATION INSTRUCTIONS

The 50T35-743 Integrated Furnace Control is a replacement for Goodman B18099-06, B18099-08, B18099-10 and

B18099-13 HSI modules

PRECAUTIONS

Operator: Save these instructions for future use!

FIRE HAZARD

• Do not exceed the specified voltage.

• Replace existing control with exact model and

dash number.

• Protect the control from direct contact with water

(dripping, spraying, rain, etc.).

• Ifthecontrolhas beenin directcontact withwater,

replace the control.

• Label all wires before disconnection when servic-

ing controls. Wiring errors can cause improper

and dangerous operation.

• Route and secure wiring away from flame.

SHOCK HAZARD

• Disconnect electric power before servicing .

• Ensure proper earth grounding of appliance.

• Ensure proper connection of line neutral and line

hot wires.

EXPLOSION HAZARD

• Shut off main gas to appliance until installation is

complete.

Installation should be done by a qualified heating and air

conditioning contractor or licensed electrician.

Ifindoubtaboutwhetheryourwiringismillivolt,line,orlow

voltage, have it inspected by a qualified heating and air

conditioning contractor or licensed electrician.

Do not exceed the specification ratings.

All wiring must conform to local and national electrical

codes and ordinances.

This control is a precision instrument, and should be

handled carefully. Rough handling or distorting compo-

nents could cause the control to malfunction.

Following installation or replacement, follow

manufacturer’srecommendedinstallation/serviceinstruc-

tions to ensure proper operation.

CAUTION

Do not short out terminals on gas valve or pri-

marycontrol.Shortorincorrectwiringmaydam-

age the thermostat.

White-Rodgers is a division

of Emerson Electric Co.

www.white-rodgers.com

INSTALLATION

Remove both access panels.

For GMP & GMPV series units, cut the white jumper wire

between pins 1 & 4 of the 9 pin connector.

For GMPN & GMN series units, DO NOT cut the white

jumper wire.

Removetheedgecardconnectorandotherwiresfromthe

existing module. Discard the thermostat wires re-

moved from the board (R, W & G).

Remove the existing HSI module. Care should be exer-

cised as not to damage the nylon standoffs.

Install the 50T35-743 module.

Reconnect the edgecard connector making sure of good

contact.

Pushthe9pin connectorintotheHSI module.Itcango in

only one way. DO NOT force.

Reconnect the supplied thermostat wires.

Removetheredwirefromthe24voltsideofthesecondary

side of the transformer and discard.

Remove the blue ground wire from the transformer. DO

NOT discard.

Remove the blue wire from the transformer and discard.

Placethe red wire from the9 pinconnector onto "24volt"

of the secondary side of the transformer.

Place the blue wire from the 9 pin connector on to

"Common" terminal of the secondary side of the

transformer. This wire has a piggy back terminal.

Place the blue ground wire, which was previously re-

moved, on to the "Common" terminal of the trans-

former.

Replace the access panels.

Restore gas and electrical power to the furnace.

Verify the sequence of operation as noted in the Installa-

tion & Operating Instructions.

SELECTING THE BLOWER OFF DELAY

Inthe heatingmode, the blower off delay can be selected

to obtain a 90, 120 or 150 seconds period. This can be

accomplishedbychangingthepositionofaplasticjumper

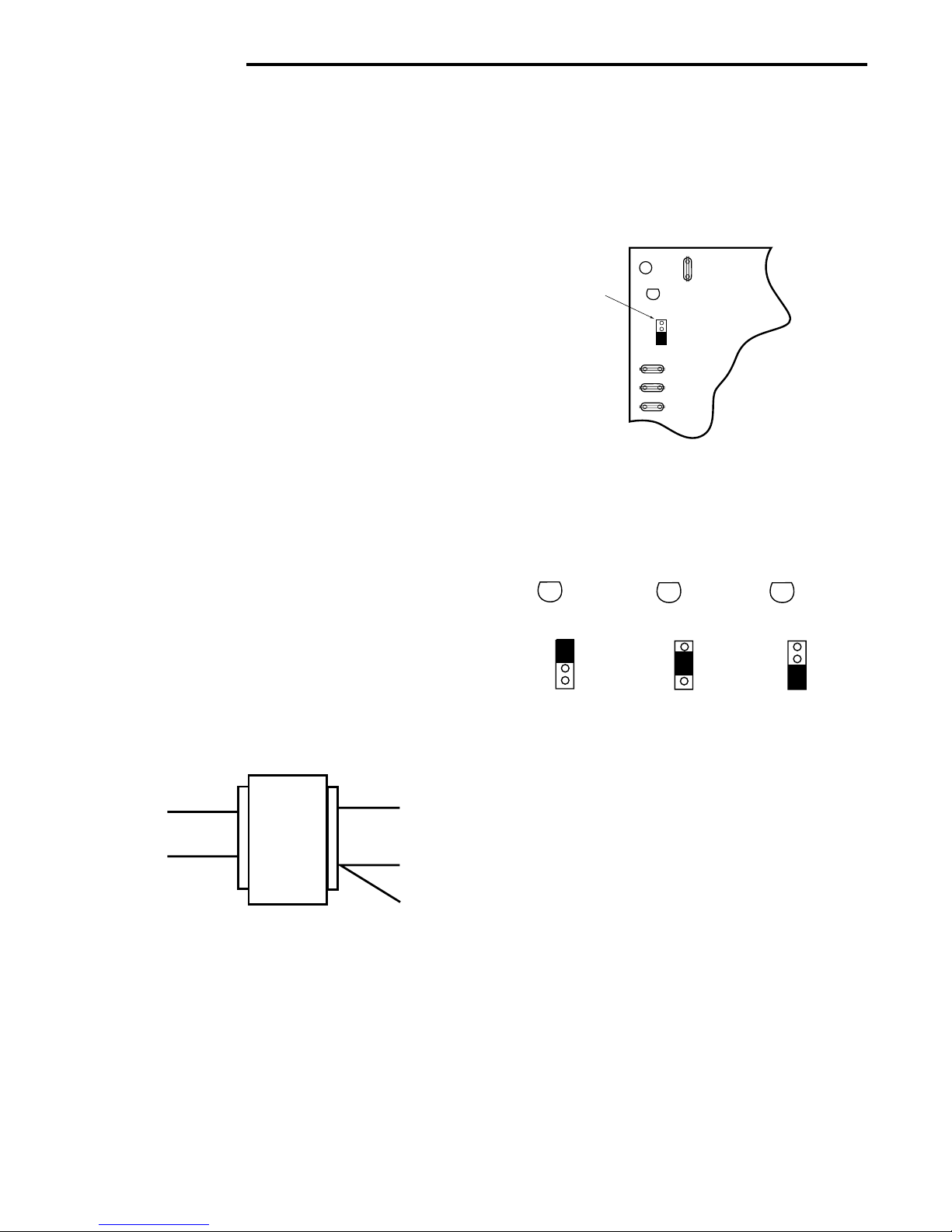

located on the ignition control. See the drawing below for

the location of this jumper.

Thecontrolisfactorysettogivea(150)secondbloweroff

delay. See drawing below for the jumper position for all

available settings:

Notes:

• If the jumper is removed, the control will default to a

(150) second blower off delay in the heating mode.

• The blower on time in the heating mode is (30)

seconds and is non-adjustable.

• Theblowerontimeinthecoolingmodeis(7)seconds

and is non-adjustable.

• The blower off delay in the cooling mode is (60)

seconds and is non-adjustable.

• Caution is to be exercised not to bend the metal pins

whenchangingthetimedelayfromthefactorysetting.

STATUS

120

150

JUMPER SET

STATUS

120

150

JUMPER SET

STATUS

120

150

JUMPER SET

FOR 90 SEC. FOR 120 SEC. FOR 150 SEC.

BLOWER

TIME OFF

JUMPER 90

120

150

STATUS

TWIN

Black

White

24 v. Red

Com. Blue

GND. Blue

TRANSFORMER

115v. Supply

The Emerson logo is a

trademark and a service mark

of Emerson Electric Co.
