INSTALLATION INSTRUCTIONS

AND OWNER'S MANUAL

The Breckenridge

Select Vent-Free Universal Fireboxes

DO NOT ATTEMPT TO MODIFY OR ALTER THE

CONSTRUCTION OF THE FIREBOX OR ITS COMPO-

NENTS. ANY MODIFICATION OR ALTERATION OF

CONSTRUCTION MAY VOID THE WARRANTY OF

THIS FIREBOX.

CHILDREN AND ADULTS SHOULD BE ALERTED TO

THE HAZARDS OF HIGH SURFACE TEMPERATURE

AND SHOULD STAY AWAY TO AVOID BURNS OR

CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SU-

PERVISED WHEN THEY ARE IN THE SAME ROOM

AS THE FIREBOX.

FOR USE ONLY WITH A LISTED GAS-FIRED UN-

VENTED DECORATIVE ROOM HEATER NOT TO

EXCEED 40,000 BTU/H.

DO NOT BUILD A WOOD FIRE.

UNIVERSAL FIREBOX FOR ALL

VENT-FREE LOG SETS

MODELS

VFS32FB2DF-2 VFS36FB2DF-2 VFS42FB2DF-2

VFS32FB3DF-2 VFS36FB3DF-2 VFS42FB3DF-2

VFS32FB2EF-1 VFS36FB2EF-1 VFS42FB2EF-1

VFS32FB3EF-1 VFS36FB3EF-1 VFS42FB3EF-1

WARNING: Improper installation, adjustment, altera-

tion, service or maintenance can cause injury or property

damage. Refer to this manual. For assistance or additional

information, consult a qualiﬁed installer, service agency or

the gas supplier.

Carefully review the instructions supplied with the decora-

tive type unvented room heater for the minimum ﬁreplace

size requirement.

DO NOT INSTALL A VENT-FREE LOG SET IN THIS

FIREBOX, UNLESS THIS FIREBOX MEETS THE

MINIMUM DIMENSIONS REQUIRED FOR THE

INSTALLATION.

GAS-FIRED

ANSI Z21.91 Ventless Fireplace Enclosures for Gas Fired

Decorative Type Unvented Room Heaters

— Do not store or use gasoline or other ﬂammable vapors

and liquids in the vicinity of this or any other appli-

ance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neigh-

bor’s phone. Follow the gas supplier’s instruc-

tions.

• If you cannot reach your gas supplier, call the ﬁre

department.

— Installation and service must be performed by a quali-

ﬁed installer, service agency or the gas supplier.

WARNING: If the information in these instructions are

not followed exactly, a ﬁre or explosion may result caus-

ing property damage, personal injury or loss of life.

Installer: Leave this manual with the appliance.

Consumer: Retain this manual for future reference.

23861-3-0808Page 2

SECTION PAGE

Important Safety Information .................................................................................................3

Introduction ............................................................................................................................3

Clearances ..............................................................................................................................4

Firebox Installation Instructions ......................................................................................... 5-7

Installing Hood ................................................................................................................... 7-8

Gas Line Connection .............................................................................................................8

Optional Single Speed Blower Installation Instructions .................................................. 9-11

Junction Box Wiring Installation Instructions ......................................................................12

Maintenance .........................................................................................................................12

Parts List ....................................................................................................................... 12-13

Parts View .............................................................................................................................14

How to Order Repair Parts ...................................................................................................14

Accessories ..................................................................................................................... 15-16

TABLE OF CONTENTS

23861-3-0808 Page 3

The installation must conform with local codes or, in

the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1 (latest edition) and to the National

electrical Code, ANSI/NFPA70 (latest edition).

NOTE: Installation and repair should be done by a quali-

ﬁed service person. The appliance should be inspected

before use and at least annually by a qualiﬁed service

person. More frequent cleaning may be required due to

excessive lint from carpeting, bedding material, etc. It

is imperative that control compartment, burners and

circulating air passageways of the appliance be kept

clean.

Any safety screen or guard removed for servicing an

appliance must be replaced prior to operating the ap-

pliance. Provide adequate combustion and ventilation

air.

The ﬂow of combustion and ventilation air MUST NOT

be obstructed.

Provide adequate clearance around air openings into

the combustion chamber and adequate accessibility

clearance for servicing and proper operation. NEVER

obstruct the front opening of the appliance.

This Empire Comfort Systems, Inc. firebox and its

components have been tested and will operate safely when

installed in accordance with this installation manual.

Read all instructions before starting installation, then

follow these instructions carefully during installation

to maximize ﬁrebox beneﬁt and safety. Report to your

dealer any parts damaged in shipment.

The Empire Comfort Systems, Inc. warranty will be

voided by, and Empire Comfort Systems, Inc. disclaims

any responsibility for the following actions:

- Installation of any damaged ﬁrebox.

- Modiﬁcation of the ﬁrebox or any of the components

parts thereof.

- Installation other than as instructed by Empire

Comfort Systems, Inc.

- Installation and/or use of any component part or

accessory not approved by Empire Comfort Systems,

Inc. in combination or assembly with a Empire

Comfort Systems, Inc. ﬁrebox, not withstanding any

independent testing laboratory or other third party

approval of such component part or accessory.

Any such action may create a possible ﬁre hazard.

Consult your local building codes.

Firebox Screen.

The ﬁrebox screen must be in place when the ﬁrebox is

operating.

Instructions to Installer

1. Installer must leave instruction manual with owner after

installation.

2. Installer must have owner ﬁll out and mail warranty card

supplied with ﬁrebox.

3. Installer should show owner how to start and operate log set

that is installed into ﬁrebox.

Important

All correspondence should refer to complete Model Number,

Serial Number.

Notice: During initial ﬁring of this ﬁrebox with a log set installed, its

paint will bake out, and smoke will occur. To prevent triggering of

smoke alarms, ventilate the room in which the unit is installed.

Qualiﬁed Installing Agency

Installation and replacement of gas piping, gas utilization

equipment or accessories and repair and servicing of equipment

shall be performed only by a qualiﬁed agency. The term "qualiﬁed

agency" means any individual, ﬁrm, corporation or company

which either in person or through a representative is engaged in

and is responsible for (a) the installation or replacement of gas

piping or (b) the connection, installation, repair or servicing of

equipment, who is experienced in such work, familiar with all

precautions required and has complied with all the requirements

of the authority having jurisdiction.

State of Massachusetts: The installation must be made by

a licensed plumber or gas ﬁtter in the Commonwealth of

Massachusetts. The state of Massachusetts requires that a

ﬂexible appliance connector cannot exceed three feet in

length.

Sellers of unvented propane or natural gas-ﬁred supplemental

room heaters shall provide to each purchaser a copy of 527

CMR 30 upon sale of the unit.

In the State of Massachusetts, unvented propane and natural

gas-ﬁred space heaters shall be prohibited in bedrooms and

bathrooms.

The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.1/

NFPA 54.*

*Available from the American National Standards Institute, Inc., 11 West

42nd St., New York, N.Y. 10036.

IMPORTANT SAFETY INFORMATION

INTRODUCTION

23861-3-0808Page 4

Sidewall Clearances: The clearance from the inside of the ﬁrebox

to perpendicular combustible side wall should not be less than

6". See Figure 1.

Firebox Side and Back Clearances: The ﬁrebox outer casing side

and back ﬂanges are zero clearance to combustibles.

Top Framing and Finishing: Combustible framing may rest on

top of standoffs. Combustible ﬁnishing materials may extend

to the top standoff screws on the front edge of the outer wrap.

See Figure 2.

Ceiling Clearances: The ceiling height should not be less than 42"

from the top of the hood. See Figures 3a and 3b.

Mantel Clearances: Vent free ﬁrebox models must use the hood

supplied with the ﬁrebox, or one of the optional hood kits

available for each model. If a combustible mantel is installed,

it must meet the clearance requirements detailed below.

Grate Clearance: The minimum clearance between the front legs

of the grate and front edge of the ﬁrebox is 2".

Leave at least 36" clearance from the front of the ﬁrebox.

CLEARANCES

45°

6”

3”

MAX.

PERPENDICULAR

SIDE WALL

FRONT FACE (SIDE)

FIREBOX

(TOP VIEW)

COMBUSTIBLE

MATERIALS ALLOWED

IN SHADED AREAS

MANTEL

STANDARD

HOOD

13”

10”

12”

MAX

42”

MIN.

(CEILING TO

TOP OF HOOD)

11 1/2”

MIN.

FIREBOX

FACE

84”

MIN.

(CEILING TO FLOOR)

CEILING

COMBUSTIBLES

ALLOWED

3/8” COMBUSTIBLE

CLEARANCE REQUIRED

FROM TOP EDGE

OF FIREBOX

10”

22”

8”

20”

6 ½”

18”

5”

16”

3 ½”

14”

2”

12 ½”

3/4”

24 ½”

0”

Figure 1 Figure 2

Figure 3a - Mantel Clearances with Standard Hood Figure 3b - Mantel Clearances with Optional Extended Hood

MANTEL

EXTENDED HOOD

(VB4H SERIES)

10”

12”

MAX

42”

MIN.

(CEILING TO

TOP OF HOOD)

8”

MIN.

FIREBOX

FACE

84”

MIN.

(CEILING TO FLOOR)

CEILING

COMBUSTIBLES

ALLOWED

3/8” COMBUSTIBLE

CLEARANCE REQUIRED

FROM TOP EDGE

OF FIREBOX

10”

22”

8”

20”

6 ½”

18”

5”

16”

3 ½”

14 ½”

2 ½”

24 ½”

0”

16 ½”

FIREBOX

STAND OFF

COMBUSTIBLE

FINISHED WALL

OR MANTEL

2X4

HEADER

TOP OUTER

WRAP

FINISH WITH TRIM KIT

OR NON-COMBUSTIBLE

MATERIAL AS DESIRED.

23861-3-0808 Page 5

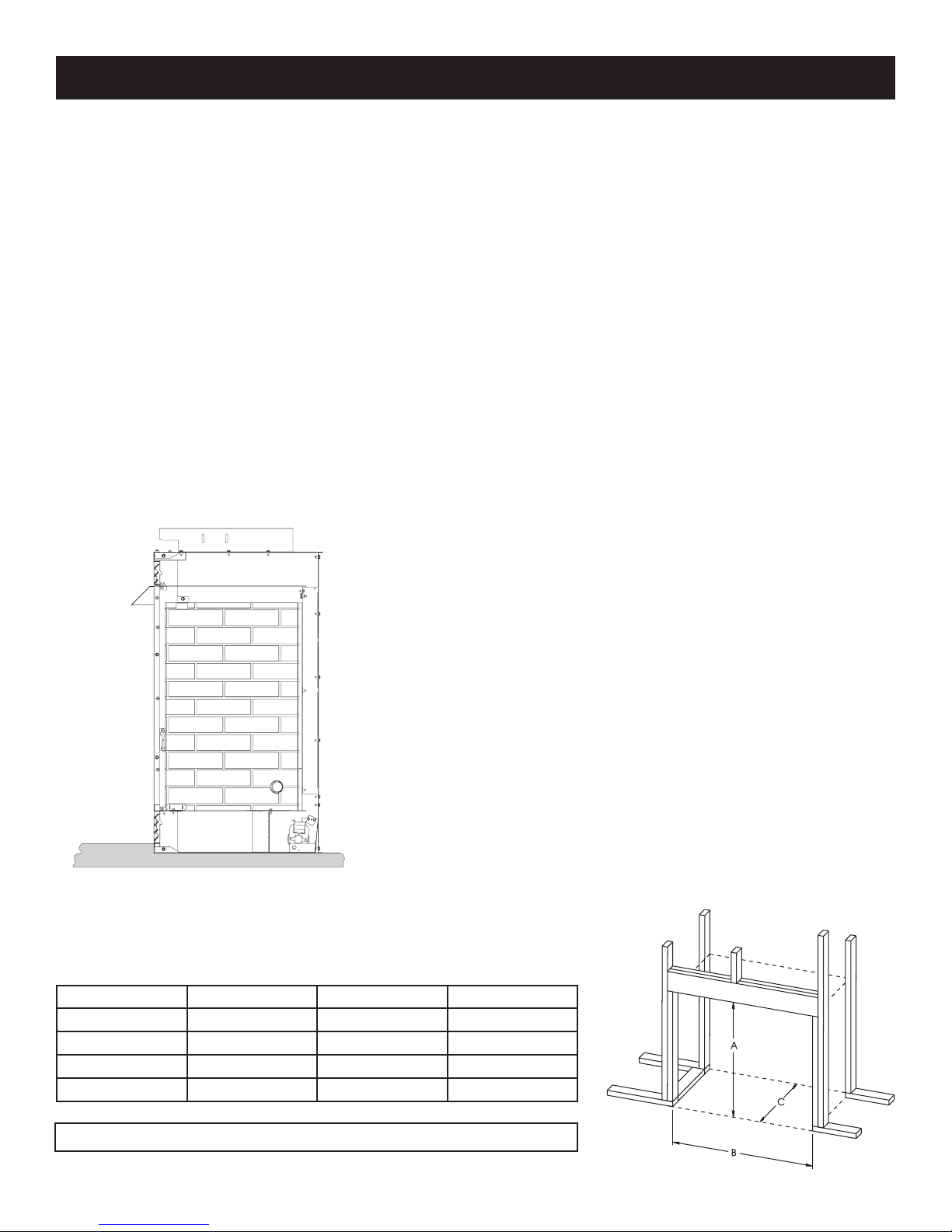

Select Vent-Free Firebox Framing Dimensions (in inches)

"A" "B" "C"

Model Framing Height Framing Width Framing Depth

VFS32FB 41 1/2" 35" 23"

VFS36FB 41 1/2" 40" 23"

VFS42FB 41 1/2" 44" 23"

Attention: Add 3-3/4" to "A" Dimension when using ﬂush mantel base.

Framing dimension A includes a three inch clearance for standoffs on ﬁrebox.

Any vent-free Gas Log Heater must be “For use with approved

ANSI Z21.11.2 unvented room heater.”

Follow and complete the installation instructions of the gas log set

and the requirements of this ﬁrebox.

Check all ﬁttings for leaks before lighting the gas log set.

In planning the installation for the ﬁrebox, it is necessary to

determine where the unit is to be installed and whether optional

accessories are desired. Gas supply piping should also be planned

at this time.

A gas shut off must be in this line.

The ﬁrebox can be mounted on any of these surfaces:

1. A ﬂat hard combustible or non-combustible surface.

2. A raised platform of combustible or non-combustible

material.

3. Recessed into the ﬂoor as illustrated by Figure 4.

4. Supported under all (4) corners of the ﬁrebox so that contact

is made on all four perimeter edges on the bottom of the unit

(Example: Four (4) concrete masonry blocks).

If the firebox is installed directly on carpeting, tile or other

combustible material other than wood ﬂooring, it should be installed

on a metal or wood panel extending the full width and depth of

the unit.

At this point, you should have decided what components to include

in your installation, and where the ﬁrebox is to be located. If this

has not been done, stop and consult your dealer for assistance with

this planning.

Planning Your Installation

Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,

Full Cabinet Mantels, plus other Decorative Frame, Hood, and

Door accessory kits may be installed after the ﬁrebox is secured

to the framed opening.

Refer to the instructions provided with each of the optional

accessory kits for proper installation and operation.

Firebox Framing

Firebox framing can be built before or after the ﬁrebox is set

in place. Framing should be positioned to accommodate wall

covering and ﬁrebox facing material. The ﬁrebox framing should

be constructed of 2 x 4 lumber or heavier. The framing headers may

rest on the top of the ﬁrebox standoffs. Refer to Figures 5 and 6

for ﬁrebox framing dimensions.

LOUVERED

FIREBOX

MODELS

COMBUSTIBLE MATERIALS ALLOWED

Figure 4

Figure 5

FIREBOX INSTALLATION INSTRUCTIONS

23861-3-0808Page 6

Figure 6

Firebox Dimensions

SELECT

FIREBOX INSTALLATION INSTRUCTIONS (continued)

SELECT

REFERENCE

LETTER

FLUSH

VFS32 VFS36 VFS42

A 41 1/8" 41 1/8" 41 1/8"

B 34 1/2" 39 1/2" 43 1/2"

C 23 7/16" 23 7/16" 23 7/16"

D 26 3/8" 31 3/8" 35 3/8"

E 38 1/2" 38 1/2" 38 1/2"

F 31" 36" 40"

G 31 3/4" 31 3/4" 31 3/4"

H 2 1/8" 2 1/8" 2 1/8"

I 34" 34" 34"

J 4 1/4" 4 1/4" 4 1/4"

K 7 5/8" 7 5/8" 7 5/8"

L 36 1/2" 39 1/16" 41 1/16"

M 73 1/16" 78 1/16" 82 1/16"

23861-3-0808 Page 7

Locating Firebox

Place ﬁrebox in framing opening. Use the four (4) framing brackets

provided on the ﬁrebox to attach ﬁrebox to framing. Different hole

locations can be used for ﬁnishing materials with thicknesses of

3/8", 1/2" and 3/4". Attach these materials with screws provided,

two (2) per framing bracket. See Figure 7.

Framing brackets should ﬁt directly against framing material. Use

at least one (1) nail per bracket to secure in place.

Check squareness of the ﬁrebox prior to securing to framed opening.

See Figure 8.

Figure 7

A black hood that is furnished with each ﬁrebox (or optional hood)

MUST be installed before the ﬁrebox is used. Failure to do so may

create a possible ﬁre hazard. The hood is located inside the ﬁrebox

on ﬂush face units. If brass, stainless steel, or hammered pewter

hoods are desired, they can be purchased as an option. Attachment

is the same as the standard black hood.

Flush Face Models

1. On ﬂush face models, loosen the two screws (A) holding ﬁrebox

top to face panel, then slide the hood ﬂange between the ﬁrebox

top and face panel and re-tighten the screws.

2. Install one (1) screw at each end of the hood as shown (C).

ACAC

Flush Face Models

Figure 9

FIREBOX OPENING

CHECK TO SEE

THAT BOX IS SQUARE

PRIOR TO ATTACHING TO

FRAMING

Figure 8

FIREBOX INSTALLATION INSTRUCTIONS (continued)

INSTALLING HOOD

23861-3-0808Page 8

The ﬁrebox is designed to accept a 3/8-inch gas line for an approved

vent-free gas logset. Have the line installed by a qualiﬁed service

person in accordance with all building codes. Consult local building

codes to properly size the gas supply line leading to the 3/8-inch

hook-up at the unit. The state of Massachusetts requires that a

ﬂexible appliance connector cannot exceed three feet in length.

Gas access holes are provided on both sides of the ﬁrebox. See

Figure 10. Carefully remove the indented knockout in the ceramic

brick panel using a drill or utility knife. See Figure 11.

Check gas type. Use only the gas type indicated on the gas log

set rating plate. If the gas listed on the plate is not your type of

gas supply, DO NOT INSTALL. Contact your dealer for proper

model.

Always use an external regulator for all LP ﬁreboxes to reduce the

supply tank pressure to a maximum of 14" w.c. This is in addition

to the regulator ﬁtted to the log set.

WA R N I N G : C O N N E C T I O N D I R E C T LY T O A N

UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.

Install only a ANSI Z21.11.2 vent-free log set into this ﬁrebox.

Figure 10

Extended Hoods

If your non-combustible facing material is over 1" in thickness that will be used to ﬁnish this ﬁrebox, an extended hood is available that

will extend out 2" farther out into the room. Contact your local dealer for details.

Finishing

All joints (top, bottom and sides), where the wall or decorative facing material meets the ﬁrebox surround should be sealed with a non-

combustible material.

Hearth extensions are recommended, but not required for these ﬁreboxes.

VB4H32BL Standard Black VB4H36BL Standard Black VB4H42BL Standard Black

VB4H32BR Polished Brass VB4H36BR Polished Brass VB4H42BR Polished Brass

VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel

VB4H32HP Hammered Pewter VB4H36HP Hammered Pewter VB4H42HP Hammered Pewter

GAS ACCESS HOLES

Figure 11

INSTALLING HOOD (continued)

GAS LINE CONNECTION

23861-3-0808 Page 9

OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS

Attention: Install blower assembly before connecting gas inlet

supply line.

Wiring

The appliance, when installed, must be electrically grounded in

accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI/NFPA 70, if an exter-

nal electrical source is utilized. This appliance is equipped with

a three-prong [grounding] plug for your protection against

shock hazard and should be plugged directly into a properly

grounded three-prong receptacle. Do not cut or remove the

grounding prong from this plug. For an ungrounded receptacle,

an adapter, which has two prongs and a wire for grounding, can

be purchased, plugged into the ungrounded receptacle and its wire

connected to the receptacle mounting screw. With this wire com-

pleting the ground, the appliance cord plug can be plugged into

the adapter and be electrically grounded.

Caution: Label all wires prior to disconnection when servic-

ing controls. Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing.

Note: Junction box on right side of ﬁrebox must be pre-wired at

time of ﬁrebox installation for use with blower assembly. A

standard wall ON/OFF wall switch or optional SCV1 Vari-

able Speed Control Kit should be installed to activate pow-

er to the Firebox, and control the operation of the FBB5

Blower assembly. It is recommended that installation of the

wiring be performed by a qualiﬁed electrician. See Figure

12.

1. If installed, turn OFF gas supply to ﬁrebox/gas log.

2. If applicable, turn OFF electric supply to ﬁrebox.

CAUTION: ALL WIRING SHOULD BE DONE BY

A QUALIFIED ELECTRICIAN AND SHALL BE IN

COMPLIANCE WITH ALL LOCAL, CITY AND STATE

BUILDING CODES. BEFORE MAKING THE ELECTRI-

CAL CONNECTION, MAKE SURE THAT MAIN POWER

SUPPLY IS DISCONNECTED. THE APPLIANCE, WHEN

INSTALLED, MUST BE ELECTRICALLY GROUNDED

IN ACCORDANCE WITH LOCAL CODES, WITH THE

NATIONAL ELECTRICAL CODE ANSI/NFPA 70 (LAT-

EST EDITION).

A factory installed junction box is located on the lower right

side of the ﬁrebox. Wiring must be fed to the junction box and

attached to the receptacle that is provided. From right side of

the ﬁrebox, remove the screw securing the junction box as-

sembly. Leave approximately 6” of wire in the junction box

for connection.

Attach black wire to one side of the receptacle and white wire

to opposite side of receptacle. The ground wire should be at-

tached to the green (ground) screw.

Install the receptacle into the junction box. Attach cover

plate.

Attention: If installed, do not damage gas inlet supply line

when blower assembly is inserted into ﬁrebox. In some cases,

removal the gas inlet supply line may be necessary.

Figure 12

REMOVE SIDE BRICK AND BACK BRICK

PANELS TO GAIN ACCESS FOR BLOWER

INSTALLATION.

NOTE: IF THE BLOWER CAN BE INSTALLED

PRIOR TO FIREBOX INSTALLATION, IT MAY

BE EASIER TO REMOVE THE REAR COVER

PLATE PANEL ON THE BACK OF THE FIREBOX

RATHER THAN REMOVING BRICK PANELS.

Select Firebox Models

Figure 13

NOTE: BRICK LINERS REMOVED

TO SHOW INSTALLATION

OF BLOWER ACCESSORY

Figure 14

23861-3-0808Page 10

4. Insert blower assembly into interior, bottom of ﬁrebox. Posi-

tion blower assembly so that you align the notch on back of

blower assembly with the center screw on ﬁrebox back, then

push the blower assembly against ﬁrebox back. The blower

wheel must be centered with the back wall of the ﬁrebox. The

magnets on the back and bottom of blower assembly will suf-

ﬁciently hold blower assembly in place.

Note: For ﬁeld installation of blower assembly, it may be easier to

remove rear cover panel to install blower. This eliminates

the need to remove brick liner panels, but the blower would

have to be installed prior to installing the ﬁrebox into a

wall or chase. See Figure 15.

5. Once the blower assembly is in position, locate the plug but-

ton in the top right rear corner of the ﬁrebox. Remove the

plug with a standard screwdriver and discard plug.

6. Next, ﬁnd the fan control switch and wire assembly. Feed the

wires through the hole at the top of the ﬁrebox, and secure the

fan control switch with (2) #6 screws provided. See Figure

16.

7. The fan control wires will slide down between the ﬁrebox

and outer wrap near the blower assembly. See Figure 16.

8. One fan control wire will have a 1/4” female terminal that

must be attached to the open terminal on the blower motor.

See Figure 19, Connection A.

9. The other fan control wire has a 1/4” male terminal. Attach

this terminal to the open terminal on the blower power cord.

See Figure 19, Connection B

10. Route the wires away from moving parts of the blower as-

sembly and retain wires together near the blower motor using

the plastic purse clip provided.

11. To complete the installation, plug the power cord into the

junction box receptacle at the right rear corner of the ﬁrebox

outer wrap. See Figure 17.

12. If room permits, the power cord can be located from the out-

side of the unit looking through the junction box access hole

(with the junction box removed), then plug up the power cord

before reinstalling the pre-wired junction box.

13. Once all connections are made electrically, it is recommend-

ed that you test the blower fan control operation by turning

on power to the blower (Caution: 110 Volt). Then apply heat

to the fan control switch inside the ﬁrebox with a lighter or

match until blower is activated. Once blower is activated,

check for proper operation. Do not place hands near blower

assembly or other wiring while power is on.

14. Replace blower access plate and/or reinstall the brick liner

panels if provided.

15. This completes the installation of the optional FBB5 Blower

kit accessory.

Note: This blower is equipped with a heat activated fan control

switch. Blower will operate when the ﬁrebox warms up,

and will turn off automatically when the ﬁrebox cools

down.

REAR COVER PANEL MAY BE

REMOVED TO INSTALL BLOWER

REINSTALL COVER AFTER

BLOWER IS INSTALLED

Figure 15

NOTE: HOOD AND BRICK PANELS REMOVED FOR CLARITY

Figure 16

Figure 17

BLOWER POWER CORD

Autres manuels pour VFS32FB2DF-2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels White Mountain Hearth Cheminée intérieure

White Mountain Hearth

White Mountain Hearth DVTL27FP90N-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFHS-20R-4 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVP30CPMB Manuel utilisateur

White Mountain Hearth

White Mountain Hearth VSM-18-1 Manuel utilisateur

White Mountain Hearth

White Mountain Hearth Vail Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth MILLIVOLT DVCX FP30-3 Series Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVP42FP Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVD32FP3 Series Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVP42FP7 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VF24FP2-2 Manuel utilisateur

White Mountain Hearth

White Mountain Hearth Tahoe DVDT3532R-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFD32FB0L-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFP24FP3 Series Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFSR-16-3, VFSR-18-3, VFSR-24-3, VFSR-30-3, VFSV-16-3, VFSV-18-3, VFSV-24-3, VFSV-30-3, VFSM-18-3, VFSM-24-3,... Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFS32FB2DF-2 Manuel utilisateur

White Mountain Hearth

White Mountain Hearth Dv25IN33L-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth VFS32FB2MF-2 Manuel utilisateur

White Mountain Hearth

White Mountain Hearth LS-24RS-2 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVX36FP32CLN-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVTL27FP92N (NAT) Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth Tahoe DVS-30-2 Instructions d'installation

White Mountain Hearth

White Mountain Hearth vfp36sp32ep-1 Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DV25IN33L Guide de démarrage rapide

White Mountain Hearth

White Mountain Hearth DVP36FP30-3 NAT Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
