Whispbar K820W Manuel utilisateur

K820W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

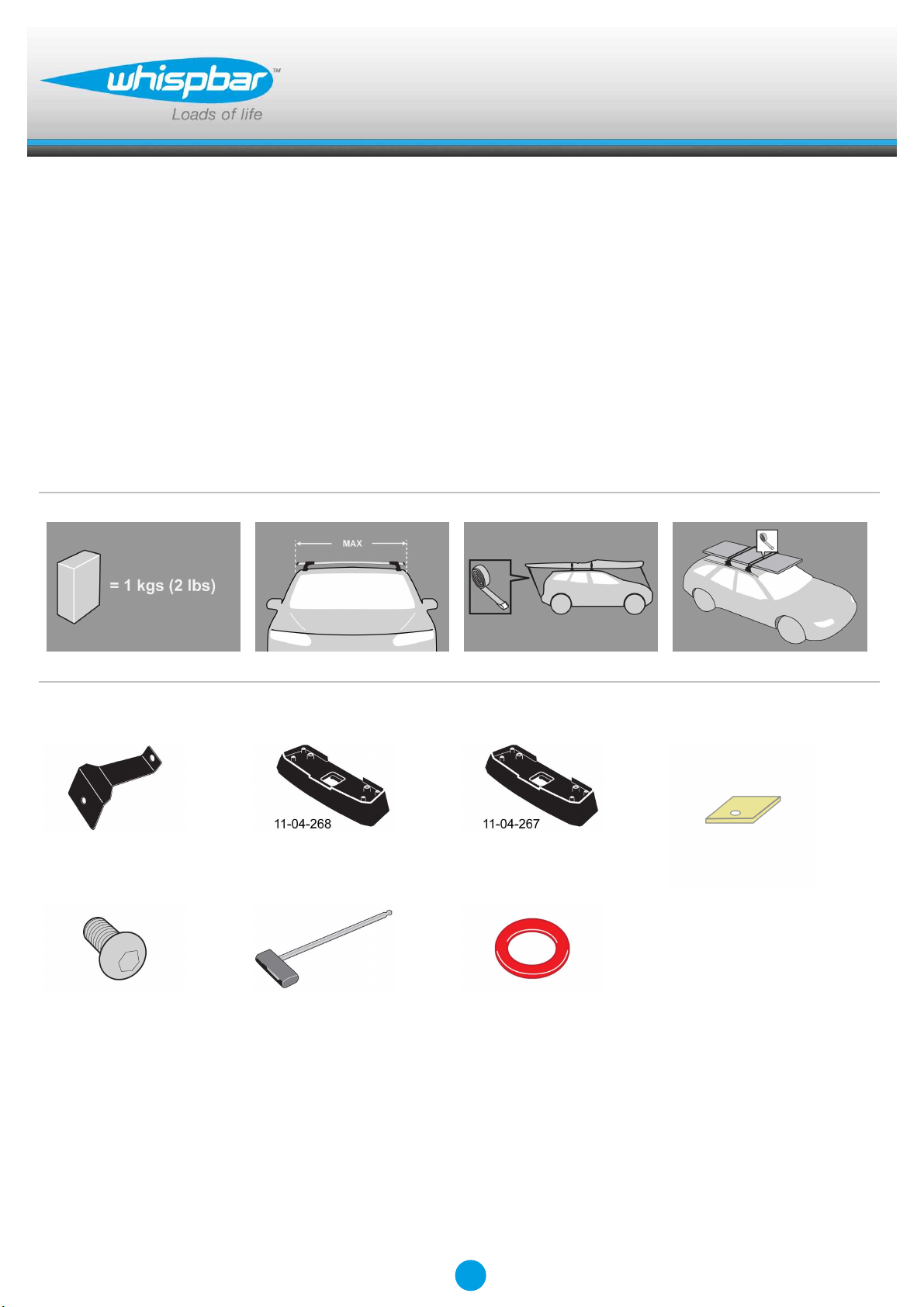

x 4 x 2 x 2 x 4

x 4 x 1 x 4

Revision No: 1A 1

Fitting Kit K820W

MAX kgs (lbs)

W/P WHD

Renault

Clio , 5dr Hatch 05-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 05-12 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 07-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Clio , 5dr Hatch 07-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K820W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K820W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K820W

●NOTE: FRONT CROSSBAR ONLY

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Fitting Kit EN

K820W

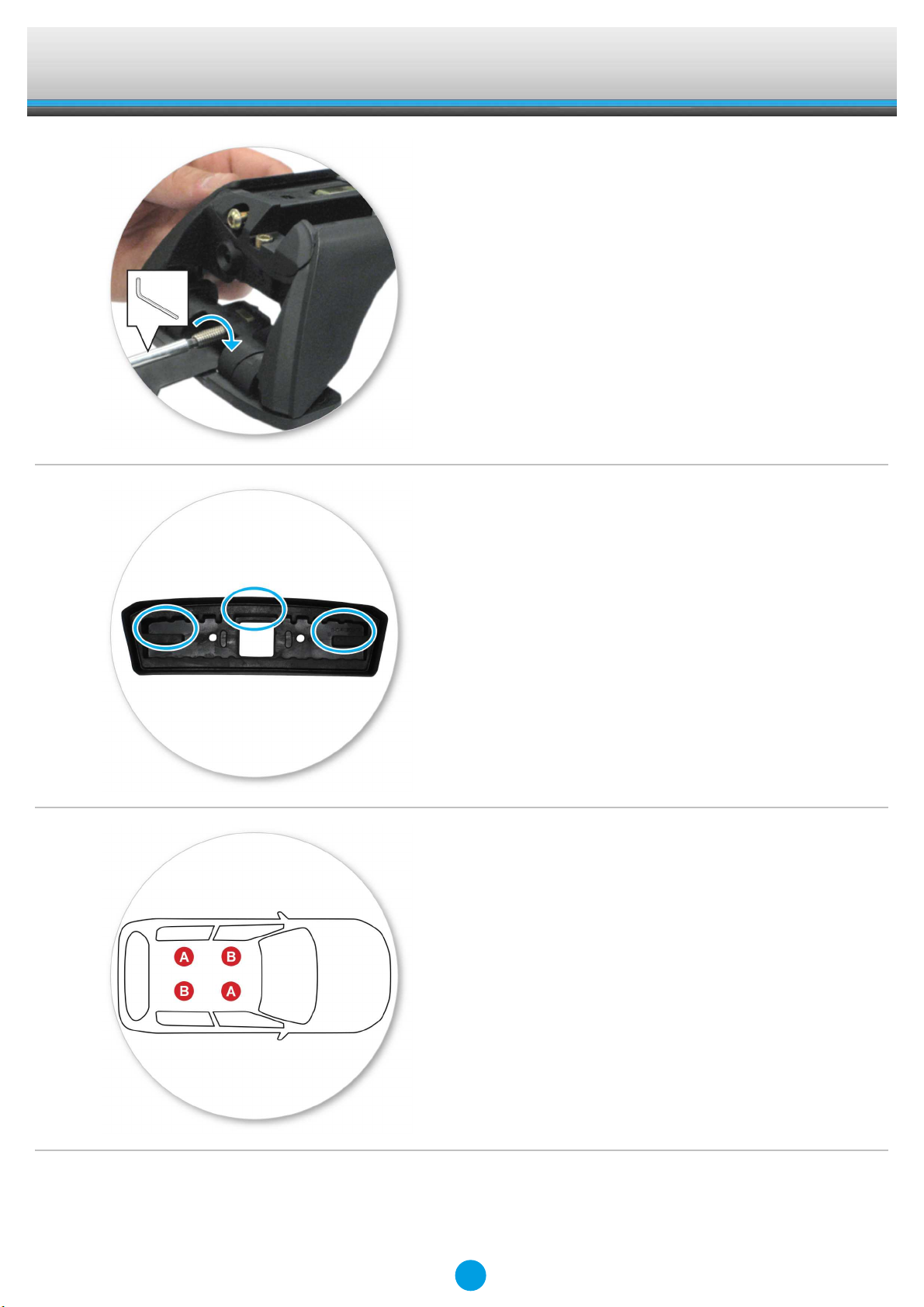

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-267

B = 11-04-268

Fitting Kit EN

K820W

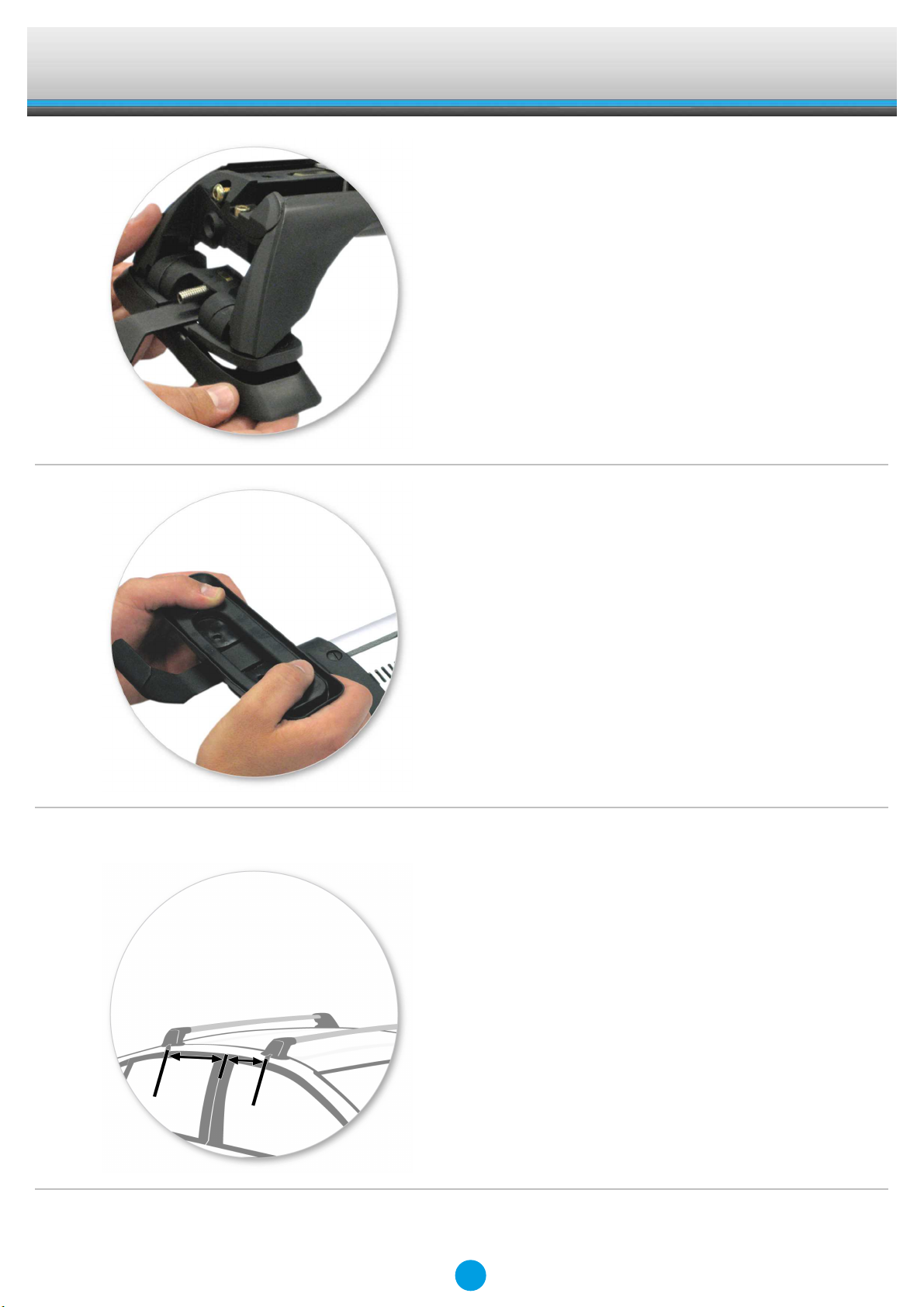

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle.

Fitting Kit EN

K820W

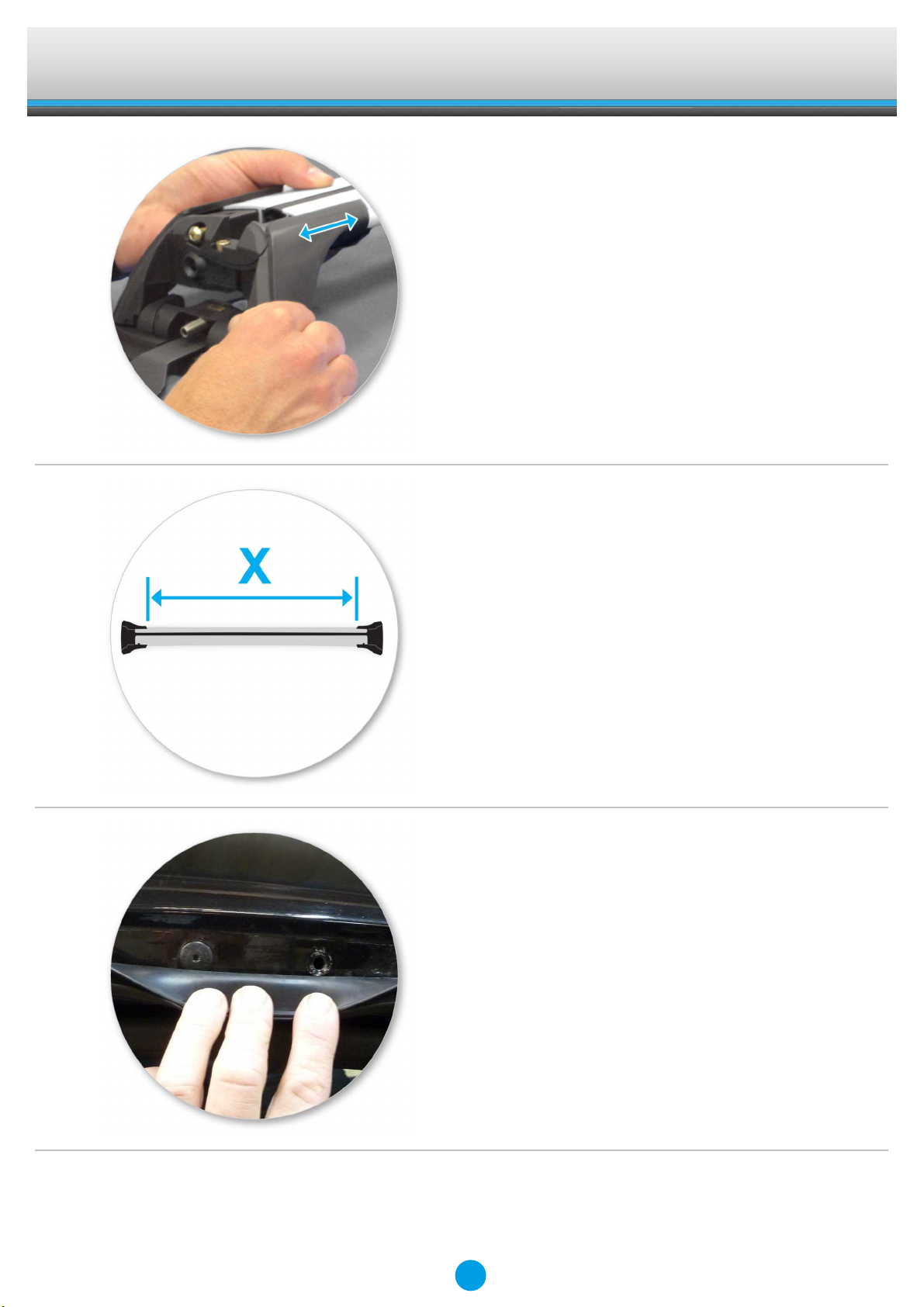

●Clamps onto anchor points under rubber

door frame mouldings

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Pull back rubber seal to expose fixed points

on vehicle body.

Fitting Kit EN

K820W

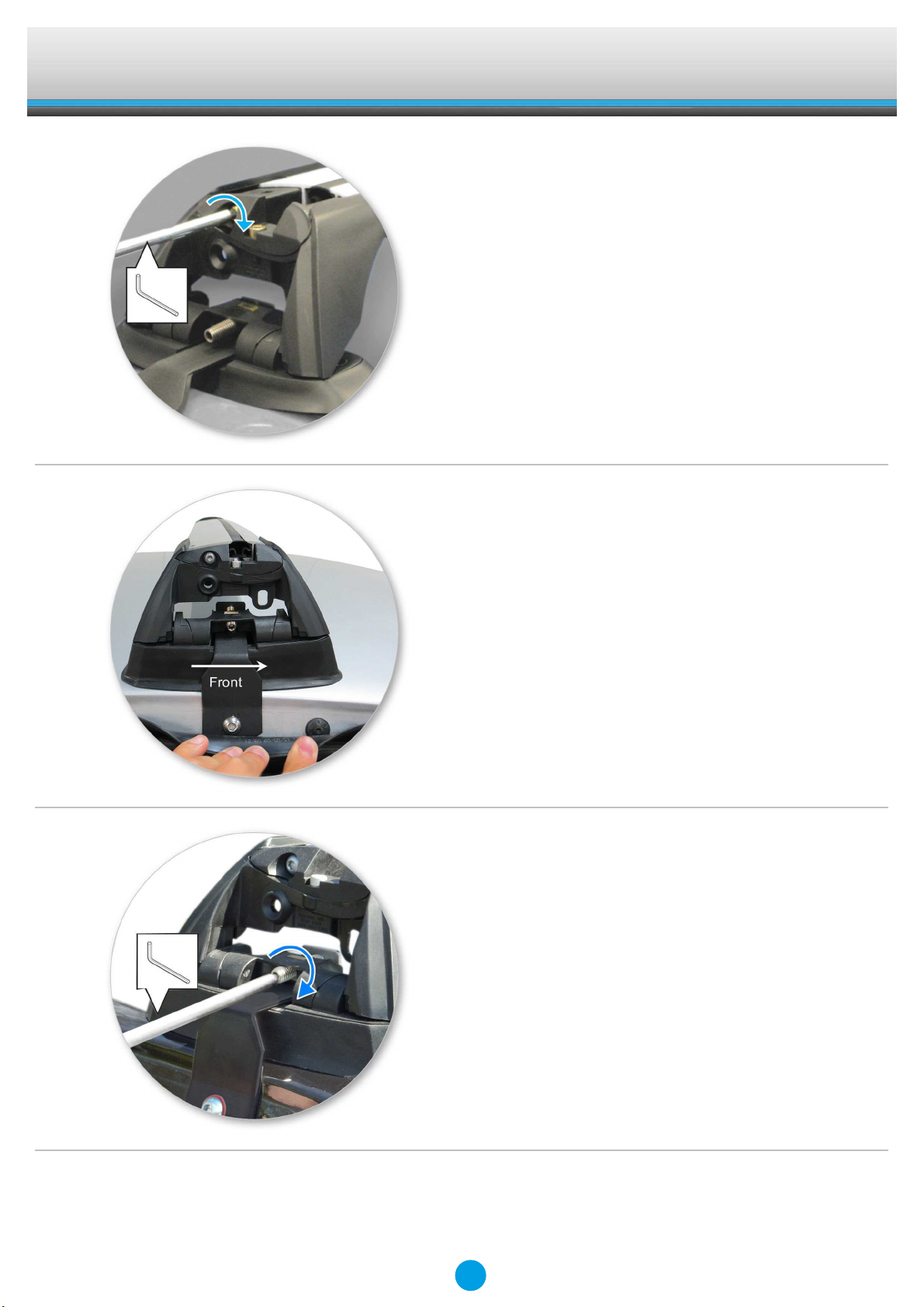

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Place clamp over the mounting hole

●Fit a fibre washer on each capscrew and

attach clamps to the vehicle body using the

capscrews.

●Use fixed-point rear mounting hole.

●Tighten locking screw on both legs evenly.

Fitting Kit EN

K820W

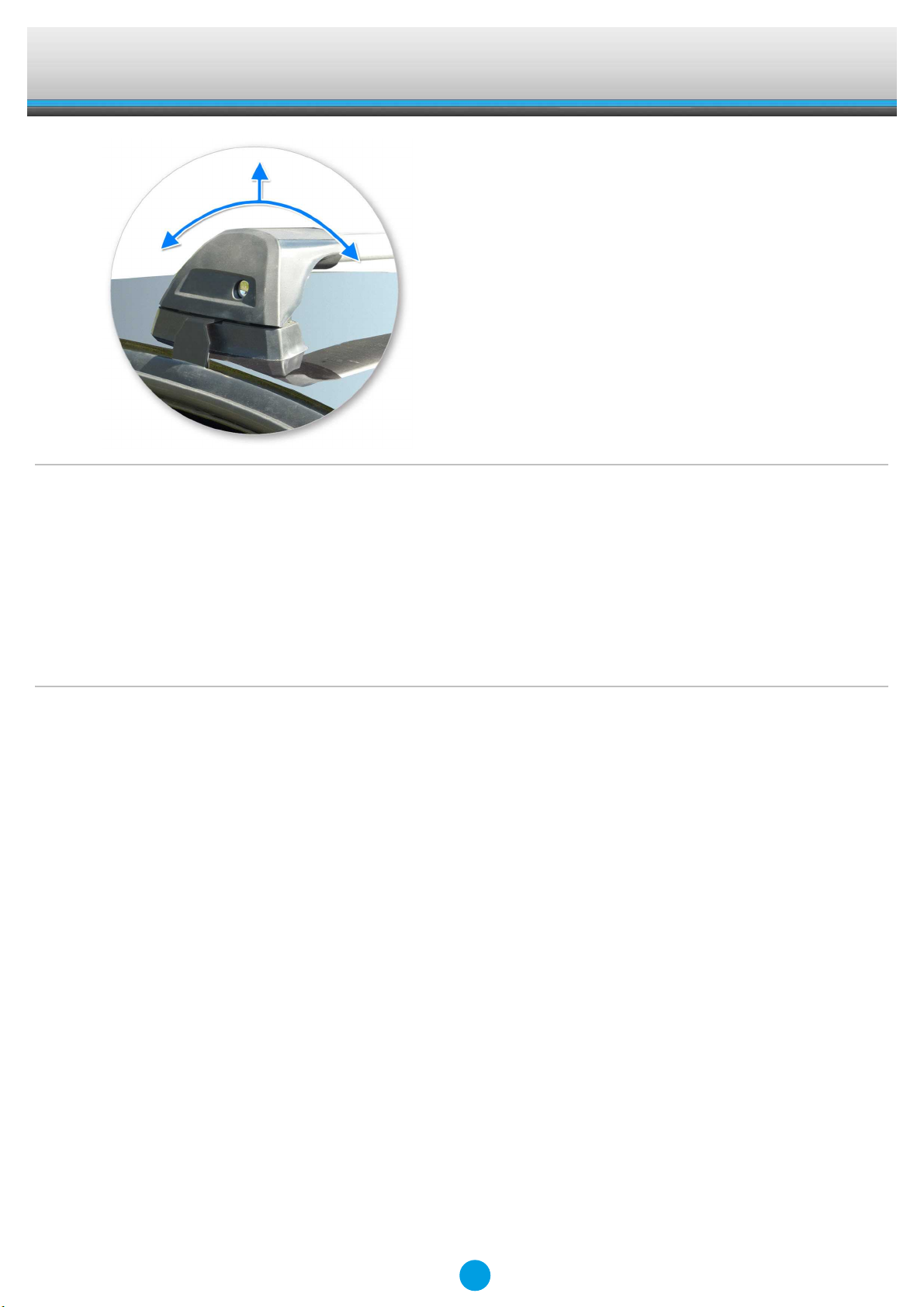

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
