Whispbar K328W Manuel utilisateur

K328W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

x 8 x 4 x 4 x 2

x 2 x 1

Revision No: 10J 1

Fitting Kit EN

K328W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type B crossbar

fitted. They also apply to type A, C and D.

●Use keys to remove covers.

Fitting Kit EN

K328W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K328W

●Detach foot from leg. Store loose parts in a

safe place.

●Ensure that part A is inserted into part B as

shown.

●Note: There is a left hand and right hand

side.

Fitting Kit EN

K328W

●Select rail mount assemblies and match left

and right assemblies to the left and right

crossbar legs.

●Assemble foot from kit into leg by pressing

it down.

●Ensure foot interlocks with leg.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

Fitting Kit EN

K328W

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

●Repeat for all legs.

●Slide clamp back towards centre of

crossbar.

●Insert M6 x 70 mm capscrew through

square brass washer and rail mount

assembly.

●The M6 x 70mm capscrew inserts into

brass threaded tube in rear clamp.

NOTE: Lift rubber protector tab to ensure

that capscrew aligns directly into brass

tube before starting to tighten.

●Take care not to cross-thread the

capscrew.

Fitting Kit EN

K328W

●Bolt should sit in groove as shown.

●Use 5mm Hex Key to start thread.

●Repeat for all legs.

For type C and D crossbars only.

●When attaching this fitting kit to type C and

D crossbars, a gap will exist.

Fitting Kit EN

K328W

●Attach the fairings (supplied with this kit) to

the back of the leg.

Note: There is a left hand and right hand

side.

●Ensure the fairings 'click' into place and sit

flush.

Fitment

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

●Crossbar can be positioned anywhere

along the roof rail.

Fitting Kit EN

K328W

●Use 5mm Hex Key to tighten clamp and

secure crossbar to rail.

●Correctly installed crossbars. Side rails

may vary to those pictured.

●Ensure that all legs clamp securely to the

roof rails.

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

Fitting Kit EN

K328W

●Check crossbar is securely attached to the

vehicle.

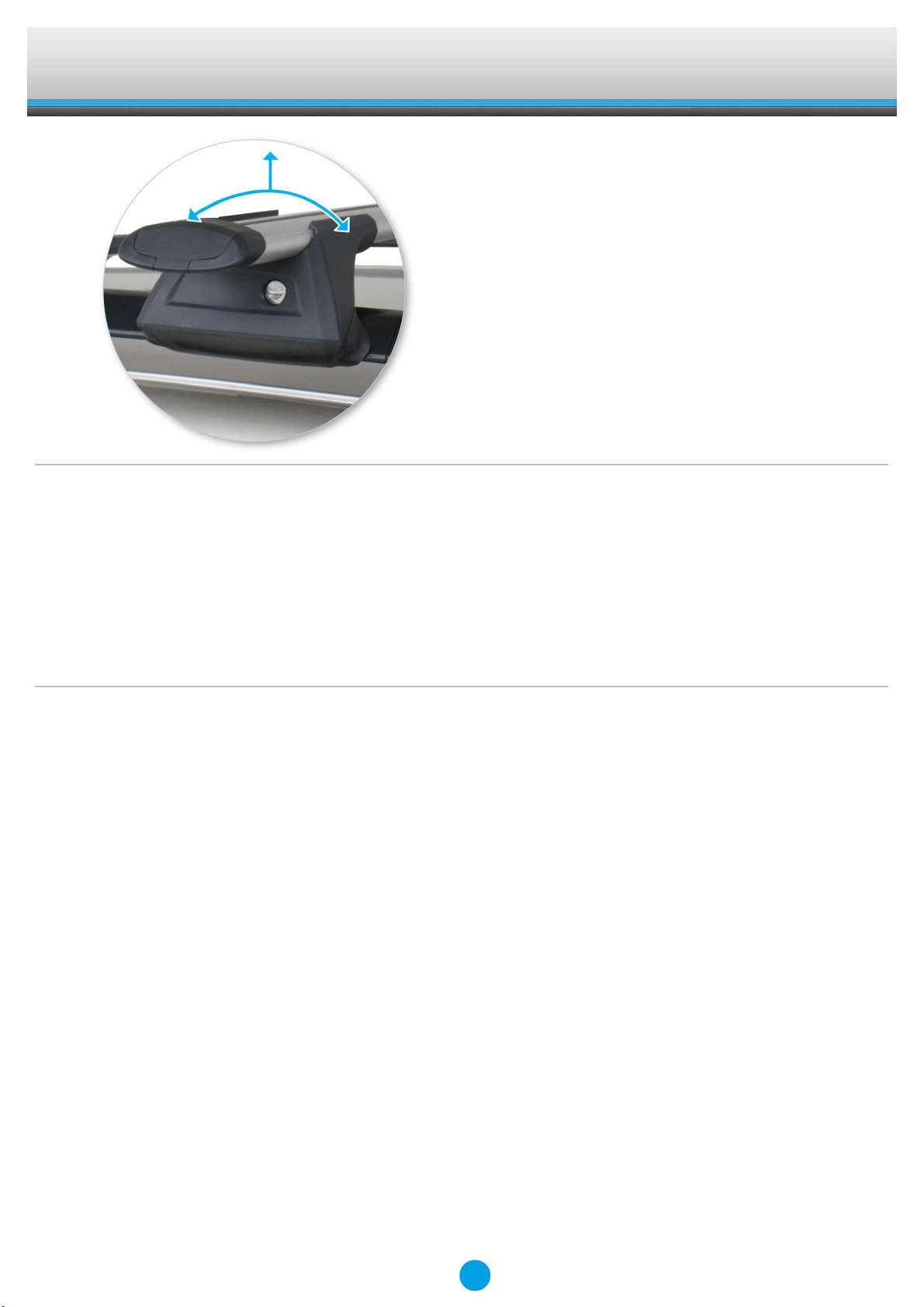

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
