Whirlpool WFW9600TB00 Manuel utilisateur

TOP AND CABINET PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

9−07 Printed in U.S.A. (drd) Part No. W10154099 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10133484

Use & Care Guide

W10133490

Tech Sheet

W10133489

Quick Start Guide

W10162665

Energy Guide

2 Top

8181799 White

8183061 Black

W10121849

Ultimate Silver

W10166922

Aspen

W10166926

Chestnut

3 Cabinet

8183144 White

8183212 Black

8183214 Ultimate Silver

W10166923

Aspen

W10166960

Chestnut

4 Panel, Front

8183151 White

8183215 Black

8183217 Ultimate Silver

W10166920

Aspen

W10166924

Chestnut

5 Toe Panel

8181643 White

8183063 Black

8183055 Ultimate Silver

W10166921

Aspen

W10166925

Chestnut

6 Trim Ring,

Teardrop Assembly

W10160030

White

W10160021

Black

W10160025

Blue

W10160023

Ultimate Silver

W10160019

Aspen

W10160020

Chestnut

7 8183208 Bracket, Trim

Fixation (Left)

8 8183209 Bracket, Trim

Fixation (Right)

9 8183210 Clip, Trim

W10157914

Harness, Wiring

(Lower Main)

(Includes Items

18 & 19)

11 8181636 Foot, Leveling

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182661 Brace, Transport

14 8182698 Panel, Rear

15 8181635 Pan, Bottom

W10138248

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

W10156252

Switch, Analog

Pressure Sensor

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

23 8183086 Microswitch (4)

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support (2)

32 8182201 Screw, 3 x 8 mm

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

37 8183019 Filter,

Interference

38 8183030 Grid, Ventilation

W10138249

Spacer, Top (2)

40 8181632 Brace, Top

W10156258

Control Board,

Expansion

W10157885

Screw, 4.2 x 14

DOOR AND LATCH PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

5 8181760 Screw

6 8183198 Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

14 8183199 Clamp, Glass (2)

15 8183256 Frame, Door

Front Support

16 8183255 Screen, Door

17 Trim Ring,

Outer Door

(Includes Item 18)

8183220 Chrome

8183221 Gold

8183219 Blue

W10121607

Pad, Door Handle

CONTROL PANEL PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Control

W10157776

White

W10157777

Black

W10157799

White/Blue

W10157800

Ultimate Silver

W10157801

Aspen

W10157802

Chestnut

2 Knob, Control

(Includes Item 9)

W10131369

White

W10131370

Black

W10131373

Blue

W10131371

Ultimate Silver

W10166961

Aspen

W10166990

Chestnut

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast (2)

(Service In

Kit Only)

W10131377

Spring, Knob (2)

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10164402

User Interface,

Center

11 8183177 Adapter,

Encoder Wheel

W10157890

User Interface,

Right

W10157884

Harness, Wiring

(User Interface)

W10157913

Microcomputer,

Machine Control

15 8183203 Brace, Front Top

16 8183204 Channel, Water

17 8181756 Screw

W10157883

Harness, Wiring

(Upper Main)

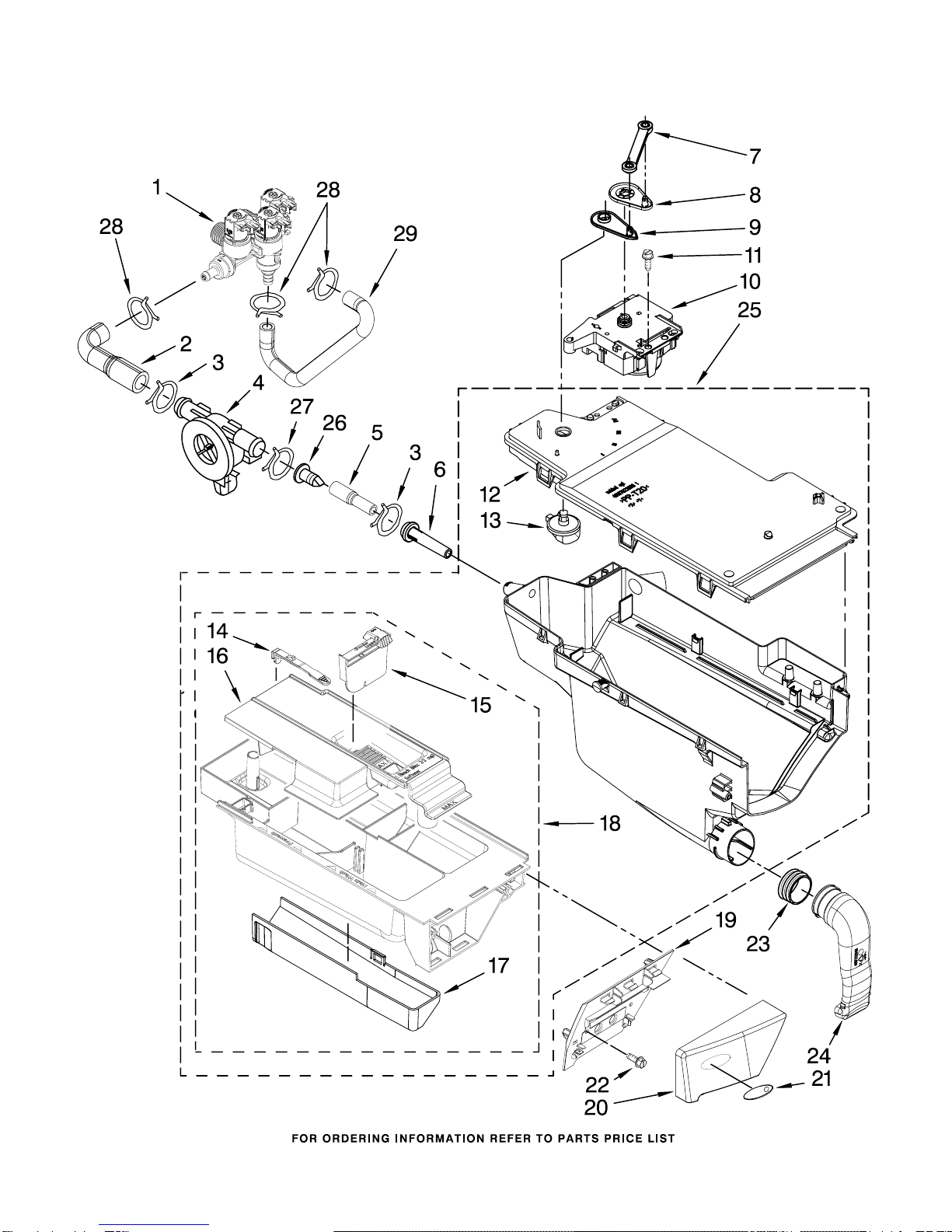

DISPENSER PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

DISPENSER PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION

W10156253

Valve, Inlet

2 8183182 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp

4 8181696 Flowmeter

W10156255

Hose, Duckbill/

Inlet Nozzle

6 8183181 Nozzle, Inlet

7 8183183 Lever, Water

Distribution

8 8183184 Cam, Actuator

W10161052

Lever, Connection

10 8183186 Actuator

11 8181661 Screw, Actuator

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10157775

Siphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

W10157760

Drawer, Detergent

(Complete)

W10156617

Bracket,

Handle Fixation

20 Handle, Drawer

(Includes Items

19 & 21)

W10156618

White

W10156619

Black

W10156620

Ultimate Silver

W10156621

Aspen

W10156622

Chestnut

21 8183253 Medallion

22 8182214 Screw

23 8181747 Seal

24 8181718 Tube, Dispenser

To Bellow

W10157759

Dispenser,

Complete

(Includes Item 9)

W10156256

Check Valve,

Duckbill

W10156064

Clamp, Hose

28 8181754 Clamp, Hose

W10156130

Hose, Inlet Valve

To Steamer Siphon

TUB AND BASKET PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

TUB AND BASKET PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION

1 8181672 Nut, Pulley

2 8182650 Pulley

3 8183269 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

W10157908

Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181644 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182247 Basket

12 8182233 Baffle, Tub

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

W10156130

Hose, Exhaust

W10156249

Connector,

Overflow Hose

21 8181667 Clamp, Tub

22 8182512 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182312 Tub, Front

(Includes Items

10 & 22)

26 8182666 Element, Heating

27 8181705 NTC

28 8182812 Shock Absorber

STEAMER, PUMP AND MOTOR PARTS

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

W10128585

Bolt, Motor

13 8182793 Motor

W10157915

Harness, Motor

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

W10157910

Steamer, Complete

Assembly

(Includes Item

20 On Page 7)

W10156132

Hose, Steamer/Tub

W10156063

Clamp, Hose (3)

W10156133

Hose, Overflow

W10156250

Cap, Siphon

W10156251

Tank, Siphon

23 8181828 Screw, 4.2 x 11

OPTIONAL PARTS (NOT INCLUDED)

For Models: WFW9600TW00, WFW9600TB00, WFW9600TZ00, WFW9600TU00, WFW9600TA00, WFW9600TC00

(White/Chrome) (Black/Chrome) (White/Blue) (Ultimate Silver) (Aspen/Chrome) (Chestnut/Gold)

W10154099

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

8212605 Ultimate Silver

W10157756

Aspen

W10162090

Chestnut

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

285006 Black

4392901 Biscuit

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool LSA 1300 Manuel utilisateur

Whirlpool

Whirlpool LSQ9549LG1 Manuel utilisateur

Whirlpool

Whirlpool AWG 908 E Manuel utilisateur

Whirlpool

Whirlpool LCR5244A Manuel utilisateur

Whirlpool

Whirlpool WTW5500SQ0 Manuel utilisateur

Whirlpool

Whirlpool FSCR12433 Manuel utilisateur

Whirlpool

Whirlpool W10044800 Manuel utilisateur

Whirlpool

Whirlpool WFW75HEF Manuel utilisateur

Whirlpool

Whirlpool WASHER Manuel utilisateur

Whirlpool

Whirlpool AWE 2117 Manuel utilisateur

Whirlpool

Whirlpool WFW8400TW - Front Load Washer Manuel utilisateur

Whirlpool

Whirlpool W10356101A Manuel utilisateur

Whirlpool

Whirlpool w10330926b Manuel utilisateur

Whirlpool

Whirlpool WTW5000DW Manuel utilisateur

Whirlpool

Whirlpool WAK 4000 Manuel utilisateur

Whirlpool

Whirlpool Cabrio WTW6200VW0 Manuel utilisateur

Whirlpool

Whirlpool Inglis IAS5000RQ0 Manuel utilisateur

Whirlpool

Whirlpool AWO/D 43420 Manuel utilisateur

Whirlpool

Whirlpool EXPERT 1200 Manuel utilisateur

Whirlpool

Whirlpool W10200828B Manuel utilisateur

Whirlpool

Whirlpool CFCR70211 Manuel utilisateur

Whirlpool

Whirlpool Duet WFW9200SQ00 Manuel utilisateur

Whirlpool

Whirlpool AWE 6112 Manuel utilisateur

Whirlpool

Whirlpool WTW4800XQ Instructions de montage

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
