TOP AND CABINET PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

10−07 Printed in U.S.A. (drd) Part No. W10169558 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8183052 Use & Care Guide

W10168566

Tech Sheet

8183017 Quick Start Guide

W10140716

Energy Guide

2 Top

8181799 White

8183061 Black

8181800 Biscuit

W10121849

Ultimate Silver

3 Cabinet

8183144 White

8183212 Black

8183213 Biscuit

8183214 Ultimate Silver

4 Panel, Front

8183151 White

8183215 Black

8183216 Biscuit

8183217 Ultimate Silver

5 Toe Panel

8181643 White

8183063 Black

8181809 Biscuit

8183055 Ultimate Silver

6 Trim Ring,

Teardrop Assembly

8183223 White

8183225 Black

8183224 Biscuit

8183226 Blue

8183227 Ultimate Silver

7 8183208 Bracket, Trim

Fixation (Left)

8 8183209 Bracket, Trim

Fixation (Right)

9 8183210 Clip, Trim

10 8183189 Harness, Wiring

(Lower Main)

(Includes Items

18 & 19)

11 8181636 Foot, Leveling

12 Bolt, Shipping

8182797 Upper

8182798 Lower

13 8182661 Brace, Transport

14 8182698 Panel, Rear

15 8181635 Pan, Bottom

W10138248

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

20 8181695 Switch, Pressure

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

23 8182830 Microswitch (2)

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support (2)

32 8182201 Screw, 3 x 8 mm

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

37 8183019 Filter,

Interference

38 8183030 Grid, Ventilation

W10138249

Spacer, Top (2)

40 8181632 Brace, Top

W10157885

Screw, 4.2 x 14

DOOR AND LATCH PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

5 8181760 Screw

6 8183198 Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

14 8183199 Clamp, Glass (2)

15 8183256 Frame, Door

Front Support

16 8183255 Screen, Door

17 Trim Ring,

Outer Door

(Includes Item 18)

8183220 Chrome

8183221 Gold

8183219 Blue

W10121607

Pad, Door Handle

CONTROL PANEL PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8183229 White

8183230 Black

8183231 Biscuit

8183232 White/Blue

8183233 Ultimate Silver

2 Knob, Control

(Includes Item 9)

W10131369

White

W10131370

Black

W10131372

Biscuit

W10131373

Blue

W10131371

Ultimate Silver

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast (2)

(Service In

Kit Only)

W10131377

Spring, Knob (2)

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10164402

User Interface,

Center

11 8183177 Adapter,

Encoder Wheel

W10168598

User Interface,

Right

W10168511

Harness, Wiring

(User Interface)

14 8183259 Microcomputer,

Machine Control

15 8183203 Brace, Front Top

16 8183204 Channel, Water

17 8181756 Screw

18 8183266 Harness, Wiring

(Upper Main)

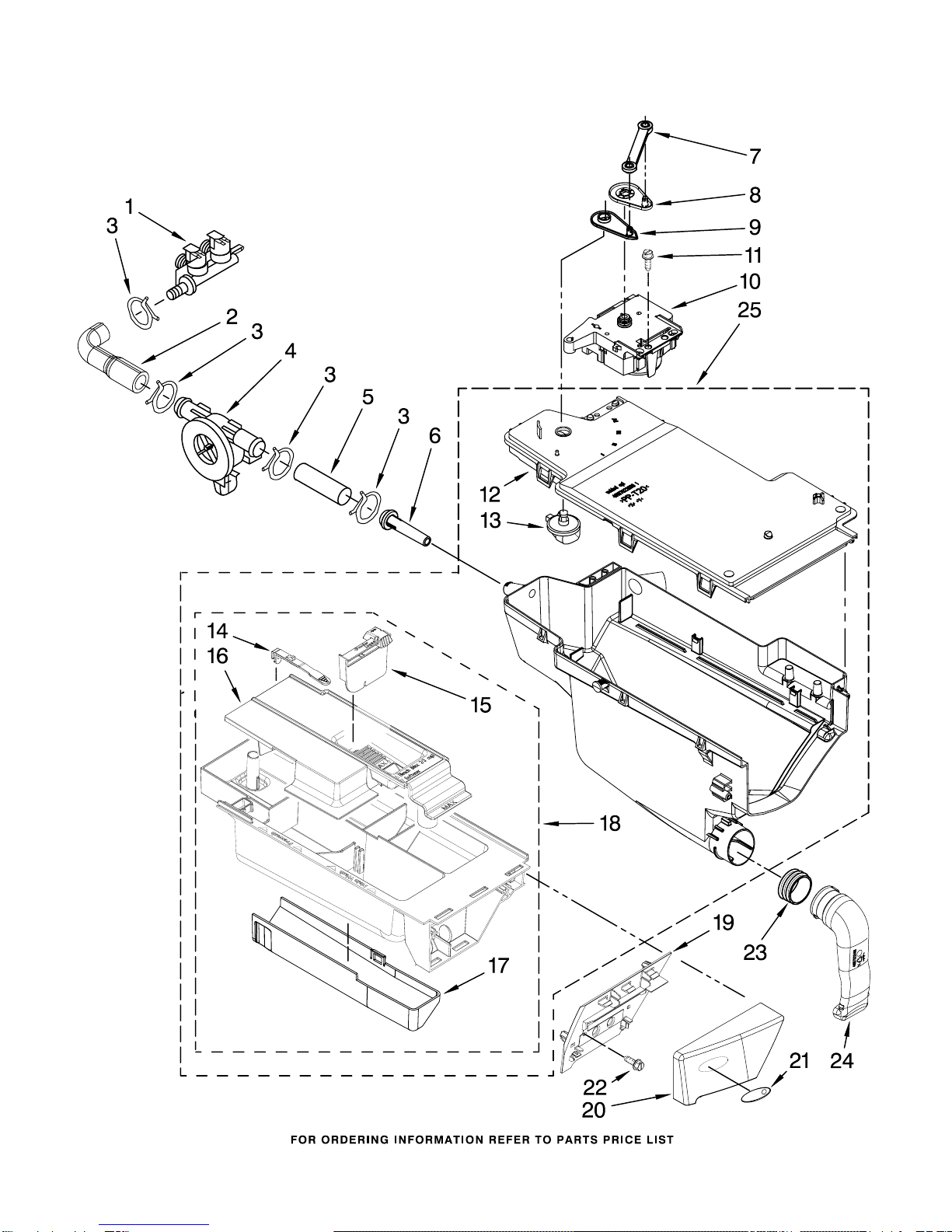

DISPENSER PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

DISPENSER PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION

1 8182862 Valve, Inlet

2 8183182 Hose, Flowmeter

(L−Shaped)

3 8181751 Clamp

4 8181696 Flowmeter

5 8183180 Hose, Nozzle Inlet

6 8183181 Nozzle, Inlet

7 8183183 Lever, Water

Distribution

8 8183184 Cam, Actuator

9 8183185 Lever, Connection

10 8183186 Actuator

11 8181661 Screw, Actuator

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10121861

Syphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

18 8183174 Drawer, Detergent

(Complete)

W10156617

Bracket,

Handle Fixation

20 Handle, Drawer

(Includes Items

19 & 21)

8183234 White

8183235 Black

8183236 Biscuit

8183237 Ultimate Silver

21 8183253 Medallion

22 8182214 Screw

23 8181747 Seal

24 8181718 Tube, Dispenser

To Bellow

W10169232

Dispenser,

Complete

(Includes Item 9)

TUB AND BASKET PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

TUB AND BASKET PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION

1 8181672 Nut, Pulley

2 8182650 Pulley

3 8183269 Belt

4 8181645 Counterweight,

Front (2)

5 8181744 Pipe, Ventilation

6 8181746 Clamp

7 8181743 Hose, Exhaust

8 8181666 Tub, Rear

(Includes Items

10, 22, 23 & 24)

9 8181644 Counterweight,

Rear

10 8181673 Gasket, Tub

11 8182247 Basket

12 8182233 Baffle, Tub

13 8181748 O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring,

Suspension

17 8181647 Bolt

18 8181742 Clamp, Hose

19 8183187 Hose, Exhaust

20 8181667 Clamp, Tub

21 8182312 Tub, Front

(Includes Items

10 & 22)

22 8182512 Nut, Push−In

23 8182214 Screw

24 8181686 Clamp,

Heating Element

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber

PUMP AND MOTOR PARTS

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

W10128585

Bolt, Motor

13 8182793 Motor

14 8183188 Harness, Motor

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

OPTIONAL PARTS (NOT INCLUDED)

For Models: WFW9400SW01, WFW9400SB01, WFW9400ST01, WFW9400SZ01, WFW9400SU01

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10169558

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

4392899 Biscuit

8212605 Ultimate Silver

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

786020 Black

4392901 Biscuit

PAINT, BULK (1 qt.)

799344 White (Uncut)

786032 Black (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

285863 Drain Extension

4396899 Rear Guard

38005 Stack Kit
