W10775528A

W10833783A-SP

WASHER INSTALLATION

INSTRUCTIONS

Table of Contents

WASHER SAFETY.........................................................1

INSTALLATION REQUIREMENTS................................2

Tools and Parts................................................................2

Location Requirements ..................................................3

Drain System ...................................................................4

Electrical Requirements .................................................5

INSTALLATION INSTRUCTIONS..................................5

Connect Drain Hose........................................................6

Connect Inlet Hoses........................................................7

Level Washer ...................................................................8

Complete Installation Checklist.....................................9

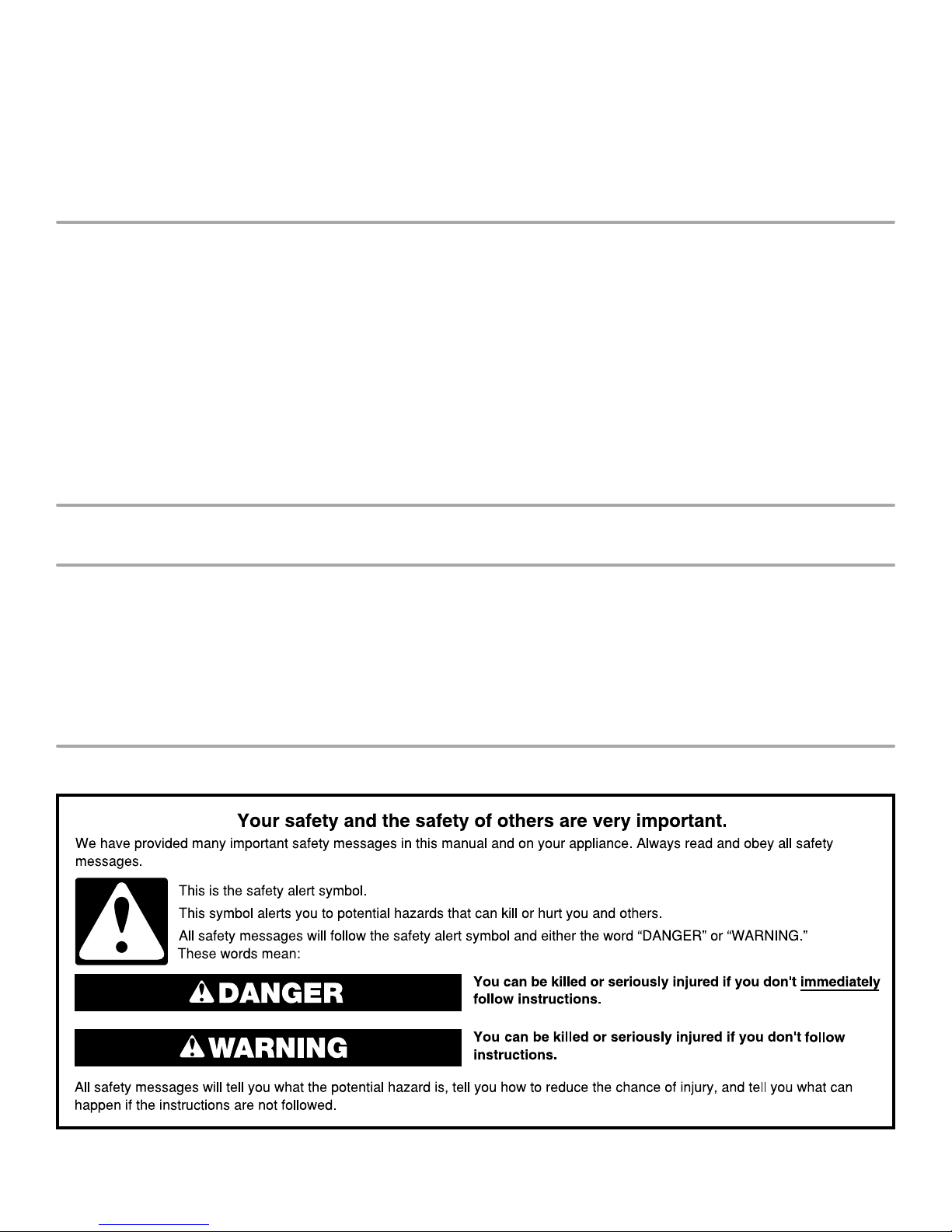

WASHER SAFETY

INSTALLATION NOTES

Date of purchase:_________________________________

Date of installation: _______________________________

Installer: ________________________________________

Model number: ___________________________________

Serial number: ___________________________________

NOTES SUR L’INSTALLATION

Date d’achat :____________________________________

Date d’installation : _______________________________

Installateur : _____________________________________

Numéro de modèle :_______________________________

Numéro de série :_________________________________

Table des matières

SÉCURITÉ DE LA LAVEUSE ......................................10

EXIGENCES D’INSTALLATION ..................................10

Outillage et pièces ........................................................10

Exigences d’emplacement ...........................................11

Système de vidange......................................................14

Spécications électriques............................................14

INSTRUCTIONS D’INSTALLATION............................15

Raccordement du tuyau de vidange............................16

Raccordement des tuyaux d’arrivée d’eau.................17

Établissement de l’aplomb de la laveuse....................19

Liste de vérication pour l’achèvement

de l’installation ..............................................................20

INSTRUCTIONS

D’INSTALLATION

DE LA LAVEUSE

Para obtener acceso al instrucciones de instalación en español, o para obtener información adicional acerca

de su producto, visite: www.whirlpool.com

Alternate parts: (Not supplied with washer)

Your installation may require additional parts. To order, please

refer to toll-free numbers on the back page of your “Use and

Care Guide”.

If you have: You will need:

Overhead sewer Standard 20 gal. (76 L) 39" (990 mm)

tall drain tub or utility sink, sump

pump and connectors (available from

local plumbing suppliers)

1" (25 mm) standpipe 2" (51 mm) diameter to 1" (25 mm)

diameter Standpipe Adapter

Part Number 3363920

Connector Kit Part Number 285835

Drain hose too short Extension Drain Hose Part

Number 285863

Connector Kit Part Number 285835

Lint clogged drain Drain Protector Part Number 367031

Connector Kit Part Number 285835

Floor drain system Siphon Break Kit Part Number 285834

Connector Kit (x2) Part Number 285835

Extension Drain Hose Part

Number 285863

Alternate Inlet Hoses: (may be required for some

installations, not supplied with washer)

n 8212656RP 10 ft. (3.0 m) Inlet hose, Black EPDM (2 pack)

n 8212641RP 5 ft. (1.5 m) Inlet hose, Black EPDM (2 pack)

n 8212546RP 4 ft. (1.2 m) Inlet hose, Black EPDM (2 pack)

n 8212545RP 5 ft. (1.5 m) Inlet hose, Red and Blue EPDM

(2 pack)

n 8212487RP 5 ft. (1.5 m) Nylon braided inlet hose (2 pack)

n 8212638RP 6 ft. (1.8 m) Nylon braided inlet hose, space

saving 90° elbow, hypro-blue steel couplings

(2 pack)

n 8212637RP 6 ft. (1.8 m) Inlet hose, Black EPDM, space

saving 90° elbow, hypro-blue steel couplings

(2 pack)

Optional tools:

Parts supplied:

NOTE: All parts supplied for installation are in the

washer basket.

4" min

(102 mm)

Wood block

Adjustable or open end

wrenches 1/2" (13 mm)

and 9/16" (14 mm)

Ruler or measuring tape

Level

Pliers that open to

19⁄16" (39.5 mm)

Flashlight Bucket

Cable tie

Drain hose with clamp

and form (may be shipped

unassembled)

Tools needed:

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather required tools and parts before starting installation.

Transport bolt hole

plugs (4)

Available Accessories:

An optional matching pedestal is available for your washer.

Please contact your retailer for ordering information, or see

the “Assistance or Service” page on the back of your “Use

and care Guide”.

Parts needed: (Not supplied with washer)

Water inlet hoses (2) Flat inlet hose washers (4)

LOCATION REQUIREMENTS

Proper installation is your responsibility.

You will need:

n A water heater set to 120° F (49° C).

n A grounded electrical outlet located within 6 ft (1.8 m) of

power cord on back of washer.

n Hot and cold water faucets located within 4 ft (1.2 m) of hot

and cold water ll valves on washer, and water pressure of

20-100 psi (137.9-689.6 kPa).

n A level oor with maximum slope of 1" (25 mm) under entire

washer. Installing on carpet or surfaces with foam backing is

not recommended.

n Floor must support washer’s total weight (with water and load)

of 315 lbs (143 kgs).

IMPORTANT: Do not install, store or operate washer where it will

be exposed to weather or in temperatures below 32° F (0° C).

Water remaining in washer after use may cause damage in low

temperatures. See “Washer Care” in your “Use and Care Guide”

for winterizing information.

Whirlpool Models*

383/4" - 393/4"

(948 mm - 1010 mm)

27"

(686 mm)

335/16"

(846 mm)

523/4"

(1340 mm)

Maytag Models

383/4" - 393/4"

(948 mm - 1010 mm)

27"

(686 mm)

523/4"

(1340 mm) 331/8"

(841 mm)

383/4" - 393/4"

(948 mm - 1010 mm)

27"

(686 mm)

3215/16"

(837 mm)

5215/16"

(1345 mm)

All dimensions show recommended spacing allowed, except for

closet door ventilation openings which are the minimum required.

For each arrangement, consider allowing more space for ease of

installation and servicing, and spacing for companion appliances

and clearances for walls, doors, and oor moldings.

Space must be large enough to allow door to fully open.

Add spacing of 1" (25 mm) on all sides of washer to reduce

noise transfer. If a closet door or louvered door is installed, top

and bottom air openings in door are required.

761/2"

(1943 mm)

(127 mm)

(152 mm)

(25 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

(152 mm)

(76 mm)

Recessed area or closet installation

(stacked washer and dryer):

Custom under counter installation:

* For additional details (or information) specic to your model,

refer to the Dimension Guide at www.whirlpool.com.

* Add spacing of 1" (25 mm) on all sides of washer/dryer.

53¼"

(1353 mm)

51½"

(1308 mm) 31½"

(800 mm)

(102 mm)

(25 mm)

(178 mm)

14"

(356 mm)

Custom cabinet installation:Recessed area or closet installation (washer only):

(25 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

(102 mm)

Floor drain system requires a Siphon Break Kit (Part Number

285834), 2 Connector Kits (Part Number 285835), and an

Extension Drain Hose (Part Number 285863) that may be

purchased separately. See “Alternate Parts”. Minimum siphon

break height: 28" (710 mm) from bottom of washer. (Additional

hoses may be needed.)

Minimum diameter for a standpipe drain: 2" (51 mm). Minimum

carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)

diameter to 1" (25 mm) diameter Standpipe Adapter Kit is

available (Part Number 3363920). Top of standpipe must be at

least 30" (762 mm) high; install no higher than 96" (2.44 m) from

bottom of washer. If you have an overhead sewer and need to

pump higher than 96" (2.44 m), a sump pump and associated

hardware are needed. See “Alternate Parts”.

Wall standpipe drain system

Laundry tub drain system

Minimum capacity: 20 gal. (76 L). Top of laundry tub must

be at least 30" (762 mm) above oor; install no higher than

96" (2.44 m) from bottom of washer.

4.5"

(114 mm)

4.5"

(114 mm)

See requirements for oor standpipe drain system.

30"

(762 mm)

min.

4.5"

(114 mm)

Floor drain system

DRAIN SYSTEM

Drain system can be installed using a oor drain, wall standpipe,

oor standpipe, or laundry tub. Select method you need.

IMPORTANT: To avoid siphoning, only 4.5" (114 mm) of drain

hose should be inside standpipe. Always secure drain hose with

cable tie.

* Recommended spacing of 1" (25 mm) on all sides of washer. ** Recommended spacing minimum 0" (0 mm)

(25 mm)

4" - 1½"**

(102 mm - 38 mm)

(102 mm)

(25 mm)

(178 mm

)

14"

(356 mm)

18"

(457 mm)

4" - 1½"**

(102 mm - 38 mm)

DRAIN SYSTEM

INSTALLATION INSTRUCTIONS

NOTE: To avoid oor damage, set washer onto cardboard

before moving it.

48"

(1.2 m)

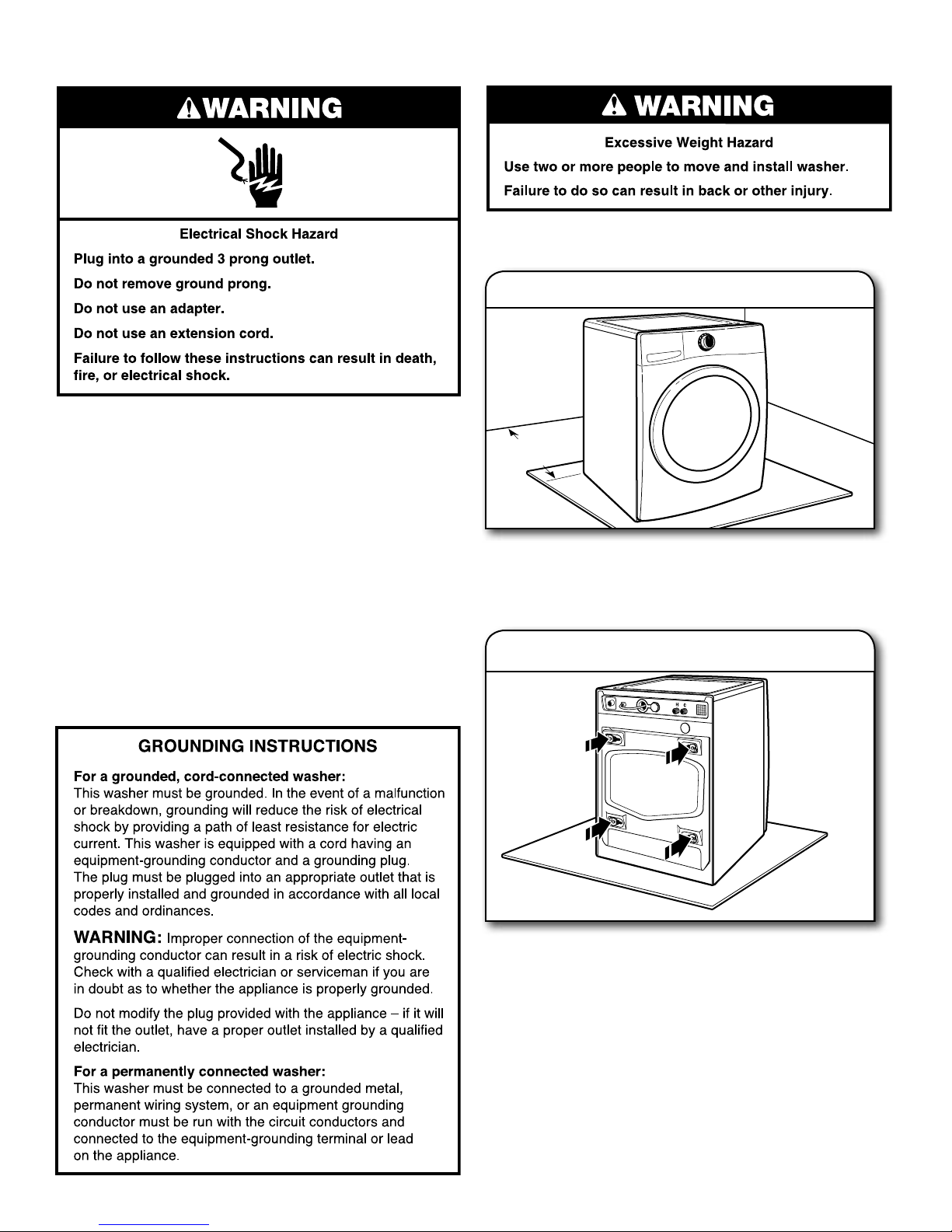

1. Move washer

It is necessary to remove all shipping materials for proper

operation and to avoid excessive noise from washer.

Move washer to within 4 ft (1.2 m) of its nal location. It must

be in a fully upright position.

ELECTRICAL REQUIREMENTS

n A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is recommended that a separate circuit

breaker serving only this appliance be provided.

nThis washer is equipped with a power supply cord having

a 3 prong grounding plug.

nTo minimize possible shock hazard, the cord must be plugged

into a mating, 3 prong, grounding-type outlet, grounded in

accordance with local codes and ordinances. If a mating outlet

is not available, it is the personal responsibility and obligation

of the customer to have the properly grounded outlet installed

by a qualied electrician.

nIf codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that

the ground path is adequate.

n Do not ground to a gas pipe.

n Check with a qualied electrician if you are not sure the

washer is properly grounded.

nDo not have a fuse in the neutral or ground circuit.

2. Locate transport bolts

Locate four transport bolts on rear of washer.

Loosen bolts with a 1/2" (13 mm) wrench. Slide each bolt and

spacer to center of hole. Pull bolts and plastic spacers from

back of washer. Discard bolts and spacers.

3. Remove transport bolts from

washer

Close bolt holes on cabinet back with four transport bolt hole

plugs included with washer parts.

4. Cover bolt holes with transport

bolt hole plugs

Pull power cord through opening in rear panel and close hole

with attached cap.

NOTE: If washer is transported at later date, call your local

service center to avoid suspension and structural damage,

a certied technician must properly set up washer for

relocation.

5. Remove power cord

CONNECT DRAIN HOSE

6. Place power cord over top

Remove the yellow shipping strap from the cord. Gently

place power cord over top of washer to allow free access

to back of washer.

IMPORTANT: Do not plug washer in until installation has

been completed.

If clamp is not already in place on elbow end of drain hose,

squeeze clamp with pliers and slide it over end of hose,

centering it between the ribs, as shown. Squeeze clamp with

pliers and slide elbow end of drain hose onto drain port and

secure with clamp.

For a laundry tub or standpipe drain, go to step 9.

For a oor drain, remove the preinstalled drain hose form

as shown in Step 8. You may need additional parts with

separate directions. See “Alternate Parts”.

It is the responsibility of the installer to install and secure the

drain hose into the provided plumbing/drain in a manner that

will avoid the drain hose coming out of or leaking from the

plumbing/drain.

7. Attach drain hose to drain port

Ribs

Run water for a few seconds through hoses into a laundry

tub, drainpipe, or bucket to avoid clogs. Water should run

until clear.

12. Clear water lines

11. Connect inlet hoses to water

faucets

For oor drain installations, you will need to remove the drain

hose form from the end of the drain hose. You may need

additional parts with separate directions. See “Alternate Parts”.

8. Remove drain hose form

(oor drain installations only)

Place hose into standpipe (shown in picture) or over side of

laundry tub.

IMPORTANT: Only 4.5" (114 mm) of drain hose should be

inside standpipe; do not force excess hose into standpipe or

lay on bottom of laundry tub. Drain hose form must be used.

9. Place drain hose in standpipe

4.5"

(114 mm)

Drain

hose form

CONNECT INLET HOSES

IMPORTANT: To avoid leaks, check that your water inlet

hoses have at washers at both ends. Washer must be

connected to water faucets with new inlet hoses with at

washers (not provided). Do not use old hoses. Do not use

hoses without washers.

Attach the hose labeled hot to hot water faucet. Screw

on coupling by hand until it is seated on washer. Use pliers

to tighten couplings an additional two-thirds turn. Repeat

this step with the hose labeled cold for the cold water faucet.

Both hoses must be connected for washer to work properly.

IMPORTANT: Do not overtighten or use tape or sealants on

valve when attaching to faucets or washer. Damage can result.

HELPFUL TIP: Make note of which hose is connected to hot

water to help in attaching hoses to washer correctly. In most

standard congurations, hoses will cross over each other

when attached correctly.

Insert new at washers

10.

A. Coupling B. Washer

LEVEL WASHER

Leveling your washer properly reduces excess noise

and vibration.

Remove cardboard from beneath washer. Place a level on top

edges of washer, checking each side and front. If not level, tip

washer and adjust feet up or down as shown in steps 18 and

19, repeating as necessary.

16. Check levelness of washer

Place level here

17. Rock washer to test foot contact

Grip washer from top and rock back and forth, making sure all

four feet are rmly on oor. Repeat, rocking washer from side

to side. If washer rocks, go to step 18 and adjust leveling feet.

If all four feet are in rm contact with oor, go to Step 19.

13. Connect inlet hoses to washer

Not Level LEVEL Not Level

Attach hot water hose to hot water inlet valve. Screw coupling

by hand until it is snug. Use pliers to tighten couplings an

additional two-thirds turn. Repeat with cold water inlet valve.

IMPORTANT: Do not overtighten or use tap or sealants on

valve when attaching to faucets or washer. Damage can result.

NOTE: To reduce risk of hose failure, replace the hoses every

5 years. Record hose installation or replacement dates for

future reference.

nPeriodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

Slowly turn on water faucets to check for leaks. A small

amount of water may enter washer. It will drain later.

14. Check for leaks

Secure drain hose to laundry tub leg, drain standpipe, or inlet

hoses for wall standpipe with cable tie.

15. Secure drain hose

4.5"

(114 mm)

4.5"

(114 mm)

4.5"

(114 mm) 4.5"

(113 mm)

4.5"

(114 mm)

Laundry Tub Standpipe Wall

20. Plug into a grounded 3 prong outlet

COMPLETE INSTALLATION

CHECKLIST

qCheck electrical requirements. Be sure you have correct

electrical supply and recommended grounding method.

qCheck that all parts are now installed. If there is an extra part,

go back through steps to see what was skipped.

qCheck that you have all of your tools.

qCheck that transport materials were completely

removed from back of washer.

qCheck that both hot and cold hoses are attached and water

faucets are on.

qCheck for leaks around faucets, valves, and inlet hoses.

qRemove protective lm from console and any tape

remaining on washer.

qCheck that washer is plugged into a grounded

3 prong outlet.

qDispose of/recycle all packaging materials.

qRead “Using Your Washer” in your Washer “Use and Care

Guide”.

qTo test and clean your washer, press power and choose the

QUICK WASH cycle and run it without clothes. Use only HE

detergent. Use 1/2 the manufacturer’s recommended amount

for a medium-size load.

If washer is not level, use a 9/16" or 14 mm open-end or

adjustable wrench to turn jam nuts clockwise on feet until they

are about 1/2" (13 mm) from the washer cabinet. Then turn the

leveling foot clockwise to lower the washer or counterclockwise

to raise the washer. Recheck levelness of washer and that all

four feet are rmly in contact with the oor. Repeat as needed.

HELPFUL TIP: You may want to prop up front of washer

about 4" (102 mm) with a wood block or similar object that

will support weight of washer.

When washer is level and all four feet are rmly in contact with

the oor, use a 9/16" or 14 mm open-end or adjustable wrench

to turn jam nuts counterclockwise on leveling feet tightly

against washer cabinet.

HELPFUL TIP: You may want to prop washer with

wooden block.

18. Adjust leveling feet

Jam nut

19. Tighten leveling feet

Jam nut

SÉCURITÉ DE LA LAVEUSE

Outillage facultatif :

4" min

(102 mm)

Cale en bois

Clés plates ou clés à

molette de 1/2" (13 mm)

et 9/16" (14 mm)

Règle ou mètre ruban

Niveau

Pince avec ouverture

jusqu’à 19/16" (39,5 mm)

Lampe de poche Seau

Outillage nécessaire :

EXIGENCES D’INSTALLATION

OUTILLAGE ET PIÈCES

Rassembler les outils et piéces nécessaires avant de

commancer l’installation.

Pièces nécessaires : (Non fournies avec la laveuse)

Tuyaux d’arrivée

d’eau (2) Rondelles plates pour

tuyau d’arrivée d’eau (4)

Table des matières

Langues :

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool LA5430XP Manuel utilisateur

Whirlpool

Whirlpool Commercial Washer Manuel utilisateur

Whirlpool

Whirlpool Gold GSW9545JQ0 Manuel utilisateur

Whirlpool

Whirlpool 3953950A Manuel utilisateur

Whirlpool

Whirlpool LBR5432PT2 Manuel utilisateur

Whirlpool

Whirlpool Cabrio,- WED7300X Manuel utilisateur

Whirlpool

Whirlpool FFD11469BSVUK Manuel utilisateur

Whirlpool

Whirlpool FWFBE71683 Manuel utilisateur

Whirlpool

Whirlpool Kirkland Signature SAWS800HQ0 Manuel utilisateur

Whirlpool

Whirlpool AWE 9527 Manuel utilisateur

Whirlpool

Whirlpool 3953955A Manuel utilisateur

Whirlpool

Whirlpool AWZ 9993 Manuel utilisateur

Whirlpool

Whirlpool WFW86HEBC Instructions de montage

Whirlpool

Whirlpool 7MWFW72HEDW0 Manuel utilisateur

Whirlpool

Whirlpool LB5300XK Manuel utilisateur

Whirlpool

Whirlpool FFB 8469 SBV SPT Manuel utilisateur

Whirlpool

Whirlpool FSCR12420 Guide d'installation

Whirlpool

Whirlpool AWM 827 Manuel utilisateur

Whirlpool

Whirlpool Cabrio WTW6400SW1 Instructions de montage

Whirlpool

Whirlpool FWL61252W UK Manuel utilisateur

Whirlpool

Whirlpool Duet Steam FRONT-LOADING AUTOMATIC WASHER Manuel utilisateur

Whirlpool

Whirlpool duet WFW9400SW00 Manuel utilisateur

Whirlpool

Whirlpool WTW4950X Series Manuel utilisateur

Whirlpool

Whirlpool WFW96HEYW Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
