TOP AND CABINET PARTS
1
For Model: WFW8300SW04
(White/Grey)
5−08 Printed in U.S.A. (drd) (eeb) Part No. W10205674 Rev. A
AUTOMATIC WASHER
TOP AND CABINET PARTS
2
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10117767
Use & Care Guide
W10071760
Tech Sheet
W10171154
Energy Guide
8540913 Quick Start Guide
2 8540716 Top
3
W10184997
Cabinet
4 8540572 Panel, Front
5 8540813 Toe Panel
6
W10121677
Foot, Leveling (4)
7 3359452 Nut, Lock (4)
8
W10110676
Strain Relief,
Power Cord
9 8518891 Rivet (2)
10 8540582 Panel, Rear
11
W10189659
Brace, Transport
12 8540199 Bolt, Shipping (4)
13 Hose, Water Inlet
8571377 Blue Coupler
8571378 Red Coupler
14
W10029820
Cord, Power
15
W10163005
Motor Control Unit
16
W10161694
Brace, Rear
17 8540093 Clamp, Tube
Transportation
18
W10114608
Hose, Drain
19 8540607 Retainer,
Hose Outlet
20 238614 Bumper (2)
21
W10015090
Screw, 8−18 x 5/8
22 8540230 Filter,
Interference
23
W10163980
Switch, Pressure
24 8540294 Hose, Pressure
Switch
25 8540479 Screw, Grounding
26 8540268 Cover, Transport
27 8540021 U−Bend,
Drain Hose
28
W10085220
Microswitch (2)
29 8540728 Sleeve,
Cord Support (2)
30 8540727 Screw, 3 x 8 mm
31 8540329 Screw
32 8540720 Brace, Top
(Includes Item 33)
33 8283273 Damper, Brace
34 2161302 Sleeve, Pressure
Switch Hose
35 3347868 Cable Tie
36 16123 Washer, Water
Inlet Hose (4)
1−1/16 x 5/8
37
W10168548
Harness Channel,
Top Rear
38
W10168546
Harness Channel,
Side Front
39
W10168547
Harness Channel,
Side Rear
40 8540669 Bracket,
Console Retainer
41 8533954 Screw
42 8540643 Bracket, Spring

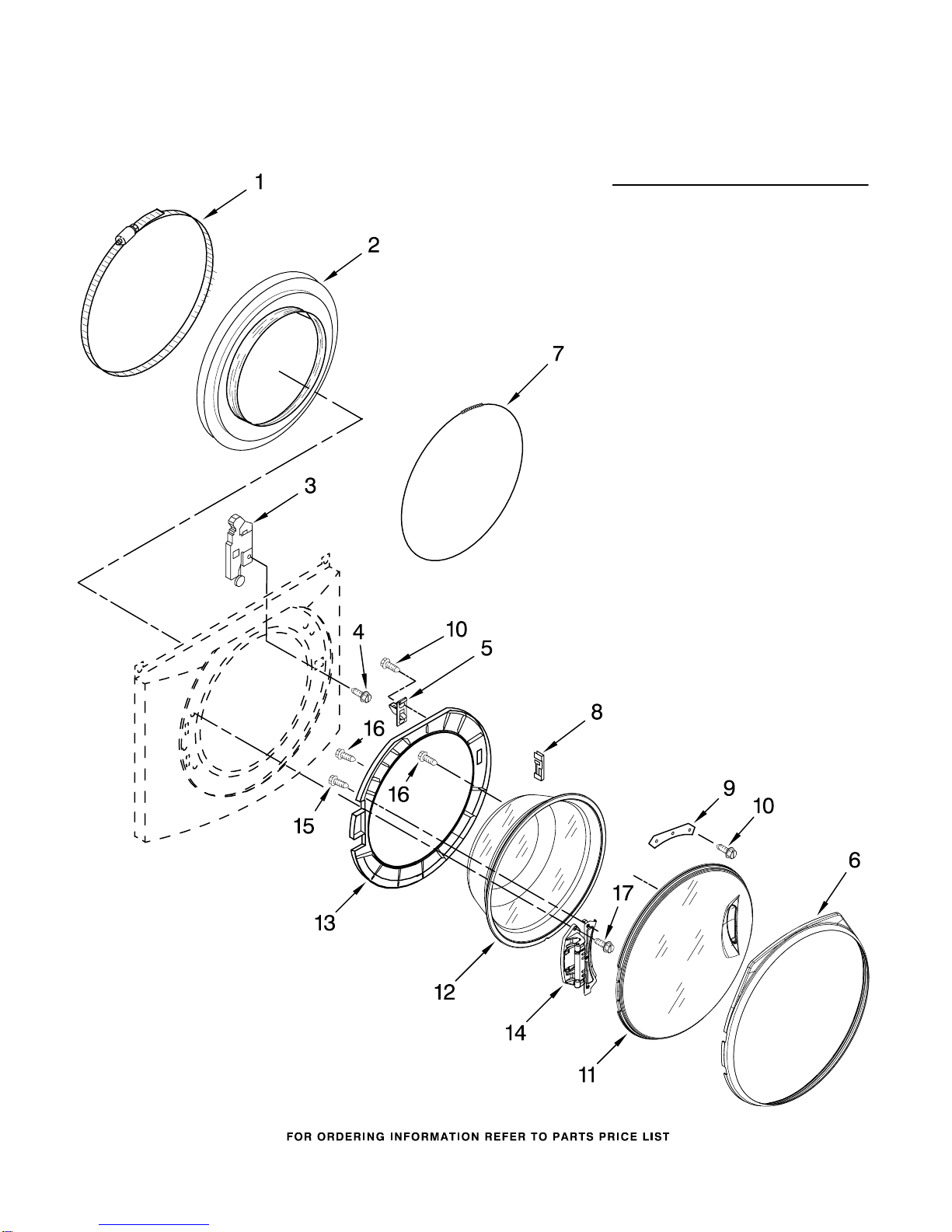

DOOR AND LATCH PARTS
3
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION
1 8540108 Clamp, Bellow
To Tub
2 8540952 Bellow
3 8540772 Lock, Door
4 8540725 Screw
5 8540221 Hook, Door
6 8540533 Trim Ring,
Outer Door
7 8540107 Clamp, Bellow
To Front Panel
8 8540115 Clamp, Support
9 8540114 Clamp, Glass (2)
10 8540513 Screw
11 8540588 Frame, Door
Front Assembly
12 8540428 Glass, Door
13
W10138523
Door,
Back Support
14 8540416 Hinge, Door
15 8540284 Screw
16 8540282 Screw
17
W10015090
Screw

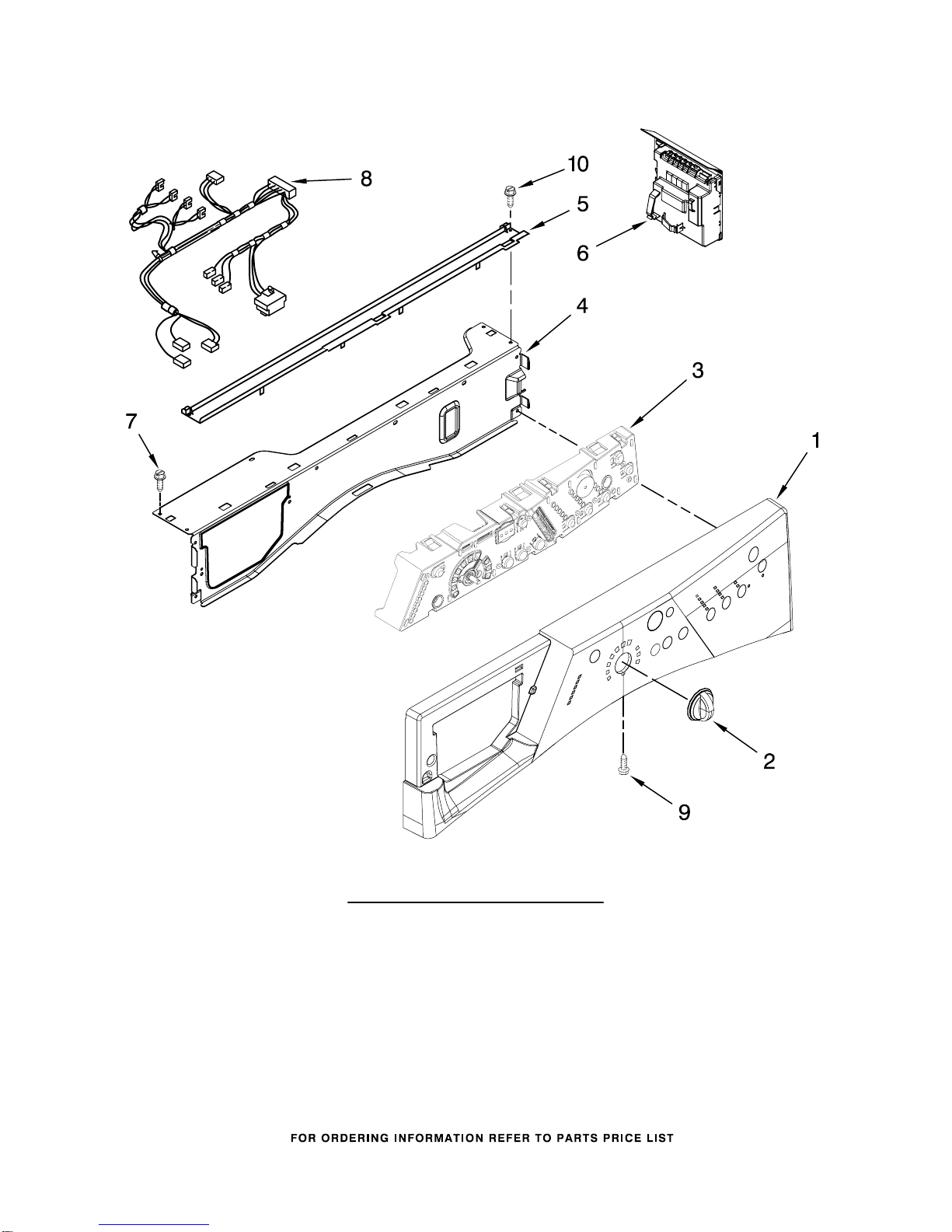

CONTROL PANEL PARTS
4
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION
1
W10099593
Panel, Control
2 8574963 Knob, Control
3 8571903 User Interface
4
W10161692
Brace, Top Front
5 8540839 Channel, Water
6
W10160252
Microcomputer,
Machine Control
7 3390647 Screw, 8−18 x 1/2
8
W10169929
Harness, Wiring
(Main)
9 8540282 Screw
10
W10015090
Screw, 8−18 x 5/8

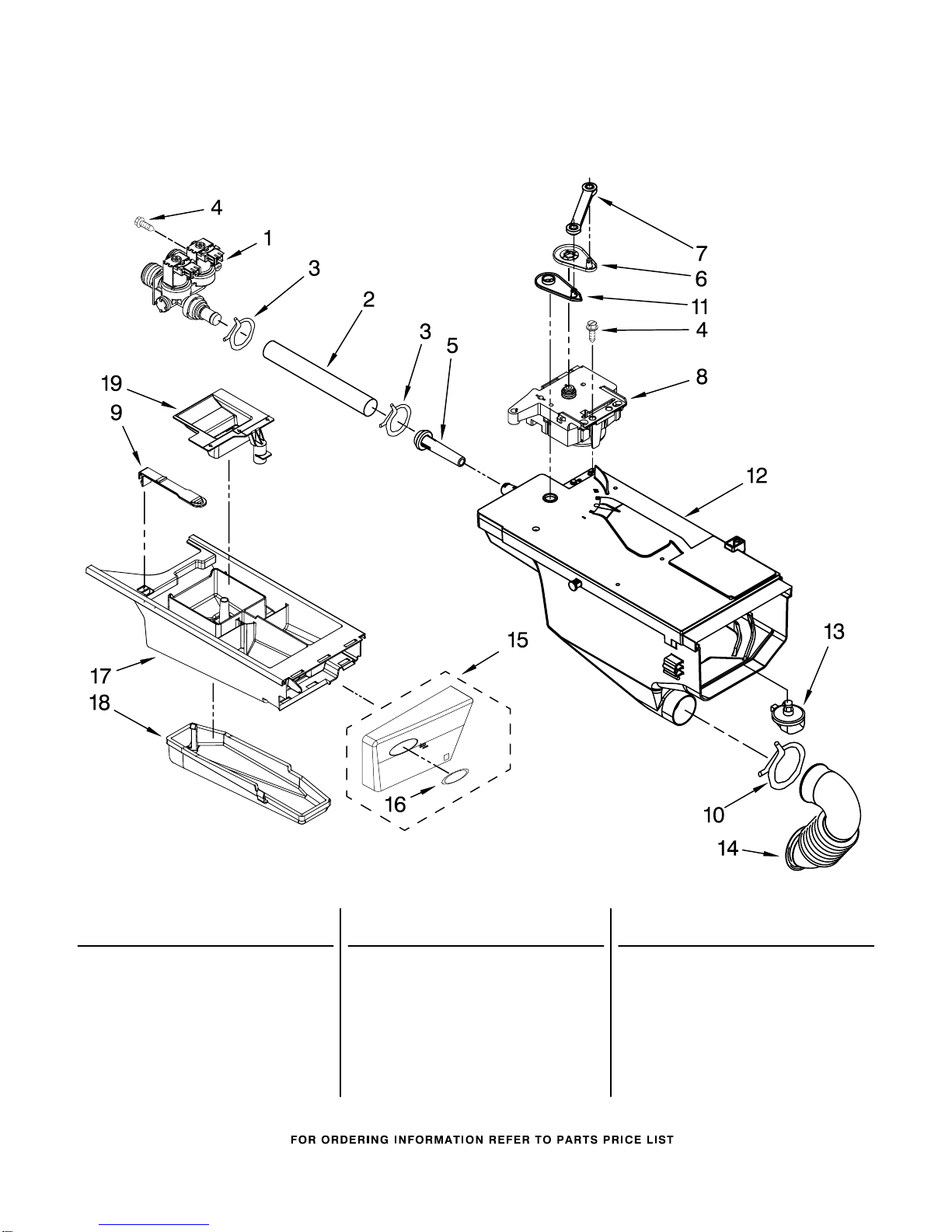

DISPENSER PARTS
5
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8540751 Valve, Inlet
2 8540065 Hose, Valve
To Dispenser
3 370450 Clamp, Hose
4 8540282 Screw, Valve Mtg.
5 8540042 Nozzle, Inlet
6 8540393 Cam, Actuator
7 8540394 Lever, Water
Distribution
8
W10143587
Actuator
9 8540400 Hook, Drawer
10 8281276 Clamp, Hose
11 8540395 Connection, Lever
12 8540058 Dispenser
13 8540053 Nozzle,
Distribution
14 8540063 Hose, Dispenser
To Tub
15 8571947 Handle, Drawer
16
W10117943
Medallion
17 8540402 Drawer,
Detergent
18 8540399 Cover,
Detergent Drawer
19 8540429 Siphon,
Bleach/Softener
PUMP AND MOTOR PARTS
6
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10166995
Harness, Motor
2 8540033 Cap, Lock Foot
3 8540180 Air Trap
4 8540013 Ball
5 8540008 Clamp
6 8540012 Hose,
Tub to Pump
7 370448 Clamp
8
W10034820
Foot, Rubber
(Slider)
9 356138 Clamp, Hose
10
W10130913
Pump (Complete)
11
W10034830
Foot, Rubber
(Lock)
12 8533964 Screw,
10−16 x 1.25 (2)
13 8540025 Seal, Filter Cap
14 8540996 Filter Assembly
(Includes Item 13)
15
W10140579
Motor, Drive
16 8540134 Bolt, Motor

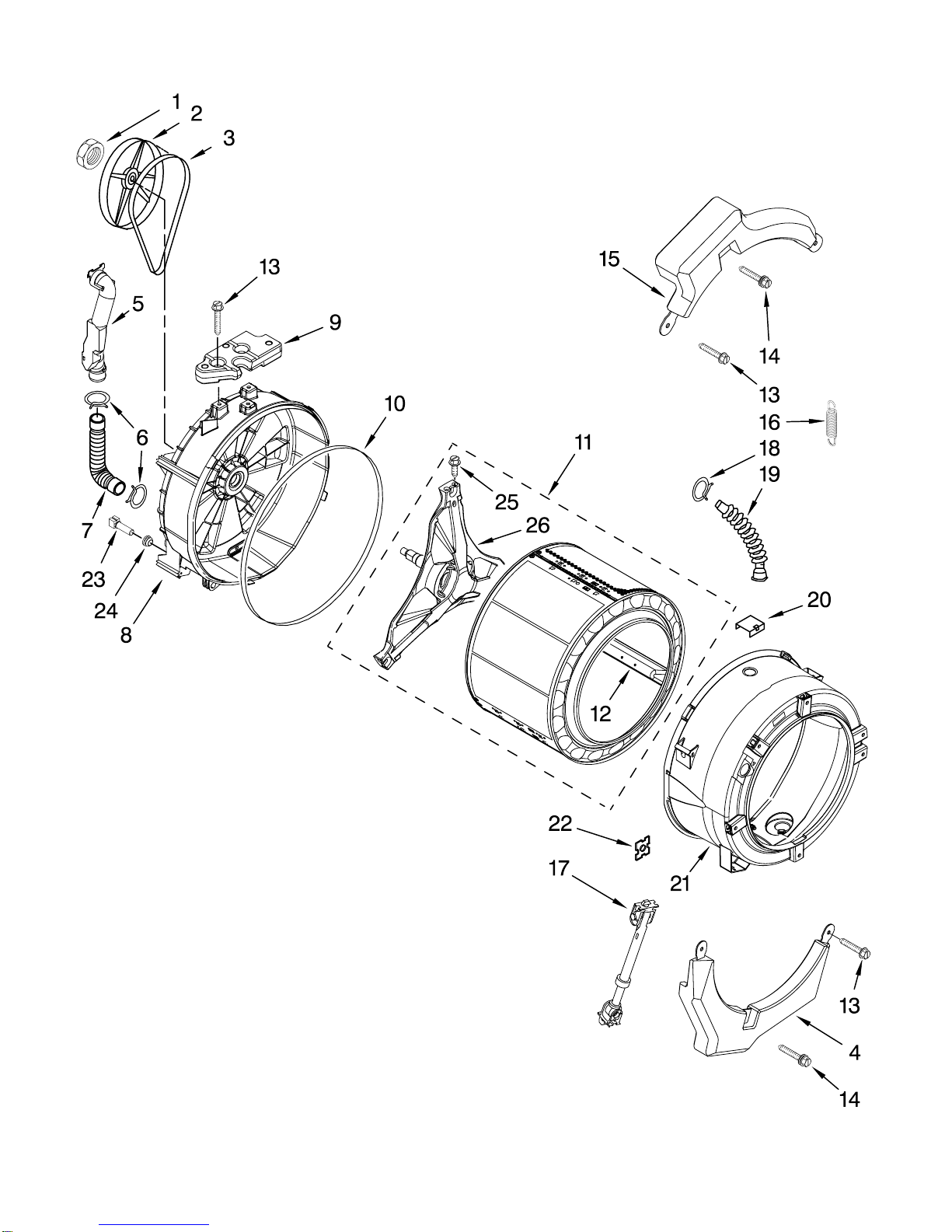

TUB AND BASKET PARTS
7
For Model: WFW8300SW04
(White/Grey)
W10205674
TUB AND BASKET PARTS
8
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION
1 8533999 Nut, Pulley
2 8540088C Pulley
3 8540101 Belt, Drive
4
W10151304
Counterweight,
Front Lower
5
W10112169
Pipe, Ventilation
6 8540010 Clamp, Vent Hose
7 8540019 Hose, Exhaust
8
W10112658
Tub, Rear
(Includes Items
10, 21 & 22)
9 8540602 Counterweight,
Rear
10 8540090 Gasket, Tub
11 8540451 Basket, Complete
12 8540456 Baffle, Tub
13
W10094780
Bolt,
Counterweight Mtg.
14
W10174473
Bolt Assembly,
Counterweight
Center Hole
15
W10151303
Counterweight,
Front Upper
16
W10010360
Spring,
Suspension
(Set Of 2)
17
W10163171
Shock Absorber (3)
18 3363365 Clamp, Hose
19 8540015 Hose, Exhaust
20 8540092 Clamp, Tub
21
W10112659
Tub, Front
(Includes Items
8, 10 & 22)
22 8540072 Nut, Push−In
23 8540226 Negative
Thermistor Control
24 8540766 Seal, Rubber
25 8540382 Screw
26 8540457 Crosspiece Asm
OPTIONAL PARTS (NOT INCLUDED)
9
For Model: WFW8300SW04
(White/Grey)
W10205674
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORY PARTS
285863 Drain Extension
W10135699
Affresh
Odor Remover
