Essential TRS Washing Machine Service Manual

Contents

I. Models Involved ...............................................................................................3-5

II. Specifications................................................................................................... 6-7

III. Circuit Diagram .............................................................................................. 8

IV. Structure ..........................................................................................................9-10

V. Function Settings and Display..........................................................................11-16

VI. Service Testing Procedures ............................................................................16-18

VII. Abnormality Alarms / Abnormality Indications ...........................................19-22

VIII. Exploded View ........................................................................................... 23-31

IX. Machine Disassembling Procedures ...............................................................32-44

X. Maintenance Precautions ..................................................................................45

I． Models Involved

Washer

Combo

WFC80602RT-D

WDC80602RT-D

WFC80602RT-G

WDC80602RT-G

WFC80602RT-C

WDC80602RT-C

FWEB8002GW

WWEB8503BW

FWEB8002FW

WWEB8502GW

FWEB8002FG

WWEB8502OW

WFC90604RT-D

WWEB9602IW

WFC90604RT-G

WWEB10702FG

WFC90604RT-C

WWEB10702FW

FWEB9002GW

WWEB11702OG

FWEB9002FW

WWEB11702GG

FWEB9002FG

WWEB11703BG

FWEB9002IW

WDC11704RG-D

FWEB9002IG

WDC11704RG-G

FWEB9503BW

WDC11704RG-C

WFC105604RT-C

WFC105604RT-D

WFC105604RT-G

FWEB10502FG

FWEB10502FW

FWEB10502GW

FWEB10503BW

No Model

Programme chart

Mixed Quick

Wash&dry60′ Gentle

Spin

Stain

Eco

cotton Wool

Hot air

refresh

Allergy

care

Sanitize

wash

Drum

clean

WFC80602RT-D ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC80602RT-G ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC80602RT-C ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB8002GW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB8002FW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB8002FG ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC90604RT-D ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC90604RT-G ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC90604RT-C ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9002GW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9002FW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9002FG ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9002IW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9002IG ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB9503BW ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC105604RT-C ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC105604RT-D ● ● ○ ● ●

● ● ● ○ ● ● ●

WFC105604RT-G ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB10502FG ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB10502FW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB10502GW ● ● ○ ● ●

● ● ● ○ ● ● ●

FWEB10503BW ● ● ○ ● ●

● ● ● ○ ● ● ●

WDC80602RT-D ● ○ ● ● ●

● ● ● ● ○ ● ●

WDC80602RT-G ● ○ ● ● ●

● ● ● ● ○ ● ●

WDC80602RT-C ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB8503BW ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB8502GW ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB8502OW ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB9602IW ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB10702FG ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB10702FW ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB11702OG ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB11702GG ● ○ ● ● ●

● ● ● ● ○ ● ●

WWEB11703BG ● ○ ● ● ●

● ● ● ● ○ ● ●

WDC11704RG-D ● ○ ● ● ●

● ● ● ● ○ ● ●

WDC11704RG-G ● ○ ● ● ●

● ● ● ● ○ ● ●

WDC11704RG-C ● ○ ● ● ●

● ● ● ● ○ ● ●

Remark：○means without this program，●means with this program；

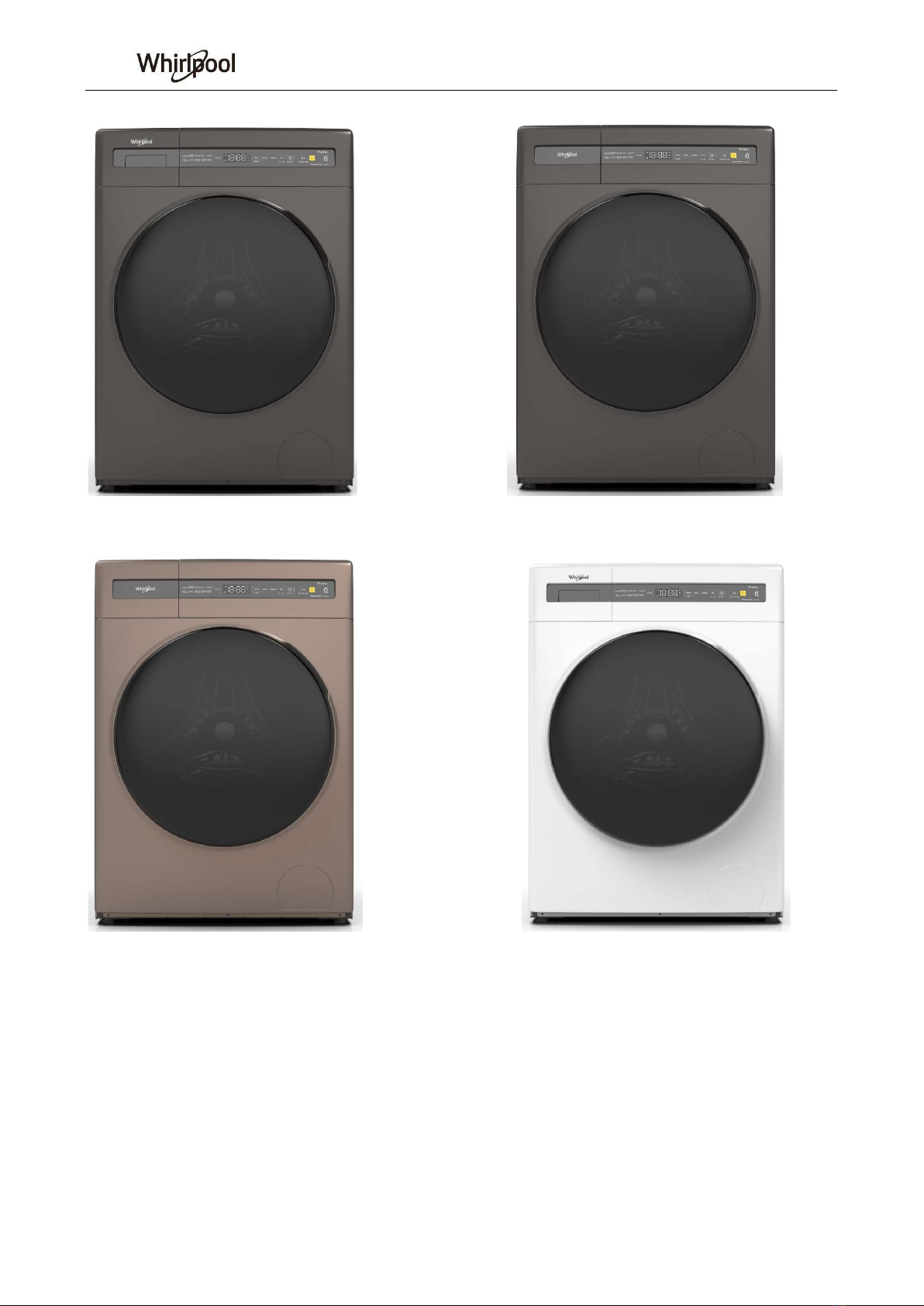

Machine images

II．Specifications

1．Platform Specification:

Models

Platform Specification

Wash

method

Spin

method

Wash

drive

metho

Spin

drive

metho

Water

level

detection

method

Volum

e /L

Inner

drum size

(mm)

Machine

dimension(mm

)

Transmissio

n ratio

Max

speed

Voltage/Frequenc

WFC80602RT-D

Drum

type

Horizont

centrifug

BLDC

+ belt

BLDC

+ belt

Diaphrag

m type

water

level

sensor

317×Φ50

600*599*850

12:1

1200

230V 50HZ

WFC80602RT-G 230V 50HZ

WFC80602RT-C 230V 50HZ

FWEB8002GW 220-240V 50HZ

FWEB8002FW 220V 50HZ

FWEB8002FG 220V 50HZ

WFC90604RT-D

339×Φ50

1400

230V 50HZ

WFC90604RT-G 230V 50HZ

WFC90604RT-C 230V 50HZ

FWEB9002GW 220-240V 50HZ

FWEB9002FW 220V 50HZ

FWEB9002FG 220V 50HZ

FWEB9002IW 220-240V 50HZ

FWEB9002IG 220-240V 50HZ

FWEB9503BW 230V 60HZ

WFC105604RT-C

360×Φ50

600*599*850

230V 50HZ

WFC105604RT-D 230V 50HZ

WFC105604RT-G 230V 50HZ

FWEB10502FG 220V 50HZ

FWEB10502FW 220V 50HZ

FWEB10502GW 220-240V 50HZ

FWEB10503BW 230V 60HZ

WDC80602RT-D

317×Φ50

600*635*850

230V 50HZ

WDC80602RT-G 230V 50HZ

WDC80602RT-C 230V 50HZ

WWEB8503BW 230V 60HZ

WWEB8502GW 220-240V 50HZ

WWEB8502OW 220-240V 50HZ

WWEB9602IW

360×Φ50

220-240V 50HZ

WWEB10702FG 220V 50HZ

WWEB10702FW 220V 50HZ

WWEB11702OG 220-240V 50HZ

WWEB11702GG 220-240V 50HZ

WWEB11703BG 230V 60HZ

WDC11704RG-D 230V 50HZ

WDC11704RG-G 230V 50HZ

WDC11704RG-C 230V 50HZ

Washer Combo

capacity /kg 8

9.5

10.5

8 9 10.5 11

Washing capacity /kg

Washing

capacity

/kg

Drying

capacity

/kg

Washing

capacity

/kg

Drying

capacity

/kg

Washing

capacity

/kg

Drying

capacity

/kg

Washing

capacity

/kg

Drying

capacity

/kg

capacity 8

9.5

10.5

8 5 9 6 10.5 7 11 7

Mixed 6

6.5

7 6 5 7 6 7 7 7 7

Quick 1

1 1 / / / / / / / /

Wash&dry60′ /

/ / 1 1 1 1 1 1 1 1

Gentle 2

3 4 2 2 4 2 4 2 4 2

Spin 8

9.5

10.5

8 5 9 6 10.5 7 11 7

Stain 3

3.5

4 3 3 4 3.5 4 4 4 4

Eco cotton 8

9.5

10.5

8 5 9 6 10.5 7 11 7

Wool 2

2 2 2 - 2 - 2 - 2 -

Hot air refresh

/ / - 2 - 3 - 3 - 3

Allergy care 4

4.5

5 / / / / / / / /

Sanitize wash 6

6.5

7 6 4 7 5 7 5 7 5

Drum clean 0

0 0 0 0 0 0 0 0 0 0

2． Main components specifications

Component name Specification

drain pump PCX-30G 220-240V 50Hz 30W ；PhilippinePCX-30I 220-240V 60Hz 20W

Power ON/OFF Touch (with automatic power-saving)

Start/pause switch Touch type/push-on

Water level sensor

Frequency range 3.950～4.910±0.016kHz；

Control the water level 0 ～310±20mmH2O；Working temperature ：-20℃ ～

70℃

（Radiant、lite+DD）

Washing and spinning motor BLDC motor，sBPM500

Heating pipe for washing 1800W

Heating pipe for drying 1500W

Buzzer Electronic buzzer

Temperature sensor

( Heating for washing)

Resistance R (50 ° C) = 19.73 kΩ

B parameter (25/85 °C) = 3992K

Temperature Sensor

(For drying)

Resistance R (50 °C) = 20.00 kΩ

B parameter (25/100 ° C) = 3900 K

Options switch Touch type

Door lock switch Forcefully opening type, electromagnetic door lock, double-pulse unlocking.

Water inflow valve

(One-way in two-way out ③)

1 ) . Operating water pressure range： 0.02~1.0Mpa

2) Main water inflow 8 L/min, condensing 1.2 L/min (0.5~1.0 MPa, rated voltage)

Water inflow valve

(One-way in three-way out②)

1 ) . Operating water pressure range： 0.02~1.0Mpa

2) Main water inflow, softener flow 9.5L / min, condensing water 1.5 L/min (0.5 ~ 1.0

MPa, rated voltage)

Note:

②The water inlet valve is restrained and just used for drying models.

③ The water inlet valve is restrained and just used for non-drying models.

III. Circuit Diagram

Circuit Diagram of washer

Circuit Diagram of combo

IV .structre

1. Structure diagram (see assembling drawing)

2. Water line system

Water inflow: inlet pipe - → inlet valve - → inlet box - → outer drum

Drainage: inner drum · outer drum - → water pump - → drainage pipe

Defoaming: inlet pipe - → inlet valve - → defoaming port - → inner drum · outer drum

Dehumidification: inlet pipe - → inlet valve - → condensate water pipe - → dehumidification pipe

- → outer drum - → drain valve - → inner drain pipe

Schematic diagram is as follows: (see attached drawings, only for drying models)

3. Hot air path

Fan motor―→Hot air channel―→drum―→condenser―→Fan motor
