UseAndCare

A Note to You ......................... 2

Washer Safety ........................ 3

Parts and Features ................. 4

Operating Your Washer ......... 5

Starting your washer.. ......... 5

Stopping/restarting

your washer ........................ 7

Selecting a cycle and time ...7

Using rinse and spin ........... 9

Using drain and spin ........... 9

Understanding normal

washer sounds.. .................. 9

Understanding what

happens in each cycle ...... 10

MAGIC CLEAN* lint filter .... 10

Adding liquid chlorine

bleach ............................... 11

Adding liquid fabric

softener.. ........................... 11

Caring for Your Washer ....... 12

Laundry Tips.. ....................... 13

Removing Stains .................. 18

Troubleshooting ................... 21

Requesting Assistance or

Service in the U.S.A. ............ 23

Requesting Assistance or

Service in Canada ................ 24

Warranty, U.S.A. ................... 25

Warranty, Canada.. ............... 26

THREE SPEED AUTOMATIC WASHERS

WITH HAND WASHABLE CYCLE

3366865

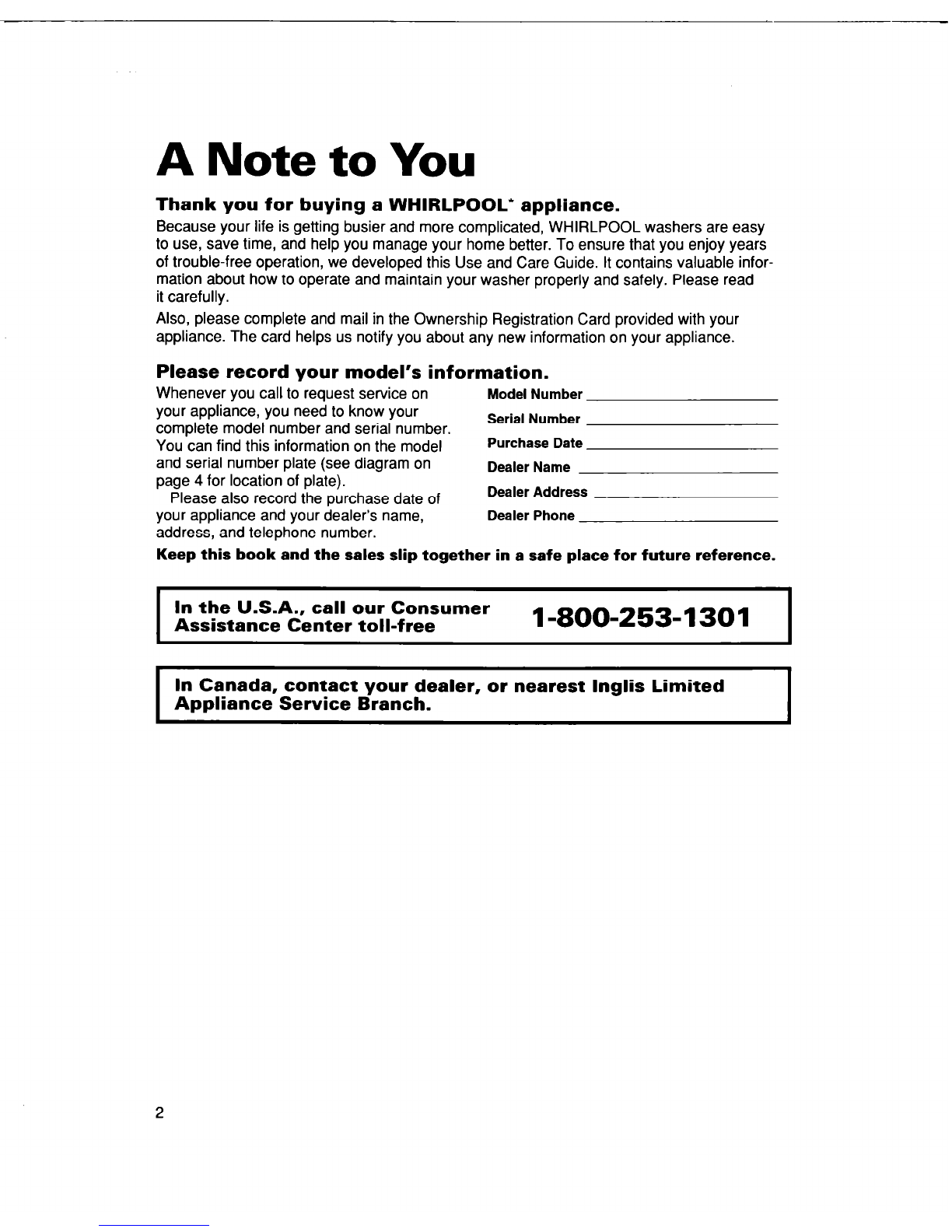

A Note to You

Thank you for buying a WHIRLPOOL* appliance.

Because your life is getting busier and more complicated, WHIRLPOOL washers are easy

to use, save time, and help you manage your home better. To ensure that you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable infor-

mation about how to operate and maintain your washer properly and safely. Please read

it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Dealer Name

page 4 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

In the U.S.A., call our Consumer

Assistance Center toll-free

1-800-253-1301 1

I In Canada, contact your dealer, or nearest lnglis Limited

Appliance Service Branch. I

Washer Safety

Your safety is important to us.

This symbol alerts you

This guide contains safety statements

under warning symbols. Please pay special !

hazards such as fire, electrical

shock, or other injuries.

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the symbol.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

- To reduce the risk of fire, electric shock, or injury t!,

persons when using the washer, follow basic precautions, including the

following:

*Read all instructions before using *Do not allow children to play on

the washer. or in the washer. Close supervi-

*Do not wash articles that have sion of children is necessary

been previously cleaned in, when the washer is used near

washed in, soaked in, or spotted children.

with gasoline, dry-cleaning @Before the washer is removed

solvents, other flammable, or from service or discarded, re-

explosive substances as they move the door.

give off vapors that could ignite aDo not reach into the washer if

or explode. the tub or agitator is moving.

ADO not add gasoline, dry-cleaning @Do not install or store the washer

solvents, or other flammable, or where it will be exposed to the

explosive substances to the wash weather.

water. These substances give

off vapors that could ignite or @Do not tamper with controls.

explode. @Do not repair or replace any part

@Under certain conditions, hydro- of the washer or attempt any

gen gas may be produced in a hot servicing unless specifically

recommended in this Use and

water system that has not been

used for 2 weeks or more. HYDRO- Care Guide or in published

GEN GAS IS EXPLOSIVE. If the user-repair instructions that you

understand and have the skills to

hot water system has not been

used for such a period, before carry out.

using the washing machine, turn *See Installation Instructions for

on all hot water faucets and let the grounding requirements.

water flow from each for several

minutes. This will release any

accumulated hydrogen gas. As

the gas is flammable, do not

smoke or use an open flame

during this time.

- SAVE THESE INSTRUCTIONS -

Parts and Features

The parts and features of your washer are illustrated on this page. Become familiar with all

parts and features before using your washer. Page references are included next to some

features. Refer to those pages for more information about the features.

NOTE: The drawings in this book may vary from your washer model. They are de-

signed to show the different features of all models covered by this book. Your model

may not include all features.

Load size

Cycle signal

Water temperature Extra rinse

selector selector

(P. 6)

!P. 7) \ , select;; , sel;;;

tr-

Liquid chlorine

/ bleach dispenser

CLEAN TOUCH*

panel

Liquid fabric

softener

dispenser /

(P. 11)

Cycle control knob

(PP. 7-9)

(P. 11)

Model and serial

- number plate

(under lid)

1 Basket

\Tub

MAGIC CLEAN*

lint filter

(bottom of washer

basket)

(P. 10)

Operating Your Washer

To obtain the best washing results, you must operate your washer properly. This section

gives you this important information. Page references are included for more information.

Explosion Hazard

Never place items in the washer that

are dampened with gasoline or other

flammable fluids.

Do not wash or dry items soiled with

vegetable or cooking oils because

they may contain some oil after

laundering.

Doing so can result in death,

explosion, or fire.

Starting your washer

1. Add measured detergent to the

washer. Then place a sorted load of

clothes in the washer.

. Sort and load clothes as described on

pages 13 and 14.

l If desired, you may also add color safe

bleach or extra detergent for the Super

Wash cycle.

2. (OPTIONAL STEP) If desired, add

measured liquid chlorine bleach to the

liquid bleach dispenser. See page 11.

l Use only liquid chlorine bleach in the

bleach dispenser.

3. (OPTIONAL STEP) If desired, pour

measured liquid fabric softener into

the liquid fabric softener dispenser.

See page 11.

4. Close the washer lid.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Liquid fabric

softener dispenser bleach dispenser

continued on next page

5. Turn the Load Size Selector to the

setting that corresponds with the size

of your wash load and the type of

fabric being washed.

l See pages 13 and 14 for loading

suggestions.

l The Load Size Selector has 5 settings:

Extra Small, Small, Medium, Large, and

Extra Large.

l To change the load size setting after

the washer has started to fill, turn the

Selector to the desired new setting.

6. Select wash-rinse-final spray rinse

temperatures with the CLEAN TOUCH*

Water Temperature Selector. Match the

water temperatures with the type of

fabric and soils being washed.

l See page 15 for water temperature

guidelines.

l Five wash-rinse-final spray rinse

temperature selections are available:

hot-cold-cold, warm-cold-cold,

cold-cold-cold, warm-warm-warm,

and warm-cold-warm. A colored

indicator shows the setting you select.

NOTE: With the warm-cold-warm

temperature combination, you can save

energy with a cold rinse, but warm the

load with final warm sprays. This makes

the load more comfortable to handle and

helps reduce drying time.

7. (OPTIONAL STEP) Set the Extra Rinse

selector to On for an additional rinse

and spin at the end of the wash cycle.

l Use the Extra Rinse option when adding

extra detergent for the Super Wash

cycle, or any other cycle. Extra Rinse is

available in all cycles.

Medium

Extra

Large

Load Size

Temperature

on 7t

Extra Rinse I

8. (OPTIONAL STEP) Set the Cycle

Signal selector to On if you want the

washer to alert you when the wash

cycle Is complete.

. The signal is helpful when you are

washing items that should be removed

from the washer as soon as the

cycle ends.

9. Push in the Cycle Control Knob and

turn it clockwise to the wash cycle

you want. See pages 8 and 9.

10. Pull out the Cycle Control Knob to

start the washer.

Cycle Signal

Stopping/restarting your washer

l To stop the washer at any time, push in

the Cycle Control Knob.

l To restart the washer, close the lid

(if necessary) and pull out the Cycle

Control Knob.

Selecting a cycle and time

This section illustrates and describes the

wash cycles you can select with the Cycle

Control Knob. Use this information to help

you make the best cycle selections for your

wash loads. Each cycle is designed for

different types of fabrics and soil levels.

l The washer pauses briefly throughout

each cycle. These pauses are normal for

washer operation.

l Refer to page 9 to learn more about the

sounds you may hear during a wash cycle.

l Refer to page 10 to help you understand

what happens during a wash cycle.

continued on next page

Super Wash cycle

The Super Wash cycle (18 minutes) features

an extended

wash time for

washing heavily

soiled loads that

need maximum

soil removal.

For improved

cleaning, use two

times the amount

of detergent recommended for a wash cycle.

Normal cycle

The Normal cycle features the Gentle Wash

system (high and

low agitation) and

spin speeds. High

spin speeds

shorten drying

time. Use this

cycle for cleaning

cotton and linen

fabrics. Select

9 (Regular), 12 (Heavy), or 15 (Ex Heavy)

minutes of wash time, depending on whether

your !oad is moderately or heavily soiled.

For lightly soiled cotton and linen fabrics,

use the 6-minute Softwash setting.

Permanent Press cycle

The Permanent Press cvcle features the

Gentle Wash

system (high

and low agitation

speeds). A cool-

down rinse and

low spin speeds

reduce wrinkling.

Use this cycle for

cleaning perma-

nent press and some synthetic fabrics.

Select 6 (Light) or 9 (Regular) minutes of

wash time, depending on whether your wash

load is lightly or moderately soiled.

Delicate cycle

The Delicates cycle features an extra low

agitation speed

for gentle soil

removal. Low

spin speeds

reduce wrinkling.

Use 6 minutes of

time for cleaning

lightly to moder-

ately soiled

ble knits.

Ultimate Care cycle

(Hand Washables)

The Ultimate Care (Hand Washables) cycle

features a series

of brief, extra low

speed agitations

(7 seconds) and

short soaks

(13 seconds)

to gently clean

special-care

items. Low spin

speeds reduce wrinkling. Use 6 minutes of

wash time to clean lightly soiled hand

washables.

Wash small loads. If items appear to be

floating (due to trapped air), stop the washer

by pushing in the Cycle Control Knob. Push

items down into the water and restart the

washer. Refer to “Hand Washables” on

page 16 for more information.

Using rinse and spin

When using extra detergent for heavily

soiled clothes, or washing special-care

items, you may find an extra rinse and spin

is needed.

1. For an additional rinse, push in the Cycle

Control Knob and turn clockwise to Rinse,

as illustrated.

2. Pull out the Cycle Control Knob. The

washer fills to selected load size,

agitates, drains, and spins.

Using drain and spin

A drain and spin may help shorten drying

times for some heavy fabrics or special-care

items by removing excess water.

1. Push in the Cycle Control Knob and turn

clockwise to Spin, as illustrated.

2. Pull out the Cycle Control Knob. The

washer drains, then spins.

Understanding normal washer sounds

Your new washer may make sounds that

your old one didn’t. Because the sounds are

unfamiliar, you may be concerned about

them. Don’t be: most of them are normal.

The following describes some of the

sounds you may hear and what causes

them.

During drain

The rate that water is drained from your

washer depends on your installation. If water

is drained quickly from the washer, you may

hear air being pulled through the pump. This

happens during the end of draining.

During washing After drain and before spin

When you select a small load size setting for When the cycle changes from draining to

a small wash load, your washer has a lower spinning, you may hear gears engaging.

water level. With this lower water level, you

may hear a clicking sound from the upper

portion of the agitator.

Understanding what happens in each cycle

When the Cycle Control Knob is set to a

number and pulled out, the washer fills (to

the selected load size) before agitation and

timing start. The washer begins agitating

immediately after filling; agitation occurs with

the washer lid up or down.

During agitation, the XTRA ROLL ACTION*

agitator creates

a continuous

rollover action

that provides a

thorough cleaning

of the wash load.

After agitation starts, the Cycle Control Knob

turns clockwise until it points to an Off area

and the cycle ends.

NOTES:

l The washer pauses briefly throughout

each cycle. These pauses are normal for

washer operation.

l A Gentle Wash system helps protect your

fabrics by reducing wash agitation speed

during the last few minutes of wash

agitation in the Normal and Permanent

Press cycles.

WASH RINSE

Fill Fill

Wash selected time Rinse

Draint

No agitation

*The Permanent Press cycle partially

drains, fills, agitates briefly, and drains.

Spin

t.....l

M-e Drain-No agitation

lra

Spin-Spray rinse

MAGIC CLEAN* lint filter

The lint filter at the bottom of the washer

basket cleans itself. During agitation, wash

and rinse water passes over the filter,

separating the lint from the water. The lint is

then spun away from the filter and out of the

system during the spin part of the cycle.

If your washer drains into a tub, remove

any lint collected in the tub or strainer.

MAGIC CLEAN Basket

lint filter interior

Table des matières

Langues :

Autres manuels Whirlpool Rondelle

Whirlpool

Whirlpool 1CWTW4800 Manuel utilisateur

Whirlpool

Whirlpool LCE4332PQ - 22" Washer w/2.1 cu. Ft.... Manuel de la liste des pièces

Whirlpool

Whirlpool AWE 2217 Manuel utilisateur

Whirlpool

Whirlpool LHW0050PQ3 Manuel utilisateur

Whirlpool

Whirlpool 2DLSQ8000JQ0 Manuel utilisateur

Whirlpool

Whirlpool WFW9620HW0 Manuel utilisateur

Whirlpool

Whirlpool WMG 641 Manuel utilisateur

Whirlpool

Whirlpool 8LSC6244BG0 Manuel utilisateur

Whirlpool

Whirlpool AWT 2250/1 Manuel utilisateur

Whirlpool

Whirlpool Cabrio 6AWTW5550XW Manuel utilisateur

Whirlpool

Whirlpool FWFBE71683 Manuel utilisateur

Whirlpool

Whirlpool SAWB600JQ1 Manuel utilisateur

Whirlpool

Whirlpool WWDC 8420/1 Manuel utilisateur

Whirlpool

Whirlpool LA78OOXS Manuel utilisateur

Whirlpool

Whirlpool LSR6132DQ0 Manuel utilisateur

Whirlpool

Whirlpool WTW4810BQ1 Manuel utilisateur

Whirlpool

Whirlpool cabrio W10164751A Manuel utilisateur

Whirlpool

Whirlpool 3363569 Manuel utilisateur

Whirlpool

Whirlpool Cabrio WTW6700T Manuel utilisateur

Whirlpool

Whirlpool LA5720XTW0 Manuel utilisateur

Whirlpool

Whirlpool RAB3121EW0 Manuel utilisateur

Whirlpool

Whirlpool AWM8121 Manuel utilisateur

Whirlpool

Whirlpool AWT 5108/4 Manuel utilisateur

Whirlpool

Whirlpool CABRIO W10280477B Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
